基于流式细胞仪鉴定树莓倍性方法的建立及应用

doi:10.13560/j.cnki.biotech.bull.1985.2025-0475

摘要/Abstract

摘要：

目的建立一套高效易行检测树莓细胞倍性的方法，鉴定不同树莓种质的细胞倍性，为树莓倍性育种和杂交育种奠定理论基础。方法以树莓叶片为材料，对不同的解离液、叶片来源、叶龄、叶片的保存和运输方式等条件进行优化，建立流式细胞术检测树莓细胞倍性的方法，并使用此方法检测黑树莓、红树莓、黄树莓等不同树莓种质叶片、根以及愈伤组织的细胞倍性。结果流式细胞仪法检测树莓叶片细胞倍性时，解离液Ⅵ（WPB）制备的细胞核悬浮液上机检测效果最好，收集到的细胞核数最多，峰图最好；田间苗和组培苗嫩叶制备的细胞核悬浮液检测效果最好，成龄叶次之；把叶片夹在2层润湿滤纸中间并放于塑料平皿后，置于低温泡沫箱中，直接带着样品上机检测效果更好，将叶片从植株剪下后直接浸泡至装有无菌水的50 mL离心管中，再邮寄样品上机检测的效果次之；流式细胞仪检测叶片的直方图主峰位于荧光强度值10 000附近，用此检测方法鉴定了15个树莓种质叶片细胞的倍性均为二倍体，鉴定了‘龙园双丰’‘波尔卡’的根和愈伤组织的细胞倍性也均为二倍体。结论建立了一套能够检测不同发育时期和不同生长环境下树莓叶片和根以及愈伤组织细胞倍性的方法，并用此方法检测了黑树莓、红树莓和黄树莓共15个不同种质树莓倍性均为二倍体。

关键词: 树莓, 细胞, 倍性检测, 流式细胞术, 叶片, 根, 愈伤组织, 快速鉴定

Abstract:

Objective To establish a set of efficient and easy-to-operate methods for detecting the ploidy of raspberry cells, and then use this method to identify the ploidy of different raspberry germplasms, laying a theoretical foundation for ploidy breeding and hybrid breeding of raspberry. Method Taking raspberry leaves as the material, different dissociating solutions, leaf sources, leaf ages, leaf preservation and transportation methods and other conditions were optimized to establish a method for detecting the ploidy of raspberry cells by flow cytometry. This method was used to detect the cell ploidy of leaves, roots and callus of different raspberry germplasms including black raspberry, red raspberry and yellow raspberry. Result The nuclear suspension prepared with dissociating solution VI (WPB) had the best detection effect when using flow cytometry to detect the ploidy of raspberry leaf cells, with the most collected nucleus and the best peak graph. The nuclear suspension prepared from the young leaves of field-seedlings and tissue-culturing seedlings had the best detection effect, followed by that from adult leaves. The best detection effect was achieved by placing the leaves between two layers of moist filter paper and then putting them in a plastic petri dish, and then placing the plastic petri dish in a low-temperature foam box for direct detection with the sample. The second-best effect was achieved by cutting the leaves from the plant and directly soaking them in a 50 mL sterile water-filled centrifuge tube before mailing the sample for detection. The main peak of the flow cytometry histogram of the leaves was located near the fluorescence intensity value of 10 000. Using this detection method, the ploidy of 15 raspberry germplasm leaf cells was all determined to be diploid, and the ploidy of the roots and callus of ‘Longyuan shuangfeng’ and ‘Polka’ was also determined to be diploid. Conclusion This study established a method capable of detecting the cell ploidy of raspberry leaves, roots, and calli at different developmental stages and under different growth environments. Using this method, a total of 15 raspberry germplasms, including black raspberries, red raspberries, and yellow raspberries, were tested, and all were found to be diploid.

Key words: raspberry, cell, ploidy identification, flow cytometry, leaves, roots, callus tissue, rapid identification

青梦瑶, 田林, 李迎超, 史瑞基, 张瑞杰, 郑奕宸, 孙权, 李寒, 顾玉红. 基于流式细胞仪鉴定树莓倍性方法的建立及应用[J]. 生物技术通报, 2025, 41(11): 228-235.

QING Meng-yao, TIAN Lin, LI Ying-chao, SHI Rui-ji, ZHANG Rui-jie, ZHENG Yi-chen, SUN Quan, LI Han, GU Yu-hong. Establishment and Application of a Method for Identifying Raspberry Ploidy Based on Flow Cytometry[J]. Biotechnology Bulletin, 2025, 41(11): 228-235.

图/表 7

图1 不同来源不同叶龄的树莓叶片

Fig. 1 Raspberry leaves of diverse origins and leaf ages

图2 不同树莓品种鉴定细胞倍性的嫩叶

Fig. 2 Young leaves of different raspberry germplasm

图3 不同解离液解离红树莓叶片的相对核DNA含量直方图图中X轴为荧光强度代表的相对DNA含量，Y轴为细胞核数量，下同

Fig. 3 Histogram of relative nuclear DNA contents in red raspberry leaves dissociated with different dissociating solutionsIn the figure, X-axis is the relative DNA content represented by fluorescence intensity, and Y-axis is the number of nuclei. The same below

图5 不同运输和保存方式的树莓叶片的相对核DNA含量直方图

Fig. 5 Histogram of relative nuclear DNA contents in the raspberry leaves with different transport and preservation modes

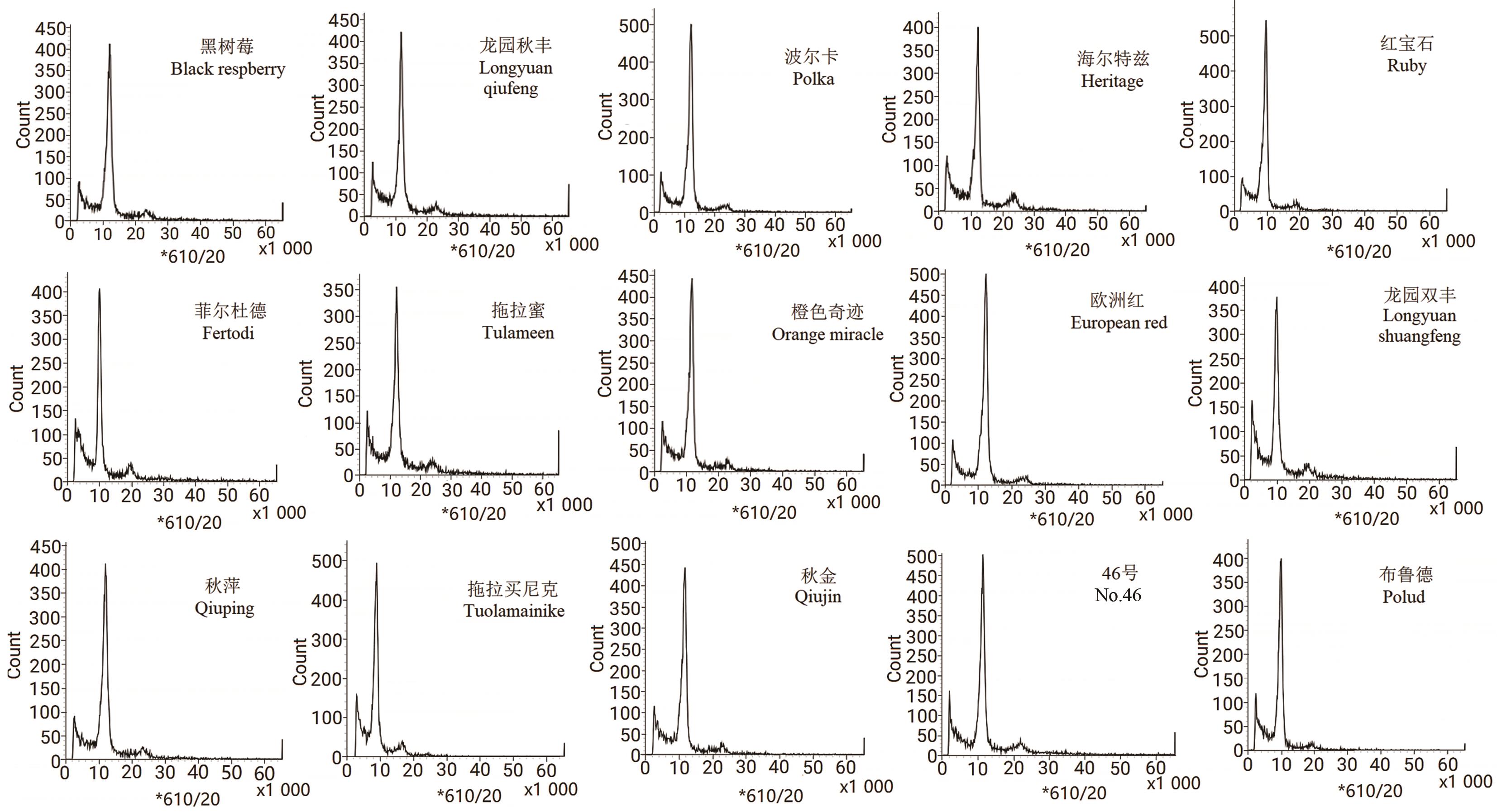

图6 不同树莓种质的相对核DNA含量直方图

Fig. 6 Histogram of relative nuclear DNA contents of different raspberry germplasms

图7 红树莓的根和愈伤组织

Fig. 7 The roots and the calluses of red raspberry

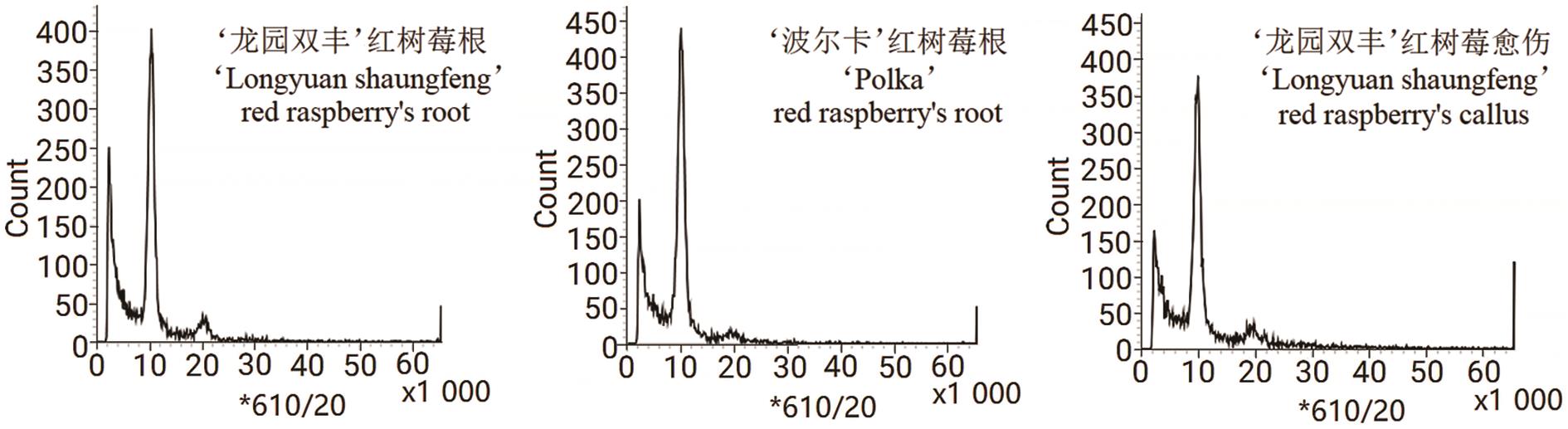

图8 流式细胞仪法检测红树莓根和愈伤组织的细胞倍性

Fig. 8 The cell ploidy of red raspberry root and calluses determined by flow cytometry
