Genome-wide Identification and Expression Analysis of bZIP Transcription Factor Family in Dendrobium officinale

doi:10.13560/j.cnki.biotech.bull.1985.2025-0094

Abstract

Abstract:

Objective To identify the bZIP gene family of Dendrobium officinale,and clarify the biological function of DobZIP transcription factors through bioinformatics and gene expression analysis, thus aiming to provide theoretical guidance for further exploration of the molecular mechanism of DobZIP transcription factors. Method Based on the genome data of Dendrobium officinale in the IMP database, we identified the members of DobZIP gene family, and performed multiple of bioinformatics analysis. Furthermore, we used transcriptome data and real-time fluorescent quantitative PCR technology to analyze the tissue expression pattern and abiotic stress expression of DobZIP transcription factors. Result A total of 54 DobZIP genes were identified. None of the DobZIP proteins had signal peptides, and only DobZIP54 had a transmembrane domain. The subcellular localization of the DobZIP proteins were mainly in the nucleus. Members of the DobZIP family were classified into 10 subfamilies, and members of the same subfamily contained similar structures and motifs. DobZIP genes were unevenly distributed on 18 chromosomes, with two pairs of genes showing tandem relationships. There were multiple collinear relationships between species, and DobZIP family had a high homology with the OsbZIP family in rice. Cis-acting elements analysis indicated that the DobZIP family members all contained multiple cis-acting elements involved in growth and development and response to abiotic stress. Gene expression pattern analysis showed that the DobZIP family members had tissue-specific expression, and DobZIP4、DobZIP10、DobZIP28、DobZIP32 and DobZIP37 were induced by cold, drought and NaCl stress to varying degrees. In addition to DobZIP32 and DobZIP37, DobZIP4, DobZIP10 and DobZIP28 were also induced by high temperature stress. Conclusion A total of 54 DobZIP genes are identified in the genome of Dendrobium officinale. DobZIP genes was in tissue-specific expression, and DobZIP4, DobZIP10, DobZIP28, DobZIP32 and DobZIP37 are induced to varying degrees under cold, drought, and NaCl stress.

Key words: Dendrobium officinale, transcription factor, bZIP, bioanalysis, gene expression analysis

ZENG Dan, HUANG Yuan, WANG Jian, ZHANG Yan, LIU Qing-xia, GU Rong-hui, SUN Qing-wen, CHEN Hong-yu. Genome-wide Identification and Expression Analysis of bZIP Transcription Factor Family in Dendrobium officinale[J]. Biotechnology Bulletin, 2025, 41(8): 197-210.

Figures/Tables 12

Table 1 Primer sequences for quantitative PCR

引物名称 Primer name	引物序列Primer sequence（5'-3'）
DobZIP4-F	GAATCCGTCGTCTGAGTC
DobZIP4-R	TGTCGCTGGTATGGTTATC
DobZIP10-F	AGAGGATAGCGATGAGGAT
DobZIP10-R	TGTGGCTGTGGATTCAAG
DobZIP28-F	GGTCTGTAAGTGATTCTCTGA
DobZIP28-R	CGCCTTCTTGATGTTCTCT
DobZIP32-F	TCTCAAGGTATGGAAGCATT
DobZIP32-R	AGATTGTCGTGTCGTTAGTA
DobZIP37-F	ACCAGAAGAAGAGGAAGAGA
DobZIP37-R	GGATTGATGAGGAGGAGTTC
DoActin-F	TCCCAAGGCAAACAGAGAAA
DoActin-R	GGCCACTAGCATATAGGGAAAG

Fig. 1 Phylogenetic tree analysis of bZIP gene family in D. officinale and Arabidopsis thaliana

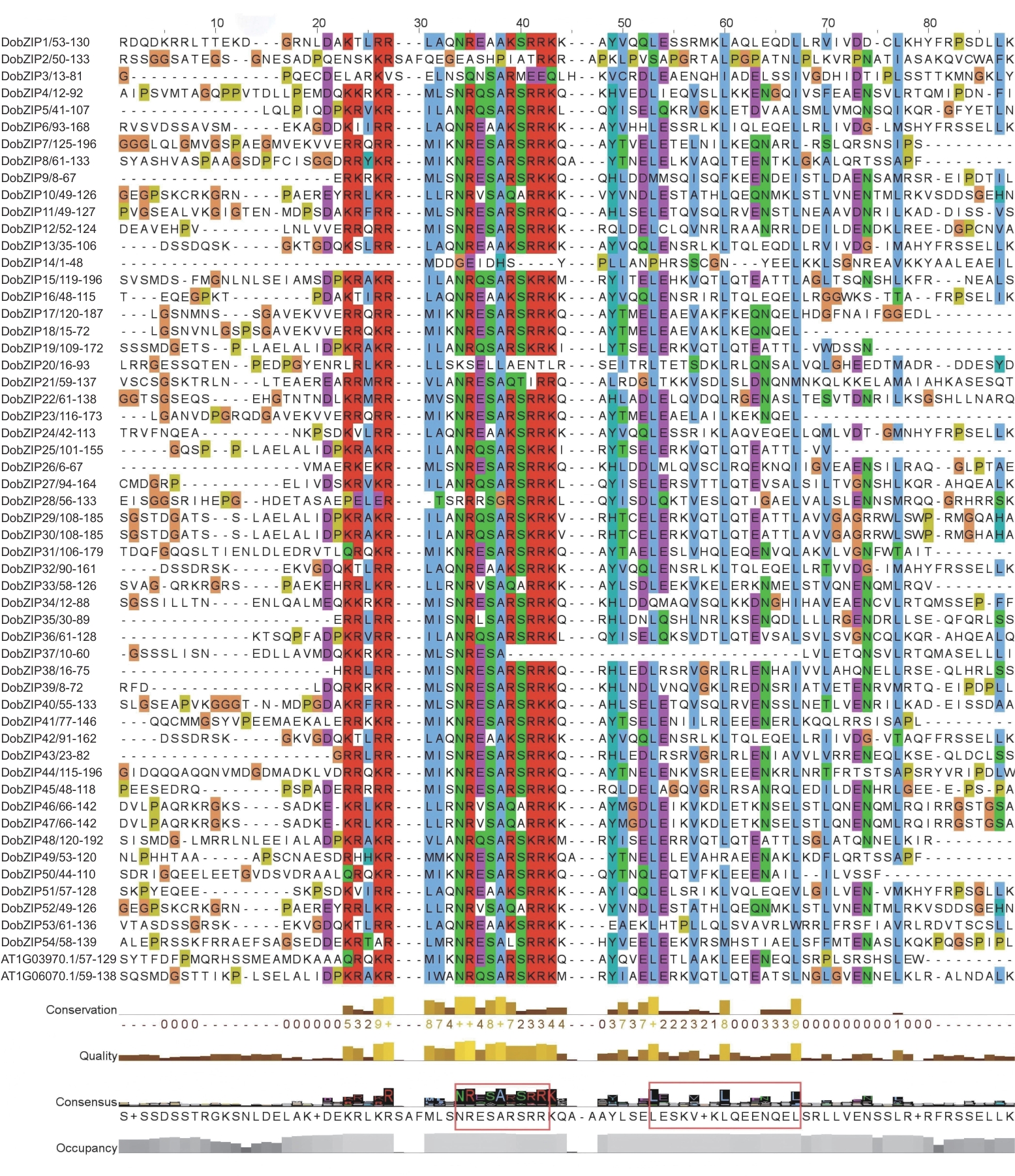

Fig. 2 Multiple alignment of D. officinale bZIP family protein sequencesThe red box indicates the conserved domain of the bZIP family protein of D. officinale

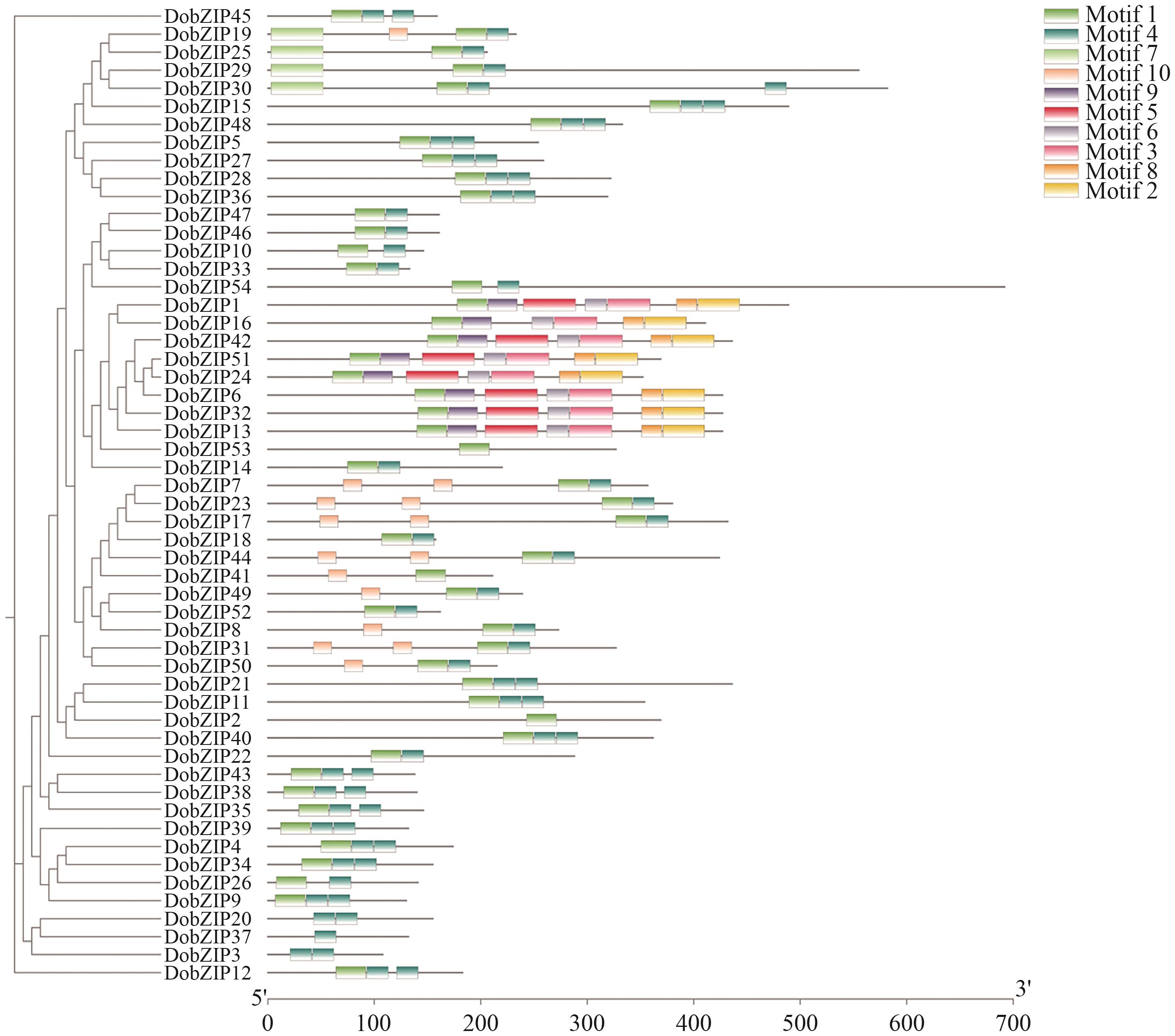

Fig. 3 Conserved motif analysis of bZIP family in D.officinale

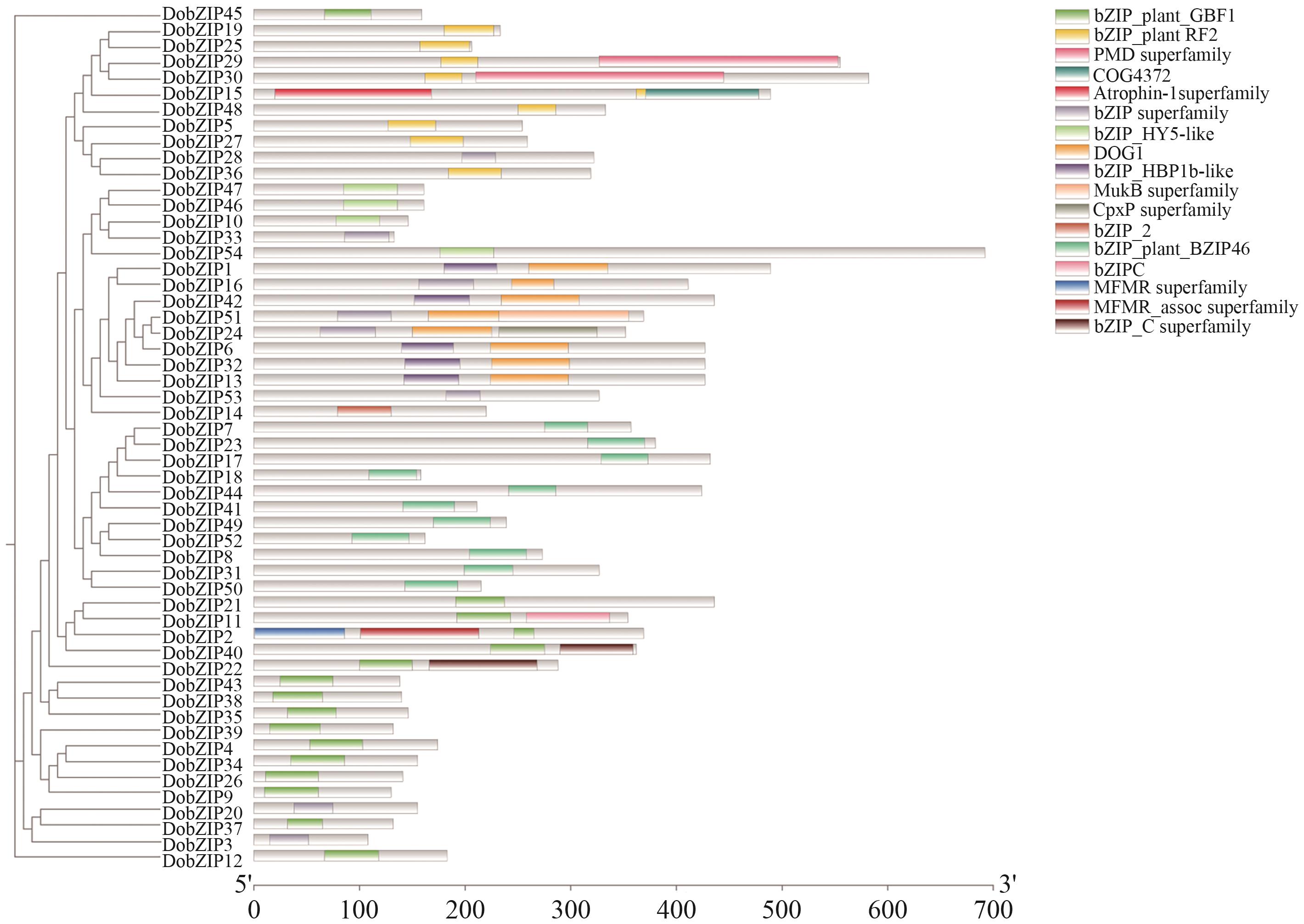

Fig. 4 Protein domain analysis of bZIP family in D.officinale

Fig. 5 Gene structure analysis of bZIP family in D.officinale

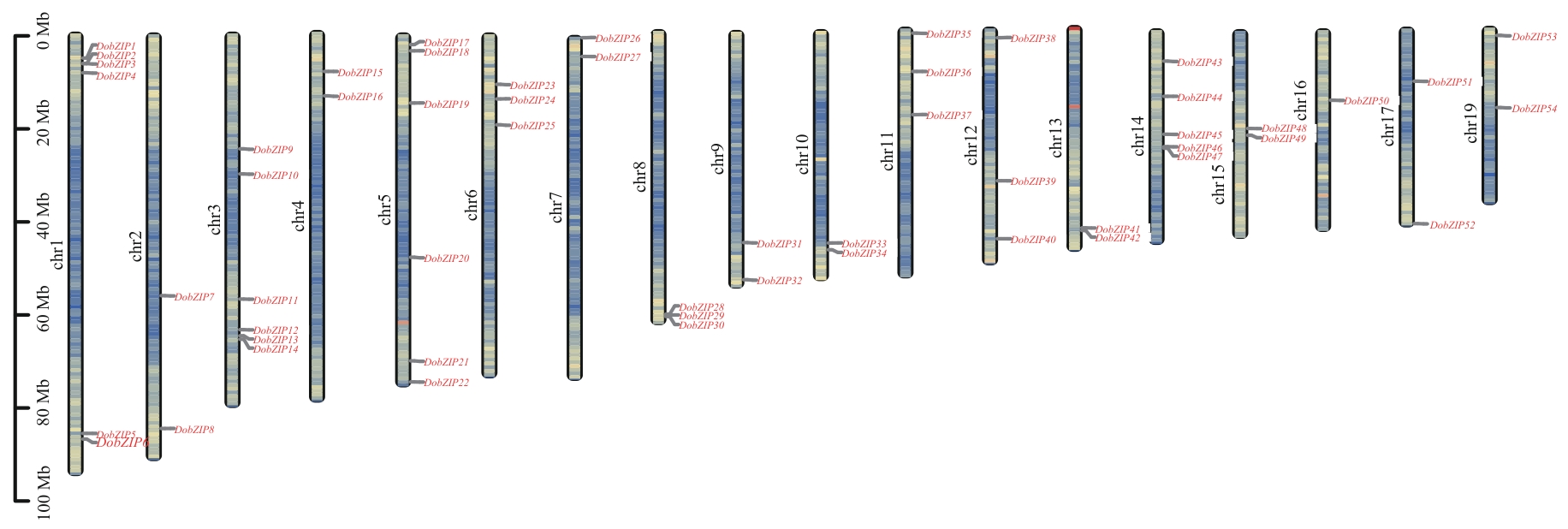

Fig. 6 Chromosome localization analysis of bZIP family in D. officinale

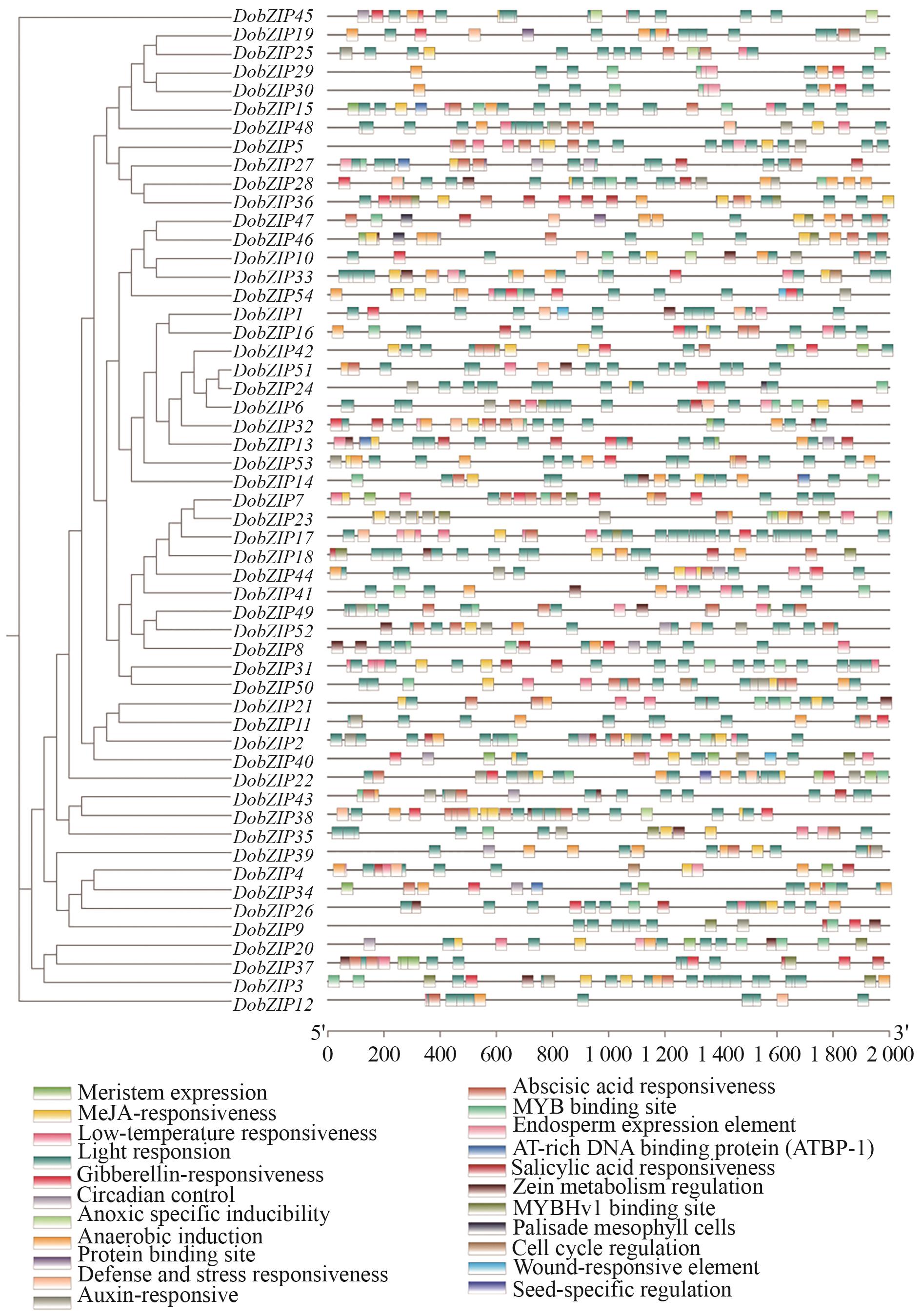

Fig. 7 Promoter cis-acting elements analysis of bZIP members family in D. officinale

Fig. 8 Chromosomal distribution and collinearity analysis of bZIP transcription factors in D. officinale

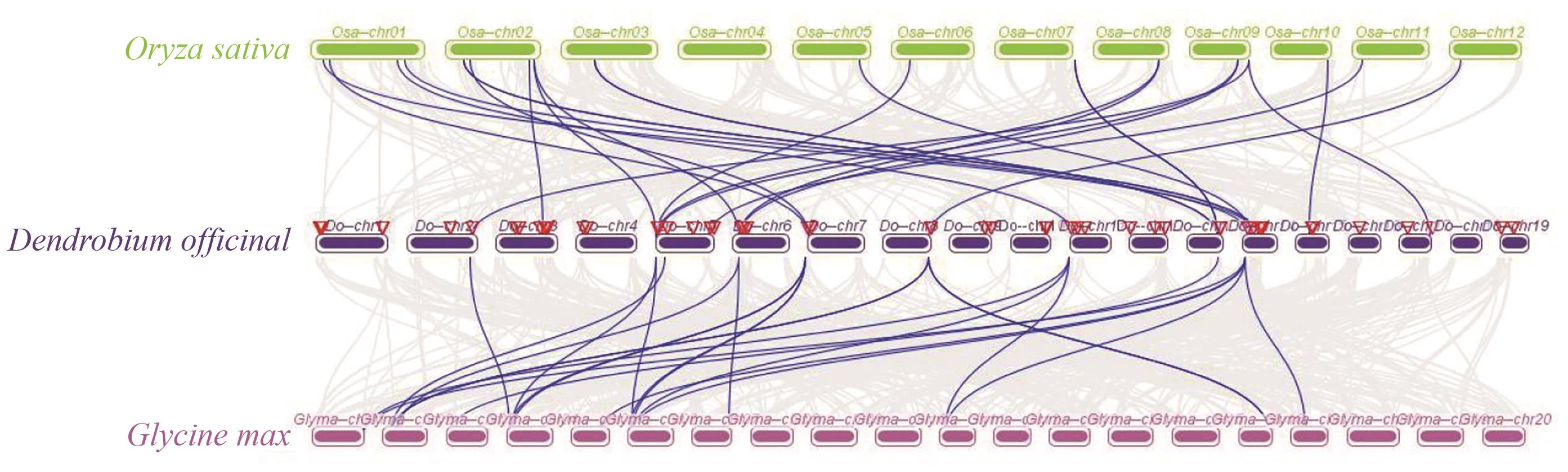

Fig. 9 Synteny analysis of bZIP transcription factors between D.officinale, Oryza sativa and Glycine max

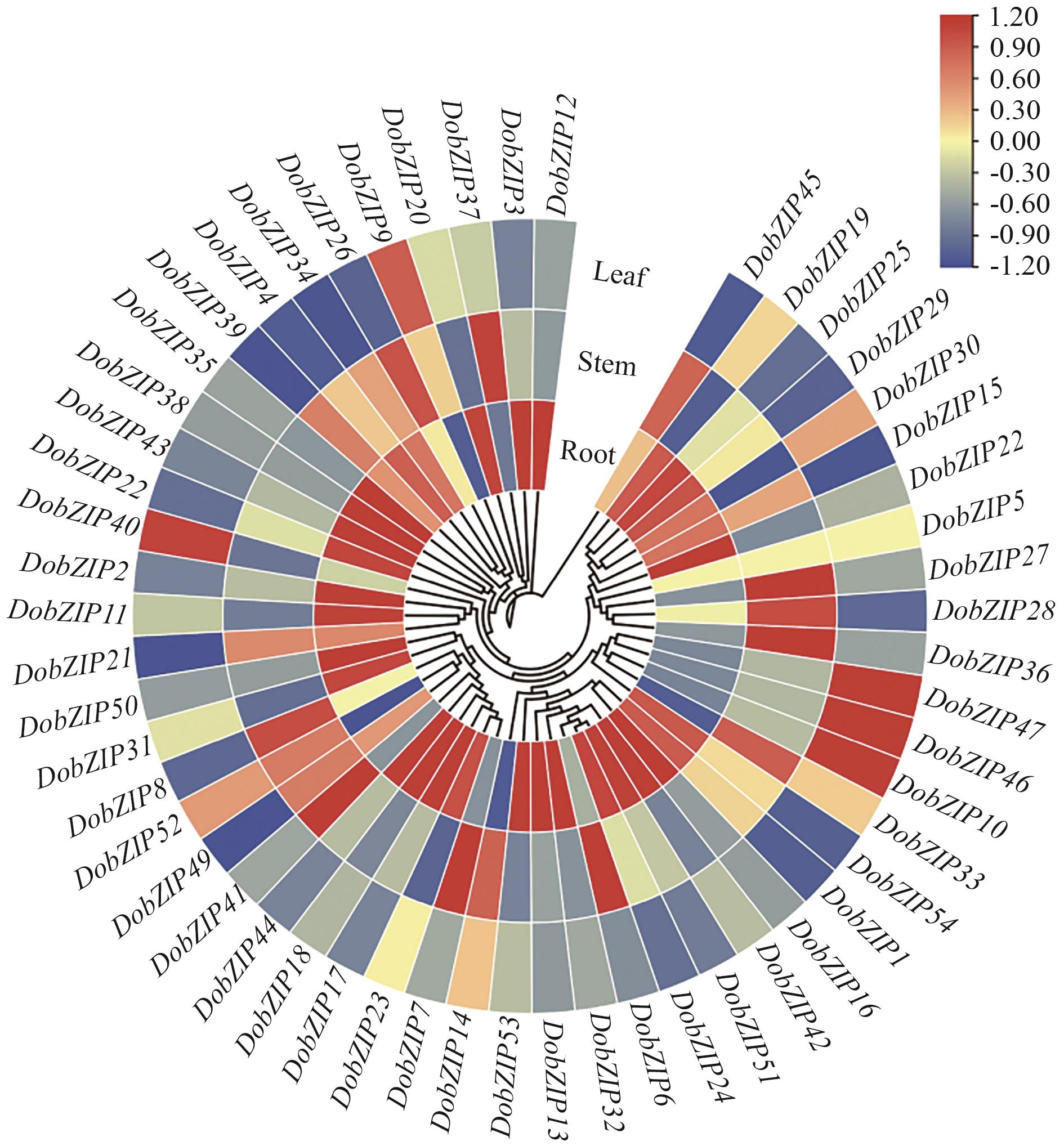

Fig. 10 Expression analysis of DobZIP transcription factorsin the roots, stems and leaves of D. officinale

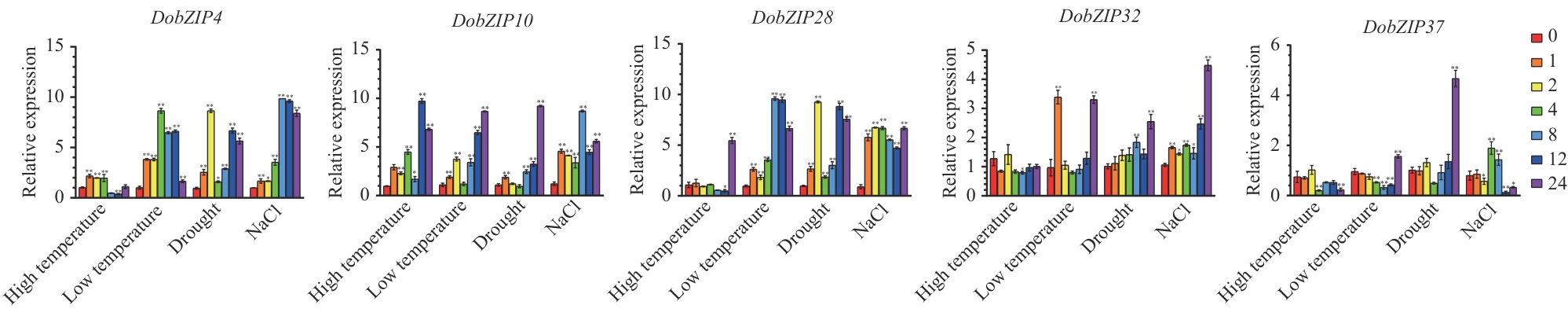

Fig. 11 Relative expression analysis of five bZIP transcription factors under stress treatment in D.officinale

References 53

[1]	吉占和.中国植物志 [M].北京:科学出版社,1999.
	Jie ZH. Flora of China [M]. Beijing: Science press, 1999.
[2]	包雪声, 顺庆生, 陈立钻, 等. 中国药用石斛图志 [M]. 上海: 复旦大学出版社, 2001.
	Bao XS, Shun QS, Chen LZ, et al. Illustrated Flora of Chinese Medicinal Dendrobium [M]. Shanghai: Fudan University Press, 2001.
[3]	刘雪娜, 吴雪娇, 刘顺航, 等. 铁皮石斛的药理作用及其保健食品研发进展 [J].保鲜与加工, 2021, 21(10): 144-150.
	Liu XN, Wu XJ, Liu SH, et al.Pharmacological effects of Dendrobium officinale and the development of its health foods [J]. Fresh Presservation and Processing, 2021, 21 (10): 144-150.
[4]	张红瑞, 理雅, 于白音, 等. 铁皮石斛DobHLH96基因克隆及表达分析 [J]. 江苏农业科学, 2023, 51(1): 63-70.
	Zhang HR, Li Y, Yu BY, et al. Cloning and expression analysis of DobHLH96 gene from Dendrobium offocinale [J]. Jiangsu Agricultural Sciences. 2023, 51 (1): 63-70.
[5]	余文霞, 雷胄熙, 袁媛, 等. 铁皮石斛种质资源DNA身份证的构建及遗传相似性分析 [J]. 中国实验方剂学杂志, 2019, 25(1): 16-21.
	Yu WX, Lei ZX, Yuan Y, et al. Establishment of DNA fingerprints and genetic similarities analysis of Dendrobium officinale [J]. Chin J Exp Tradit Med Formulae, 2019, 25(1): 16-21.
[6]	吴韵琴, 斯金平. 铁皮石斛产业现状及可持续发展的探讨 [J]. 中国中药杂志, 2010, 35(15): 2033-2037.
	Wu YQ, Si JP. Present status and sustainable development of Dendrobium of ficinale industry [J]. China J Chin Mater Med, 2010, 35(15): 2033-2037.
[7]	张瑜, 徐志超, 季爱加, 等. bZIP转录因子调控植物次生代谢产物生物合成的研究进展 [J]. 植物科学学报, 2017, 35(1): 128-137.
	Zhang Y, Xu ZC, Ji AJ, et al. Regulation of secondary metabolite biosynthesis by bZPI transcription factors in plants [J]. Plant Sci J, 2017, 35(1): 128-137.
[8]	Lee SC, Choi HW, Hwang IS, et al. Functional roles of the pepper pathogen-induced bZIP transcription factor, CAbZIP1, in enhanced resistance to pathogen infection and environmental stresses [J]. Planta, 2006, 224(5): 1209-1225.
[9]	Song YH, Luo GB, Shen LS, et al. TubZIP28, a novel bZIP family transcription factor from Triticum urartu, and TabZIP28, its homologue from Triticum aestivum, enhance starch synthesis in wheat [J]. New Phytol, 2020, 226(5): 1384-1398.
[10]	Jakoby M, Weisshaar B, Dröge-Laser W, et al. bZIP transcription factors in Arabidopsis [J]. Trends Plant Sci, 2002, 7(3): 106-111.
[11]	Wei K, Chen J, Wang Y, et al. Genome-wide analysis of bZIP-encoding genes in maize [J]. DNA Res, 2012, 19(6): 463-476.
[12]	郭纯, 宋桂梅, 闫艳, 等. 西洋参bZIP基因家族全基因组鉴定和表达分析 [J]. 生物技术通报, 2024, 40(4): 167-178.
	Guo C, Song GM, Yan Y, et al. Genome wide identification and expression analysis of the bZIP gene family in Panax quinquefolius [J]. Biotechnol Bull, 2024, 40(4): 167-178.
[13]	李勇慧, 鲍星星, 段一珂, 等. 灵宝杜鹃bZIP家族全基因组鉴定及表达特征分析 [J].生物技术通报,2024,40(8):186-198.
	Li YH, Bao XX, Duan YK, et al. Genome-Wide identification and expression features analysis of the bZIP family in Rhododendron henanense subsp.linghaoense [J]. Biotechnol Bull, 2024, 40 (8): 186-198.
[14]	邹华文, 郭凯, 张莹莹, 等. 玉米转录因子ZmbZIP77基因克隆及表达分析 [J]. 长江大学学报: 自然科学版, 2021, 18(2): 89-94.
	Zhou HW, Guo K, Zhang YY, et al. Cloning and expression analysis of Maize transcription factor ZmbZIP77gene [J]. Journal of Yangtze University: Natural Science Edition, 2021, 18 (2): 89-94.
[15]	Corrêa LGG, Riaño-Pachón DM, Schrago CG, et al. The role of bZIP transcription factors in green plant evolution: adaptive features emerging from four founder genes [J]. PLoS One, 2008, 3(8): e2944.
[16]	Silveira AB, Gauer L, Tomaz JP, et al. The Arabidopsis AtbZIP9 protein fused to the VP16 transcriptional activation domain alters leaf and vascular development [J]. Plant Sci, 2007, 172(6): 1148-1156.
[17]	Takahashi H, Kawakatsu T, Wakasa Y, et al. A rice transmembrane bZIP transcription factor, OsbZIP39, regulates the endoplasmic reticulum stress response [J]. Plant Cell Physiol, 2012, 53(1): 144-153.
[18]	Thalor SK, Berberich T, Lee SS, et al. Deregulation of sucrose-controlled translation of a bZIP-type transcription factor results in sucrose accumulation in leaves [J]. PLoS One, 2012, 7(3): e33111.
[19]	Yoshida T, Fujita Y, Maruyama K, et al. Four Arabidopsis AREB/ABF transcription factors function predominantly in gene expression downstream of SnRK2 kinases in abscisic acid signalling in response to osmotic stress [J]. Plant Cell Environ, 2015, 38(1): 35-49.
[20]	王金英, 丁峰, 潘介春, 等. 植物bZIP转录因子家族的研究进展 [J]. 热带农业科学, 2019, 39(6): 39-45.
	Wang JY, Ding F, Pan JC, et al. Research progress of bZIP lineage transcription factors in plant [J]. Chin J Trop Agric, 2019, 39(6): 39-45.
[21]	王健, 杨莎, 孙庆文, 等. 金钗石斛bHLH转录因子家族全基因组鉴定及表达分析 [J].生物技术通报,2024,40(6):203-218.
	Wang J, Yang S, Sun QW, et al. Genome wide identification and ixpression analysis of bHLH iranscription factor family in Dendrobium nobile [J]. Biotechnol Bull, 2024, 40 (6): 203- 218.
[22]	Building and Application of Database in IMP [J]. IMP & HIRFL Annual Report,2000: 153.
[23]	Jin JP, Tian F, Yang DC, et al. PlantTFDB 4.0: toward a central hub for transcription factors and regulatory interactions in plants [J]. Nucleic Acids Res, 2017, 45(D1): D1040-D1045.
[24]	Chen CJ, Chen H, Zhang Y, et al. TBtools: an integrative toolkit developed for interactive analyses of big biological data [J]. Mol Plant, 2020, 13(8): 1194-1202.
[25]	杨莎, 孙庆文, 黄园, 等. 金钗石斛两个NCED基因克隆及逆境表达分析 [J]. 分子植物育种,2024:1-17.
	Yang S, Sun QW, Huang Y, et al. Cloning and stress expression analysis of two NCED genes from Dendrobium nobile [J]. Molecular Plant Breeding, 2024: 1-17.
[26]	江林琪, 赵佳莹, 郑飞雄, 等. 铁皮石斛14-3-3基因家族鉴定及表达分析 [J]. 生物技术通报, 2024, 40(3): 229-241.
	Jiang LQ, Zhao JY, Zhen FX, et al. Identification and xxpression analysis of 14-3-3 gene family in Dendrobium officinale [J]. Biotechnol Bull, 2024, 40 (3): 229-241.
[27]	Bailey TL, Williams N, Misleh C, et al. MEME: discovering and analyzing DNA and protein sequence motifs [J]. Nucleic Acids Res, 2006, 34(Web Server issue): W369-W373.
[28]	Lescot M, Déhais P, Thijs G, et al. PlantCARE, a database of plant Cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences [J]. Nucleic Acids Res, 2002, 30(1): 325-327.
[29]	王新果, 赵丹丹, 黄红娟, 等. 刺萼龙葵延迟萌发基因DOG1的克隆及表达特性 [C]. 第十三届全国杂草科学大会,2017: 12.
	Wang XG, Zhao DD, Huang HJ, et al. Cloning and expression characteristics of the delayed germination gene DOG1 from Solanum nigrum [C]. The Thirteenth National Conference on Weeds Science, 2017: 12.
[30]	Zhao K, Chen S, Yao WJ, et al. Genome-wide analysis and expression profile of the bZIP gene family in poplar [J]. BMC Plant Biol, 2021, 21(1): 122.
[31]	Cannon SB, Mitra A, Baumgarten A, et al. The roles of segmental and tandem gene duplication in the evolution of large gene families in Arabidopsis thaliana [J]. BMC Plant Biol, 2004, 4: 10.
[32]	Farmer EE, Ryan CA. Octadecanoid precursors of jasmonic acid activate the synthesis of wound-inducible proteinase inhibitors [J]. Plant Cell, 1992, 4(2): 129-134.
[33]	朱渊铭, 张培兰, 林宇清, 等. 香樟bZIP基因家族鉴定及表达分析 [J]. 扬州大学学报: 农业与生命科学版, 2024, 45(3): 44-54, 81.
	Zhu YM, Zhang PL, Lin YQ, et al. Identification and Functional analysis of the bZIP gene family of Cinnamomum camphora [J]. Journal of Yangzhou University, Agricultural and Life Science Edition, 2024, 45 (3): 44-54, 81.
[34]	周宇, 陈传敏, 王健, 等. 薏苡bZIP基因家族全基因组鉴定与非生物胁迫表达分析 [J]. 热带作物学报, 2022, 43(10): 2006-2020.
	Zhou Y, Chen CM, Wang J, et al. Genoma-Wide identification and expression analysis of bZIP gene family under abiotic stress in Coxi lacyma-jobi [J]. Chinese Journal of Tropical Crops, 2022, 43 (10): 2006-2020.
[35]	Shen Q, Huang HY, Zhao Y, et al. The transcription factor Aabzip9 positively regulates the biosynthesis of artemisinin in Artemisia annua [J]. Front Plant Sci, 2019, 10: 1294.
[36]	Zhang FY, Fu XQ, Lv ZY, et al. A basic leucine zipper transcription factor, AabZIP1, connects abscisic acid signaling with artemisinin biosynthesis in Artemisia annua [J]. Mol Plant, 2015, 8(1): 163-175.
[37]	马博涛, 伍国强, 魏明. bZIP转录因子在植物逆境胁迫响应和生长发育中的作用 [J]. 生物技术通报, 2024, 40(9): 148-160.
	Ma BT, Wu GQ, Wei M. Roles of bZIP transcription factor in the respones to stresses,and growth and development in plants [J]. Biotechnol Bull, 2024, 40 (9): 148-160.
[38]	净易尧, 罗瑶, 史嘉周, 等. 远志bZIP基因家族的鉴定及表达分析 [J]. 中草药, 2024, 55(12): 4140 4149.
	Jing YX, Luo Y, Shi JZ, et al. Identification and expression analysis of bZIP gene family in Polygala tenuifolia [J]. Chinese Traditional and Herbal Drugs, 2024, 55 (12): 4140-4149.
[39]	王星文, 吴端, 师玉华, 等. 黄花蒿bZIP转录因子基因家族及光调控表达模式分析 [J]. 世界科学技术-中医药现代化, 2021, 23(1): 20-32.
	Wang XW, Wu D, Shi YH, et al. Analysis of the bZIP transcription factor gene family of Artemisia annua and light-regulated expression patterns[J]. World Science and Technology-Modernization of Traditional Chinese Medicine, 2021, 23 (1): 20-32.
[40]	万露露, 王中煊, 沈军, 等. 闽楠bZIP基因家族的鉴定与表达分析 [J]. 福建农林大学学报: 自然科学版, 2024, 53(2):2 21-228.
	Wan LL, Wang ZX, Shen J, et al. Identification and expression analysis of bZIP gene family in Phoebe bournei [J]. Journal of Fujian Agriculture and Forestry University: Natural Science Edition, 2024, 53 (2): 221-228.
[41]	Jin ZW, Xu W, Liu AZ. Genomic surveys and expression analysis of bZIP gene family in Castor bean (Ricinus communis L.) [J]. Planta, 2014, 239(2): 299-312.
[42]	Liao Y, Zou HF, Wei W, et al. Soybean GmbZIP44, GmbZIP62 and GmbZIP78 genes function as negative regulator of ABA signaling and confer salt and freezing tolerance in transgenic Arabidopsis [J]. Planta, 2008, 228(2): 225-240.
[43]	Bentsink L, Jowett J, Hanhart CJ, et al. Cloning of DOG1, a quantitative trait locus controlling seed dormancy in Arabidopsis [J]. Proc Natl Acad Sci USA, 2006, 103(45): 17042-17047.
[44]	叶方婷, 潘鑫峰, 毛志君, 等. 睡莲转录因子bZIP家族的分子进化以及功能分析 [J]. 中国农业科学, 2021, 54(21): 4694-4708.
	Ye FT, Pan XF, Mao ZJ, et al. Molecular evolution and function analysis of bZIP family in Nymphaea Colorate [J]. Agricultural Sciences in China, 2021, 54 (21): 4694-4708.
[45]	Sarde SJ, Bouwmeester K, Venegas-Molina J, et al. Involvement of sweet pepper CaLOX2 in jasmonate-dependent induced defence against Western flower Thrips [J]. J Integr Plant Biol, 2019, 61(10): 1085-1098.
[46]	吴耀荣, 谢旗. ABA与植物胁迫抗性 [J]. 植物学通报, 2006, 23(5): 511-518.
	Wu YR, Xie Q. ABA and plant stress response [J]. Chin Bull Bot, 2006, 23(5): 511-518.
[47]	Golldack D, Li C, Mohan H, et al. Tolerance to drought and salt stress in plants: Unraveling the signaling networks [J]. Front Plant Sci, 2014, 5: 151.
[48]	Gai WX, Ma X, Qiao YM, et al. Characterization of the bZIP transcription factor family in pepper (Capsicum annuum L.): CabZIP25 positively modulates the salt tolerance [J]. Front Plant Sci, 2020, 11: 139.
[49]	Yang Y, Yu TF, Ma J, et al. The soybean bZIP transcription factor gene GmbZIP2 confers drought and salt resistances in transgenic plants [J]. Int J Mol Sci, 2020, 21(2): 670.
[50]	Tang W, Page M, Fei YJ, et al. Overexpression of AtbZIP60deltaC gene alleviates salt-induced oxidative damage in transgenic cell cultures [J]. Plant Mol Biol Report, 2012, 30(5): 1183-1195.
[51]	Liu CT, Mao BG, Ou SJ, et al. OsbZIP71, a bZIP transcription factor, confers salinity and drought tolerance in rice [J]. Plant Mol Biol, 2014, 84(1/2): 19-36.
[52]	Li MY, Hwarari D, Li Y, et al. The bZIP transcription factors in Liriodendron chinense: Genome-wide recognition, characteristics and cold stress response [J]. Front Plant Sci, 2022, 13: 1035627.
[53]	Wiese AJ, Steinbachová L, Timofejeva L, et al. Arabidopsis bZIP18 and bZIP52 accumulate in nuclei following heat stress where they regulate the expression of a similar set of genes [J]. Int J Mol Sci, 2021, 22(2): 530.
