Screening， Identification， and Fermentation Optimization of a Protease-producing Bacterial Strain

doi:10.13560/j.cnki.biotech.bull.1985.2024-0945

Abstract

Abstract:

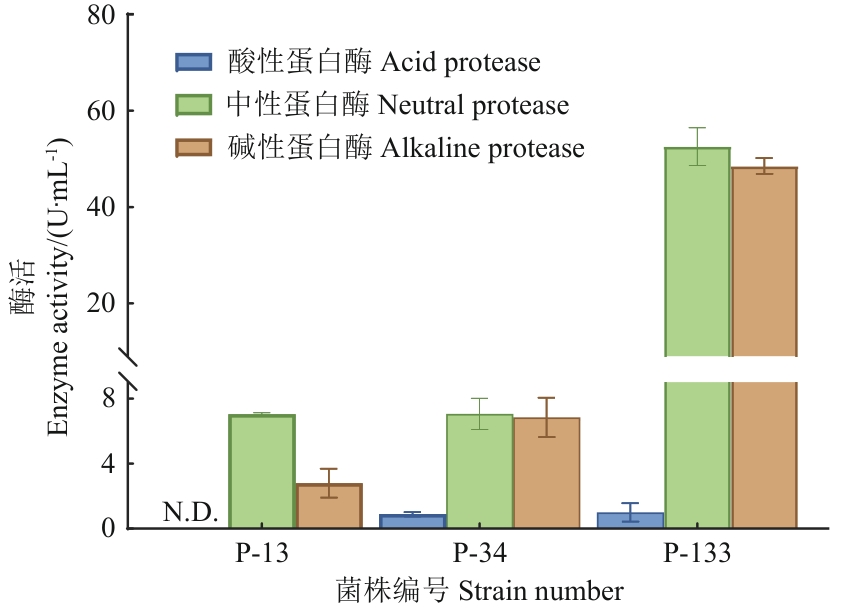

Objective To isolate and screen protease-producing bacteria from sauerkraut juice, clarify the species classification status of the strains, optimize the fermentation enzyme production process, enrich the resources of protease strains, and improve the efficiency of fermentation enzyme production. Method Using the sauerkraut juice of Chinese cabbage in a sauerkraut workshop as the isolation source, the ten-fold layer dilution method was used to screen the casein plate, and the folinol method was further re-screened to obtain the protease-producing strains. Morphological observation and 16S rRNA gene phylogenetic analysis were combined to complete the species identification. Single factor test was to optimize the composition and conditions of the fermentation medium, and the response surface method was further to optimize the enzyme-producing process for improving the efficiency of enzyme production. Result A total of 15 protease-producing strains were obtained by initial screening, and strain P-133 with acidic, neutral and alkaline protease abilities was obtained by re-screening with forinol method. The acidic, neutral and alkaline protease activities were 1.00, 52.50 and 48.50 U/mL, respectively, and were identified as Pseudomonas sp. The results via single factor and response surface tests showed that the optimal conditions for enzyme production of strain P-133 were soluble starch 5.0 g/L, rapeseed meal 5.9 g/L, NaCl 3.3 g/L, K₂HPO₄ 5.0 g/L, pH 7.8, temperature 28℃, inoculation volume 5%. and liquid-loading capacity 75 mL/250 mL. Under these conditions, the acidic, neutral and alkaline protease activities were 4.14, 185.19 and 177.30 U/mL, respectively, which were 4.14, 3.53 and 3.66 times higher than those before optimization. Conclusion Pseudomonas sp. P-133 with acidic, neutral and alkaline proteases is isolated and screened from sauerkraut juice. The activities of acidic, neutral and alkaline proteases were 4.14, 3.53 and 3.66 times higher than those before optimization, respectively.

Key words: protease, screening, identification, Pseudomonas sp., fermentation optimization, single factor method, response surface method

LIU Shuang, JIANG Zhou, ZHAO Shuai, ZHAO Lei-zhen, HUANG Feng, ZHOU Jia, QU Jian-hang. Screening， Identification， and Fermentation Optimization of a Protease-producing Bacterial Strain[J]. Biotechnology Bulletin, 2025, 41(4): 335-344.

Figures/Tables 12

References 30

1	Research QY. 2024年全球蛋白酶行业总体规模、主要企业国内外市场占有率及排名 [M]. 北京: 恒州博智, 2024.
	Research QY. The overall scale of the global protease industry, the domestic and foreign market share and ranking of major companies in 2024 [M]. Beijing: QYResearch, 2024.
2	Song P, Zhang X, Wang SH, et al. Microbial proteases and their applications [J]. Front Microbiol, 2023, 14: 1236368.
3	Razzaq A, Shamsi S, Ali A, et al. Microbial proteases applications [J]. Front Bioeng Biotechnol, 2019, 7: 110.
4	张雯姝. 产蛋白酶菌株的ARTP诱变及其降解蛋白质代谢通路分析 [D]. 大连: 辽宁师范大学, 2023.
	Zhang WS. Mutation of protease-producing strain by ARTP and analysis of its metabolic pathway for degrading protein [D]. Dalian: Liaoning Normal University, 2023.
5	Jisha VN, Smitha RB, Pradeep S, et al. Versatility of microbial proteases [J]. Adv Enzyme Res, 2013, 1(3): 39-51.
6	Banerjee S, Maiti TK, Roy RN. Enzyme producing insect gut microbes: an unexplored biotechnological aspect [J]. Crit Rev Biotechnol, 2022, 42(3): 384-402.
7	Matkawala F, Nighojkar S, Kumar A, et al. Microbial alkaline serine proteases: Production, properties and applications [J]. World J Microbiol Biotechnol, 2021, 37(4): 63.
8	Hasan MJ, Haque P, Rahman MM. Protease enzyme based cleaner leather processing: a review [J]. J Clean Prod, 2022, 365: 132826.
9	赵华, 任青霞, 张敏, 等. 酒曲中高产蛋白酶菌株的筛选及其发酵培养基优化 [J]. 中国酿造, 2023, 42(5): 157-164.
	Zhao H, Ren QX, Zhang M, et al. Screening and fermentation medium optimization of high-yield protease-producing strain from Jiuqu [J]. China Brew, 2023, 42(5): 157-164.
10	贾仲昕, 赵佳男, 季芳, 等. 高产中性蛋白酶芽孢杆菌的筛选鉴定及酶学性质研究 [J]. 黑龙江畜牧兽医, 2023(1): 106-112, 132.
	Jia ZX, Zhao JN, Ji F, et al. Study on screening, identification and enzymatic properties of high neutral protease-producing Bacillus [J]. Heilongjiang Anim Sci Vet Med, 2023(1): 106-112, 132.
11	刘晓艳, 封健, 韩傲, 等. 高产中/碱性蛋白酶的枯草芽孢杆菌W1菌株的筛选及条件优化 [J]. 现代食品科技, 2020, 36(4): 157-163.
	Liu XY, Feng J, Han A, et al. Isolation and optimization of Bacillus subtilis W1 strain with high neutral/alkaline protease activity [J]. Mod Food Sci Technol, 2020, 36(4): 157-163.
12	Cui HX, Yang MY, Wang LP, et al. Identification of a new marine bacterial strain SD8 and optimization of its culture conditions for producing alkaline protease [J]. PLoS One, 2015, 10(12): e0146067.
13	李娜, 附俊杰, 刘军, 等. 一株产中性蛋白酶菌株的筛选及其发酵产酶条件优化 [J]. 食品工业科技, 2023, 44(1): 189-199.
	Li N, Fu JJ, Liu J, et al. Screening of A neutral protease-producing strain and optimization of fermentation conditions [J]. Sci Technol Food Ind, 2023, 44(1): 189-199.
14	朱祥杰, 王震, 苑志欣, 等. 海洋芽孢杆菌N11-8产蛋白酶的发酵条件优化 [J]. 渔业科学进展, 2018, 39(6): 155-163.
	Zhu XJ, Wang Z, Yuan ZX, et al. Optimization of fermentation conditions of Bacillus sp. N11-8 on the production of protease PBN11-8 [J]. Prog Fish Sci, 2018, 39(6): 155-163.
15	Reasoner DJ, Geldreich EE. A new medium for the enumeration and subculture of bacteria from potable water [J]. Appl Environ Microbiol, 1985, 49(1): 1-7.
16	侯泽林. 从土壤中筛选碱性蛋白酶产生菌及产酶条件优化研究 [D]. 哈尔滨: 东北农业大学, 2021.
	Hou ZL. Screening alkaline protease-producing bacteria from soil and optimization of enzyme-producing conditions [D]. Harbin: Northeast Agricultural University, 2021.
17	冯璨, 马香, 刘柱, 等. 海南近海水域产碱性蛋白酶菌株的分离筛选及发酵条件优化 [J]. 微生物学通报, 2022, 49(10): 4291-4304.
	Feng C, Ma X, Liu Z, et al. Isolation and screening of alkaline protease-producing strains from Hainan offshore areas and optimization of the fermentation conditions [J]. Microbiol China, 2022, 49(10): 4291-4304.
18	Qu JH, Fu YH, Li XD, et al. Brevundimonas lutea sp. nov., isolated from lake sediment [J]. Int J Syst Evol Microbiol, 2019, 69(5): 1417-1422.
19	Kumar S, Stecher G, Li M, et al. MEGA X: molecular evolutionary genetics analysis across computing platforms [J]. Mol Biol Evol, 2018, 35(6): 1547-1549.
20	Berkman SJ, Roscoe EM, Bourret JC. Comparing self-directed methods for training staff to create graphs using Graphpad Prism [J]. J Appl Behav Anal, 2019, 52(1): 188-204.
21	陈茏. 产蛋白酶菌株的筛选及酶学性质的研究 [D]. 南昌: 南昌大学, 2020.
	Chen L. Screening of protease-producing strains and study on enzymatic properties [D]. Nanchang: Nanchang University, 2020.
22	Zhang Y, Hu JM, Zhang Q, et al. Enhancement of alkaline protease production in recombinant Bacillus licheniformis by response surface methodology [J]. Bioresour Bioprocess, 2023, 10(1): 27.
23	强济宇. 碱性蛋白酶耐盐芽孢杆菌DS5的筛选、鉴定和性质研究 [D]. 太原: 山西大学, 2023.
	Qiang JY. Screening, identification and characterization of Bacillus halotolerans DS5 with alkaline protease production [D]. Taiyuan: Shanxi University, 2023.
24	李雪, 蔡丹, 沈月, 等. 微生物来源蛋白酶的研究进展 [J]. 食品科技, 2019, 44(1): 32-36.
	Li X, Cai D, Shen Y, et al. Research progress of microbial protease [J]. Food Sci Technol, 2019, 44(1): 32-36.
25	农业农村部办公厅. 关于印发《饲用豆粕减量替代三年行动方案》的通知: 农办牧 [2023] 9号 [EB/OL]. (2023-04-12)[2024-09-27]. .
	General Office of the Ministry of Agriculture and Rural Affairs. Notice on the issuance of the "Three-year Action Plan for Reducing and Replacing Soybean Meal for Feed": Nongbanmu [2023]No.9 [EB/OL]. (2023-04-12)[2024-09-27]. .
26	付晓琪, 商振达, 谭占坤, 等. 发酵菜籽粕替代豆粕在动物生产中的应用研究进展 [J]. 中国畜牧杂志, 2022, 58(10): 125-129.
	Fu XQ, Shang ZD, Tan ZK, et al. Research progress on application of replacing soybean meal with fermented rapeseed meal in animal production [J]. Chin J Anim Sci, 2022, 58(10): 125-129.
27	Liya SM, Umesh M, Nag A, et al. Optimized production of keratinolytic proteases from Bacillus tropicus LS27 and its application as a sustainable alternative for dehairing, destaining and metal recovery [J]. Environ Res, 2023, 221: 115283.
28	陈菲. 一株蛋白酶产生菌的鉴定、酶性质研究和表达载体构建 [D]. 郑州: 河南工业大学, 2018.
	Chen F. Identification, characterization and expression vector construction of a protease-producing strain [D]. Zhengzhou: Henan University of Technology, 2018.
29	张宇洁, 王丽军, 李梦, 等. 一株产低温β-半乳糖苷酶微杆菌的筛选鉴定、产酶条件及其酶学特性 [J]. 微生物学通报, 2019, 46(3): 609-617.
	Zhang YJ, Wang LJ, Li M, et al. Isolation and identification of a Microbacterium sp. LW106 strain producing cold-active β-galactosidase, and study on its enzyme production conditions and enzymatic properties [J]. Microbiol China, 2019, 46(3): 609-617.
30	梁安健, 石沁兰, 王金丽, 等. 产蛋白酶波茨坦短芽孢杆菌的鉴定及产酶条件优化 [J]. 现代食品科技, 2024, 40(5): 73-83.
	Liang AJ, Shi QL, Wang JL, et al. Identification of a protease producing Brevibacillus borstelensis strain and optimization of enzyme production conditions [J]. Mod Food Sci Technol, 2024, 40(5): 73-83.

水平 Level
水平 Level	A pH	B菜粕浓度 Rapeseed meal concentration/（g·L^-1）	C NaCl浓度 NaCl concentration/（g·L^-1）
-1	5	1	0.5
0	7	5	1
1	9	10	5

水平 Level
水平 Level	A pH	B菜粕浓度 Rapeseed meal concentration/（g·L^-1）	C NaCl浓度 NaCl concentration/（g·L^-1）
-1	5	1	0.5
0	7	5	1
1	9	10	5

编号 Number	水解圈直径Diameter of hydrolysis ring （D）/mm	菌落直径 Diameter of colony （d）/mm	圈径比Ring diameter ratio （D/d）	编号 Number	水解圈直径 Diameter of hydrolysis ring （D）/mm	菌落直径 Diameter of colony （d）/mm	圈径比Ring diameter ratio （D/d）
P-6	20	11	1.8	P-18	12	6	2.0
P-7	11	6	1.8	P-25	18	7	2.6
P-8	13	6	2.7	P-34	24	5	4.8
P-9	12	5	2.4	P-35	20	10	2.0
P-12	14	6	2.3	P-36	14	7	2.0
P-13	20	5	4.0	P-37	10	5	2.0
P-14	12	6	2.0	P-133	20	4	5.0
P-15	10	6	1.7

编号 Number	水解圈直径Diameter of hydrolysis ring （D）/mm	菌落直径 Diameter of colony （d）/mm	圈径比Ring diameter ratio （D/d）	编号 Number	水解圈直径 Diameter of hydrolysis ring （D）/mm	菌落直径 Diameter of colony （d）/mm	圈径比Ring diameter ratio （D/d）
P-6	20	11	1.8	P-18	12	6	2.0
P-7	11	6	1.8	P-25	18	7	2.6
P-8	13	6	2.7	P-34	24	5	4.8
P-9	12	5	2.4	P-35	20	10	2.0
P-12	14	6	2.3	P-36	14	7	2.0
P-13	20	5	4.0	P-37	10	5	2.0
P-14	12	6	2.0	P-133	20	4	5.0
P-15	10	6	1.7

方差来源 Source of variance	平方和 Sum of squares	自由度 Freedom	均方 Mean	F值 F value	P值 P value	显著性 Significance
pH	64 659.717	4	16 164.929	1 349.359	1.30×10^-13	**
菜粕浓度	21 586.241	6	3 597.707	203.065	8.62×10^-13	**
NaCl浓度	20 247.864	6	3 374.644	126.434	2.24×10^-11	**
装液量	2 923.535	5	584.707	208.34	3.15×10^-11	**
温度	53 335.824	4	13 333.96	349.142	1.08×10^-10	**
接种量	1 205.128	4	301.282	64.771	4.12×10^-7	**
可溶性淀粉浓度	3 331.388	6	555.231	4.269	0.012	*
