Functional Study on ZmSTART1 Regulation of Maize Vascular Bundle Formation

doi:10.13560/j.cnki.biotech.bull.1985.2024-0981

Abstract

Abstract:

Objective The objective of this study is to analyze the structure of ZmSTART1, clarify the expressing characteristics of ZmSTART1, analyze the function of ZmSTART1 in the process of vascular bundle construction, and thus provide a theoretical basis for the genetic improvement of corn lodging resistance and yield traits. Method Bioinformatics method was applied to analyze the structure characteristics of ZmSTART1 protein. Real-time PCR was used to analyze the temporal and spatial expression of ZmSTART1. ZmSTART1-GFP fusion technology was to transform tobacco leaves and determine the subcellular location of ZmSTART1. The overexpressing vector of ZmSTART11 was constructed, and Agrobacterium infection flocculent method was to transform Col-0 Arabidopsis thaliana. Real-time PCR technology was applied to validate the ZmSTART1 overexpressed A.thaliana positive seedlings. The vascular bundle characteristics of A. thaliana overexpressing ZmSTART1 were observedand the biological function of ZmSTART1 in regulating vascular bundle formation was clarified. Result Bioinformatics analysis revealed that ZmSTART1 was a hydrophobic protein containing only one START domain. The spatiotemporal expression characteristics of ZmSTART1 via real-time PCR technology showed that ZmSTART1 had higher expressions in the anthers, leaves, and the first internode. Subcellular localization analysis revealed that ZmSTART1 was located on the cytoplasmic membrane. Creating A.thaliana plants ZmSTART1-OE overexpressing the ZmSTART1 gene, it was found that transgenic A.thaliana overexpressing ZmSTART1-OE had more secondary and tertiary leaf veins than wild-type ones, and the number of enclosed spaces formed by the leaf veins was also significantly higher than that of the wild-type control. When ZmSTART1-OE transgenic A.thaliana leaves showed fourth order leaf veins, the wild-type control leaves only had third order leaf veins. Observing the development of stem vascular bundles, it was found that the wild-type A. thaliana had 6 vascular bundles in its primary stem structure, while ZmSTART1-OE had 7 vascular bundles in its primary stem structure. The number of fiber cell layers between bundles decreased, the safranin staining became lighter, and the lignin content decreased. Conclusion ZmSTART1 belongs to the START family and is located on the cytoplasmic membrane, playing an important role in the process of vascular bundle formation in maize.

Key words: ZmSTART1, expression characteristics, vascular bundle formation, maize, Arabidopsis thaliana

LIU Tong-tong, LI Xiao-hui, YANG Jun-long, CHEN Wang, YU Meng, WANG Chao-fan, WANG Feng-ru, KE Shao-ying. Functional Study on ZmSTART1 Regulation of Maize Vascular Bundle Formation[J]. Biotechnology Bulletin, 2025, 41(4): 115-122.

Figures/Tables 10

Table 1 Statistical analysis of morphological indexes

类型 Type	真叶面积 True leaf area/mm²	子叶面积 Cotyledon area/mm²	叶柄长 Petiole length/cm	株高 Plant height/cm	茎面积 Stem area/mm²	茎粗 Stem circumference/mm
WT	6.15±1.06aa	8.35±0.64aa	0.25±0.04aa	11±1.00aa	0.62±0.01aa	2.79±0.03aa
ZmSTART1-OE1	9.4±0.28AA	6.15±0.47AA	0.35±0.05AA	26.7±1.00AA	0.67±0.11aa	2.89±0.05aa
ZmSTART1-OE2	8.8±0.11AA	5.87±0.24AA	0.31±0.08Aa	22.5±1.87AA	0.63±0.13aa	2.81±0.17aa
ZmSTART1-OE3	8.8±0.23AA	5.15±0.33AA	0.28±0.07aa	18.6±1.65AA	0.62±0.07aa	2.79±0.13aa

Fig. 1 Structure analysis of ZmSTART1A: Schematic diagram of the domain in ZmSTART1 protein. B: Schematic diagram of the exons and introns in ZmSTART1 gene. C: The tertiary structure of ZmSTART1

Fig. 2 Phylogenetic tree analysis of START genes of maize (Zea mays) and A. thalianaGRMZM: Zea mays; At: Arabidopsis thaliana

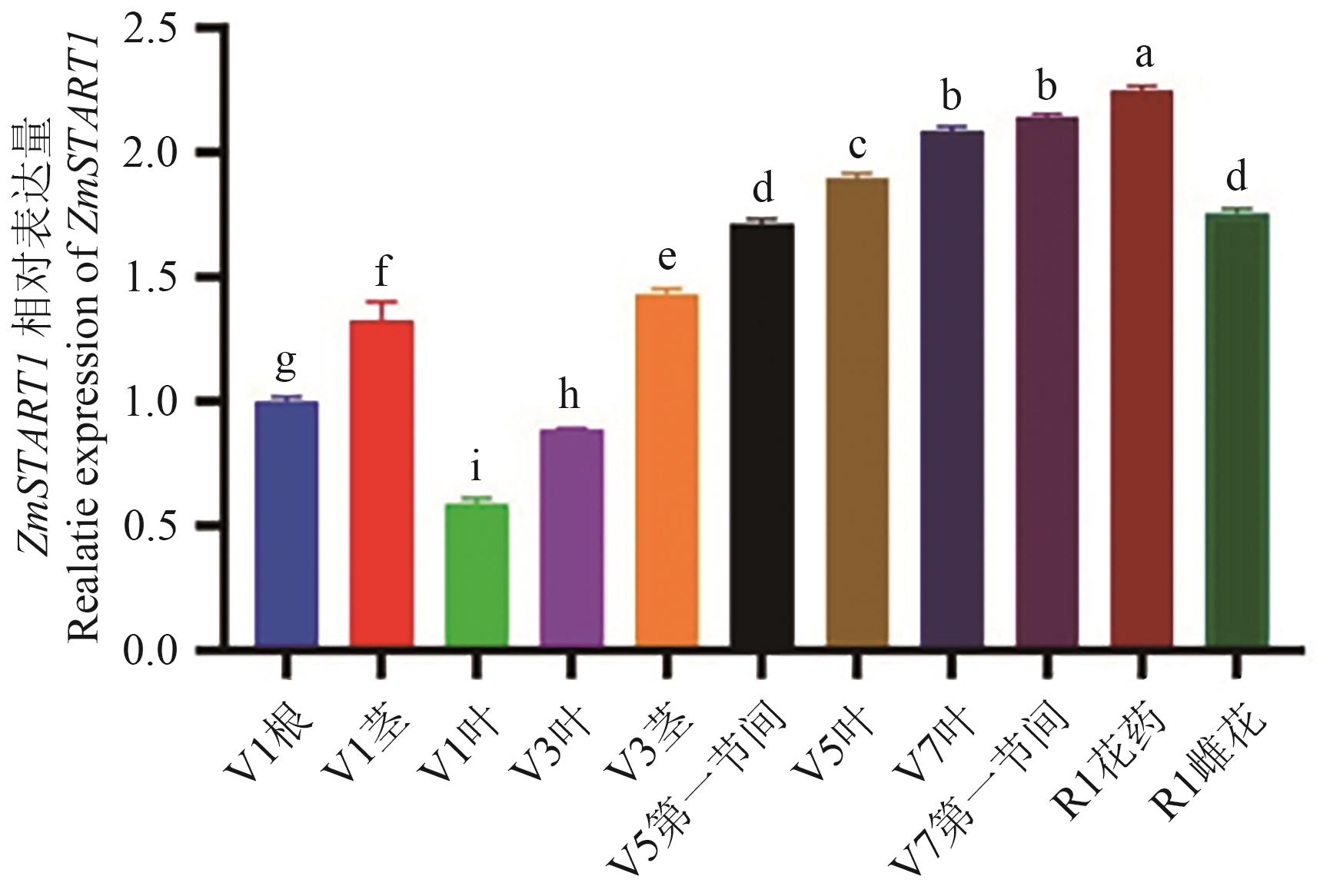

Fig. 3 Expressions of ZmSTART1 in different tissues of maizeV1: 1 true leaf development stage. V3: 3 true leaf development stage. V5: 5 true leaf development stage. V7: 7 true leaf development stage. R1: Silking stage of maize. Different lowercase letters indicate a significant difference ≤0.05. The same below

Fig. 4 The subcellular distribution of ZmSTART1-GFP observed under laser confocal microscopy (bar=50 μm)

Fig. 5 Screening and identification of ZmSTART1 positive seedlingsA: Hygromycin screening. B: PCR identification. C: Analysis of RT-qPCR expression

Fig. 6 Phenotypic observation of transgenic linesoverexpressed ZmSTART1 in A. thaliana

Table 2 Phenotype data statistics of superficial veins and vascular bundles

类型	维管束个数	子叶二级叶脉	真叶二级叶脉数	真叶三级叶脉数	真叶四级叶脉数	子叶脉间区域
Type	No. of vascular bundles	Cotyledon vein/Veins	Total number of secondary veins in true leaves	Total number of tertiary veins in true leaves	Total number of fourth-order veins of true leaves	Region between veins of cotyledons
WT	6aa	5±1aa	12±1aa	12±1aa	0aa	5±1aa
ZmSTART1-OE1	7±1Aa	7±1AA	17±2AA	37±7AA	4±1AA	7±1AA
ZmSTART1-OE2	7±1Aa	7±1AA	16±2AA	33±8AA	3±1AA	6±7Aa
ZmSTART1-OE3	6±1aa	6±1Aa	15±2Aa	30±8AA	2±1AA	5±7aa

Fig. 7 Phenotype of the of ZmSTART1-overexpressed transgenic A.thaliana leaf veinA and B: The cotyledon and true leaf veins of wild type (A) and ZmSTART1-overexpressed transgenic Arabidopsis (B) respectively. C and D: The true leaf veins at all levels of wild type (C) and ZmSTART1-overexpressed transgenic Arabidopsis (D) respectively

Fig. 8 Stem cross seetional microstructure of transgenie A. thaliana overexpressing ZmSTART1A and B: Stem cross seetional microstructure of wild type (A) and ZmSTART1-overexpressed transgenic Arabidopsis (B) respectively. C and D: The vascular bundle of wild type (C) and ZmSTART1-overexpressed transgenic Arabidopsis (D) respectively

References 24

1	Liao SY, Yan J, Xing HK, et al. Genetic basis of vascular bundle variations in rice revealed by genome-wide association study [J]. Plant Sci, 2021, 302: 110715.
2	Zheng YX, Hou P, Zhu LY, et al. Genome-wide association study of vascular bundle-related traits in maize stalk [J]. Front Plant Sci, 2021, 12: 699486.
3	Du Q, Wang HZ. The role of HD-ZIP III transcription factors and miR165/166 in vascular development and secondary cell wall formation [J]. Plant Signal Behav, 2015, 10(10): e1078955.
4	McConnell JR, Emery J, Eshed Y, et al. Role of PHABULOSA and PHAVOLUTA in determining radial patterning in shoots [J]. Nature, 2001, 411(6838): 709-713.
5	Zhong RQ, Ye ZH. Amphivasal vascular bundle 1, a gain-of-function mutation of the IFL1/REV gene, is associated with alterations in the polarity of leaves, stems and carpels [J]. Plant Cell Physiol, 2004, 45(4): 369-385.
6	Fei C, Geng X, Xu ZJ, et al. Multiple areas investigation reveals the genes related to vascular bundles in rice [J]. Rice (N Y), 2019, 12(1): 17.
7	Fujita D, Trijatmiko KR, Tagle AG, et al. NAL1 allele from a rice Landrace greatly increases yield in modern indica cultivars [J]. Proc Natl Acad Sci USA, 2013, 110(51): 20431-20436.
8	Qi J, Qian Q, Bu QY, et al. Mutation of the rice Narrow leaf1 gene, which encodes a novel protein, affects vein patterning and polar auxin transport [J]. Plant Physiol, 2008, 147(4): 1947-1959.
9	Terao T, Nagata K, Morino K, et al. A gene controlling the number of primary Rachis branches also controls the vascular bundle formation and hence is responsible to increase the harvest index and grain yield in rice [J]. Theor Appl Genet, 2010, 120(5): 875-893.
10	Trieu AT, Burleigh SH, Kardailsky IV, et al. Transformation of Medicago truncatula via infiltration of seedlings or flowering plants with Agrobacterium [J]. Plant J, 2000, 22(6): 531-541.
11	Tsujishita Y, Hurley JH. Structure and lipid transport mechanism of a StAR-related domain [J]. Nat Struct Biol, 2000, 7(5): 408-414.
12	Clark BJ, Wells J, King SR, et al. The purification, cloning, and expression of a novel luteinizing hormone-induced mitochondrial protein in MA-10 mouse Leydig tumor cells. Characterization of the steroidogenic acute regulatory protein (StAR) [J]. J Biol Chem, 1994, 269(45): 28314-28322.
13	Waterman MR. A rising StAR: an essential role in cholesterol transport [J]. Science, 1995, 267(5205): 1780-1781.
14	Stocco DM. An update on the mechanism of action of the Steroidogenic Acute Regulatory (StAR) protein [J]. Exp Clin Endocrinol Diabetes, 1999, 107(4): 229-235.
15	de Brouwer APM, Westerman J, Kleinnijenhuis A, et al. Clofibrate-induced relocation of phosphatidylcholine transfer protein to mitochondria in endothelial cells [J]. Exp Cell Res, 2002, 274(1): 100-111.
16	Garajová K, Zimmermann M, Petrenčáková M, et al. The molten-globule residual structure is critical for reflavination of glucose oxidase [J]. Biophys Chem, 2017, 230: 74-83.
17	Soccio RE, Adams RM, Maxwell KN, et al. Differential gene regulation of StarD4 and StarD5 cholesterol transfer proteins. Activation of StarD4 by sterol regulatory element-binding protein-2 and StarD5 by endoplasmic reticulum stress [J]. J Biol Chem, 2005, 280(19): 19410-19418.
18	LaVoie HA, Whitfield NE, Shi B, et al. STARD6 is expressed in steroidogenic cells of the ovary and can enhance de novo steroidogenesis [J]. Exp Biol Med, 2014, 239(4): 430-435.
19	Al Haddad M, El-Rif R, Hanna S, et al. Differential regulation of rho GTPases during lung adenocarcinoma migration and invasion reveals a novel role of the tumor suppressor StarD13 in invadopodia regulation [J]. Cell Commun Signal, 2020, 18(1): 144.
20	Prigge MJ, Otsuga D, Alonso JM, et al. Class III homeodomain-leucine zipper gene family members have overlapping, antagonistic, and distinct roles in Arabidopsis development [J]. Plant Cell, 2005, 17(1): 61-76.
21	Rao RP, Yuan CQ, Allegood JC, et al. Ceramide transfer protein function is essential for normal oxidative stress response and lifespan [J]. Proc Natl Acad Sci U S A, 2007, 104(27): 11364-11369.
22	Alpy F, Tomasetto C. Give lipids a START: the StAR-related lipid transfer (START) domain in mammals [J]. J Cell Sci, 2005, 118(Pt 13): 2791-2801.
23	Byrne ME. Shoot meristem function and leaf polarity: the role of class III HD-ZIP genes [J]. PLoS Genet, 2006, 2(6): e89.
24	Baima S, Possenti M, Matteucci A, et al. The Arabidopsis ATHB-8 HD-zip protein acts as a differentiation-promoting transcription factor of the vascular meristems [J]. Plant Physiol, 2001, 126(2): 643-655.
