Genome-wide Identification of the ME Family in Cyperus esculentusis and Functional Analysis of CeNAD-ME2

doi:10.13560/j.cnki.biotech.bull.1985.2025-0473

Abstract

Abstract:

Objective The systematic analysis of the members of the ME gene family in the yellow nutsedge (Cyperus esculentus) and the exploration of ME involved in the oil synthesis of the yellow nutsedge tuber provide a scientific reference for the comprehensive understanding of the oil-rich mechanism of the yellow nutsedge and the cultivation of new crop germplasm with oil-rich nutritional organs. Method Omics tools were employed to identify CeME gene family members and analyze their physicochemical properties. Quantitative PCR (RT-qPCR) was used to detect CeME expression patterns during key tuber developmental stages. Target CeME genes were heterologously expressed in Saccharomyces cerevisiae and Nicotiana tabacum. ME enzyme activity, lipid profiles, and metabolic shifts were analyzed in the transgenic lines. Result Six CeME genes were identified, and distributed across six chromosomes, including four NADP-dependent (CeNADP-ME1-CeNADP-ME4) and two NAD-dependent (CeNAD-ME1-CeNAD-ME2) isoforms. All CeMEs harbored 18-19 introns, with CeNADP-ME1 containing 19 introns. Promoter regions of CeMEs contained multiple cis-acting elements linked to development, hormones, and stress responses. All CeME proteins possessed canonical ME domains and twelve conserved motifs. CeMEs were upregulated during the tuber lipid accumulation phase (80-120 d after sowing), with CeNAD-ME2 exhibiting the highest expression. CeNAD-ME2 was localized to mitochondria. The overexpression of CeNAD-ME2 increased total lipids by 5.6% and palmitoleic acid (C16:1) by 28% compared to the wild-type. Transgenic tobacco lines showed 1.5‒4 fold higher ME activity, with total lipids and oleic acid (C18:1) content elevated by 5.2% and 5.6%, respectively, while soluble sugars and starch decreased by 2% and 5%. Conclusion Six CeME genes are identified in yellow nutsedge, with CeNAD-ME2 playing a pivotal role in tuber lipid biosynthesis. Heterologous expression of CeNAD-ME2 redirects carbon flux toward lipid synthesis, significantly enhancing total lipid and monounsaturated fatty acid content in hosts. These findings provide a foundation for elucidating lipid accumulation mechanisms in yellow nutsedge and engineering oil-enriched crops.

Key words: Cyperus esculentusis L, malic enzyme, genome identification, fatty acid synthesis, genetic transformation of yeast and tobacco

LI Zhan-qian, LI Chen, LI Shu-ting, MA Ju-hua, JING Hai-qing, SUN Yan, ZHOU Ya-li, XUE Jin-ai, LI Run-zhi. Genome-wide Identification of the ME Family in Cyperus esculentusis and Functional Analysis of CeNAD-ME2[J]. Biotechnology Bulletin, 2025, 41(10): 210-221.

Figures/Tables 16

Table 1 Primer sequences

基因 Gene	正向引物 Forward primer （5′-3′）	反向引物 Reverse primer （5′-3′）
CeNADP-ME1	GAGGAGCTGTTGCCATCTGT	TGTGACAGATGGCGAACGG
CeNADP-ME2	CACTGACGGAGGACGGATT	TCTGCGTGCTTGCCTATTACA
CeNADP-ME3	GCATGAGAAGAGCATCCAGG	CTTCTGCGTGCCTGCCTATTA
CeNADP-ME4	CTTCTGCCTCCTGCTATCGTT	TGGTTCCATCTTCAGGCGTC
CeNAD-ME1	TGGTGACAGATGGAAGCAGGA	CTGTATGTCTCCGCTGCTGG
CeNAD-ME2	AGAATGCTCGGCACTGACC	AGTGGTCAAGAAGGTGAAGCC
CeActin	TCGGTGGTATTGGAACTG	AAGCACTGGAGCGTAGCC
pBI121-CeNAD-ME2	aacctgcaggtcgactctagaATGTGGAACATGAGGCAGCTG	ggtttaaacgagctcggtaccTCACTTTTCATGAACCAAGGGG
pYES2.0-CeNAD-ME2	attaagcttggtaccgagctcATGTGGAACATGAGGCAGCTG	tacatgatgcggccctctagaTCACTTTTCATGAACCAAGGGG
1300-CeNAD-ME2	atacaccaaatcgactctagaATGTGGAACATGAGGCA	cgatcggggaaattcgagctcTCACTTTTCATGAACCAAGGGG

Fig. 1 Amino acid sequence alignment of the CeME family proteins (A, B) and the evolutionary tree analysis (C) of CeMEs with ME proteins from other plantsI‒V: Five conserved domains of malic enzyme. Ce: Cyperus esculentusis; At: Arabidopsis thaliana; Zm: Zea mays (maize). Ta: Triticum aestivum (wheat); Os: Oryza sativa (rice); St: Solanum tuberosum (potato); Gm: Glycine max (soybean)

Table 2 Analysis of the physiochemical properties of the ME family proteins in C. yperus esculentusis L.

基因 Gene	基因 ID Gene ID	氨基酸数 Number of amino acids	相对分子质量 Molecular weight (kD)	理论等电点 pI	不稳定系数 Instability factor	亲水性 Hydrophilicity	亚细胞定位预测 Prediction of subcellu-lar location
CeNADP-ME1	CESC_03761	650	71.11	7.00	37.79	-0.206	叶绿体
CeNADP-ME2	CESC_08481	577	64.01	5.97	41.44	-0.112	叶绿体
CeNADP-ME3	CESC_16067	641	71.43	6.73	44.48	-0.153	叶绿体
CeNADP-ME4	CESC_16827	662	73.62	6.78	49.33	-0.121	叶绿体
CeNAD-ME1	CESC_15235	623	68.87	5.59	43.08	-0.112	线粒体
CeNAD-ME2	CESC_17435	609	67.51	7.98	36.58	-0.119	线粒体

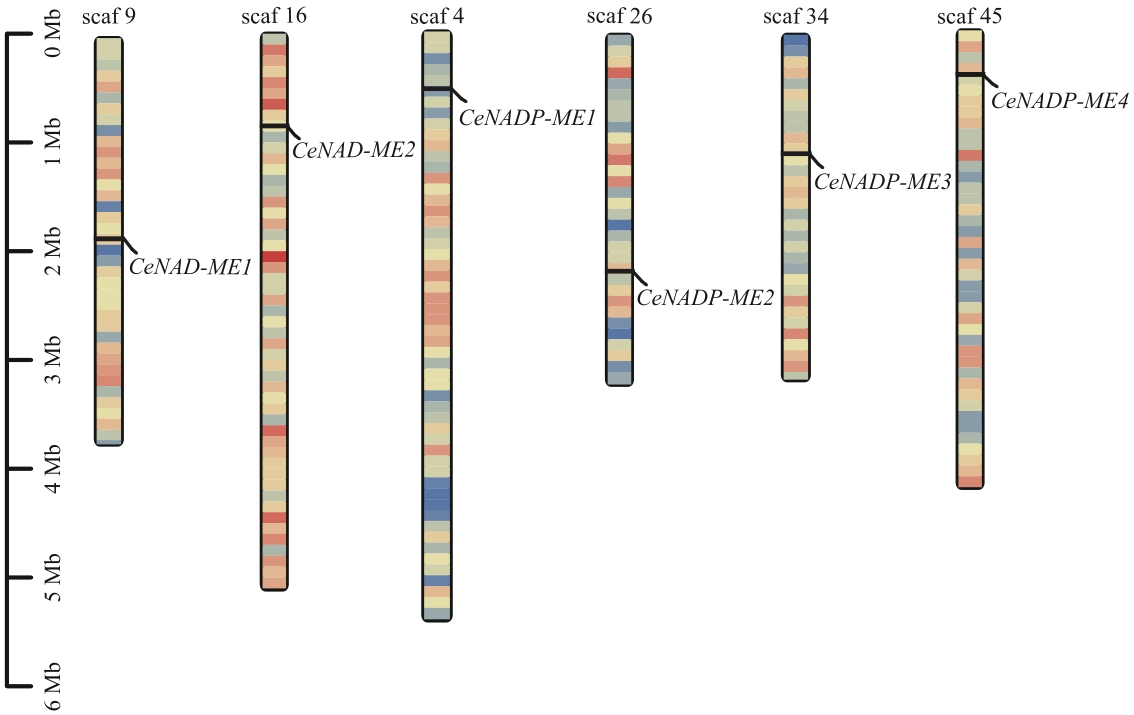

Fig. 2 Distribution of CeMEs genes on the chromosomes of C. esculentusis L.

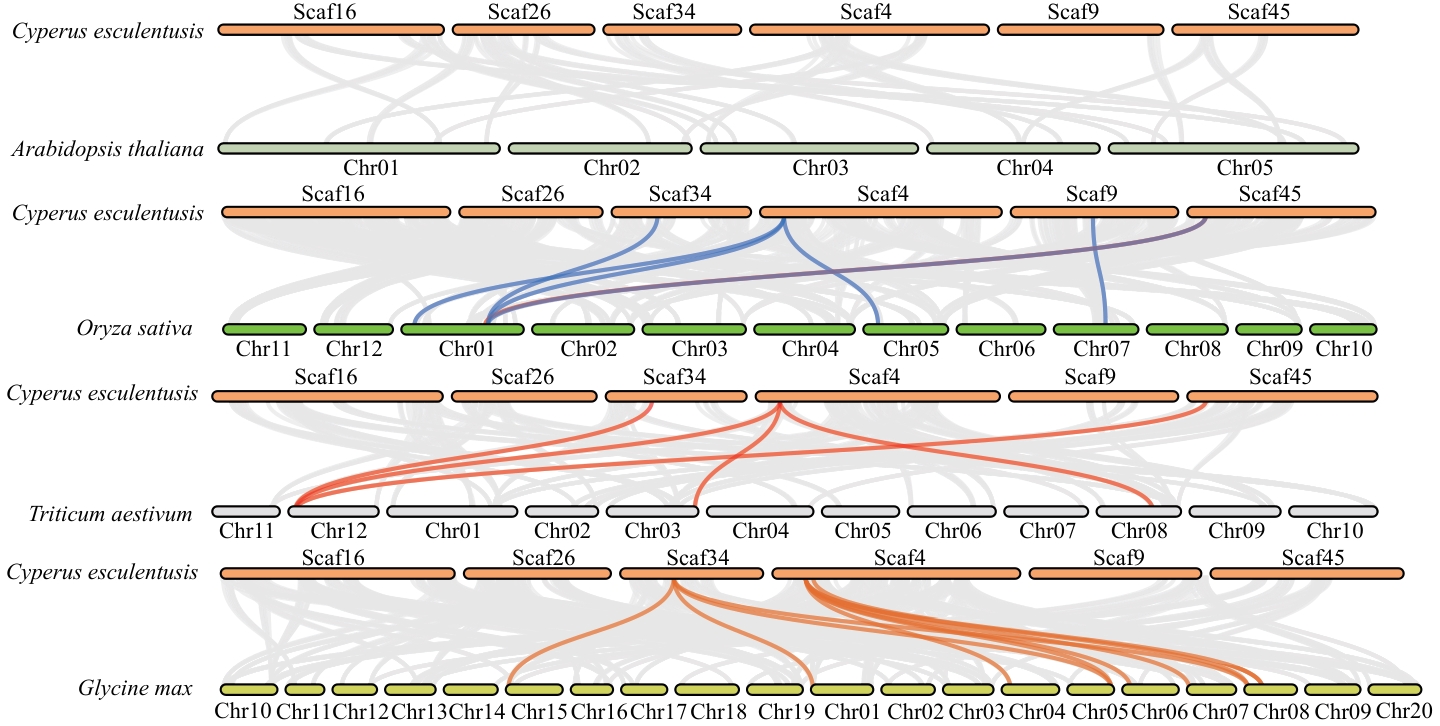

Fig. 3 Collinear analysis of CeMEs gene family with 4 other plants (Arabidopsis thaliana, wheat, rice and soybean)

Fig. 4 Analysis of the conserved motifs and domains among CeMEs family (A)and the inron/exon organization of CeME genes (B) in C. esculentusis

Fig. 5 Cis-acting elements analysis of CeMEs genes in C. esculentusis L.

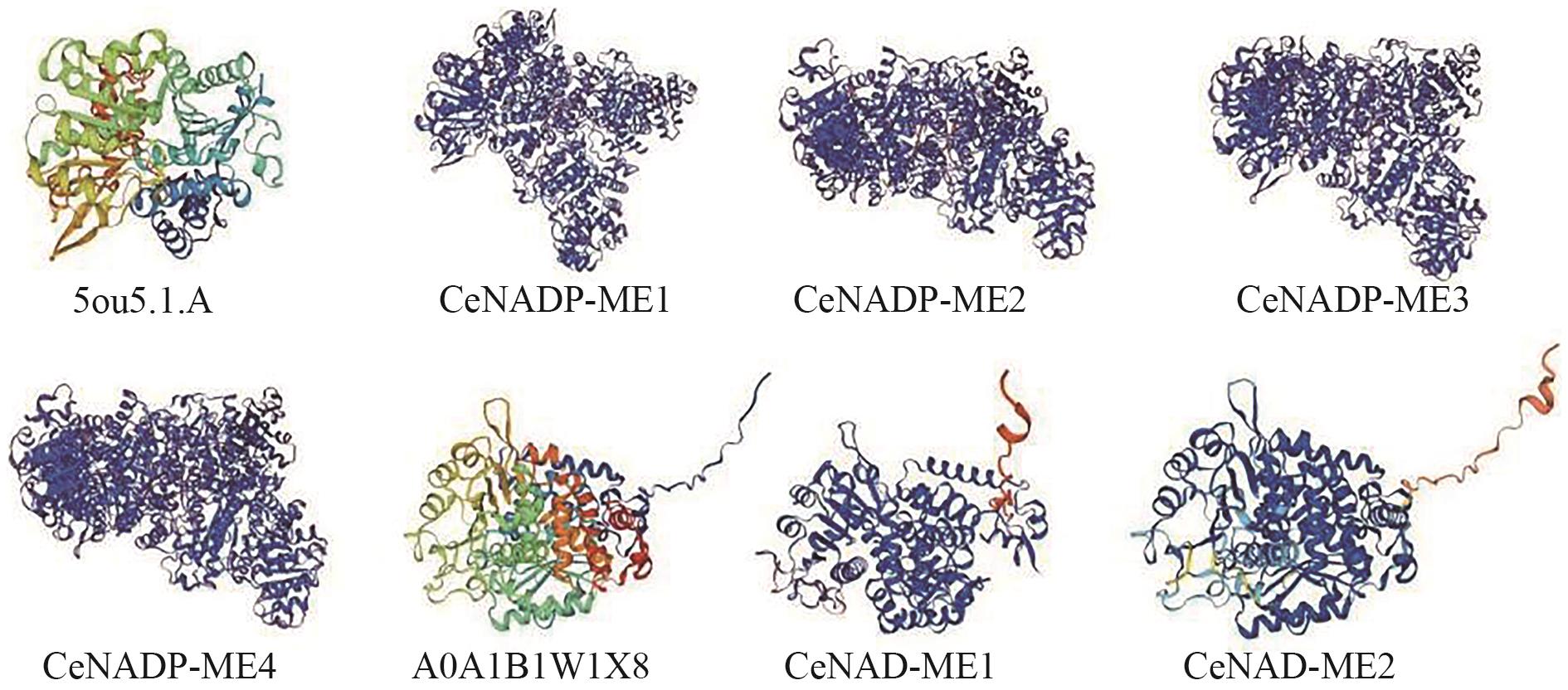

Fig. 6 3D prediction of the ME family proteins in C. esculentusis L.

Fig. 7 Quantitative analysis of ME gene expression in different stages of C. esculentusis tuber developmentDifferent letters indicate significant differences at P<0.05. The same below

Fig. 8 Subcellular localization analysis of CeNAD-ME2 protein

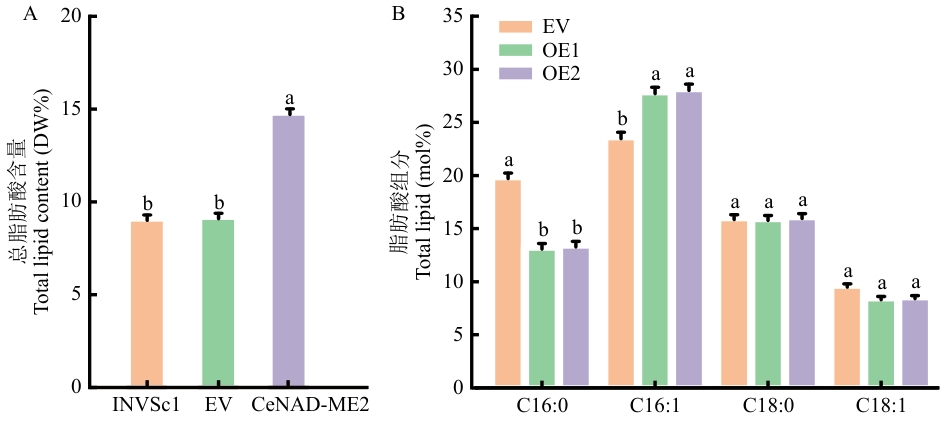

Fig. 9 Total fatty acid content and fatty acid profiles of the transgenic yeastINVSc1: Wild contro; EV: empty vector control; OE: overexpressed line

Fig. 10 Genetic transformation process in tobacco plants

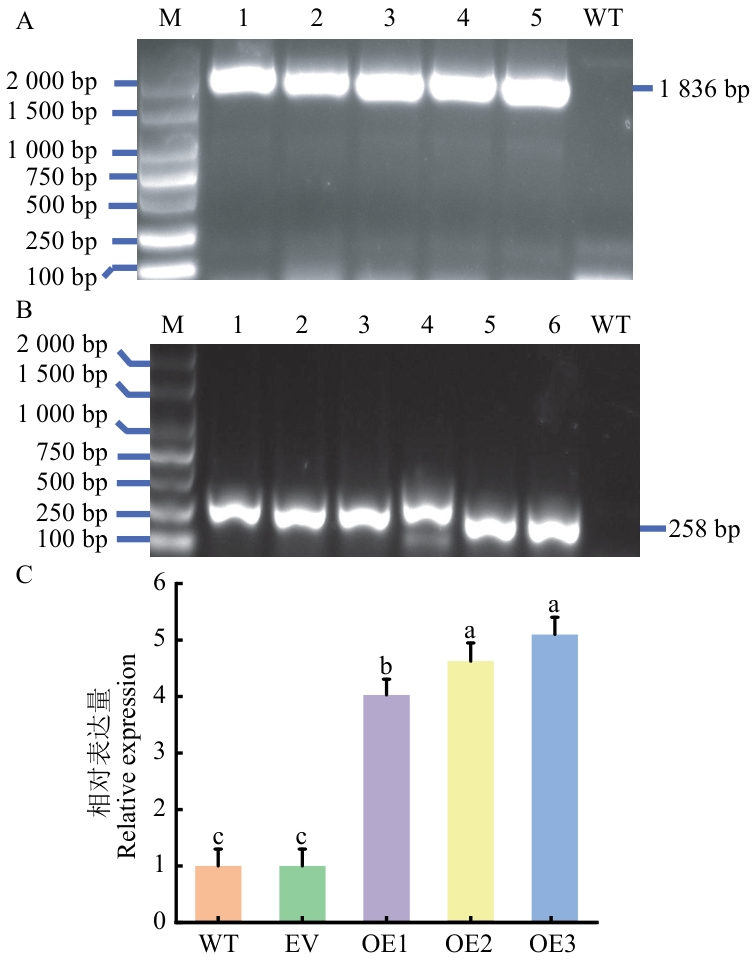

Fig. 11 DNA molecular identification (A), RNA molecule identification (B) and relative expression (C) of CeNAD-ME2-transgenic tobacco plantsM: DL2000 marker; 1‒6: transfer PBI121-CeNAD-ME2 positive band; WT: wild control; EV: empty vector control; OE: transgenic PBI121-CeNAD-ME2 positive plants. The same below

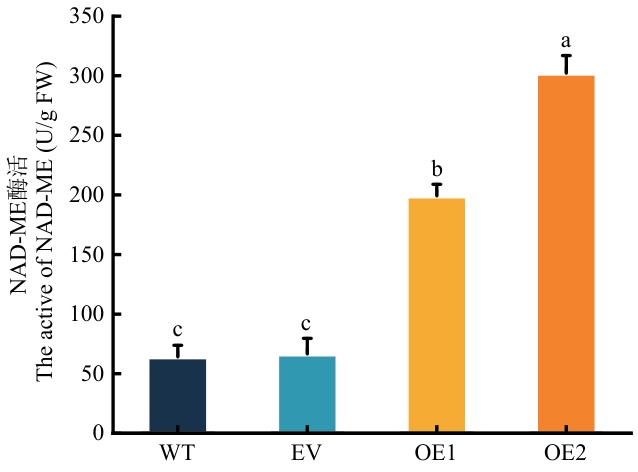

Fig. 12 Activity detection of NAD-dependent malic enzyme in the wild and transgenic tobacco plants

Fig. 13 Contents of starch, soluble sugar, protein, total fatty acid, chlorophyll,and fatty acid profiles of the transgenic tobacco leaves

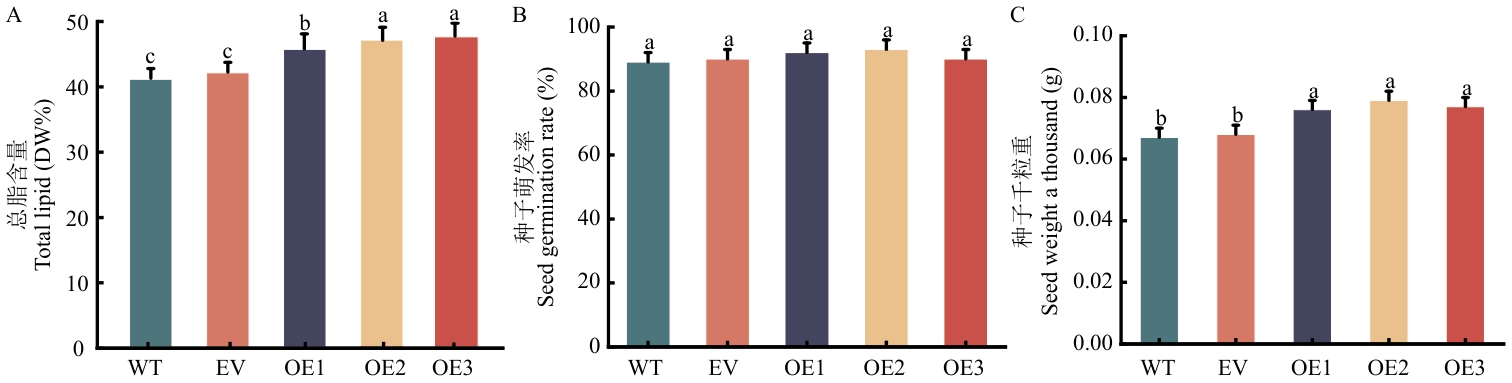

Fig. 14 Determination of oil content, seed germination rate, and thousand-seed weight of transgenic tobacco seeds

References 39

[1]	Sánchez-Zapata E, Fernández-López J, Angel Pérez-Alvarez J. Tiger nut (Cyperus esculentus) commercialization: health aspects, composition, properties, and food applications [J]. Compr Rev Food Sci Food Saf, 2012, 11(4): 366-377.
[2]	Bullen JJ, Rogers HJ, Spalding PB, et al. Natural resistance, iron and infection: a challenge for clinical medicine [J]. J Med Microbiol, 2006, 55(Pt 3): 251-258.
[3]	瞿萍梅, 程治英, 龙春林, 等. 油莎豆资源的综合开发利用 [J]. 中国油脂, 2007, 32(9): 61-63.
	Qu PM, Cheng ZY, Long CL, et al. Comprehensive development of chufa (Cyperus esculentus L. var. sativus) [J]. China Oils Fats, 2007, 32(9): 61-63.
[4]	Makareviciene V, Gumbyte M, Yunik A, et al. Opportunities for the use of chufa sedge in biodiesel production [J]. Ind Crops Prod, 2013, 50: 633-637.
[5]	Li T, Sun Y, Chen Y, et al. Characterisation of two novel genes encoding Δ9 fatty acid desaturases (CeSADs) for oleic acid accumulation in the oil-rich tuber of Cyperus esculentus [J]. Plant Sci, 2022, 319: 111243.
[6]	McCullough W, Roberts CF. The role of malic enzyme in Aspergillus nidulans [J]. FEBS Lett, 1974, 41(2): 238-242.
[7]	Boles E, de Jong-Gubbels P, Pronk JT. Identification and characterization of MAE1 the Saccharomyces cerevisiae structural gene encoding mitochondrial malic enzyme [J]. J Bacteriol, 1998, 180(11): 2875-2882.
[8]	Thelen JJ, Ohlrogge JB. Metabolic engineering of fatty acid biosynthesis in plants [J]. Metab Eng, 2002, 4(1): 12-21.
[9]	周滈, 杨传平, 柳参奎. 植物苹果酸酶在抵御逆境中的作用 [J]. 林业科技, 2011, 36(6): 44-47.
	Zhou H, Yang CP, Liu SK. The role of plant malic enzyme in defense against stress environments [J]. For Sci Technol, 2011, 36(6): 44-47.
[10]	Rao XL, Dixon RA. The differences between NAD-ME and NADP-ME subtypes of C₄ photosynthesis: more than decarboxylating enzymes [J]. Front Plant Sci, 2016, 7: 1525.
[11]	Wheeler MC, Tronconi MA, Drincovich MF, et al. A comprehensive analysis of the NADP-malic enzyme gene family of Arabidopsis [J]. Plant Physiol, 2005, 139(1): 39-51.
[12]	Tronconi MA, Fahnenstich H, Gerrard Weehler MC, et al. Arabidopsis NAD-malic enzyme functions as a homodimer and heterodimer and has a major impact on nocturnal metabolism [J]. Plant Physiol, 2008, 146(4): 1540-1552.
[13]	Alvarez CE, Saigo M, Margarit E, et al. Kinetics and functional diversity among the five members of the NADP-malic enzyme family from Zea mays, a C₄ species [J]. Photosynth Res, 2013, 115(1): 65-80.
[14]	Ratledge C. The role of malic enzyme as the provider of NADPH in oleaginous microorganisms: a reappraisal and unsolved problems [J]. Biotechnol Lett, 2014, 36(8): 1557-1568.
[15]	Zhu BH, Zhang RH, Lv NN, et al. The role of malic enzyme on promoting total lipid and fatty acid production in Phaeodactylum tricornutum [J]. Front Plant Sci, 2018, 9: 826.
[16]	Zhang Y, Adams IP, Ratledge C. Malic enzyme: the controlling activity for lipid production overexpression of malic enzyme in Mucor circinelloides leads to a 2.5-fold increase in lipid accumulation [J]. Microbiology, 2007, 153(Pt 7): 2013-2025.
[17]	Wynn JP, Ratledge C. Malic enzyme is a major source of NADPH for lipid accumulation by Aspergillus nidulans [J]. Microbiology, 1997, 143(1): 253-257.
[18]	Gerrard Wheeler MC, Arias CL, Righini S, et al. Differential contribution of malic enzymes during soybean and castor seeds maturation [J]. PLoS One, 2016, 11(6): e0158040.
[19]	Morley SA, Ma FF, Alazem M, et al. Expression of malic enzyme reveals subcellular carbon partitioning for storage reserve production in soybeans [J]. New Phytol, 2023, 239(5): 1834-1851.
[20]	Ji HY, Liu DT, Yang ZL. High oil accumulation in tuber of yellow nutsedge compared to purple nutsedge is associated with more abundant expression of genes involved in fatty acid synthesis and triacylglycerol storage [J]. Biotechnol Biofuels, 2021, 14(1): 54.
[21]	Gao Y, Sun Y, Gao HL, et al. Correction to: Ectopic overexpression of a type-II DGAT (CeDGAT2-2) derived from oil-rich tuber of Cyperus esculentus enhances accumulation of oil and oleic acid in tobacco leaves [J]. Biotechnol Biofuels, 2021, 14(1): 139.
[22]	李秀峰, 张欣欣, 高野哲夫, 等. 水稻（Oryza sativa L.）苹果酸酶（OsNADP-ME3）基因在逆境下的表达特性研究 [J]. 基因组学与应用生物学, 2012, 31(4): 327-332.
	Li XF, Zhang XX, Takano T, et al. Expression characteristics of rice (Oryza sativa L.) malic enzyme (OsNADP-ME3) gene under environmental stress [J]. Genom Appl Biol, 2012, 31(4): 327-332.
[23]	刘增辉. 小麦NADP-苹果酸酶与逆境关系的初步研究 [D]. 青岛: 青岛科技大学, 2010.
	Liu ZH. Preliminary study on the relationg of NADP-malic enzyme and stresses [D]. Qingdao: Qingdao University of Science & Technology, 2010.
[24]	Kawaoka A, Kawamoto T, Sekine M, et al. A cis-acting element and a trans-acting factor involved in the wound-induced expression of a horseradish peroxidase gene [J]. Plant J, 1994, 6(1): 87-97.
[25]	Ni M, Tepperman JM, Quail PH. PIF3, a phytochrome-interacting factor necessary for normal photoinduced signal transduction, is a novel basic helix-loop-helix protein [J]. Cell, 1998, 95(5): 657-667.
[26]	张玉慧, 王玉兰, 夏春兰, 等. 松叶猪毛菜NADP-苹果酸酶基因家族及启动子克隆分析 [J]. 西北植物学报, 2022, 42(5): 760-769.
	Zhang YH, Wang YL, Xia CL, et al. Cloning and analysis of NADP-ME gene family and promoters in Salsola laricifolia [J]. Acta Bot Boreali Occidentalia Sin, 2022, 42(5): 760-769.
[27]	史先飞, 高宇, 黄旭升, 等. 油莎豆丙酮酸激酶基因的鉴定及其在块茎发芽和幼苗形态建成时期的表达分析 [J]. 激光生物学报, 2022, 31(6): 533-541.
	Shi XF, Gao Y, Huang XS, et al. Identification of pyruvate kinase genes and their expression analysis during Cyperus esculentus tuber germination and seedling establishment [J]. Acta Laser Biol Sin, 2022, 31(6): 533-541.
[28]	Dao O, Kuhnert F, Weber APM, et al. Physiological functions of malate shuttles in plants and algae [J]. Trends Plant Sci, 2022, 27(5): 488-501.
[29]	Wedding RT. Malic enzymes of higher plants: characteristics, regulation, and physiological function [J]. Plant Physiol, 1989, 90(2): 367-371.
[30]	Bonnerot C, Galle AM, Jolliot A, et al. Purification and properties of plant cytochrome b5 [J]. Biochem J, 1985, 226(1): 331-334.
[31]	Kumar R, Tran LP, Neelakandan AK, et al. Higher plant cytochrome b5 polypeptides modulate fatty acid desaturation [J]. PLoS One, 2012, 7(2): e31370.
[32]	Schultz CJ, Coruzzi GM. The aspartate aminotransferase gene family of Arabidopsis encodes isoenzymes localized to three distinct subcellular compartments [J]. Plant J, 1995, 7(1): 61-75.
[33]	Allen DK, Young JD. Carbon and nitrogen provisions alter the metabolic flux in developing soybean embryos [J]. Plant Physiol, 2013, 161(3): 1458-1475.
[34]	Eastmond PJ, Dennis DT, Rawsthorne S. Evidence that a malate/inorganic phosphate exchange translocator imports carbon across the leucoplast envelope for fatty acid synthesis in developing castor seed endosperm [J]. Plant Physiol, 1997, 114(3): 851-856.
[35]	李秀婷. 现代啤酒生产工艺 [M]. 北京: 中国农业大学出版社, 2013.
	Li XT. Modern technology of beer production [M]. Beijing: China Agricultural University Press, 2013.
[36]	荆美玲. 油莎豆油脂合成基因CePDAT3基因的克隆及功能研究 [D]. 长春: 吉林农业大学, 2022.
	Jing ML. Cloning and functional study of CePDAT3 gene for oil synthesis fromcyperus esculentusis [D]. Changchun: Jilin Agricultural University, 2022.
[37]	Cramer CL, Weissenborn DL, Oishi KK, et al. Bioproduction of human enzymes in transgenic tobacco [J]. Ann N Y Acad Sci, 1996, 792(1): 62-71.
[38]	吉夏洁. 过表达蓖麻RcWRI1提高烟叶油脂积累 [D]. 太谷: 山西农业大学, 2018.
	Ji XJ. Overexpression of Ricinus communis RcWRI1 improves oil accumulation in tobacco leaves [D]. Taigu: Shanxi Agricultural University, 2018.
[39]	Wilson RS, Thelen JJ. In vivo quantitative monitoring of subunit stoichiometry for metabolic complexes [J]. J Proteome Res, 2018, 17(5): 1773-1783.
