From Wild to Cultivated： Evolution and Regulatory Mechanisms of Tomato Fruit Color

doi:10.13560/j.cnki.biotech.bull.1985.2025-1227

Abstract

Abstract:

During the evolution and domestication from wild relatives to cultivated varieties, the fruits of tomato (Solanum lycopersicum) have gradually developed diverse coloration patterns. The color characteristics of wild tomato fruits (such as green or yellow) are the outcomes of long-term adaptive evolution, endowing the plants with critical ecological adaptability. In contrast, the rich color variations in cultivated tomatoes are mainly shaped by human selection preferences during artificial domestication. This paper systematically summarizes and clarifies the genetic regulatory mechanisms underlying tomato fruit color formation, with a key focus on the regulatory networks of core genes involved in three major metabolic pathways: carotenoid, chlorophyll, and anthocyanin biosynthesis. It further elaborates the interactive effects of natural and artificial selection in driving the diversification of fruit color traits. Currently, a relatively comprehensive and systematic understanding of the mechanisms governing tomato fruit color formation has been established. The major genes controlling the main fruit color phenotypes of tomato, including red, yellow, pink, green, and purple, have been largely identified. Relevant studies are gradually expanding from the functional analysis of individual structural genes to the systematic dissection of complex regulatory networks involving ripening-related regulatory factors (such as RIN and NOR) and transcription factors from the MYB and bHLH families. The integration of multi-omics technologies has further elucidated the multi-layered dynamic regulatory mechanisms underlying fruit color formation. The rapid development of modern breeding technologies, especially the application of gene editing tools, has further expanded the range of fruit color variations. In addition, growing attention is being paid to the coordinated regulation between color formation and other key quality traits (e.g., sugar content, acidity, and aroma), indicating that fruit color is not merely a visual characteristic but also an important indicator of comprehensive fruit quality. Future research should advance from multiple dimensions, including molecular regulation, multi-trait coupling, and breeding translation, to construct a full-chain research system spanning from basic theoretical mechanisms to breeding applications.

Key words: tomato, fruit color, carotenoids, chlorophylls, anthocyanins, metabolic pathways, gene editing

LIU Miao, LIN Tao, JIA Le-song, HU Feng, LI Tao, LI Zhi-wan, LIU Mei-fang, ZHENG Fang-yan, CUI Long. From Wild to Cultivated： Evolution and Regulatory Mechanisms of Tomato Fruit Color[J]. Biotechnology Bulletin, 2026, 42(3): 187-202.

Figures/Tables 8

References 102

[1]	Jenkins JA. The origin of the cultivated tomato [J]. Econ Bot, 1948, 2(4): 379-392.
[2]	Blanca J, Cañizares J, Cordero L, et al. Variation revealed by SNP genotyping and morphology provides insight into the origin of the tomato [J]. PLoS One, 2012, 7(10): e48198.
[3]	Yoshiyama Y, Wakabayashi Y, Mercer KL, et al. Natural genetic variation in dynamic photosynthesis is correlated with stomatal anatomical traits in diverse tomato species across geographical habitats [J]. J Exp Bot, 2024, 75(21): 6762-6777.
[4]	van Andel T, Vos RA, Michels E, et al. Sixteenth-century tomatoes in Europe: who saw them, what they looked like, and where they came from [J]. PeerJ, 2022, 10: e12790.
[5]	赵凌侠, 李景富. 番茄起源、传播及分类的回顾 [J]. 作物品种资源, 1999(3): 29-31.
	Zhao LX, Li JF. Review on the origin, spread and classification of tomato [J]. China Seed Ind, 1999(3): 29-31.
[6]	Mary F Willson CJW. The evolution of fruit color in fleshy-fruited plants [J]. Am Nat, 1990, 136(6): 790-809.
[7]	Kapoor L, Simkin AJ, George Priya Doss C, et al. Fruit ripening: dynamics and integrated analysis of carotenoids and anthocyanins [J]. BMC Plant Biol, 2022, 22(1): 27.
[8]	Zuriaga E, Blanca J, Nuez F. Classification and phylogenetic relationships in Solanum section Lycopersicon based on AFLP and two nuclear gene sequences [J]. Genet Resour Crop Evol, 2009, 56(5): 663-678.
[9]	Tomato Genome Consortium. The tomato genome sequence provides insights into fleshy fruit evolution [J]. Nature, 2012, 485(7400): 635-641.
[10]	Lin T, Zhu GT, Zhang JH, et al. Genomic analyses provide insights into the history of tomato breeding [J]. Nat Genet, 2014, 46(11): 1220-1226.
[11]	Zhu GT, Wang SC, Huang ZJ, et al. Rewiring of the fruit metabolome in tomato breeding [J]. Cell, 2018, 172(1/2): 249-261.e12.
[12]	Gao L, Gonda I, Sun HH, et al. The tomato pan-genome uncovers new genes and a rare allele regulating fruit flavor [J]. Nat Genet, 2019, 51(6): 1044-1051.
[13]	Alonge M, Wang XG, Benoit M, et al. Major impacts of widespread structural variation on gene expression and crop improvement in tomato [J]. Cell, 2020, 182(1): 145-161.e23.
[14]	Zhou Y, Zhang ZY, Bao ZG, et al. Graph pangenome captures missing heritability and empowers tomato breeding [J]. Nature, 2022, 606(7914): 527-534.
[15]	Yu XF, Qu MH, Shi YN, et al. Chromosome-scale genome assemblies of wild tomato relatives Solanum habrochaites and Solanum galapagense reveal structural variants associated with stress tolerance and terpene biosynthesis [J]. Hortic Res, 2022, 9: uhac139.
[16]	Li N, He Q, Wang J, et al. Super-pangenome analyses highlight genomic diversity and structural variation across wild and cultivated tomato species [J]. Nat Genet, 2023, 55(5): 852-860.
[17]	Delgado-Vargas F, Jiménez AR, Paredes-López O. Natural pigments: carotenoids, anthocyanins, and betalains—characteristics, biosynthesis, processing, and stability [J]. Crit Rev Food Sci Nutr, 2000, 40(3): 173-289.
[18]	Rosati C, Diretto G, Giuliano G. Biosynthesis and engineering of carotenoids and apocarotenoids in plants: state of the art and future prospects [J]. Biotechnol Genet Eng Rev, 2009, 26(1): 139-162.
[19]	金凤媚, 薛俊, 郏艳红, 等. 番茄果实颜色相关基因的研究进展 [J]. 天津农业科学, 2006, 12(4): 3-6.
	Jin FM, Xue J, Jia YH, et al. Research advance of tomato fruit color related gene [J]. Tianjin Agric Sci, 2006, 12(4): 3-6.
[20]	Egea I, Barsan C, Bian WP, et al. Chromoplast differentiation: current status and perspectives [J]. Plant Cell Physiol, 2010, 51(10): 1601-1611.
[21]	孟凡娟, 许向阳, 李景富. 番茄果实色素含量和表面颜色相关性研究 [J]. 东北农业大学学报, 2006, 37(4): 459-462.
	Meng FJ, Xu XY, Li JF. Study on correlation of the tomato fruit’s pigment content and surface colour [J]. J Northeast Agric Univ, 2006, 37(4): 459-462.
[22]	阮美颖, 叶青静, 周国治, 等. 不同颜色樱桃番茄果实成熟过程中色素的变化 [J]. 浙江农业科学, 2013, 54(5): 526-528.
	Ruan MY, Ye QJ, Zhou GZ, et al. Changes of pigment during fruit ripening of cherry tomato with different colors [J]. J Zhejiang Agric Sci, 2013, 54(5): 526-528.
[23]	王仁杰, 夏海波, 蔡红明, 等. 不同颜色樱桃番茄品质研究 [J]. 食品工业, 2024, 45(1): 104-108.
	Wang RJ, Xia HB, Cai HM, et al. Study on quality of different color cherry tomatoes [J]. Food Ind, 2024, 45(1): 104-108.
[24]	Kang A, George KW, Wang G, et al. Isopentenyl diphosphate (IPP)-bypass mevalonate pathways for isopentenol production [J]. Metab Eng, 2016, 34: 25-35.
[25]	Fray RG, Grierson D. Identification and genetic analysis of normal and mutant phytoene synthase genes of tomato by sequencing, complementation and co-suppression [J]. Plant Mol Biol, 1993, 22(4): 589-602.
[26]	Wang TL, He QY, Wang CY, et al. The expression profile of genes related to carotenoid biosynthesis in pepper under abiotic stress reveals a positive correlation with plant tolerance [J]. Life, 2024, 14(12): 1659.
[27]	Rosati C, Aquilani R, Dharmapuri S, et al. Metabolic engineering of beta-carotene and lycopene content in tomato fruit [J]. Plant J, 2000, 24(3): 413-420.
[28]	Gao Y, Zhu N, Zhu XF, et al. Diversity and redundancy of the ripening regulatory networks revealed by the fruit ENCODE and the new CRISPR/Cas9 CNR and NOR mutants [J]. Hortic Res, 2019, 6: 39.
[29]	Zhu HH, Yang JL, Chen WW. Epigenetic insights into an epimutant colorless non-ripening: from fruit ripening to stress responses [J]. Front Plant Sci, 2024, 15: 1440120.
[30]	Wang RF, Lammers M, Tikunov Y, et al. The rin, nor and Cnr spontaneous mutations inhibit tomato fruit ripening in additive and epistatic manners [J]. Plant Sci, 2020, 294: 110436.
[31]	Chung MY, Vrebalov J, Alba R, et al. A tomato (Solanum lycopersicum) APETALA2/ERF gene, SlAP2a, is a negative regulator of fruit ripening [J]. Plant J, 2010, 64(6): 936-947.
[32]	Liu GZ, Li CX, Yu HY, et al. GREEN STRIPE, encoding methylated TOMATO AGAMOUS-LIKE 1, regulates chloroplast development and Chl synthesis in fruit [J]. New Phytol, 2020, 228(1): 302-317.
[33]	Wu MB, Xu X, Hu XW, et al. SlMYB72 regulates the metabolism of chlorophylls, carotenoids, and flavonoids in tomato fruit [J]. Plant Physiol, 2020, 183(3): 854-868.
[34]	Jia HM, Xu YP, Deng YW, et al. Key transcription factors regulate fruit ripening and metabolite accumulation in tomato [J]. Plant Physiol, 2024, 195(3): 2256-2273.
[35]	Li WZ, Chen LL, Zhao WH, et al. Mutation of YFT3, an isomerase in the isoprenoid biosynthetic pathway, impairs its catalytic activity and carotenoid accumulation in tomato fruit [J]. Hortic Res, 2024, 11(9): uhae202.
[36]	Yu MY, Xie YG, Qian ZL, et al. A single nucleotide substitution in the SlMCT gene contributes to great morphological alternations in tomato [J]. Mol Hortic, 2025, 5(1): 49.
[37]	Yang TX, Ali M, Lin LH, et al. Recoloring tomato fruit by CRISPR/Cas9-mediated multiplex gene editing [J]. Hortic Res, 2023, 10(1): uhac214.
[38]	Romero I, Tikunov Y, Bovy A. Virus-induced gene silencing in detached tomatoes and biochemical effects of phytoene desaturase gene silencing [J]. J Plant Physiol, 2011, 168(10): 1129-1135.
[39]	McQuinn RP, Gapper NE, Gray AG, et al. Manipulation of ZDS in tomato exposes carotenoid- and ABA-specific effects on fruit development and ripening [J]. Plant Biotechnol J, 2020, 18(11): 2210-2224.
[40]	Tal Isaacson GR. Cloning of tangerine from tomato reveals a carotenoid isomerase essential for the production of β-carotene and xanthophylls in plants [J]. Plant Cell, 2002, 14(2): 333-342.
[41]	Gil Ronen LC. An alternative pathway to β-carotene formation in plant chromoplasts discovered by map-based cloning of beta and old-gold color mutations in tomato [J]. Proc Natl Acad Sci U S A, 2000, 97(20): 11102-11107.
[42]	Yoo HJ, Chung MY, Lee HA, et al. Natural overexpression of carotenoid cleavage dioxygenase 4 in tomato alters carotenoid flux [J]. Plant Physiol, 2023, 192(2): 1289-1306.
[43]	D’Andrea L, Simon-Moya M, Llorente B, et al. Interference with Clp protease impairs carotenoid accumulation during tomato fruit ripening [J]. J Exp Bot, 2018, 69(7): 1557-1568.
[44]	Ronen G, Cohen M, Zamir D, et al. Regulation of carotenoid biosynthesis during tomato fruit development: expression of the gene for lycopene Epsilon-cyclase is down-regulated during ripening and is elevated in the mutant Delta [J]. Plant J, 1999, 17(4): 341-351.
[45]	Zhao WH, Li YH, Fan SZ, et al. The transcription factor WRKY32 affects tomato fruit colour by regulating YELLOW FRUITED-TOMATO 1, a core component of ethylene signal transduction [J]. J Exp Bot, 2021, 72(12): 4269-4282.
[46]	Zhao WH, Gao L, Li YH, et al. Yellow-fruited phenotype is caused by 573 bp insertion at 5' UTR of YFT1 allele in yft1 mutant tomato [J]. Plant Sci, 2020, 300: 110637.
[47]	Feng Y, Kou XH, Yuan S, et al. CRISPR/Cas9-mediated SNAC9 mutants reveal the positive regulation of tomato ripening by SNAC9 and the mechanism of carotenoid metabolism regulation [J]. Hortic Res, 2023, 10(4): uhad019.
[48]	Fu DQ, Meng LH, Zhu BZ, et al. Silencing of the SlNAP7 gene influences plastid development and lycopene accumulation in tomato [J]. Sci Rep, 2016, 6: 38664.
[49]	García-Alcázar M, Giménez E, Pineda B, et al. Albino T-DNA tomato mutant reveals a key function of 1-deoxy-D-xylulose-5-phosphate synthase (DXS1) in plant development and survival [J]. Sci Rep, 2017, 7: 45333.
[50]	Liu CC, Ahammed GJ, Wang GT, et al. Tomato CRY1a plays a critical role in the regulation of phytohormone homeostasis, plant development, and carotenoid metabolism in fruits [J]. Plant Cell Environ, 2018, 41(2): 354-366.
[51]	Barr J, White WS, Chen L, et al. The GHOST terminal oxidase regulates developmental programming in tomato fruit [J]. Plant Cell Environ, 2004, 27(7): 840-852.
[52]	Galpaz N, Wang Q, Menda N, et al. Abscisic acid deficiency in the tomato mutant high-pigment 3 leading to increased plastid number and higher fruit lycopene content [J]. Plant J, 2008, 53(5): 717-730.
[53]	He Y, Wang Y, Zhang MZ, et al. SlBEL11 affects tomato carotenoid accumulation by regulating SlLCY-b2 [J]. Front Nutr, 2022, 9: 1062006.
[54]	Wang Y, Tian C, Na QT, et al. The role of SlCHRC in carotenoid biosynthesis and plastid development in tomato fruit [J]. Int J Biol Macromol, 2024, 281(Pt 3): 136354.
[55]	Niu QF, Xu YP, Huang H, et al. Two transcription factors play critical roles in mediating epigenetic regulation of fruit ripening in tomato [J]. Proc Natl Acad Sci USA, 2025, 122(15): e2422798122.
[56]	Xiong C, Luo D, Lin AH, et al. A tomato B-box protein SlBBX20 modulates carotenoid biosynthesis by directly activating PHYTOENE SYNTHASE 1, and is targeted for 26S proteasome-mediated degradation [J]. New Phytol, 2019, 221(1): 279-294.
[57]	Zhang JL, Hu ZL, Yao QY, et al. A tomato MADS-box protein, SlCMB1, regulates ethylene biosynthesis and carotenoid accumulation during fruit ripening [J]. Sci Rep, 2018, 8(1): 3413.
[58]	Nguyen TNP, Sung J. Light spectral-ranged specific metabolisms of plant pigments [J]. Metabolites, 2024, 15(1): 1.
[59]	Wu Y, Jin X, Liao WB, et al. 5-aminolevulinic acid (ALA) alleviated salinity stress in cucumber seedlings by enhancing chlorophyll synthesis pathway [J]. Front Plant Sci, 2018, 9: 635.
[60]	Akram NA, Ashraf M. Regulation in plant stress tolerance by a potential plant growth regulator, 5-aminolevulinic acid [J]. J Plant Growth Regul, 2013, 32(3): 663-679.
[61]	Li DD, Yu FS, Zhang YZ, et al. Integrative analysis of different low-light-tolerant cucumber lines in response to low-light stress [J]. Front Plant Sci, 2022, 13: 1093859.
[62]	Tanaka R, Tanaka A. Tetrapyrrole biosynthesis in higher plants [J]. Annu Rev Plant Biol, 2007, 58: 321-346.
[63]	Hörtensteiner S. Chlorophyll degradation during senescence [J]. Annu Rev Plant Biol, 2006, 57: 55-77.
[64]	Tanaka A, Ito H. Chlorophyll degradation and its physiological function [J]. Plant Cell Physiol, 2025, 66(2): 139-152.
[65]	Nguyen CV, Vrebalov JT, Gapper NE, et al. Tomato GOLDEN2-LIKE transcription factors reveal molecular gradients that function during fruit development and ripening [J]. Plant Cell, 2014, 26(2): 585-601.
[66]	Niu XL, Li HL, Li R, et al. Transcription factor SlBEL2 interferes with GOLDEN2-LIKE and influences green shoulder formation in tomato fruits [J]. Plant J, 2022, 112(4): 982-997.
[67]	Shi Y, Pang XQ, Liu WJ, et al. SlZHD17 is involved in the control of chlorophyll and carotenoid metabolism in tomato fruit [J]. Hortic Res, 2021, 8(1): 259.
[68]	Yuan YJ, Mei LH, Wu MB, et al. SlARF10, an auxin response factor, is involved in chlorophyll and sugar accumulation during tomato fruit development [J]. J Exp Bot, 2018, 69(22): 5507-5518.
[69]	Yan F, Gao YS, Pang XQ, et al. BEL1-LIKE HOMEODOMAIN4 regulates chlorophyll accumulation, chloroplast development, and cell wall metabolism in tomato fruit [J]. J Exp Bot, 2020, 71(18): 5549-5561.
[70]	Meng LH, Fan ZQ, Zhang Q, et al. BEL1-LIKE HOMEODOMAIN 11 regulates chloroplast development and chlorophyll synthesis in tomato fruit [J]. Plant J, 2018, 94(6): 1126-1140.
[71]	Nadakuduti SS, Holdsworth WL, Klein CL, et al. KNOX genes influence a gradient of fruit chloroplast development through regulation of GOLDEN2-LIKE expression in tomato [J]. Plant J, 2014, 78(6): 1022-1033.
[72]	Cookson PJ, Kiano JW, Shipton CA, et al. Increases in cell elongation, plastid compartment size and phytoene synthase activity underlie the phenotype of the high pigment-1 mutant of tomato [J]. Planta, 2003, 217(6): 896-903.
[73]	Jones B, Frasse P, Olmos E, et al. Down-regulation of DR12, an auxin-response-factor homolog, in the tomato results in a pleiotropic phenotype including dark green and blotchy ripening fruit [J]. Plant J, 2002, 32(4): 603-613.
[74]	Shi Y, Hu GJ, Wang Y, et al. The SlGRAS9-SlZHD17 transcriptional cascade regulates chlorophyll and carbohydrate metabolism contributing to fruit quality traits in tomato [J]. New Phytol, 2024, 241(6): 2540-2557.
[75]	Zhu MK, Li YL, Chen GP, et al. Silencing SlELP2L, a tomato Elongator complex protein 2-like gene, inhibits leaf growth, accelerates leaf, sepal senescence and produces dark-green fruit [J]. Sci Rep, 2015, 5: 7693.
[76]	Mustilli AC, Fenzi F, Ciliento R, et al. Phenotype of the tomato high pigment-2 mutant is caused by a mutation in the tomato homolog of DEETIOLATED1 [J]. Plant Cell, 1999, 11(2): 145-157.
[77]	马星云, 范冰丽, 唐光彩, 等. DXR调控番茄叶绿体发育、花色与果实着色机制初探 [J]. 园艺学报, 2024, 51(6): 1241-1255.
	Ma XY, Fan BL, Tang GC, et al. Preliminary study on the mechanism of DXR regulating chloroplast development flower color and fruit coloring in tomato [J]. Acta Hortic Sin, 2024, 51(6): 1241-1255.
[78]	Daniel Forth KAP. The suffulta mutation in tomato reveals a novel method of plastid replication during fruit ripening [J]. J Exp Bot, 2006, 57(9): 1971-1979.
[79]	Ezura K, Lu Y, Suzuki Y, et al. Class II knotted-like homeodomain protein SlKN5 with BEL1-like homeodomain proteins suppresses fruit greening in tomato fruit [J]. Plant J, 2024, 118(6): 2037-2054.
[80]	Tanaka Y, Sasaki N, Ohmiya A. Biosynthesis of plant pigments: anthocyanins, betalains and carotenoids [J]. Plant J, 2008, 54(4): 733-749.
[81]	Li L, Ye J, Li HH, et al. Characterization of metabolites and transcripts involved in flower pigmentation in Primula vulgaris [J]. Front Plant Sci, 2020, 11: 572517.
[82]	Zhang Y, Butelli E, Martin C. Engineering anthocyanin biosynthesis in plants [J]. Curr Opin Plant Biol, 2014, 19: 81-90.
[83]	Zhang BP, Hülskamp M. Evolutionary analysis of MBW function by phenotypic rescue in Arabidopsis thaliana [J]. Front Plant Sci, 2019, 10: 375.
[84]	Sun CL, Deng L, Du MM, et al. A transcriptional network promotes anthocyanin biosynthesis in tomato flesh [J]. Mol Plant, 2020, 13(1): 42-58.
[85]	Chen YZ, Kim P, Kong LZ, et al. A dual-function transcription factor, SlJAF13, promotes anthocyanin biosynthesis in tomato [J]. J Exp Bot, 2022, 73(16): 5559-5580.
[86]	Menconi J, Perata P, Gonzali S. In pursuit of purple: anthocyanin biosynthesis in fruits of the tomato clade [J]. Trends Plant Sci, 2024, 29(5): 589-604.
[87]	Mes PJ, Boches P, Myers JR, et al. Characterization of tomatoes expressing anthocyanin in the fruit [J]. J Amer Soc Hort Sci, 2008, 133(2): 262-269.
[88]	Cao X, Qiu Z, Wang X, et al. A putative R3 MYB repressor is the candidate gene underlying atroviolacium, a locus for anthocyanin pigmentation in tomato fruit [J]. J Exp Bot, 2017, 68(21/22): 5745-5758.
[89]	Zhu MZ, Zhao R, Wu HY, et al. Integrated transcriptome and metabolome analysis provides insights into anthocyanin biosynthesis in Cichorium intybus L [J]. BMC Plant Biol, 2025, 25(1): 409.
[90]	Kiferle C, Fantini E, Bassolino L, et al. Tomato R2R3-MYB proteins SlANT1 and SlAN2: same protein activity, different roles [J]. PLoS One, 2015, 10(8): e0136365.
[91]	张振, 徐志璇, 王丽娜, 等. 过表达SlMYB75对番茄幼苗、果实及种子的影响 [J]. 山东农业大学学报: 自然科学版, 2019, 50(6): 937-943.
	Zhang Z, Xu ZX, Wang LN, et al. Effects of overexpression of SlMYB75 on tomato seedlings, fruits and seeds [J]. J Shandong Agric Univ Nat Sci Ed, 2019, 50(6): 937-943.
[92]	Ballester AR, Molthoff J, de Vos R, et al. Biochemical and molecular analysis of pink tomatoes: deregulated expression of the gene encoding transcription factors SlMYB12 leads to pink tomato fruit color [J]. Plant Physiol, 2010, 152(1): 71-84.
[93]	Schijlen EG, de Vos CH, Martens S, et al. RNA interference silencing of Chalcone synthase, the first step in the flavonoid biosynthesis pathway, leads to parthenocarpic tomato fruits [J]. Plant Physiol, 2007, 144(3): 1520-1530.
[94]	Shiose L, Dos Reis Moreira J, Lira BS, et al. A tomato B-box protein regulates plant development and fruit quality through the interaction with PIF4, HY5, and RIN transcription factors [J]. J Exp Bot, 2024, 75(11): 3368-3387.
[95]	Li YY, Meng FL, You HW, et al. SlWRKY14 integrates carotenoid and flavonoid biosynthetic pathways to regulate coloration and quality of tomato fruits [J]. Cell Rep, 2025, 44(10): 116369.
[96]	Wang JF, Li GB, Li CX, et al. NF-Y plays essential roles in flavonoid biosynthesis by modulating histone modifications in tomato [J]. New Phytol, 2021, 229(6): 3237-3252.
[97]	Ilahy R, Tlili I, Siddiqui MW, et al. Inside and beyond color: comparative overview of functional quality of tomato and watermelon fruits [J]. Front Plant Sci, 2019, 10: 769.
[98]	Beyer P, Al-Babili S, Ye XD, et al. Golden Rice: introducing the beta-carotene biosynthesis pathway into rice endosperm by genetic engineering to defeat vitamin A deficiency [J]. J Nutr, 2002, 132(3): 506S-510S.
[99]	Elitzur T, Yakir E, Quansah L, et al. Banana MaMADS transcription factors are necessary for fruit ripening and molecular tools to promote shelf-life and food security [J]. Plant Physiol, 2016, 171(1): 380-391.
[100]	Cui L, Zheng FY, Li CX, et al. Defective mutations in STAY-GREEN 1, PHYTOENE SYNTHASE 1, and MYB12 genes lead to formation of green ripe fruit in tomato [J]. J Exp Bot, 2024, 75(11): 3322-3336.
[101]	Polturak G, Aharoni A. Advances and future directions in betalain metabolic engineering [J]. New Phytol, 2019, 224(4): 1472-1478.
[102]	Orzaez D, Medina A, Torre S, et al. A visual reporter system for virus-induced gene silencing in tomato fruit based on anthocyanin accumulation [J]. Plant Physiol, 2009, 150(3): 1122-1134.

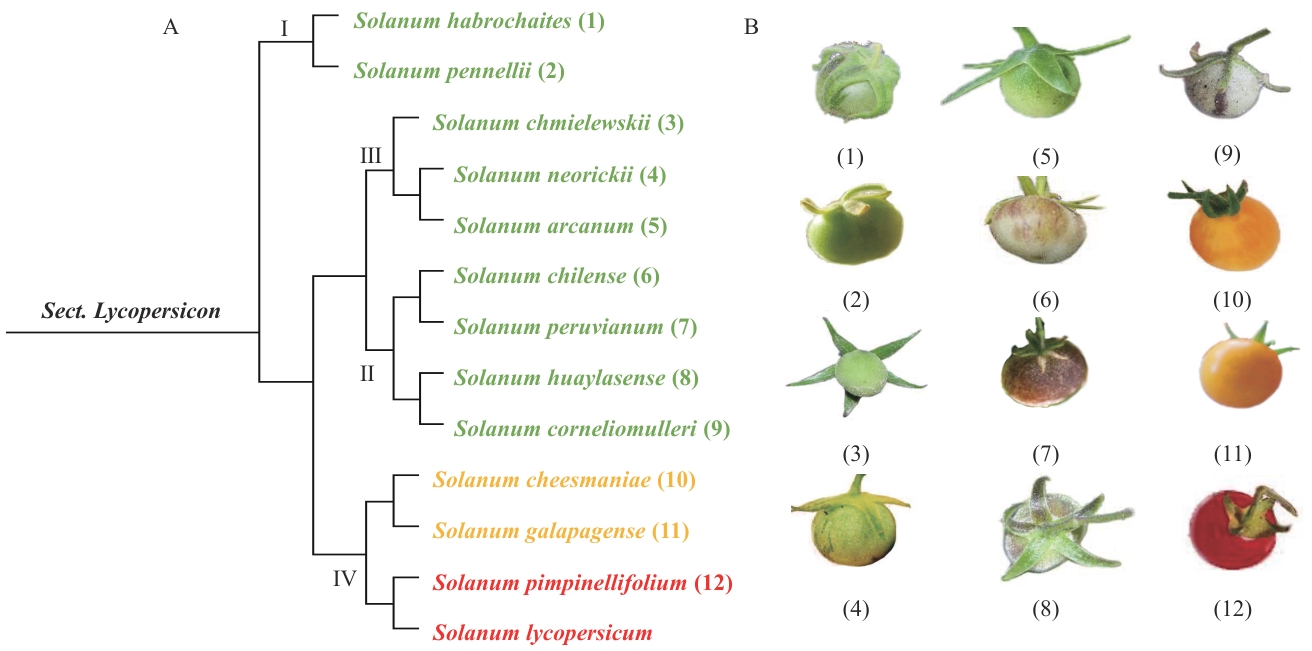

物种名称 Species name	果实直径 Fruit diameter （cm）	心室数 Number of locules	成熟时果皮颜色 Skin color when ripe	条纹（纵贯） Stripes （vertical）
S. habrochaites	1‒1.5	2	均匀淡紫色	深绿色
S. pennellii	1‒1.3	2	均匀绿色	无
S. chmielewskii	1‒1.3	2	绿色	深绿色
S. neorickii	1‒1.3	2	绿色	深绿色
S. arcanum	1‒1.4	2	绿色	深绿色变紫色
S. chilense	1‒1.5	2‒5	绿白色	紫色
S. peruvianum	1‒1.5	2	白紫色/紫色	绿色或紫色
S. huaylasense	1‒1.4	2	绿色	深绿色或紫色
S. corneliomulleri	0.9‒1.3	2	绿色/绿白色	深绿色或紫色
S. cheesmaniae	0.6‒1.4	2	黄色/橙色	无
S. galapagense	0.6‒1.1	2	橙色	无
S. pimpinellifolium	≈1	2	鲜红色	无
S. lycopersicum	1.5‒10+	通常≥2	通常红色	通常无

物种名称 Species name	果实直径 Fruit diameter （cm）	心室数 Number of locules	成熟时果皮颜色 Skin color when ripe	条纹（纵贯） Stripes （vertical）
S. habrochaites	1‒1.5	2	均匀淡紫色	深绿色
S. pennellii	1‒1.3	2	均匀绿色	无
S. chmielewskii	1‒1.3	2	绿色	深绿色
S. neorickii	1‒1.3	2	绿色	深绿色
S. arcanum	1‒1.4	2	绿色	深绿色变紫色
S. chilense	1‒1.5	2‒5	绿白色	紫色
S. peruvianum	1‒1.5	2	白紫色/紫色	绿色或紫色
S. huaylasense	1‒1.4	2	绿色	深绿色或紫色
S. corneliomulleri	0.9‒1.3	2	绿色/绿白色	深绿色或紫色
S. cheesmaniae	0.6‒1.4	2	黄色/橙色	无
S. galapagense	0.6‒1.1	2	橙色	无
S. pimpinellifolium	≈1	2	鲜红色	无
S. lycopersicum	1.5‒10+	通常≥2	通常红色	通常无

基因 Gene	作用机制与功能 Mechanisms of action and functions	导致的表型 Resulting phenotype	参考文献 Reference
NOR	NAC家族转录因子，促进类胡萝卜素积累，调控乙烯合成	突变后果实不成熟，呈橙色	［28-30］
CNR	SBP-box转录因子，调控成熟启动，影响类胡萝卜素积累	突变后果实不成熟，颜色为黄色或绿色	［28-30］
RIN	MADS-box转录因子，正向调控成熟过程，促进乙烯合成和类胡萝卜素积累	突变后果实不成熟，颜色为黄色或绿色	［28-30］
SlAP2a	果实成熟的负调控因子，影响类胡萝卜素合成	果实呈橙色，果肉颜色变浅	［31］
TAGL1	表达下调，促进叶绿素合成和叶绿体发育，同时抑制类胡萝卜素积累	未成熟果实出现绿色条纹，成熟后为黄色条纹	［32］
SlMYB72	R2R3-MYB转录因子，负调控叶绿素合成，正调控类胡萝卜素和类黄酮代谢	下调表达导致果实出现深绿色斑点（绿果期）和黄斑（红果期）	［33］
HY5	光信号通路转录因子，促进类胡萝卜素和花青素积累	突变后果实颜色变浅，呈浅红色	［34］
SlIDI1/YFT3	在质体MEP途径中催化IPP和DMAPP的可逆异构化，为类胡萝卜素合成提供必需的前体底物。类异戊二烯代谢通路中的关键酶	功能丧失突变导致酶失活，DMAPP前体严重匮乏，番茄红素合成几乎完全阻断，果实呈黄色。过表达则提供更充足前体，果实红色加深	［35］
SlMCT	MEP途径中的关键酶，萜类化合物生物合成的第2步。该基因突变导致酶功能异常，影响下游类胡萝卜素和激素合成	类胡萝卜素和叶绿素含量显著降低，果实变黄	［36］

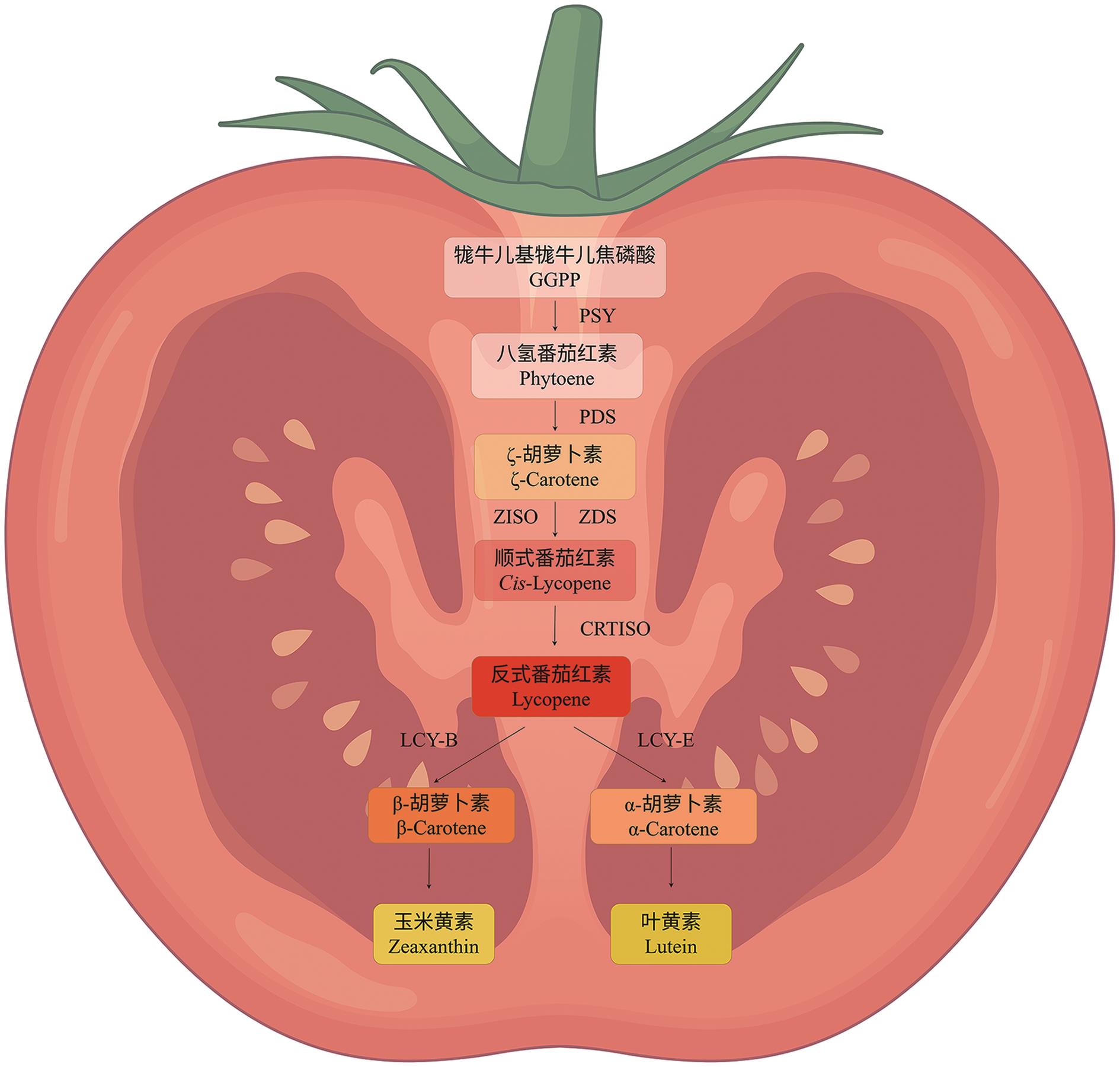

PSY1	类胡萝卜素合成的限速酶，催化番茄红素合成第一步	敲除果实呈黄绿色	［37］
PDS	类胡萝卜素生物合成中的一种关键酶，可将植物烯转化为ζ-胡萝卜素	PDS沉默的果实出现黄色表型	［38］
ZDS	在类胡萝卜素合成途径中，负责将ζ-胡萝卜素转化为链孢红素，是生成番茄红素的关键步骤之一	ZDS功能缺失导致果实呈黄色/橙色	［39］
CRTISO	催化胡萝卜素去饱和过程中的顺反异构化，合成全反式番茄红素和下游环化类胡萝卜素（如β-胡萝卜素、叶黄素）的关键酶	突变果实呈橙色	［40］
CYC-B	编码番茄红素β-环化酶，将番茄红素转化为β-胡萝卜素	功能获得突变使β-胡萝卜素大增，果肉呈橙色	［41］
og/og^c	beta基因的无效等位基因。发生移码突变，无法产生有功能的番茄红素β-环化酶	果实呈深红色	［41］
SlCCD4b	催化类胡萝卜素在C9-C10位点裂解，生成挥发性芳香物质；负调控番茄果实中β-胡萝卜素和番茄红素的积累	过表达导致果实呈深橙色	［42］
ClpR1	敲低ClpR1会削弱Clp蛋白酶活性，导致蛋白质降解受阻，引发蛋白质折叠应激；进而上调ClpB3和OR/OR-like等分子伴侣基因表达，促进DXS和PSY酶稳定性，增加β-胡萝卜素积累，同时抑制番茄红素积累	沉默导致成熟果实呈橙色	［43］
Delta	催化番茄红素生成δ-胡萝卜素	突变体成熟果实为橙色	［44］
WRKY32	RNAi生成品系的番茄果实中，乙烯信号传导减少，导致乙烯释放受到抑制，染色体发育延迟，类胡萝卜素积累减少	果实表型呈黄色	［45］
YFT1	调控乙烯合成、信号转导、质体发育和类胡萝卜素积累	突变体果实呈黄色	［46］
SNAC9	正向调控番茄果实成熟过程中的类胡萝卜素代谢	敲除后果实成熟延迟，果实颜色变浅	［47］
SlNAP7	影响番茄叶绿体发育和番茄红素积累	沉默使得果皮和果肉呈现黄色	［48］
DXS1	催化MEP途径第一步，合成质体类异戊二烯的关键限速酶	绿熟期果实呈白色，红熟期颜色变浅	［49］
CRY1a	促进果实中类胡萝卜素的积累	过表达果实颜色加深，红熟期呈深红色；敲除果实颜色变浅	［50］
GH	质体末端氧化酶，参与类胡萝卜素合成	突变体果实为橙黄色	［51］
hp-3	催化玉米黄质向紫黄质的转化，影响类胡萝卜素（尤其是番茄红素）的合成与储存能力	果实颜色加深（红色增强）	［52］
SlBEL11	作为转录抑制因子，直接结合下游基因番茄红素β-环化酶2的启动子，抑制其转录	沉默时果实成熟时呈黄色	［53］
SlCHRC	色粒体相关类胡萝卜素结合蛋白（CHRC）调节色粒体发育和类胡萝卜素积累	敲除导致果实成熟延迟，类胡萝卜素含量降低，果实表型更绿	［54］
SlDML2	DNA去甲基化酶，影响类胡萝卜素（如β-胡萝卜素和番茄红素）积累	突变体果实保持绿色	［55］
SlBBX20 （Solyc01g110180）	促进类胡萝卜素合成	过表达使未成熟果实呈深绿色，成熟果实颜色加深	［56］
SlCMB1	MADS-box转录因子，正调控果实成熟；促进乙烯合成和类胡萝卜素积累；与RIN、TAGL1等蛋白互作	抑制后果实成熟延迟，颜色变浅，呈浅橙或橙色	［57］

基因 Gene	作用机制与功能 Mechanisms of action and functions	导致的表型 Resulting phenotype	参考文献 Reference
NOR	NAC家族转录因子，促进类胡萝卜素积累，调控乙烯合成	突变后果实不成熟，呈橙色	［28-30］
CNR	SBP-box转录因子，调控成熟启动，影响类胡萝卜素积累	突变后果实不成熟，颜色为黄色或绿色	［28-30］
RIN	MADS-box转录因子，正向调控成熟过程，促进乙烯合成和类胡萝卜素积累	突变后果实不成熟，颜色为黄色或绿色	［28-30］
SlAP2a	果实成熟的负调控因子，影响类胡萝卜素合成	果实呈橙色，果肉颜色变浅	［31］
TAGL1	表达下调，促进叶绿素合成和叶绿体发育，同时抑制类胡萝卜素积累	未成熟果实出现绿色条纹，成熟后为黄色条纹	［32］
SlMYB72	R2R3-MYB转录因子，负调控叶绿素合成，正调控类胡萝卜素和类黄酮代谢	下调表达导致果实出现深绿色斑点（绿果期）和黄斑（红果期）	［33］
HY5	光信号通路转录因子，促进类胡萝卜素和花青素积累	突变后果实颜色变浅，呈浅红色	［34］
SlIDI1/YFT3	在质体MEP途径中催化IPP和DMAPP的可逆异构化，为类胡萝卜素合成提供必需的前体底物。类异戊二烯代谢通路中的关键酶	功能丧失突变导致酶失活，DMAPP前体严重匮乏，番茄红素合成几乎完全阻断，果实呈黄色。过表达则提供更充足前体，果实红色加深	［35］
SlMCT	MEP途径中的关键酶，萜类化合物生物合成的第2步。该基因突变导致酶功能异常，影响下游类胡萝卜素和激素合成	类胡萝卜素和叶绿素含量显著降低，果实变黄	［36］
PSY1	类胡萝卜素合成的限速酶，催化番茄红素合成第一步	敲除果实呈黄绿色	［37］
PDS	类胡萝卜素生物合成中的一种关键酶，可将植物烯转化为ζ-胡萝卜素	PDS沉默的果实出现黄色表型	［38］
ZDS	在类胡萝卜素合成途径中，负责将ζ-胡萝卜素转化为链孢红素，是生成番茄红素的关键步骤之一	ZDS功能缺失导致果实呈黄色/橙色	［39］
CRTISO	催化胡萝卜素去饱和过程中的顺反异构化，合成全反式番茄红素和下游环化类胡萝卜素（如β-胡萝卜素、叶黄素）的关键酶	突变果实呈橙色	［40］
CYC-B	编码番茄红素β-环化酶，将番茄红素转化为β-胡萝卜素	功能获得突变使β-胡萝卜素大增，果肉呈橙色	［41］
og/og^c	beta基因的无效等位基因。发生移码突变，无法产生有功能的番茄红素β-环化酶	果实呈深红色	［41］
SlCCD4b	催化类胡萝卜素在C9-C10位点裂解，生成挥发性芳香物质；负调控番茄果实中β-胡萝卜素和番茄红素的积累	过表达导致果实呈深橙色	［42］
ClpR1	敲低ClpR1会削弱Clp蛋白酶活性，导致蛋白质降解受阻，引发蛋白质折叠应激；进而上调ClpB3和OR/OR-like等分子伴侣基因表达，促进DXS和PSY酶稳定性，增加β-胡萝卜素积累，同时抑制番茄红素积累	沉默导致成熟果实呈橙色	［43］
Delta	催化番茄红素生成δ-胡萝卜素	突变体成熟果实为橙色	［44］
WRKY32	RNAi生成品系的番茄果实中，乙烯信号传导减少，导致乙烯释放受到抑制，染色体发育延迟，类胡萝卜素积累减少	果实表型呈黄色	［45］
YFT1	调控乙烯合成、信号转导、质体发育和类胡萝卜素积累	突变体果实呈黄色	［46］
SNAC9	正向调控番茄果实成熟过程中的类胡萝卜素代谢	敲除后果实成熟延迟，果实颜色变浅	［47］
SlNAP7	影响番茄叶绿体发育和番茄红素积累	沉默使得果皮和果肉呈现黄色	［48］
DXS1	催化MEP途径第一步，合成质体类异戊二烯的关键限速酶	绿熟期果实呈白色，红熟期颜色变浅	［49］
CRY1a	促进果实中类胡萝卜素的积累	过表达果实颜色加深，红熟期呈深红色；敲除果实颜色变浅	［50］
GH	质体末端氧化酶，参与类胡萝卜素合成	突变体果实为橙黄色	［51］
hp-3	催化玉米黄质向紫黄质的转化，影响类胡萝卜素（尤其是番茄红素）的合成与储存能力	果实颜色加深（红色增强）	［52］
SlBEL11	作为转录抑制因子，直接结合下游基因番茄红素β-环化酶2的启动子，抑制其转录	沉默时果实成熟时呈黄色	［53］
SlCHRC	色粒体相关类胡萝卜素结合蛋白（CHRC）调节色粒体发育和类胡萝卜素积累	敲除导致果实成熟延迟，类胡萝卜素含量降低，果实表型更绿	［54］
SlDML2	DNA去甲基化酶，影响类胡萝卜素（如β-胡萝卜素和番茄红素）积累	突变体果实保持绿色	［55］
SlBBX20 （Solyc01g110180）	促进类胡萝卜素合成	过表达使未成熟果实呈深绿色，成熟果实颜色加深	［56］
SlCMB1	MADS-box转录因子，正调控果实成熟；促进乙烯合成和类胡萝卜素积累；与RIN、TAGL1等蛋白互作	抑制后果实成熟延迟，颜色变浅，呈浅橙或橙色	［57］

基因 Gene	作用机制与功能 Mechanisms of action and functions	导致的表型 Resulting phenotype	参考文献 Reference
SlSGR1	促进果实成熟过程中叶绿素的降解	突变后果实保持绿色，成熟后呈褐色	［37］
SlGLK2	调控叶绿体发育，影响叶绿素分布	过表达果实肩部持续深绿色，形成“内绿果”；功能缺失导致果实肩部绿色变浅	［65］
SlBEL2	负调控叶绿体发育和叶绿素合成，影响果实绿色肩部形成	过表达果肩绿色消失，果实整体呈浅绿色；敲除SlBEL2果肩绿色加深	［66］
SlZHD17	影响番茄果实叶绿体的发育，促进了叶绿素的积累	下调导致未成熟和绿熟阶段果实更绿，成熟时期明显色素沉着不均匀	［67］
SlARF10	正向调控一些叶绿素合成相关基因表达，促进叶绿体发育和光合作用	过表达后果实在绿熟期呈深绿色；RNAi敲低后果实在绿熟期呈浅绿色	［68］
SlBL4	负调控叶绿素合成与叶绿体发育；抑制细胞壁代谢相关基因	下调后果实颜色略深绿，成熟后果实着色不均，不完全变红	［69］
SlBEL11	负调控叶绿素合成与叶绿体发育	沉默后未熟果实叶绿素显著积累，果色深绿；成熟延迟，出现斑驳绿粉相间表型	［70］
SlAPRR2-LIKE	调控质体数目与面积，影响叶绿素与类胡萝卜素积累	过表达增加质体数与色素含量，果色深绿	［70］
TKN2	Class I KNOX转录因子；正调控叶绿体发育	功能获得性突变体果实叶绿素含量增加，果色深绿且均匀	［71］
TKN4	Class I KNOX转录因子；正调控叶绿体发育梯度	功能缺失突变体（ug）果实肩部绿色缺失，成熟后果实颜色更均匀	［71］
HP1	负调控光形态建成；突变导致叶绿体和质体区室增大	突变体叶绿素和类胡萝卜素含量增加，果色更深	［71-72］
DR12/SlARF4	属于ARF转录因子家族，参与生长素响应；抑制其表达导致叶绿素含量增加、叶绿体数量增多、果实成熟不均匀	未熟果实呈深绿色；成熟果实呈斑驳状	［73］
SlGRAS9	负调控叶绿素积累和叶绿体发育	敲除或敲低后果实呈深绿色	［74］
SlELP2L	功能缺失会导致番茄果实叶绿素降解受阻	基因沉默（RNAi）后，番茄果实在未成熟阶段呈现深绿色	［75］
TDET1/HP-2	负调控光形态建成和光信号传导；影响绿体和花青素积累	突变导致未成熟果实深绿色	［76］
SlDXR	MEP途径限速酶，调控类胡萝卜素、叶绿素、类黄酮合成；影响叶绿体发育	突变体果实呈橙黄色，果肉为黄/白色	［77］
SlMYB72	R2R3-MYB转录因子，负调控叶绿素合成，正调控类胡萝卜素和类黄酮代谢	下调表达导致果实出现深绿色斑点（绿果期）和黄斑（红果期）	［33］
su	调控质体分裂；突变导致叶片和绿色果实中质体数量减少、体积增大（巨型叶绿体）	su-1/su-3突变体的未成熟果实呈浅绿色	［78］
SlKN5	与BLH1-clade蛋白形成复合物，抑制叶绿体生物发生、叶绿素合成和赤霉素降解相关基因的表达；在果实发育早期抑制叶绿素积累	敲除导致未成熟果实颜色更深绿	［79］
