Mapping and Candidate Gene Analysis of the Major Gene Controlling Seed Shattering in Foxtail Millet Based on BSA-Seq

doi:10.13560/j.cnki.biotech.bull.1985.2025-1249

Abstract

Abstract:

Objective Seed shattering is a crucial artificially - selected trait in the process of crop domestication. Mapping and cloning the major gene regulating seed shattering provides a theoretical basis and application value for clarifying the genetic basis of foxtail millet domestication and developing molecular marker - assisted breeding tools. Method The easily-shattering germplasm resource YLL5 and the shattering - resistant modern cultivar Jigu 42 (Si42) were taken as the research objects. Paraffin sectioning was used to compare the differences in the cell structure and cell-wall components of the abscission zone between the two parents. To map the gene controlling seed shattering, an F₄ genetic population was constructed. BSA-Seq (Bulked segregant analysis sequencing) was carried out, and in combination with linkage analysis methods such as ED, G′ value, SNP-loess, and SNP-index, the loci related to the trait were preliminarily mapped. The annotated genes in the mapped interval were screened, and quantitative reverse-transcription PCR (RT-qPCR) was used to verify the expression differences of candidate genes in multiple tissues of the two parents. Result The results of paraffin sectioning showed significant differences in cell arrangement, tissue structure, and cell wall components between YLL5 and Si42. Through association analysis, the locus controlling the target trait was preliminarily mapped to chromosome 5 (3.3 Mb) and chromosome 8 (1.1 Mb). Using InDel markers, the target interval was finely mapped to a region of approximately 0.3 Mb on chromosome 5. A total of 25 genes were annotated in this interval, and genes with high expression in the panicle were screened out. RT-qPCR analysis indicated that the expression level of the candidate gene Seita.5G087200 in the panicle and spikelet tissues of the easily-shattering parent YLL5 was significantly higher than that in Si42, and its expression pattern was highly consistent with the shattering phenotype. Sanger sequencing further revealed a transposon-insertion variation in the second exon of this gene. A molecular marker developed based on this variation could effectively distinguish different shattering phenotypes, showing potential for application in molecular marker-assisted selection. Conclusion Seita.5G087200 is likely a key candidate gene regulating the seed-shattering trait in foxtail millet.

Key words: Setaria italica, domestication traits, BSA-Seq technology, seed shattering, genetic mapping

LIU Qian, WANG Zong-yan, LUO Jun-hao, WU Zhang-zhang, HU Zhen, LYU Jian-zhen, JIANG Liang. Mapping and Candidate Gene Analysis of the Major Gene Controlling Seed Shattering in Foxtail Millet Based on BSA-Seq[J]. Biotechnology Bulletin, 2026, 42(7): 138-147.

Figures/Tables 7

Table 1 Statistical analysis of sample sequencing data quality control

样本名称 Sample name	质控后Clean reads	过滤后的碱基数 Clean bases	GC（%）	Q30（%）	比对效率 Mapping efficiency （%）	平均测序深度 Average sequencing depth （×）	覆盖率Coverage（≥1×）（%）
Si42	21 809 827	6 531 588 068	43.71	96.55	98.13	16	95.82
YLL5	21 479 290	6 431 795 254	43.84	96.58	98.24	16	90.46
NSH	61 192 923	18 322 677 641	43.69	96.88	98.59	43	99.46
SH	54 118 595	16 205 874 945	43.52	97.23	98.83	38	98.33

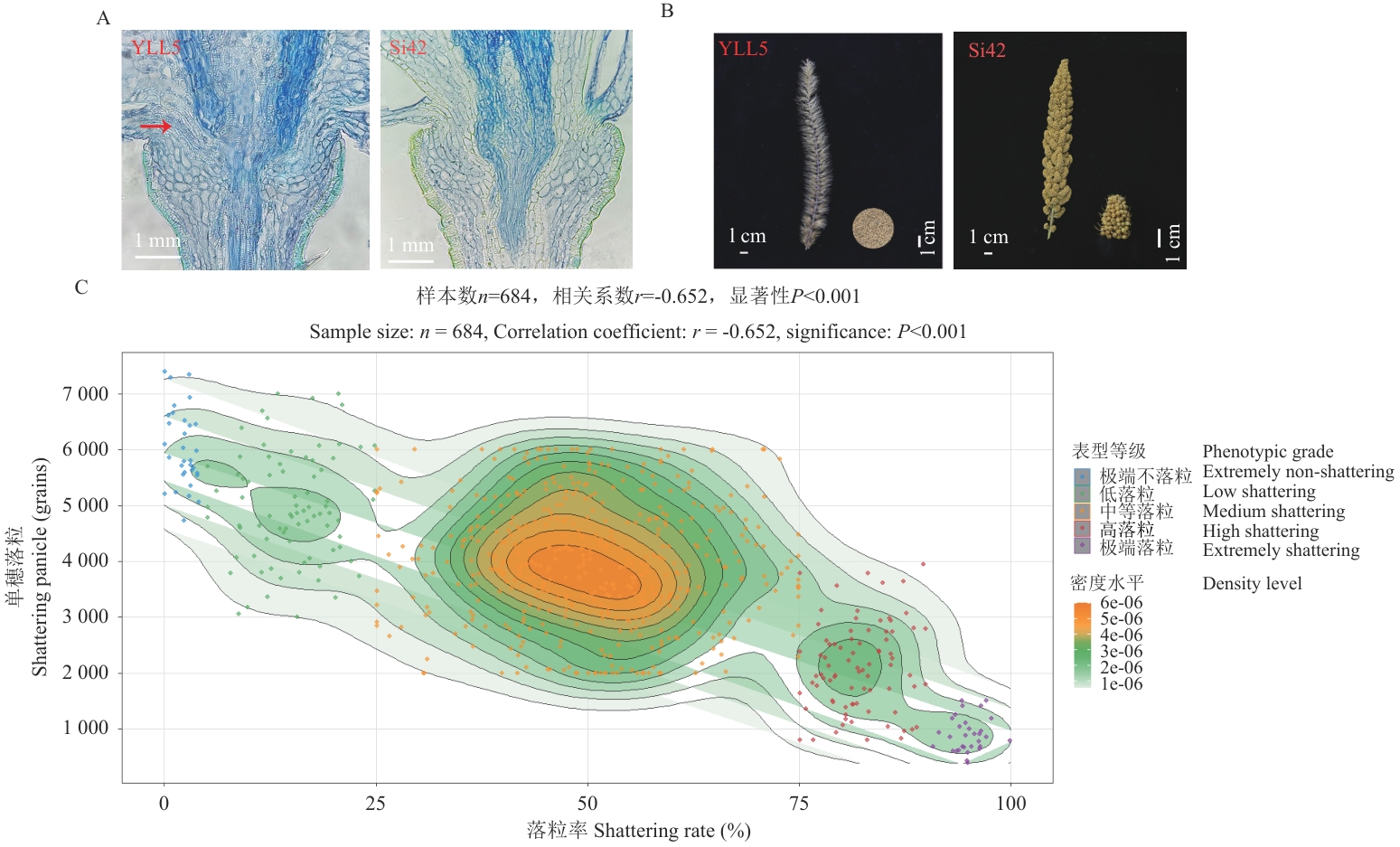

Fig. 1 Investigation on the shattering trait of hybrid populationA: Toluidine blue-stained paraffin sections of the parental abscission zone (AZ). B: Panicle phenotypes of the parental lines with extreme shattering in YLL5 and extreme non-shattering in Si42. C: Two-dimensional density distribution plot of shattering rate versus grain number per panicle for the 684 F₄ segregating population

Table 2 Number and types of SNPs detected by BSA-Seq

样本名称 Sample name	SNP数量 No. of SNPs	转换 Transition	颠换 Transversion	转换颠换比 Ti/Tv	杂合SNP数 Number of heterozygous SNPs	纯合SNP数Number of homozygous SNPs
Si42	956 457	705 022	251 957	2.80	144 654	4 603 689
YLL5	3 224 385	2 380 056	846 130	2.81	407 128	4 293 680
NSH	3 199 121	2 350 746	851 613	2.76	2 968 098	1 971 634
SH	3 394 412	2 499 872	898 351	2.78	2 920 233	1 985 825

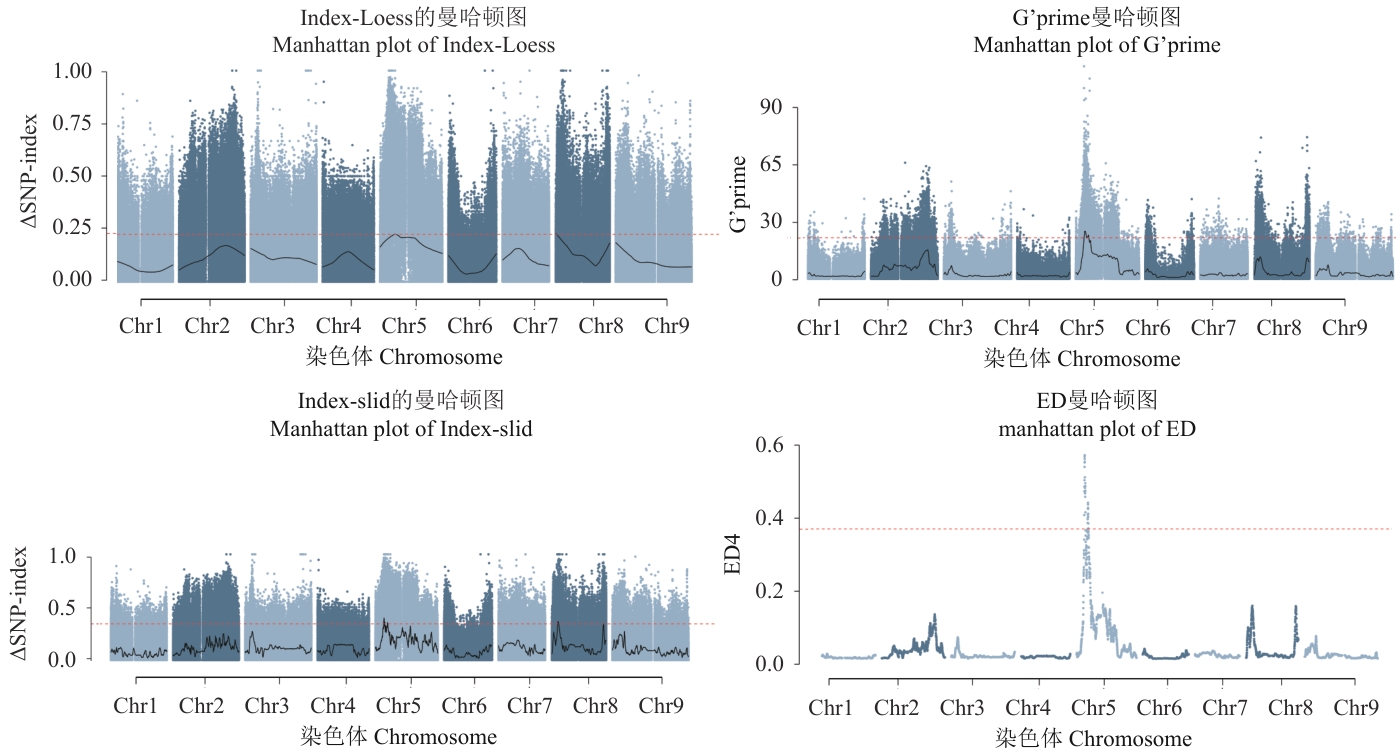

Fig. 2 Plots of the mapping intervals of ED, G′ value, SNP-loess and SNP-index

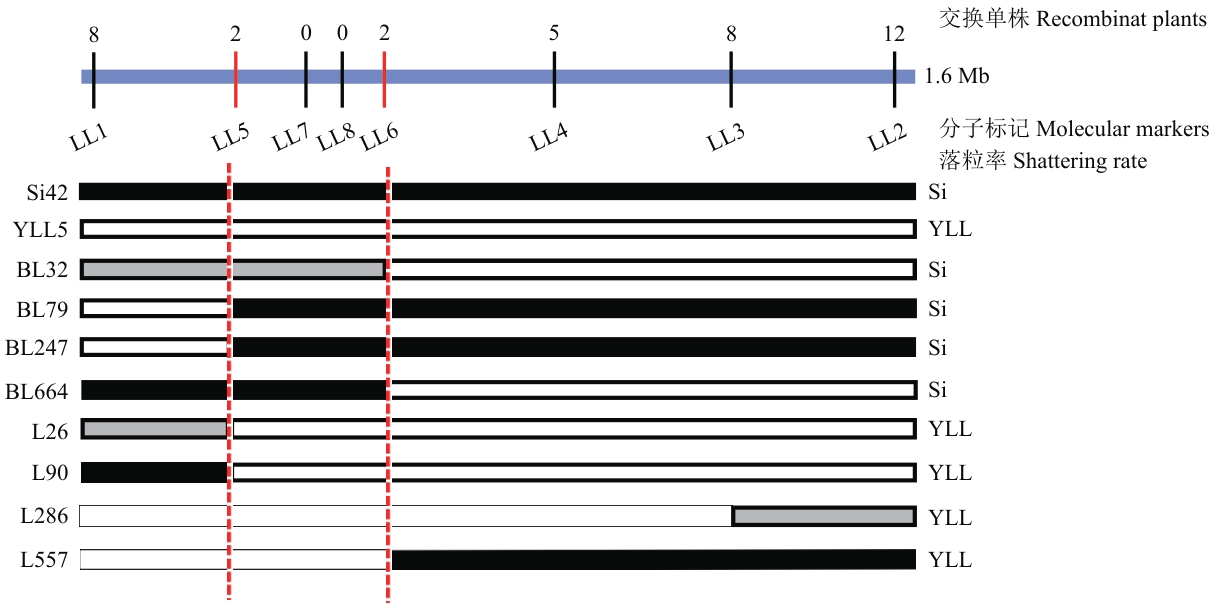

Fig. 3 Fine mapping of the candidate gene for the seed shattering traitBL32-BL664: Extreme non-shattering progeny. L26-L557: Extreme shattering progeny. Black, white, and gray cells represent the genotypes of Si42, YLL5, and heterozygotes, respectively; Si represents the extreme non-shattering trait, YLL the extreme shattering trait. The region between the red dashed lines is the candidate interval for fine mapping

Table 3 Annotation information of genes in candidate intervals

基因编号 Gene_ID	基因功能注释 Annotation of gene function
Seita.5G086900	类受体蛋白激酶（与拟南芥At4g00960同源）
Seita.5G087000	甘露糖-6-磷酸异构酶1
Seita.5G087200	R2R3-MYB转录因子家族（含保守MYB结构域）
Seita.5G087300	核酸内切酶2
Seita.5G087400	核酸内切酶2
Seita.5G087500	叶绿体定位的MAO HUZI 4蛋白
Seita.5G087700	突触结合蛋白-5
Seita.5G087800	泛素相关蛋白家族（含泛素结合结构域）
Seita.5G088000	含LOB结构域蛋白42
Seita.5G088100	WD40重复结构域蛋白家族（含WD40保守结构域）
Seita.5G088300	金属耐受蛋白7同工型X1
Seita.5G088500	α-木糖苷酶1
Seita.5G088700	丝氨酸蛋白酶家族（含丝氨酸蛋白酶保守结构域）
Seita.5G088900	跨膜蛋白家族（含7次跨膜结构域）
Seita.5G089100	乙烯响应转录因子ERF118
Seita.5G089200	信号肽酶复合物亚基3
Seita.5G089300	Bowman-Birk型创伤诱导蛋白酶抑制剂WIP1

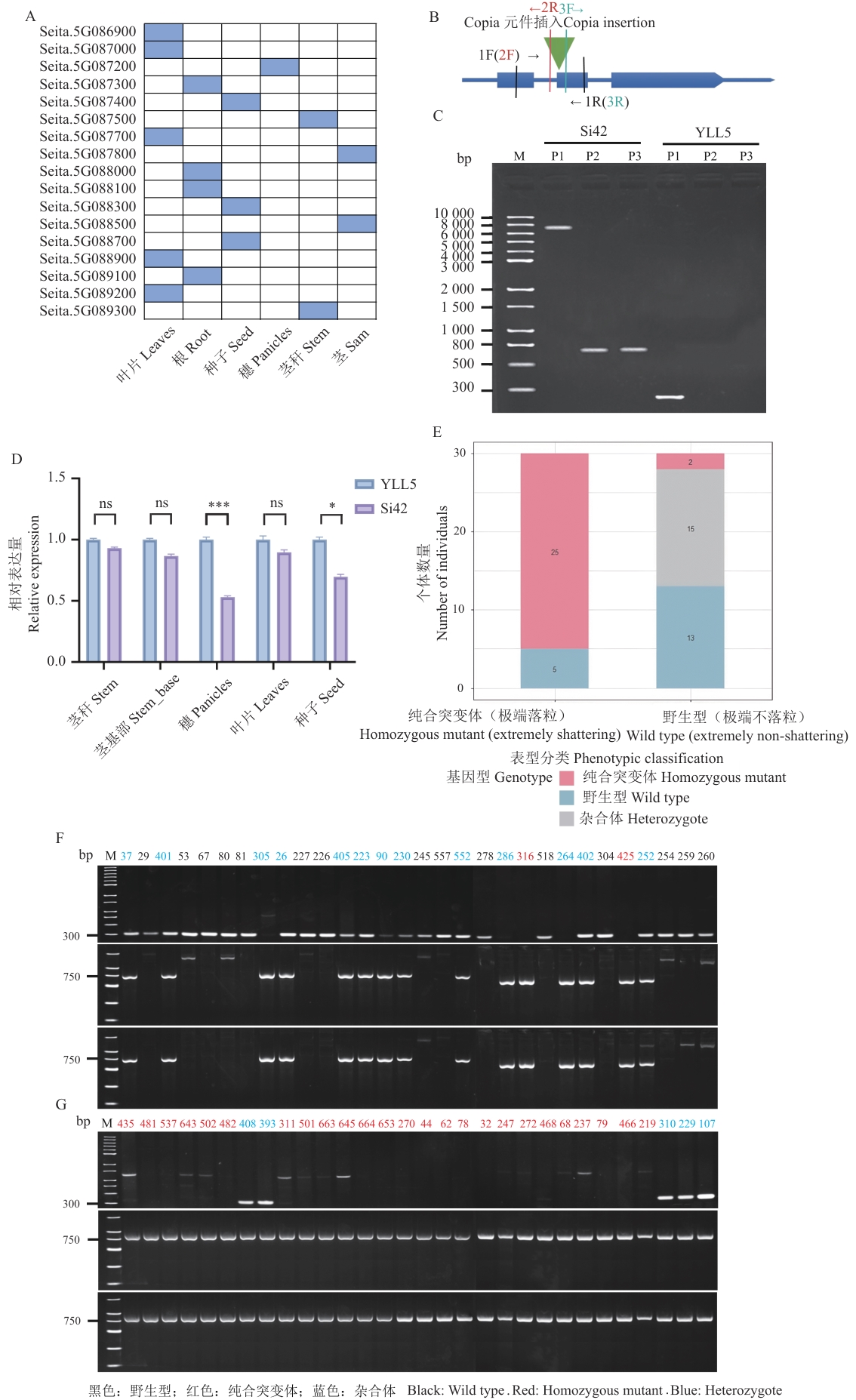

Fig. 4 Transposon insertion at the Seita.5G087200/Sevir.5G085400 locus in Si42 and YLL5A: Maximum expression levels of candidate genes across different tissues. B: Comparison of gene structures between Setia.5G087200 and Sevir.5G085400. C: PCR validation of transposon insertion at the Seita.5G087200/Sevir.5G085400 locus in YLL5 and Si42. D: Expression analysis of Seita.5G087200 in different tissues of YLL5 and Si42. * and *** indicate significant differences at P<0.05 and P<0.001 levels, respectively. E: Overlay statistical analysis of co-segregation between Sv insertion genotype and shattering phenotype. F: Detection of genotype and phenotype in extremely non-shattering P1, P2, P3. G: Detection of genotype and phenotype in extremely shattering P1, P2, P3. P1, P2, and P3 represent three pairs of specific primers (P1: spanning the transposon insertion site, expected product sizes: 7 000 bp in Si42 and 294 bp in YLL5; P2: F-genomic region left of the transposon, R-internal region of the transposon, expected product: 750 bp in Si42; P3: F-internal region of the transposon, R-genomic region right of the transposon, expected product: 750 bp in Si42)

References 30

[1]	Li CB, Zhou AL, Sang T. Rice domestication by reducing shattering [J]. Science, 2006, 311(5769): 1936-1939.
[2]	Liu HQ, Fang XJ, Zhou LN, et al. Transposon insertion drove the loss of natural seed shattering during foxtail millet domestication [J]. Mol Biol Evol, 2022, 39(6): msac078.
[3]	Lin ZW, Li XR, Shannon LM, et al. Parallel domestication of the Shattering1 genes in cereals [J]. Nat Genet, 2012, 44(6): 720-724.
[4]	Wu H, He Q, He B, et al. Gibberellin signaling regulates lignin biosynthesis to modulate rice seed shattering [J]. Plant Cell, 2023, 35(12): 4383-4404.
[5]	郭艳. 高粱B140落粒基因的克隆与种子休眠性的QTL分析 [D]. 北京: 中国农业大学, 2015.
	Guo Y. Cloning and QTL analysis of seed dormancy of sorghum B140 [D]. Beijing: China Agricultural University, 2015.
[6]	Meyer RS, Purugganan MD. Evolution of crop species: genetics of domestication and diversification [J]. Nat Rev Genet, 2013, 14(12): 840-852.
[7]	Win KT, Yamagata Y, Doi K, et al. A single base change explains the independent origin of and selection for the nonshattering gene in African rice domestication [J]. New Phytol, 2017, 213(4): 1925-1935.
[8]	Yan HX, Ma L, Wang Z, et al. Multiple tissue-specific expression of rice seed-shattering gene SH4 regulated by its promoter pSH4 [J]. Rice, 2015, 8: 12.
[9]	Yang XY, Wan ZW, Perry L, et al. Early millet use in northern China [J]. Proc Natl Acad Sci USA, 2012, 109(10): 3726-3730.
[10]	Doebley JF, Gaut BS, Smith BD. The molecular genetics of crop domestication [J]. Cell, 2006, 127(7): 1309-1321.
[11]	Michelmore RW, Paran I, Kesseli RV. Identification of markers linked to disease-resistance genes by bulked segregant analysis: a rapid method to detect markers in specific genomic regions by using segregating populations [J]. Proc Natl Acad Sci USA, 1991, 88(21): 9828-9832.
[12]	He Q, Tang S, Zhi H, et al. A graph-based genome and pan-genome variation of the model plant Setaria [J]. Nat Genet, 2023, 55(7): 1232-1242.
[13]	Schneider CA, Rasband WS, Eliceiri KW. NIH Image to ImageJ: 25 years of image analysis [J]. Nat Methods, 2012, 9(7): 671-675.
[14]	McKenna A, Hanna M, Banks E, et al. The genome analysis toolkit: a MapReduce framework for analyzing next-generation DNA sequencing data [J]. Genome Res, 2010, 20(9): 1297-1303.
[15]	Cingolani P, Platts A, Wang LL, et al. A program for annotating and predicting the effects of single nucleotide polymorphisms, SnpEff: SNPs in the genome of Drosophila melanogaster strain w1118; iso-2; iso-3 [J]. Fly, 2012, 6(2): 80-92.
[16]	Abe A, Kosugi S, Yoshida K, et al. Genome sequencing reveals agronomically important loci in rice using MutMap [J]. Nat Biotechnol, 2012, 30(2): 174-178.
[17]	Anvar SY, Tucker A, Vinciotti V, et al. Interspecies translation of disease networks increases robustness and predictive accuracy [J]. PLoS Comput Biol, 2011, 7(11): e1002258.
[18]	Hill JT, Demarest BL, Bisgrove BW, et al. MMAPPR: Mutation mapping analysis pipeline for pooled RNA-seq [J]. Genome Res, 2013, 23(4): 687-697.
[19]	康海岐, 常红叶, 许育彬, 等. 水稻籽粒胚乳的石蜡切片方法改良及其结构发育观察 [J]. 西北植物学报, 2008, 28(5): 1069-1074.
	Kang HQ, Chang HY, Xu YB, et al. Improvement of paraffin section methods and structural observation to endosperm development of rice kernel [J]. Acta Bot Boreali Occidentalia Sin, 2008, 28(5): 1069-1074.
[20]	Chomczynski P, Sacchi N. Single-step method of RNA isolation by acid guanidinium thiocyanate-phenol-chloroform extraction [J]. Anal Biochem, 1987, 162(1): 156-159.
[21]	Lambret-Frotté J, de Almeida LC, de Moura SM, et al. Validating internal control genes for the accurate normalization of qPCR expression analysis of the novel model plant setaria viridis [J]. PLoS One, 2015, 10(8): e0135006.
[22]	Livak KJ, Schmittgen TD. Analysis of relative gene expression data using real-time quantitative PCR and the 2^-ΔΔCt method [J]. Methods, 2001, 25(4): 402-408.
[23]	Ji H, Kim SR, Kim YH, et al. Inactivation of the CTD phosphatase-like gene OsCPL1 enhances the development of the abscission layer and seed shattering in rice [J]. Plant J, 2010, 61(1): 96-106.
[24]	Patterson SE. Cutting loose. abscission and dehiscence in Arabidopsis [J]. Plant Physiol, 2001, 126(2): 494-500.
[25]	Cosgrove DJ. Plant cell wall extensibility: connecting plant cell growth with cell wall structure, mechanics, and the action of wall-modifying enzymes [J]. J Exp Bot, 2016, 67(2): 463-476.
[26]	Konishi S, Izawa T, Lin SY, et al. An SNP caused loss of seed shattering during rice domestication [J]. Science, 2006, 312(5778): 1392-1396.
[27]	Huang JF, Guo YJ, Sun QW, et al. Genome-wide identification of R2R3-MYB transcription factors regulating secondary cell wall thickening in cotton fiber development [J]. Plant Cell Physiol, 2019, 60(3): 687-701.
[28]	Fujimoto SY, Ohta M, Usui A, et al. Arabidopsis ethylene-responsive element binding factors act as transcriptional activators or repressors of GCC box-mediated gene expression [J]. Plant Cell, 2000, 12(3): 393-404.
[29]	Li HY, Tao HF, Xiao Y, et al. ZmXYL modulates auxin-induced maize growth [J]. Plant J, 2023, 115(6): 1699-1715.
[30]	Binder BM. Ethylene signaling in plants [J]. J Biol Chem, 2020, 295(22): 7710-7725.
