牛病毒性腹泻病毒和牛肠道病毒双重RAA-LFD快速检测方法的建立及应用

doi:10.13560/j.cnki.biotech.bull.1985.2026-0234

摘要/Abstract

摘要：

目的建立快速、简便、可视化的牛病毒性腹泻病毒（Bovine viral diarrhea virus, BVDV）和牛肠道病毒（Bovine enterovirus, BEV）双重快速检测方法。方法利用重组酶介导恒温扩增技术（recombinase aided amplification, RAA），针对BVDV 5'UTR和BEV VP1保守区设计并筛选出特异性好、灵敏度高的引物和探针，结合侧流层析试纸条（lateral flow dipstick, LFD）建立并优化双重RAA-LFD反应体系，并对反应时间、温度、特异性、灵敏度和重复性进行评估，用建立的双重RAA-LFD检测方法与国家标准和文献报道的qPCR法分别对新疆各地区113份疑似犊牛腹泻的临床样品进行检测，完成不同检测方法间的准确率比对分析。结果建立的双重RAA-LFD检测方法在42 ℃反应20 min可完成检测，BVDV、BEV的最低检出限分别为10⁰ copies/μL和10¹ copies/μL，且与大肠杆菌（Escherichia coli, E.coli）、沙门氏菌（Salmonella）和牛冠状病毒（Bovine coronavirus, BCoV）等犊牛腹泻重要病原无交叉反应。检测113份临床样品，其中BVDV阳性检出率为18.6%，BEV阳性检出率为22.1%，混合感染率为8.6%，与qPCR总体阳性符合率为100%。结论建立了操作简单、快速、灵敏度高、特异性强、准确率高的BVDV和BEV双重RAA-LFD检测方法，为实现犊牛腹泻的早期预警和综合防控提供重要手段。

关键词: 牛病毒性腹泻病毒, 牛肠道病毒, 重组酶介导恒温扩增, 侧流层析试纸条

Abstract:

Objective This study aimed to establish a rapid, simple, and visual dual detection method for Bovine viral diarrhea virus (BVDV) and Bovine enterovirus (BEV). Method Based on recombinase aided amplification (RAA), specific primers and probes with high sensitivity and specificity were designed and screened for the conserved regions of the BVDV 5'UTR gene and the BEV VP1 gene. A dual RAA-lateral flow dipstick (LFD) system was established and optimized, and its reaction time, temperature, specificity, sensitivity, and repeatability were evaluated. A total of 113 clinical samples suspected of calf diarrhea from various regions of Xinjiang were tested blindly using both the developed dual RAA-LFD method and qPCR and enabling an accuracy comparision analysis among different testing methods. Result The established dual RAA-LFD detection method can complete the test within 20 min at 42 ℃，with detection limits of 10⁰ copies/μL for BVDV and 10¹ copies/μL for BEV. No cross-reaction was observed with Escherichia coli (E.coli), Salmonella orBovine coronavirus (BCoV). The 113 clinical samples collected, the positive detection rates for BVDV and BEV were 18.6% and 22.1%, respectively, with a co-infection rate of 8.6%. The overall positive agreement rate was 100%. Conclusion A simple, rapid, sensitive, specific, and accurate dual RAA-LFD method was established for the simultaneous detection of BVDV and BEV. This method provides an important tool for the early warning and comprehensive prevention-and-control of calf diarrhea.

Key words: Bovine viral diarrhea virus, Bovine enterovirus, recombinase aided amplification, lateral flow dipstick

刘宇辰, 刘芯怡, 刘心愿, 靳征, 莫沙·衣米提, 关团, 丁剑, 史慧君, 付强. 牛病毒性腹泻病毒和牛肠道病毒双重RAA-LFD快速检测方法的建立及应用[J]. 生物技术通报, doi: 10.13560/j.cnki.biotech.bull.1985.2026-0234.

LIU Yu-chen, LIU Xin-yi, LIU Xin-yuan, JIN Zheng, MOSA Yimiti, GUAN Tuan, DING Jian, SHI Hui-jun, FU Qiang. Establishment and Application of Rapid Detection Method for Bovine Viral Diarrhea Virus and Bovine Enterovirus Dual RAA-LFD[J]. Biotechnology Bulletin, doi: 10.13560/j.cnki.biotech.bull.1985.2026-0234.

图/表 11

表1 BVDV和BEV双重RAA-LFD与qPCR检测结果比较分析

Table 1 Comparative analysis of BVDV and BEV dual RAA-LFD and qPCR detection methods

样品名称 Sample name	RAA-LFD检测结果 RAA-LFD detection results （No. of samples）	qPCR检测结果 qPCR detection results （No. of samples）
BVDV阳性	21	21
BVDV阴性	92	92
BEV阳性	25	25
BEV阴性	88	88

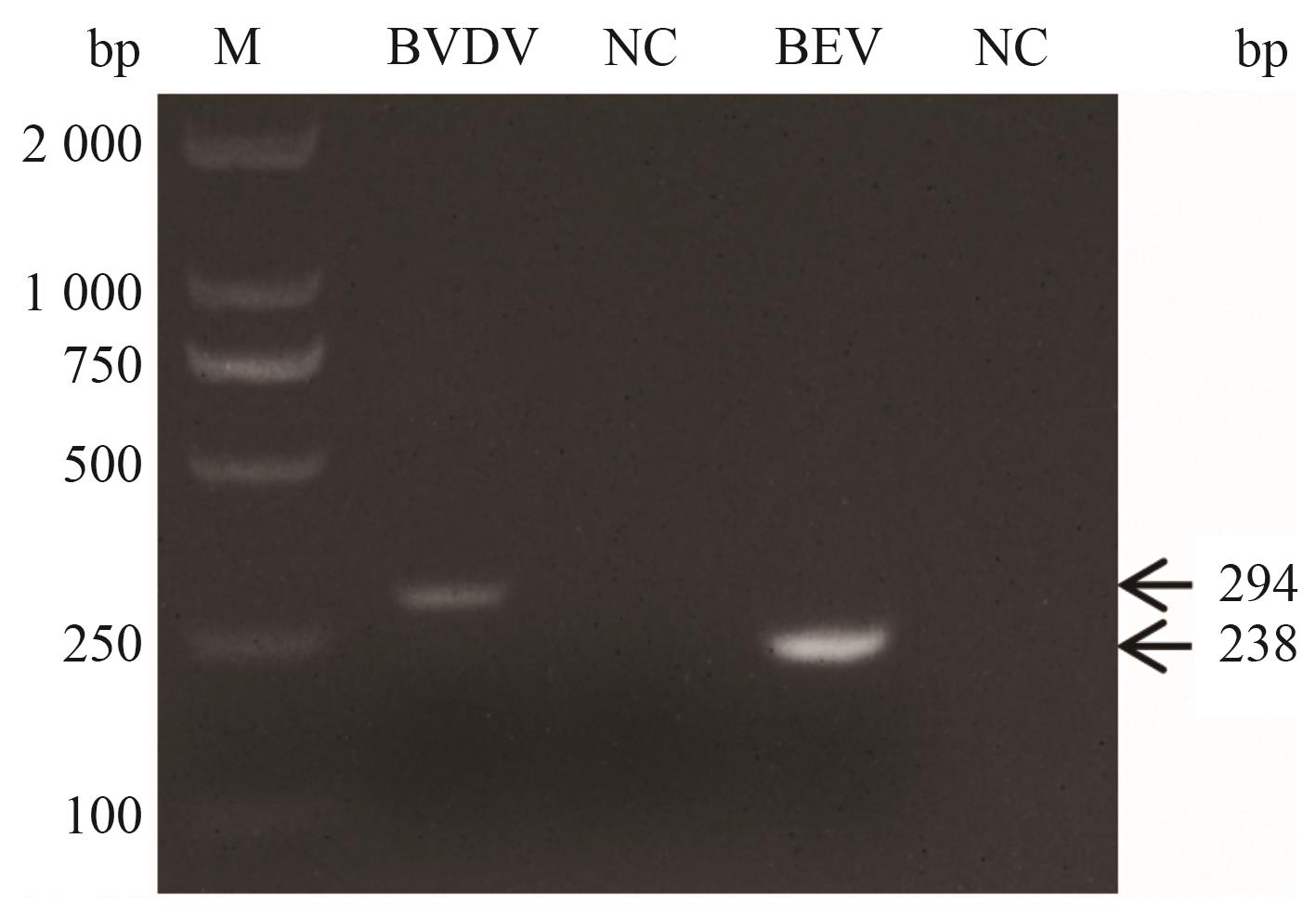

图1 目的基因的PCR扩增结果M：DL2000 DNA marker；NC：阴性对照

Fig. 1 PCR amplification results of target geneM: DL2000 DNA marker; NC: Negative control

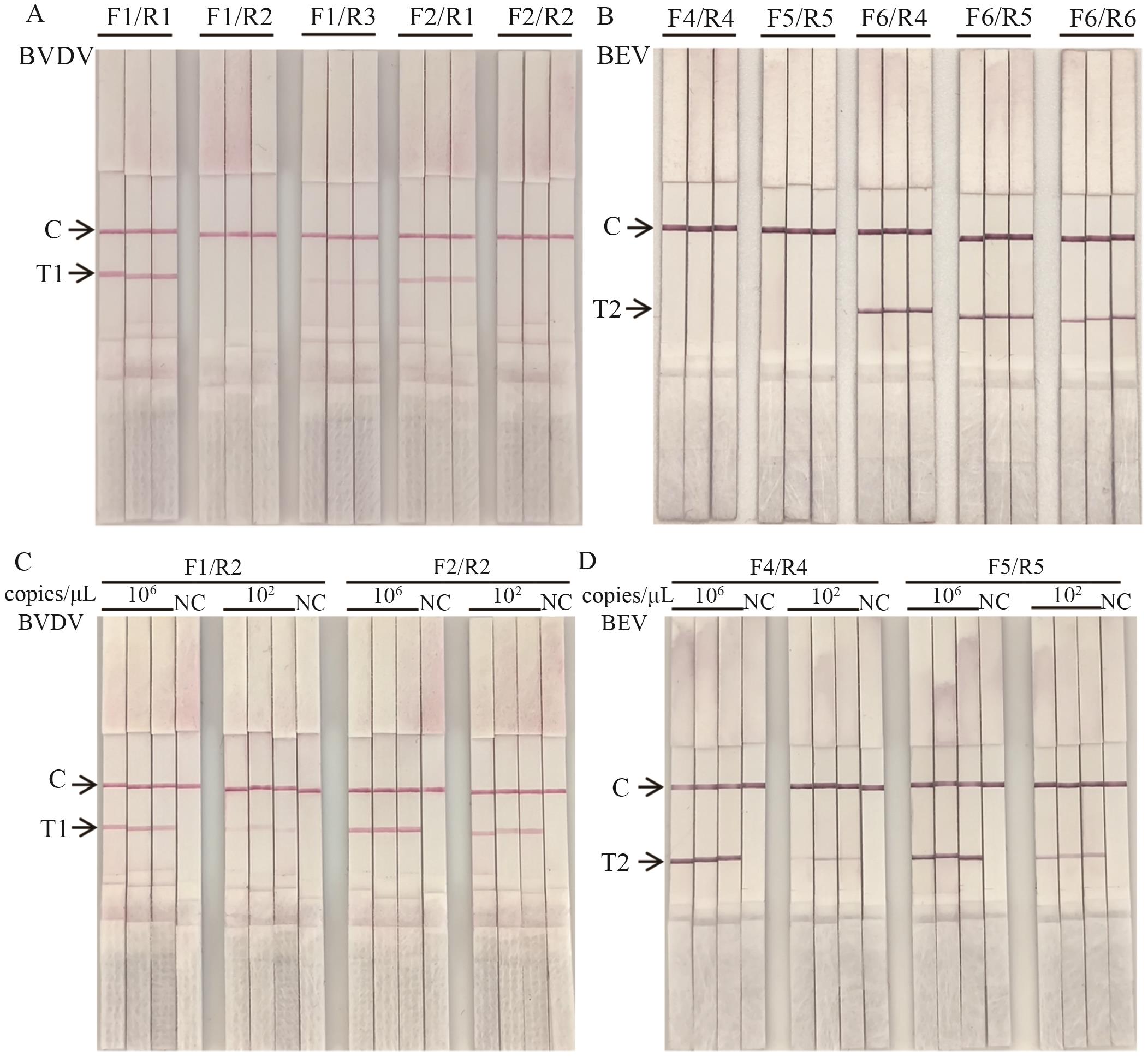

图2 RAA引物筛选结果A：BVDV阴性正常引物对（F1R2、F2R2）；B：BEV阴性正常引物对（F4R4、F5R5）；C：BVDV最佳引物对（F2R2）；D：BEV最佳引物对（F5R5）

Fig. 2 RAA primer screening resultsA: BVDV-negative normal primer pairs (F1R2, F2R2). B: BEV-negative normal primer pairs (F4R4, F5R5). C: Optimal BVDV primer pair (F2R2). D: Optimal BEV primer pair (F5R5)

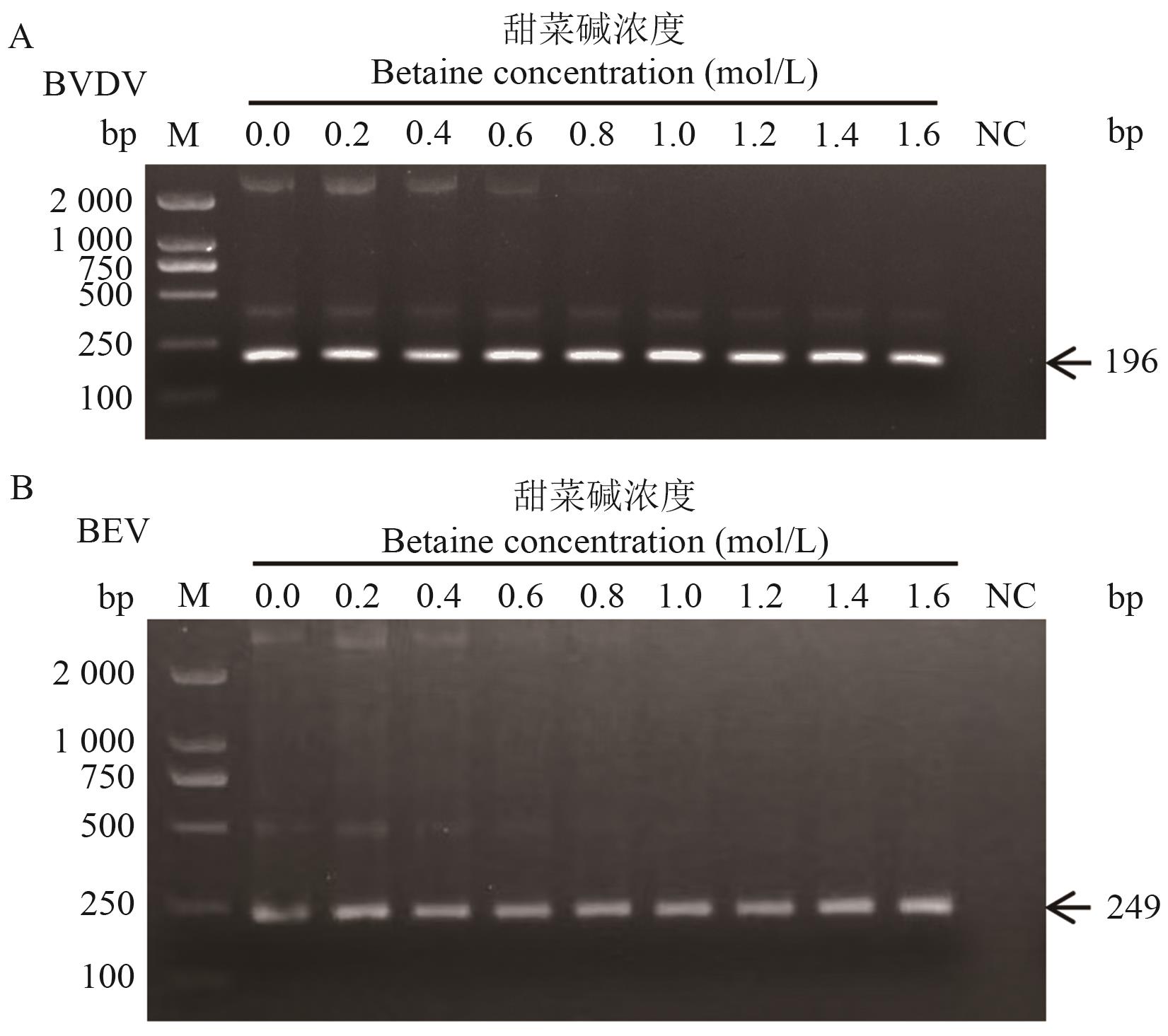

图3 甜菜碱浓度优化结果M：DL2000 DNA marker；NC：阴性对照；A：BVDV最佳甜菜碱浓度（1.0 mol/L）；B：BEV最佳甜菜碱浓度（1.0 mol/L）

Fig. 3 Betaine concentration optimization resultsM: DL2000 DNA marker. NC: Negative control. A: Optimal betaine concentration for BVDV (1.0 mol/L). B: Optimal betaine concentration for BEV (1.0 mol/L)

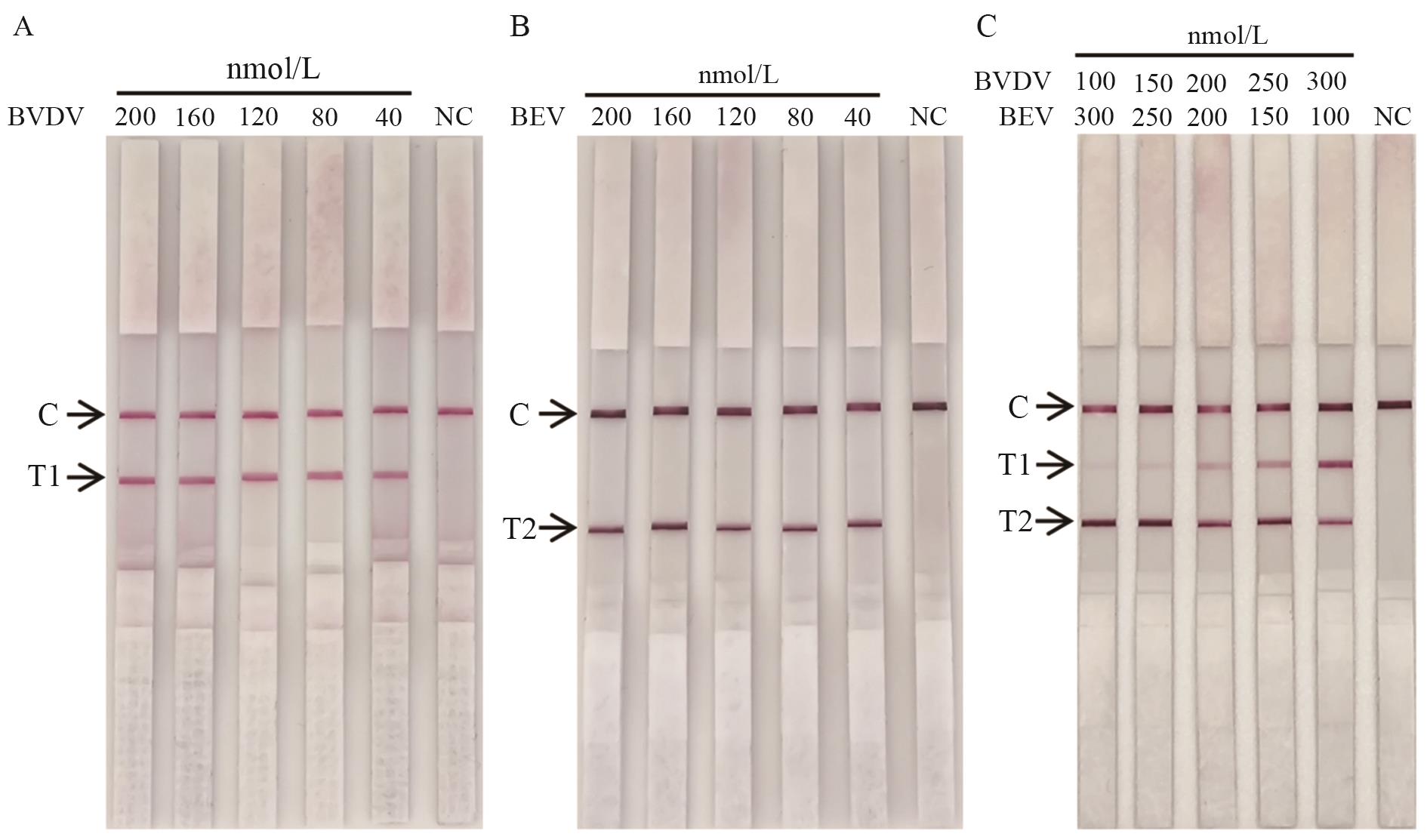

图4 探针浓度和引物浓度优化结果A：BVDV最佳探针浓度（40 nmol/L）；B：BEV最佳探针浓度（40 nmol/L）；C：BVDV和BEV最佳引物浓度配比（300 nmol/L∶100 nmol/L）

Fig. 4 Optimization of probe and primer concentrationsA: Optimal probe concentration for BVDV (40 nmol/L). B: Optimal probe concentration for BEV (40 nmol/L). C: Optimal primer concentration ratio of BVDV to BEV (300 nmol/L∶100 nmol/L)

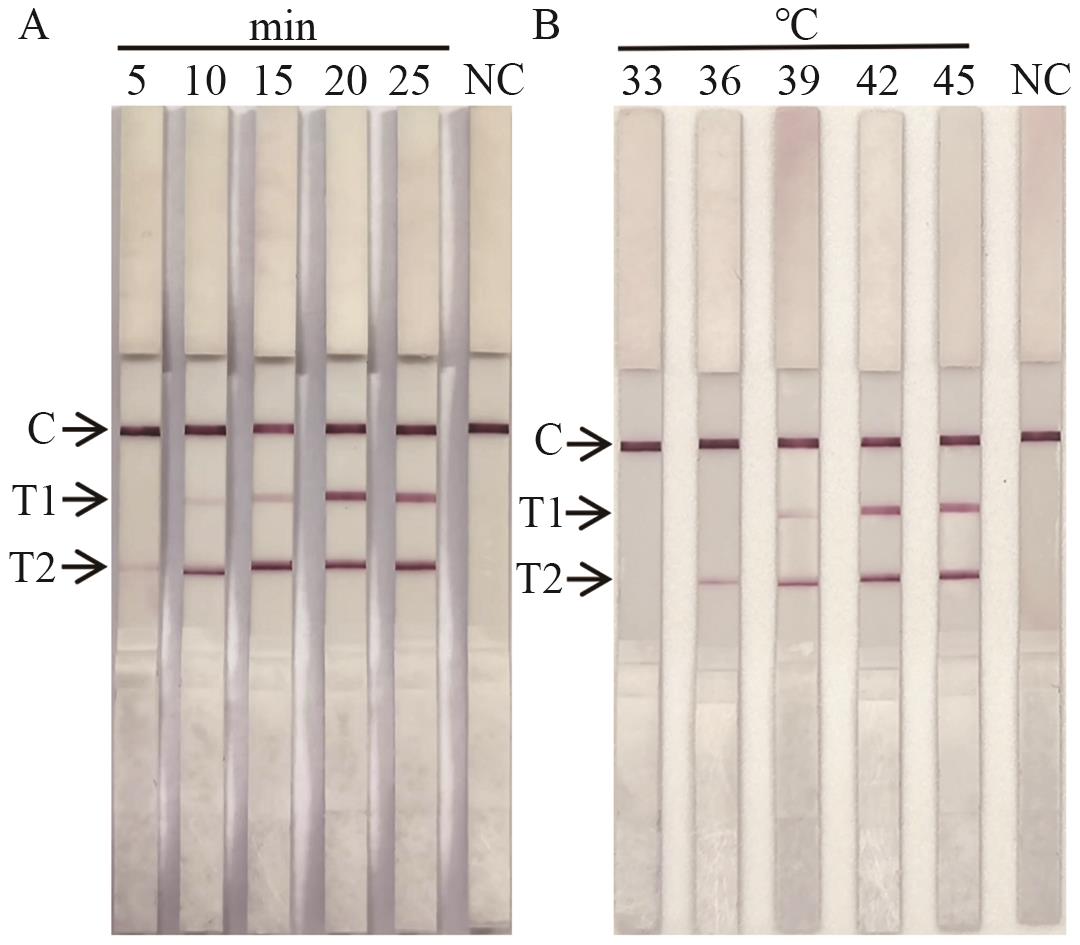

图5 反应时间和温度优化结果A：最佳反应时间（20 min）；B：最佳反应温度（42 ℃）

Fig. 5 Optimization of reaction time and temperatureA: Optimal reaction time (20 min). B: Optimal reaction temperature (42 ℃)

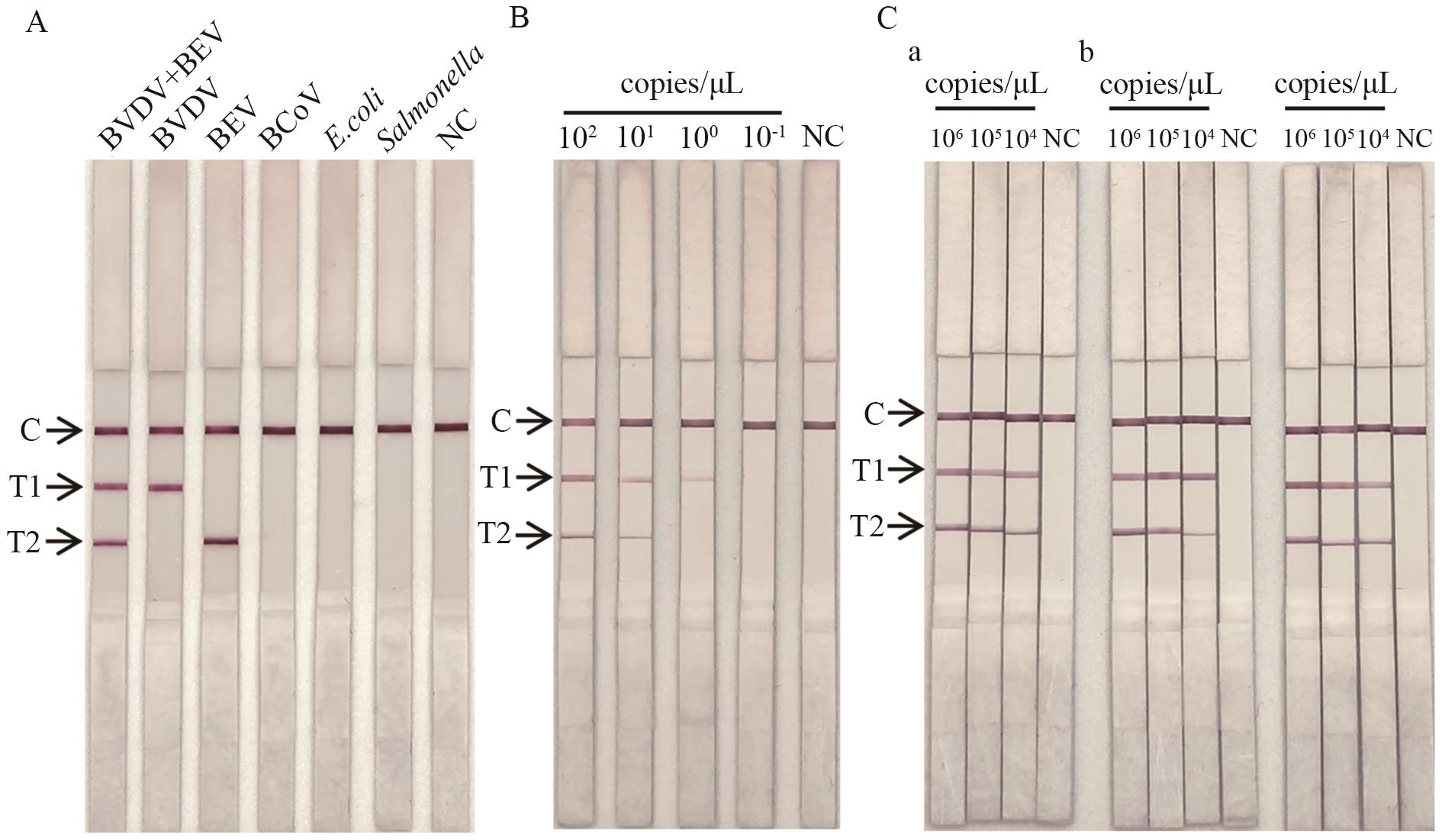

图6 特异性、灵敏度和重复性试验结果A：特异性试验；B：BVDV灵敏度（1×100 copies/μL）和BEV灵敏度（1×101 copies/μL）；C：重复性试验

Fig. 6 Results of specificity, sensitivity and repeatability testsA: Specificity test. B: Sensitivity of BVDV (1×100 copies/μL) and BEV (1×101 copies/μL). C: Repeatability test

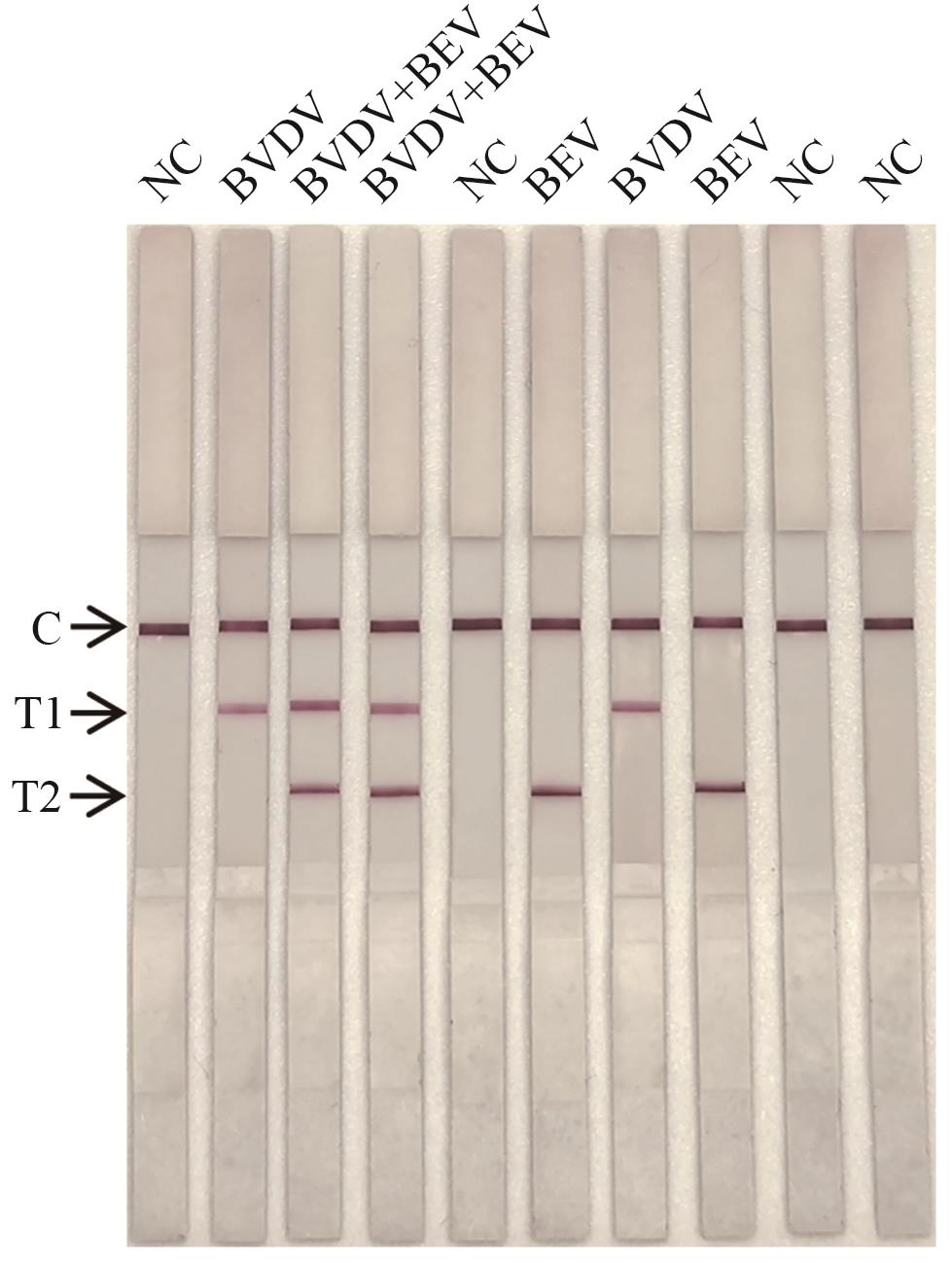

图7 单盲测试结果

Fig. 7 Single-blind test results

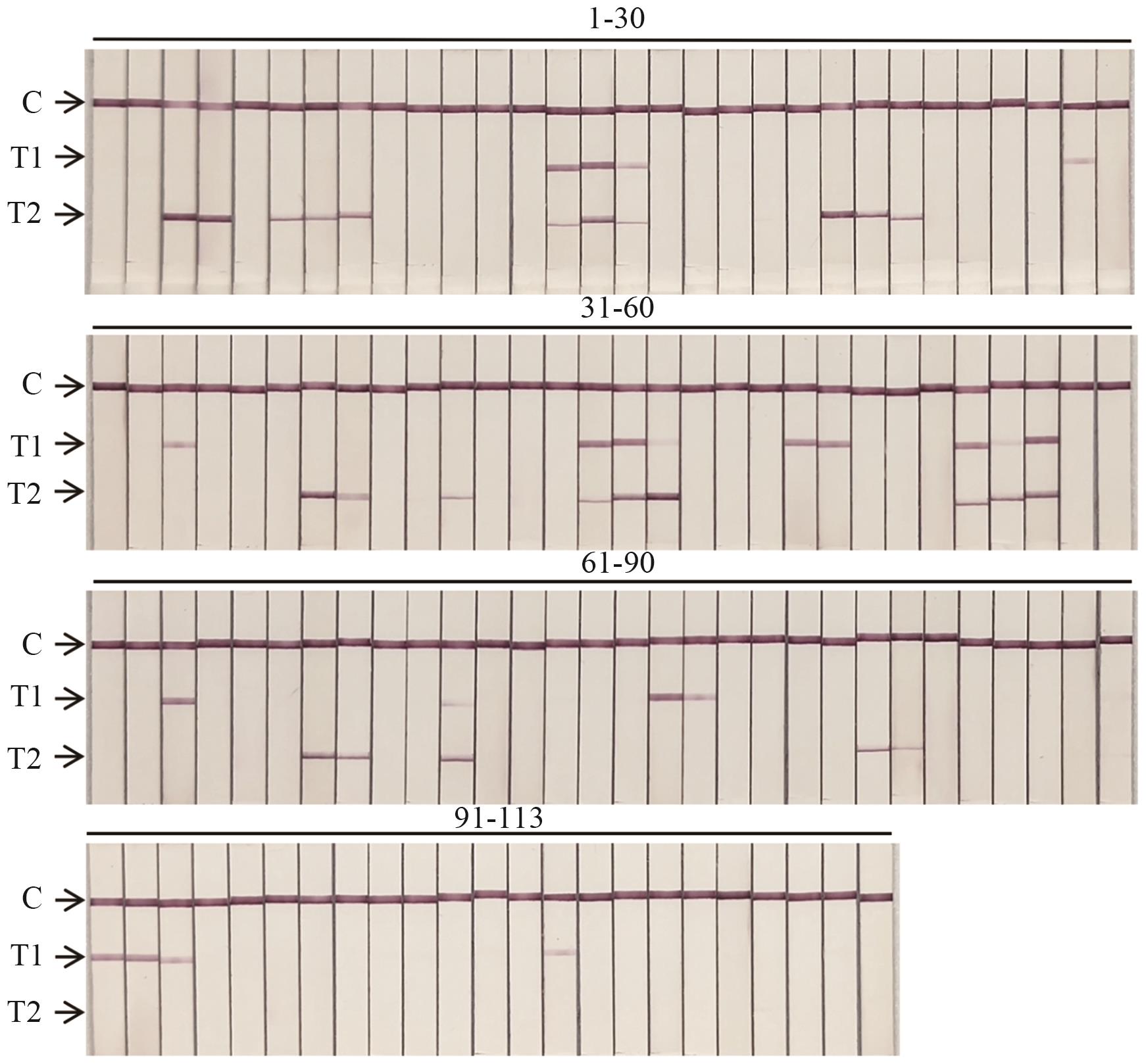

图8 BVDV和BEV双重RAA-LFD可视化检测

Fig. 8 Visual detection of BVDV and BEV by duplex RAA-LFD

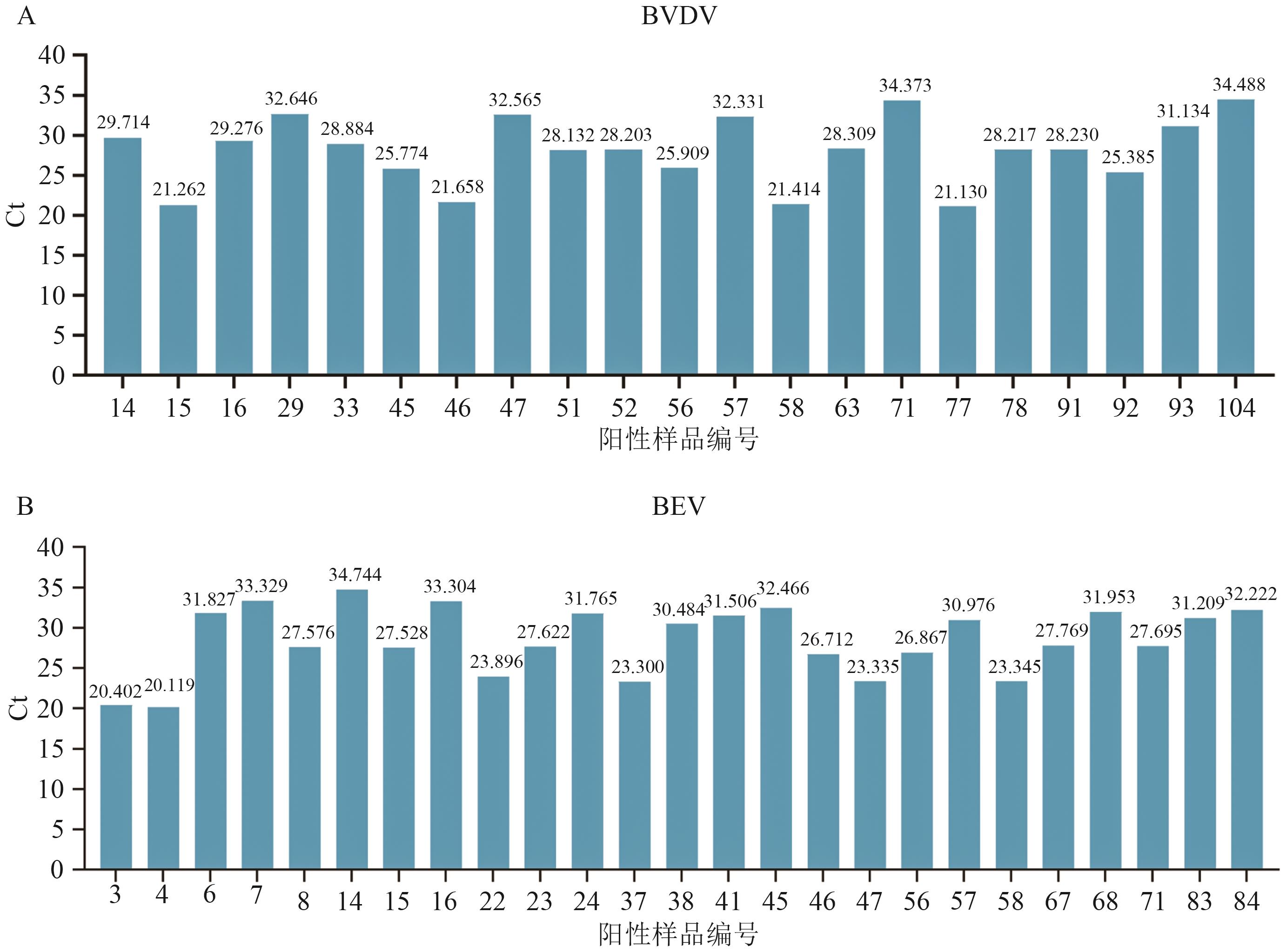

图9 BVDV和BEV qPCR检测阳性结果

Fig. 9 Positive qPCR results for BVDV and BEV

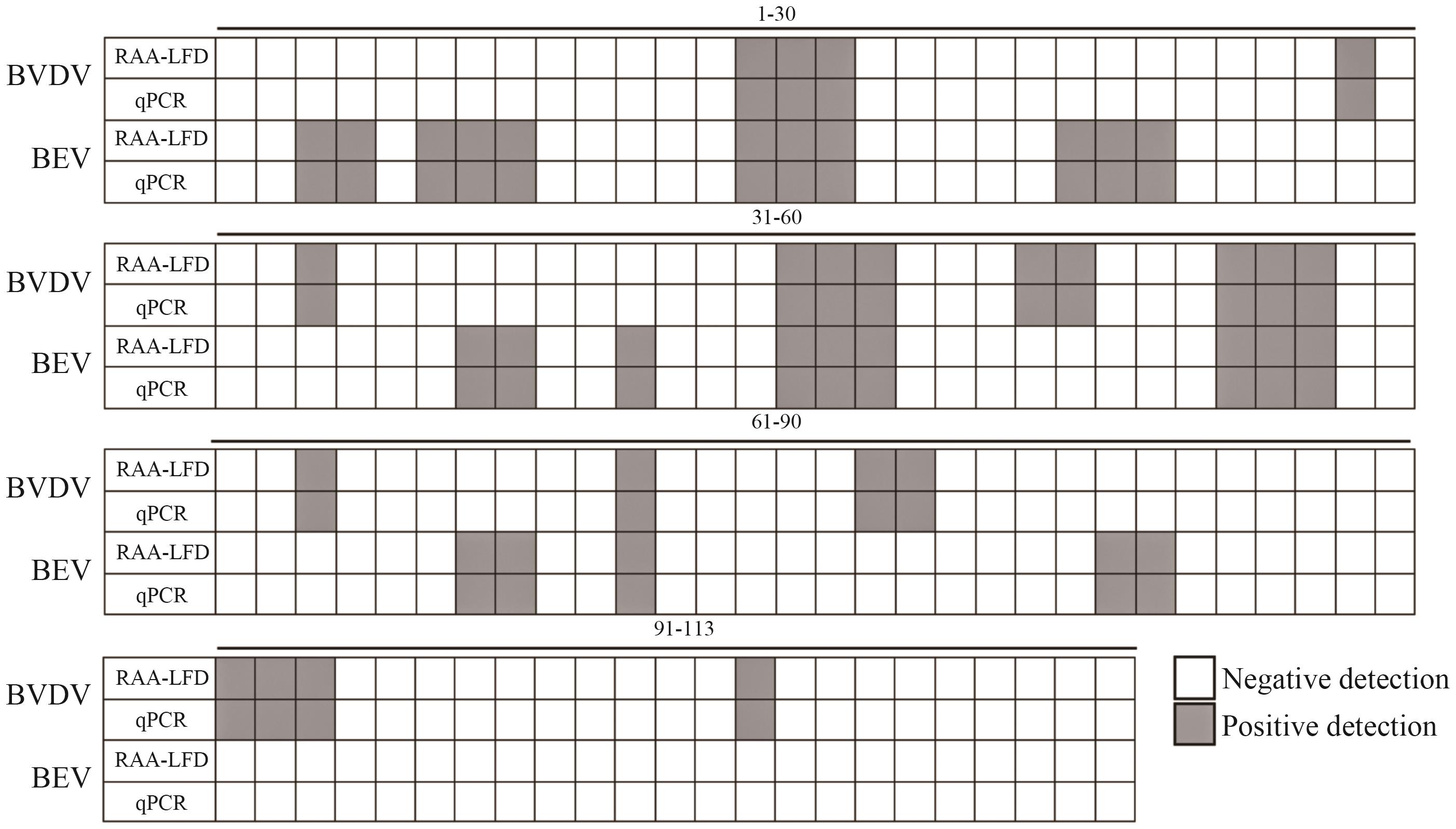

图10 临床样品检测对比结果

Fig. 10 Comparison of detection results for clinical samples
