Genome-wide Identification and Expression Analysis of DNA Methyltransferase and Demethylase Gene Family in Sweetpotato

doi:10.13560/j.cnki.biotech.bull.1985.2025-0743

Abstract

Abstract:

Objective Identification and analysis of the gene family members, its structures and expression patterns of DNA methyltransferase (IbC5-MTase) and demethylase (IbdMTase) will provide theoretical support for in-depth exploration of the molecular basis and biological functions of DNA methylation in sweetpotato. Method The physicochemical properties, sequences, evolution and structures of the IbC5-MTase and IbdMTase gene family members were analyzed by bioinformatic methods. The expressions of IbC5-MTase and IbdMTase in different sweetpotato tissues, and under abiotic and biotic stress conditions were analyzed by integrating transcriptome data with RT-qPCR. Result A total of seven IbC5-MTase genes and four IbdMTase genes were identified in the whole genome of sweetpotato, distributed across 8 linkage groups. The IbC5-MTase and IbdMTase proteins contain 355-1 305 amino acids (aa), with theoretical isoelectric points (pI) ranging from 4.81 to 9.81. Subcellular localization predictions indicate that nine proteins are in the nucleus. Phylogenetic analysis showed the IbC5-MTase and IbdMTase proteins are classified into four and three subfamilies, respectively. Conserved motif analysis demonstrated distinct motif compositions between two protein types. Promoter regions of both gene families were enriched with cis-regulatory elements associated with light responsiveness, hormonal regulation, and stress adaptation. Tissue-specific expression profiling revealed relatively high expression levels of IbDRM2 and IbCMT3b, with overall higher expression of both gene families in aerial tissues as compared to roots, particularly in young tissues. Transcriptome analysis under abiotic stresses demonstrated widespread expression reprogramming of these genes during salt, drought, and cold adaptation. Stem nematode infection triggered distinct transcriptional responses, IbCMT3a and IbDRM2 were significantly downregulated, whereas IbCMT3b and IbROS1 were upregulated, as validated by RT-qPCR. Conclusion The IbC5-MTase and IbdMTase genes of sweetpotato have potential functions under biotic and abiotic stresses.

Key words: sweetpotato, C5-MTase and dMTase genes, bioinformatics, biotic and abiotic stresses, expression profile

ZHANG Ai-cen, YAN Hui, MA Ju-kui, ZHANG Yun-gang, LI Qiang. Genome-wide Identification and Expression Analysis of DNA Methyltransferase and Demethylase Gene Family in Sweetpotato[J]. Biotechnology Bulletin, 2026, 42(6): 1-12.

Figures/Tables 10

Table 1 RT-qPCR primers for gene expression analysis

基因 Gene	正向引物 Forward primer （5′-3′）	反向引物 Reverse primer （5′-3′）
Tubulin	TCAATGCTGCTGTTGCCACT	CAGTGAACGAACGCCCTCT
IbCMT3a	GGTGCCCTTCCTGGAGAAAA	CATCACCAAGGAAAAGCGCC
IbCMT3b	ACGAGGACAGCGAGTTTGTT	CTCAGTGCCCTTCTGGTAGC
IbDRM2	AACTCTTCCGGAGCAAGCAA	GTCCGTGGAGGAATGGGAAG
IbROS1	GCCCTTACCTCAGACTGTCG	GGCACTTCGACAATTGGCTC

Table 2 IbC5-MTase and IbdMTase gene families information and the physicochemical properties of their encoded proteins

基因家族 Gene family	基因 Gene	基因号 Gene ID	氨基酸数目 Amino acid length （aa）	分子量 Molecular weight （Da）	等电点 pI	亲水性平均值 GRAVY value	亚细胞定位预测 Subcellular localization prediction
IbC5-MTase	IbCMT3a	IB02G00540	566	64 206.59	4.81	-0.396	细胞核
	IbCMT3b	IB08G17210	782	87 453.08	5.10	-0.365	细胞核
	IbMET1a	IB14G25930	1 305	148 434.28	7.73	-0.431	细胞膜、细胞核
	IbMET1b	IB14G25950	406	45 303.61	6.84	-0.414	细胞核
	IbCMT2	IB04G14710	355	40 821.35	7.64	-0.280	细胞核
	IbDRM2	IB10G09160	593	66 752.48	4.85	-0.443	细胞膜、细胞质、细胞核等
	IbDNMT2	IB11G24750	389	44 472.12	5.53	-0.484	细胞核
IbdMTase	IbDME1	IB01G25690	1 294	144 598.76	7.43	-0.621	细胞核
	IbDME2	IB07G04730	601	67 543.83	6.90	-0.436	细胞核
	IbROS1	IB14G14640	419	47 514.26	5.64	-0.474	细胞核
	IbDML3	IB02G03320	861	96 384.00	4.93	-0.449	细胞核

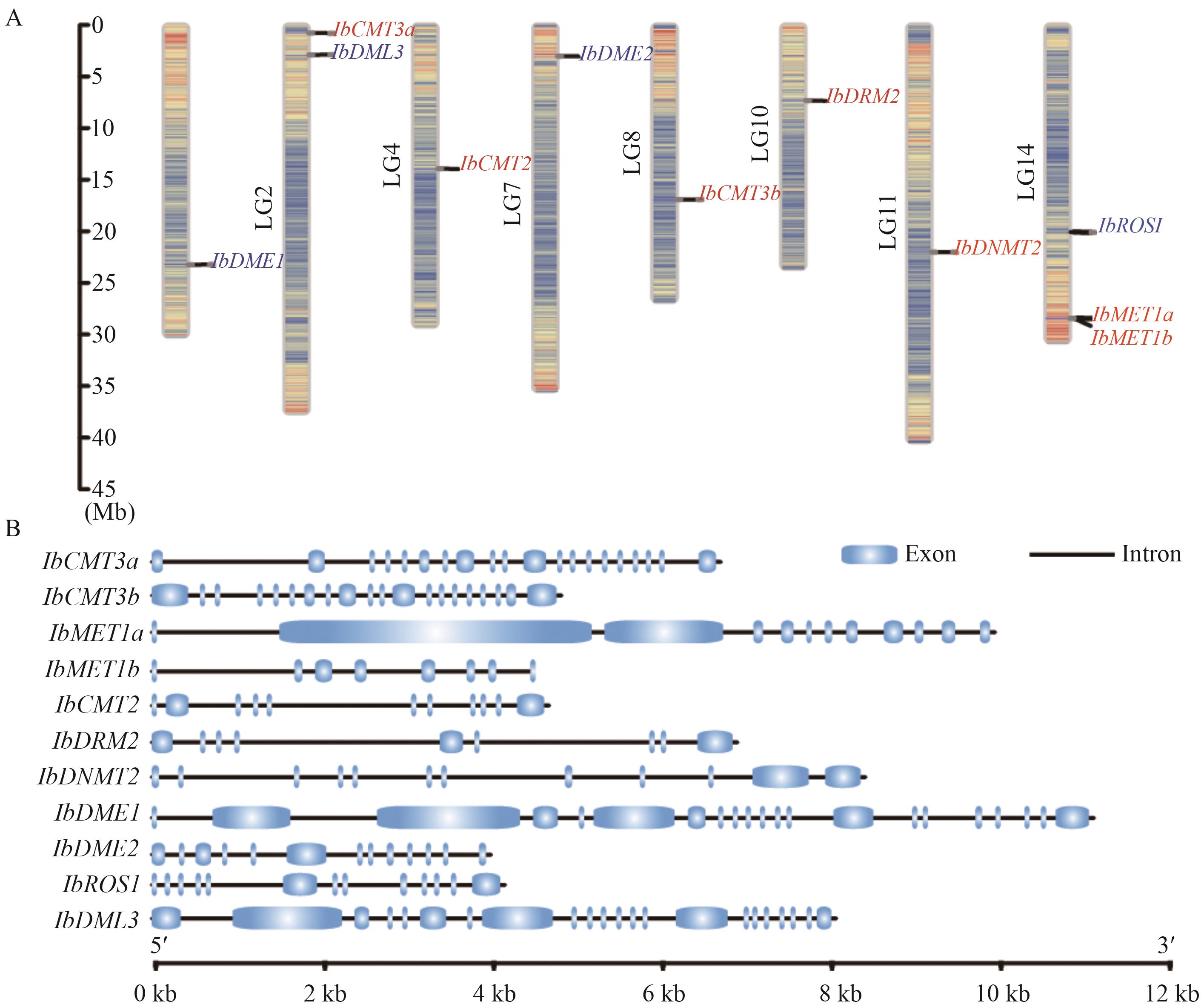

Fig. 1 Chromosome distribution and structural analysis of the IbC5-MTase and IbdMTase gene familyA: Distribution of genes on linkage groups, red indicates the IbC5-MTase genes, blue indicates the IbdMTase genes. B: The exon-intron distribution of genes, with blue squares indicating exons and black lines representing introns

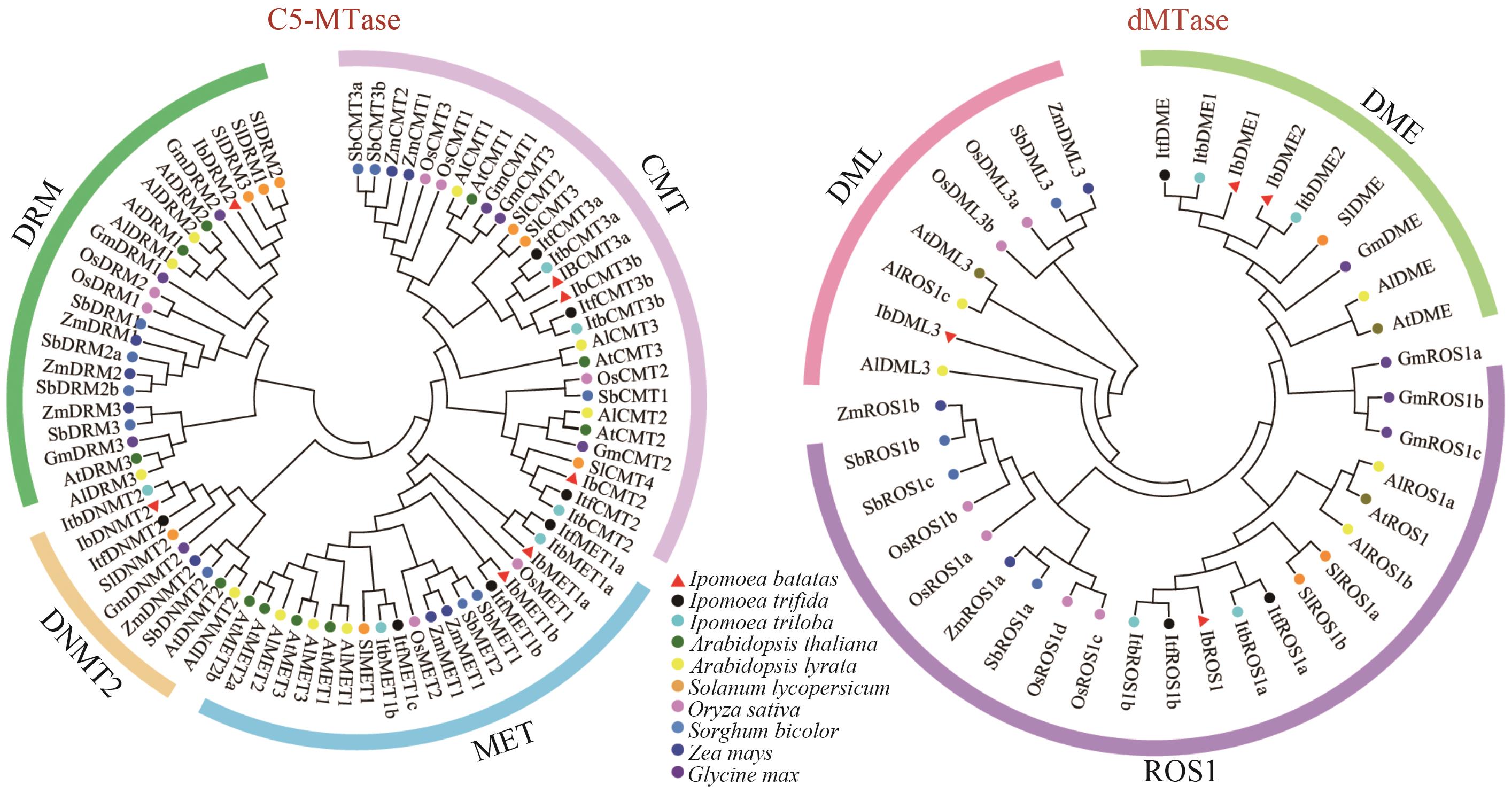

Fig. 2 Phylogenetic trees of C5-MTase and dMTase proteins in different plantsIb: Ipomoea batatas; Itf: Ipomoea trifida; Itb: Ipomoea triloba; At: Arabidopsis thaliana; Al: Arabidopsis lyrata; Sl: Solanum lycopersicum; Os: Oryza sativa; Sb:Sorghum bicolor; Zm:Zea mays; Gm: Glycine max

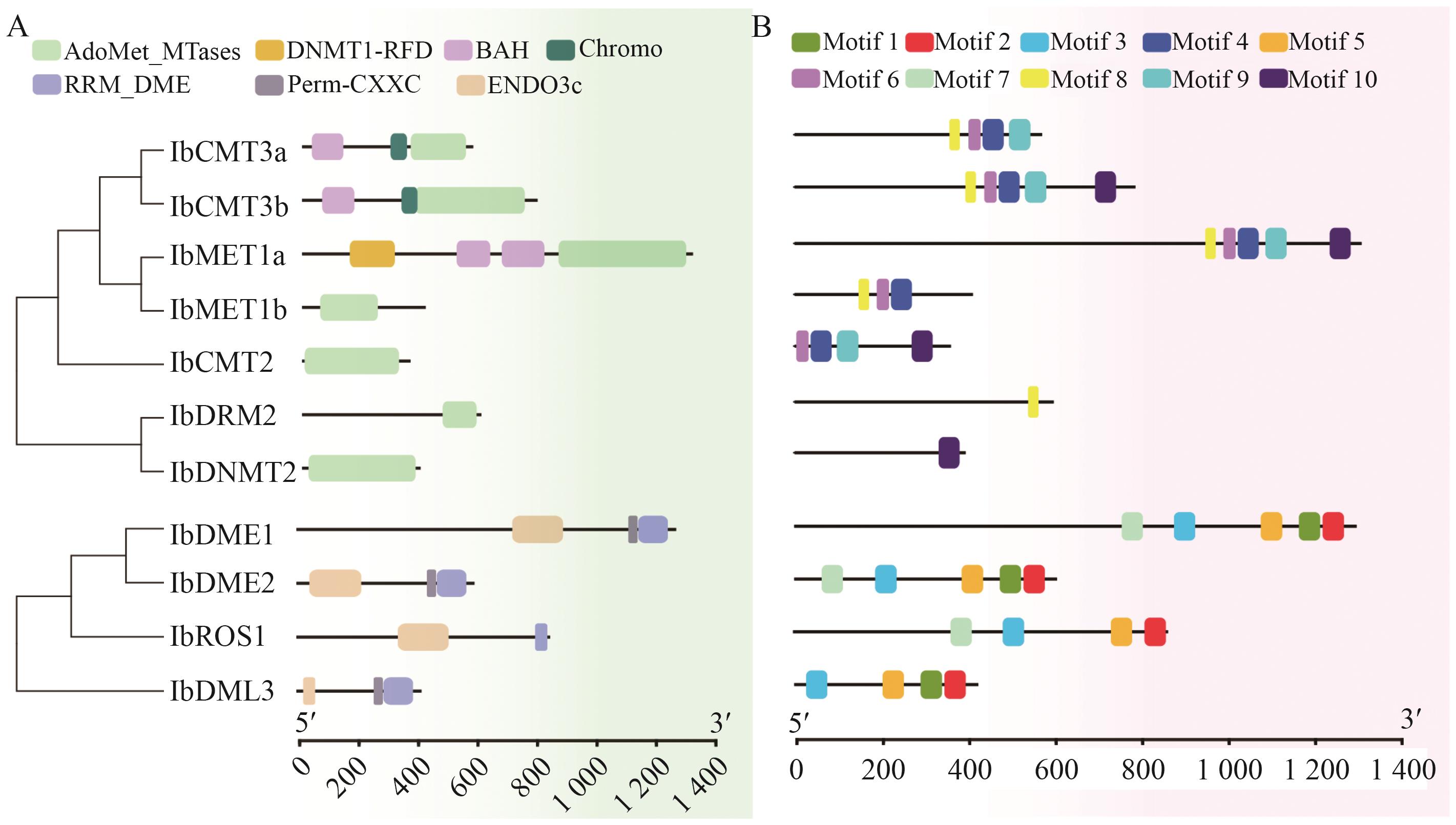

Fig. 3 Conserved domain and motif analysis of IbC5-MTase and IbdMTase proteinsA: Conserved domains of IbC5-MTase and IbdMTase proteins. B: Motif diagrams of IbC5-MTase and IbdMTase proteins

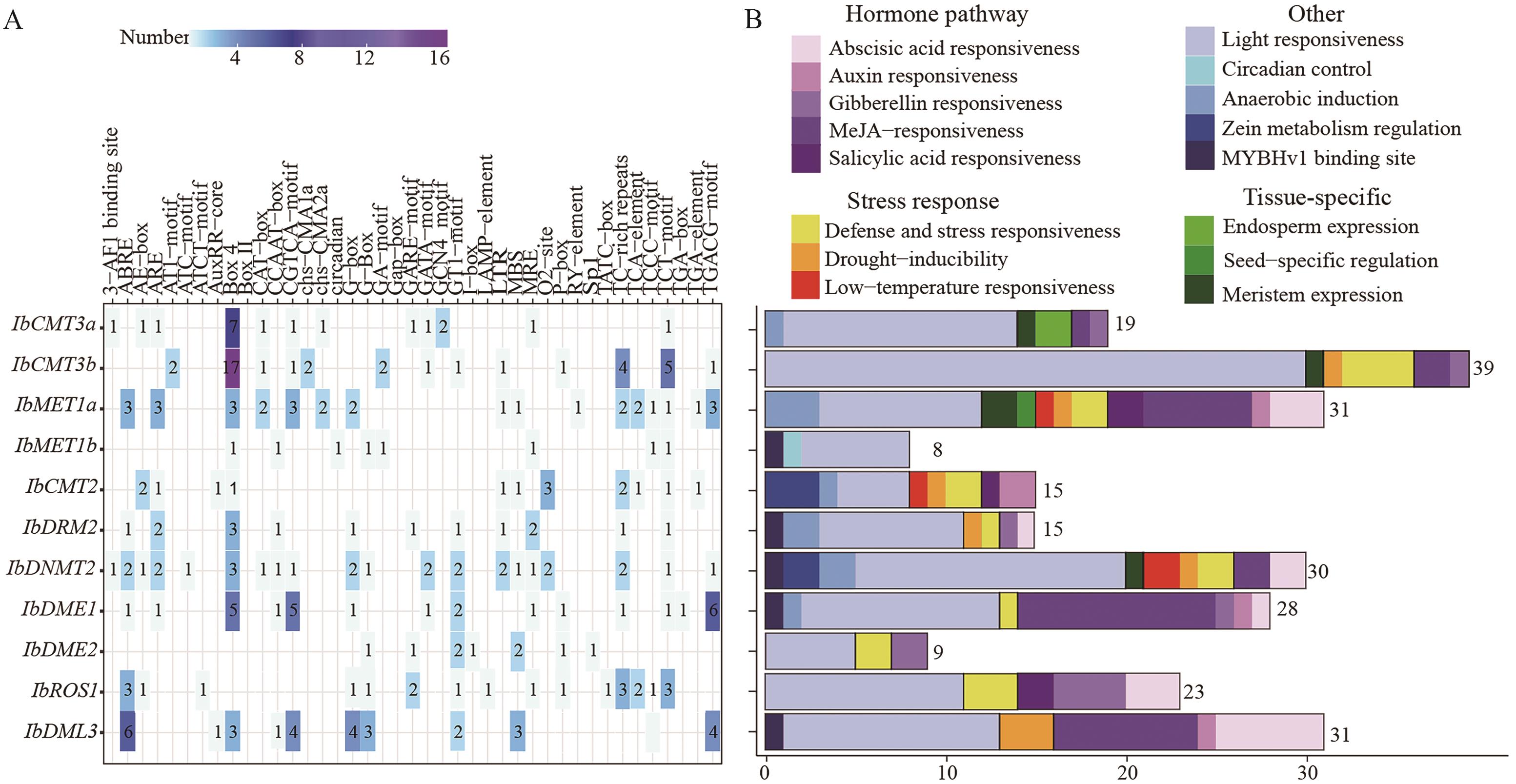

Fig. 4 Distribution of cis-regulatory elements in the promoter regions of the IbC5-MTase and IbdMTase gene familiesA: The number of each motif in the IbC5-MTase and IbdMTase gene families, with the depth of color indicating the number. B: Statistics of cis-acting elements related to different biological functions

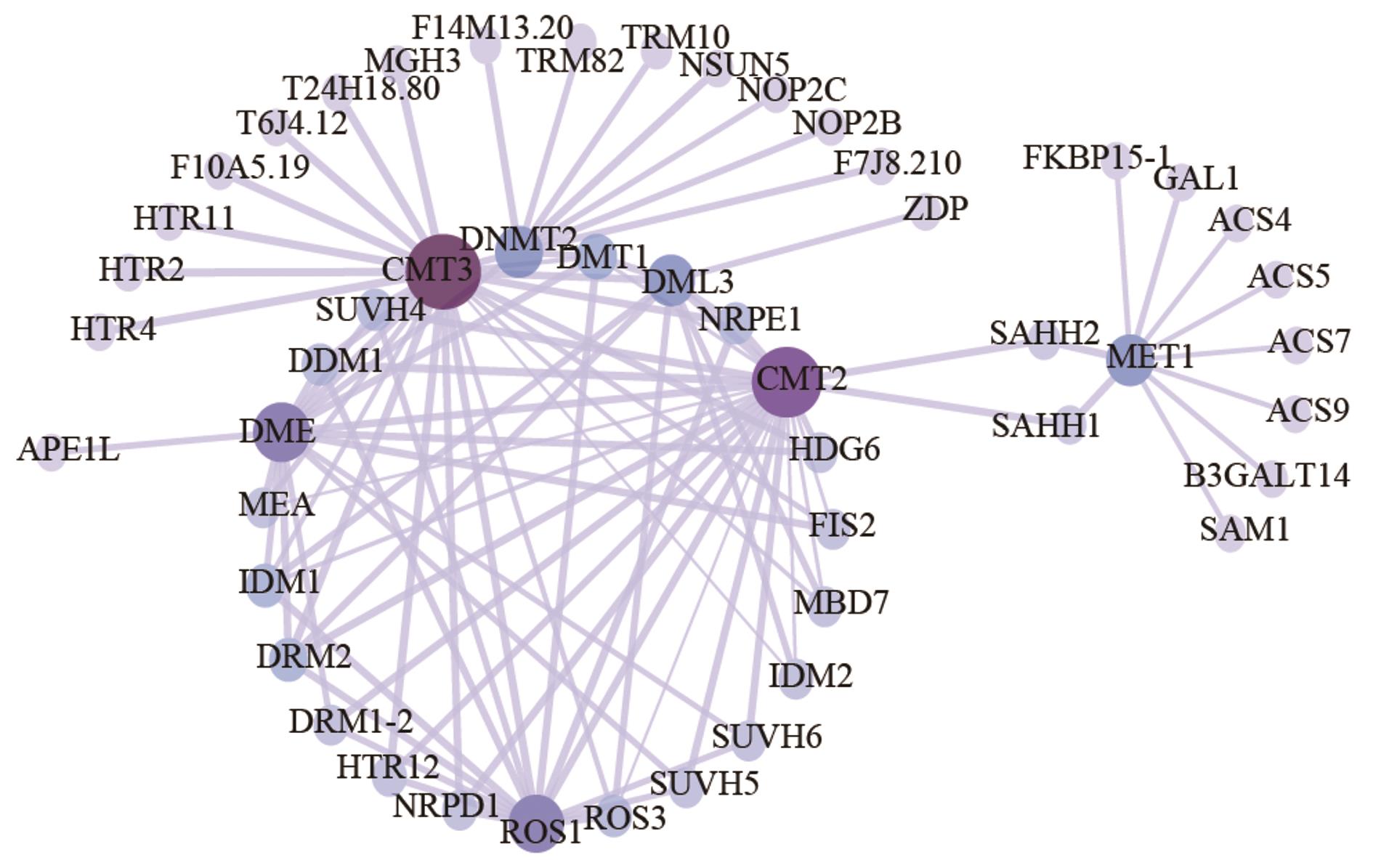

Fig. 5 Potential PPI network among IbC5-MTases and IbdMTasesEach node indicates a protein. The size and color intensity of a node are proportional to the number of its interacting proteins. The edges between nodes indicate predicted interactions

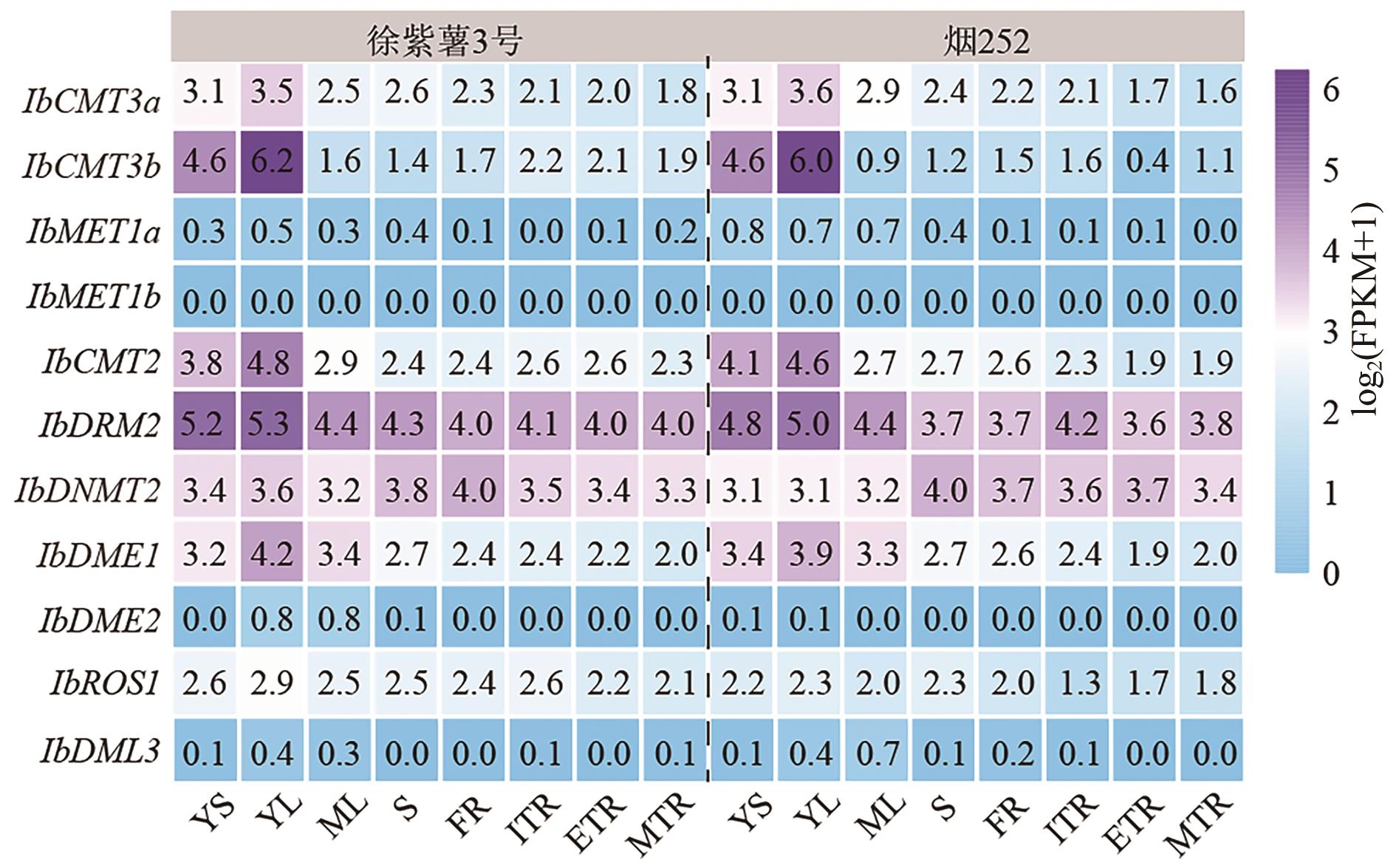

Fig. 6 Tissue expression patterns of IbC5-MTase and IbdMTase genesYS: Young shoot; YL: young leaf; ML: mature leaf; S:stem; FR: fibrous root; ITR: initial tuberous root; ETR: expanding tuberous root; MTR: mature tuberous root; Xu: Xuzishu No. 3; Yan: Yan 252

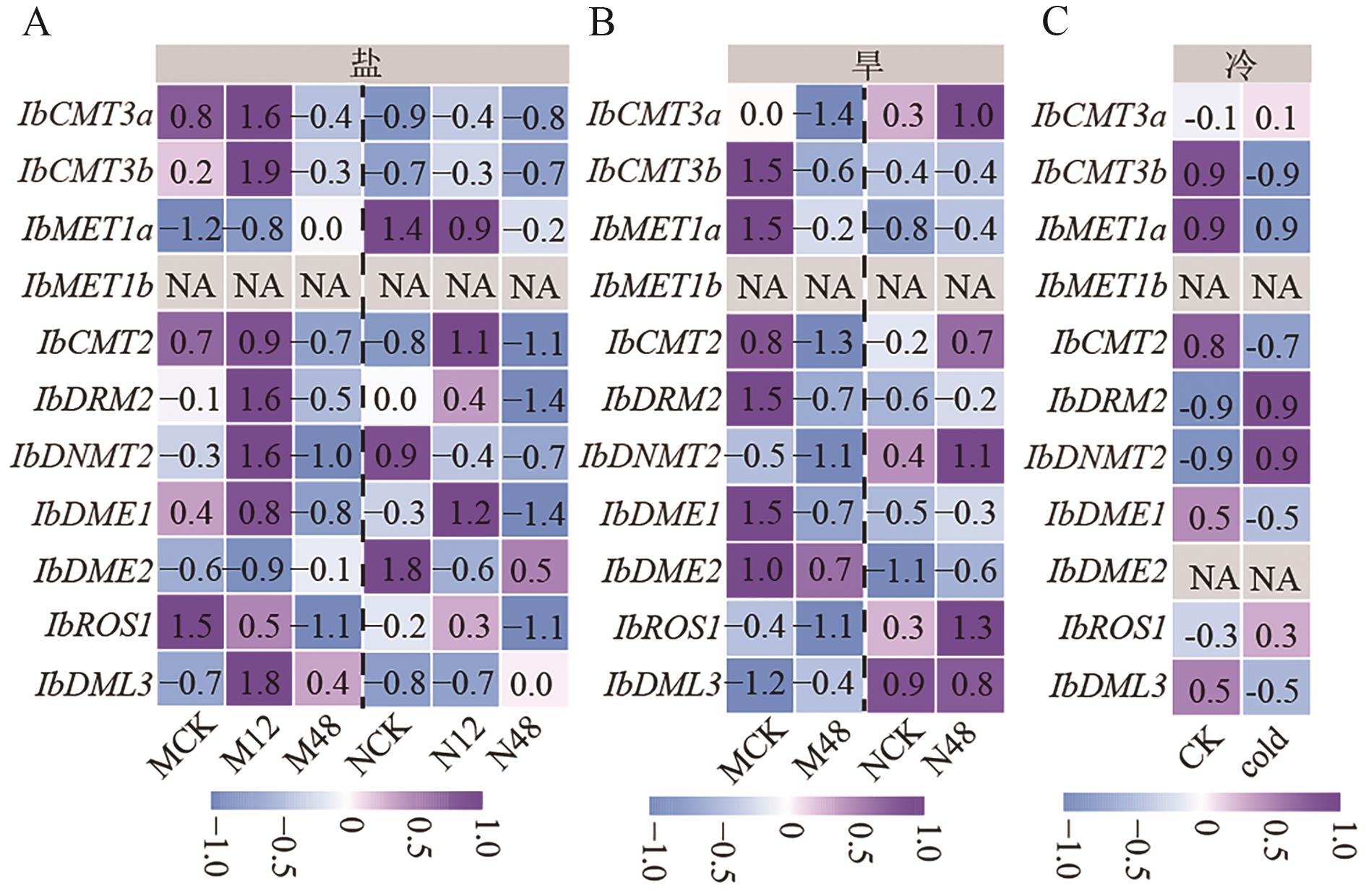

Fig. 7 Expression analysis of IbC5-MTase and IbdMTase genes under abiotic stressSM: Salt-sensitive material Lizixiang. SN: Salt-resistant material ND98. DM: Drought-sensitive material 18-12-3. DN: Drought-resistant material XS161819. Salt: 200 mmol/L NaCl treatment; drought: 20% PEG treatment; cold: 4 ℃ treatment. The grey square indicates that no gene expression has been detected.A: Expression analysis of IbC5-MTase and IbdMTase gene families under salt stress treatment. B: Expression analysis of IbC5-MTase and IbdMTase gene families under drought stress treatment. C: Expression analysis of IbC5-MTase and IbdMTase gene families under cold stress treatment

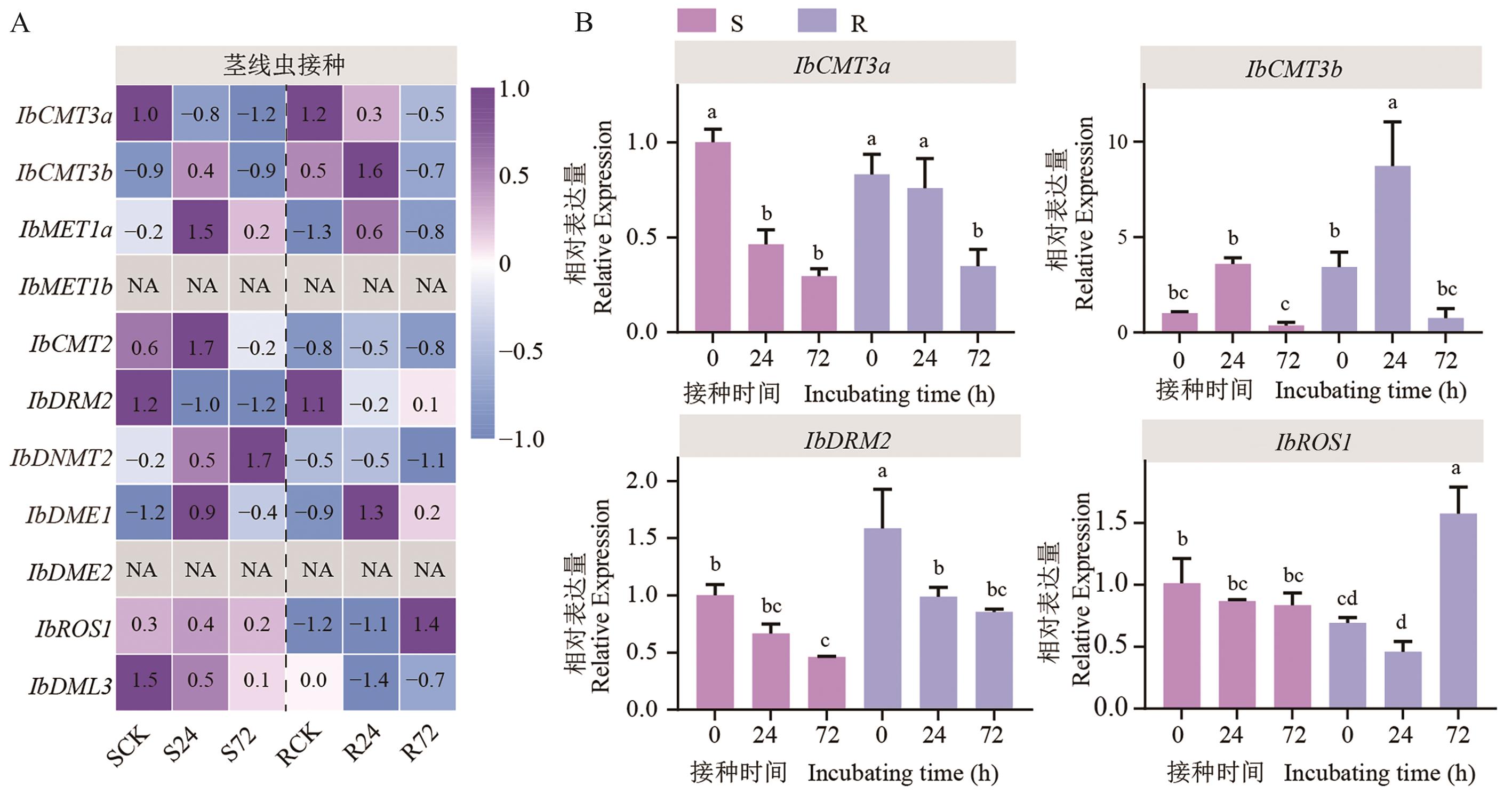

Fig. 8 Expression analysis of IbC5-MTase and IbdMTase genes in stem nematode inoculation treatmentR: Stem nematode-highly resistant material Xu 18-203. S: Stem nematode-highly susceptible material Xuzi 8. Different lowercase letters above the bars indicate significant differences at the P0.05 levelA: Transcriptional level analysis of the IbC5-MTase and IbdMTase gene families under stem nematode inoculation treatment. B: RT-qPCR verification of the response of IbC5-MTase and IbdMTase genes to stem nematodes

References 33

[1]	Zhang HM, Lang ZB, Zhu JK. Dynamics and function of DNA methylation in plants [J]. Nat Rev Mol Cell Biol, 2018, 19(8): 489-506.
[2]	Liu RE, Lang ZB. The mechanism and function of active DNA demethylation in plants [J]. J Integr Plant Biol, 2020, 62(1): 148-159.
[3]	Law JA, Jacobsen SE. Establishing, maintaining and modifying DNA methylation patterns in plants and animals [J]. Nat Rev Genet, 2010, 11(3): 204-220.
[4]	Eissenberg JC. Molecular biology of the chromo domain: an ancient chromatin module comes of age [J]. Gene, 2001, 275(1): 19-29.
[5]	Ahmad F, Huang X, Lan HX, et al. Comprehensive gene expression analysis of the DNA (cytosine-5) methyltransferase family in rice (Oryza sativa L.) [J]. Genet Mol Res, 2014, 13(3): 5159-5172.
[6]	Qian YX, Xi YL, Cheng BJ, et al. Genome-wide identification and expression profiling of DNA methyltransferase gene family in maize [J]. Plant Cell Rep, 2014, 33(10): 1661-1672.
[7]	Guo XH, Xie Q, Li BY, et al. Molecular characterization and transcription analysis of DNA methyltransferase genes in tomato (Solanum lycopersicum) [J]. Genet Mol Biol, 2020, 43: e20180295.
[8]	Gu TT, Ren S, Wang YH, et al. Characterization of DNA methyltransferase and demethylase genes in Fragaria vesca [J]. Mol Genet Genom, 2016, 291(3): 1333-1345.
[9]	翟琼, 郑浩霞, 胡博. 花生DNA甲基转移酶基因家族生物信息学分析 [J/OL]. 分子植物育种, 2022: 1-22. (2022-10-22). .
	Zhai Q, Zheng HX, Hu B. Bioinformatics analysis of peanut DNA methyltransferase gene family [J/OL]. Mol Plant Breed, 2022: 1-22. (2022-10-22). .
[10]	Yu ZM, Zhang GH, Teixeira da Silva JA, et al. Genome-wide identification and analysis of DNA methyltransferase and demethylase gene families in Dendrobium officinale reveal their potential functions in polysaccharide accumulation [J]. BMC Plant Biol, 2021, 21(1): 21.
[11]	Xu R, Wang YH, Zheng H, et al. Salt-induced transcription factor MYB74 is regulated by the RNA-directed DNA methylation pathway in Arabidopsis [J]. J Exp Bot, 2015, 66(19): 5997-6008.
[12]	Mao HD, Wang HW, Liu SX, et al. A transposable element in a NAC gene is associated with drought tolerance in maize seedlings [J]. Nat Commun, 2015, 6: 8326.
[13]	Wang Y, Zuo LL, Wei TL, et al. CHH methylation of genes associated with fatty acid and jasmonate biosynthesis contributes to cold tolerance in autotetraploids of Poncirus trifoliata [J]. J Integr Plant Biol, 2022, 64(12): 2327-2343.
[14]	Le TN, Schumann U, Smith NA, et al. DNA demethylases target promoter transposable elements to positively regulate stress responsive genes in Arabidopsis [J]. Genome Biol, 2014, 15(9): 458.
[15]	李强, 赵海, 靳艳玲, 等. 中国甘薯产业助力国家粮食安全的分析与展望 [J]. 江苏农业学报, 2022, 38(6): 1484-1491.
	Li Q, Zhao H, Jin YL, et al. Analysis and perspectives of sweetpotato industry contributing to national food security in China [J]. Jiangsu J Agric Sci, 2022, 38(6): 1484-1491.
[16]	王崇, 兰孟焦, 肖满秋, 等. 甘薯PAL基因家族的全基因组鉴定及生物信息学分析 [J]. 植物遗传资源学报, 2025, 26(6): 1091-1105.
	Wang C, Lan MJ, Xiao MQ, et al. Genome-wide identification and bioinformatics analysis of the PAL gene family in sweetpotato [Ipomoea batatas (L.) Lam.] [J]. J Plant Genet Resour, 2025, 26(6): 1091-1105.
[17]	Zhang H, Zhang Q, Zhai H, et al. Transcript profile analysis reveals important roles of jasmonic acid signalling pathway in the response of sweet potato to salt stress [J]. Sci Rep, 2017, 7: 40819.
[18]	闫会, 张成玲, 张允刚, 等. 甘薯茎线虫病抗扩展性遗传特性分析与QTL定位 [J]. 植物遗传资源学报, 2023, 24(6): 1766-1777.
	Yan H, Zhang CL, Zhang YG, et al. Analysis of resistance inheritance and QTL mapping of sweet potato stem nematode disease [J]. J Plant Genet Resour, 2023, 24(6): 1766-1777.
[19]	Cheng JF, Niu QF, Zhang B, et al. Downregulation of RdDM during strawberry fruit ripening [J]. Genome Biol, 2018, 19(1): 212.
[20]	Cao XF, Jacobsen SE. Role of the Arabidopsis DRM methyltransferases in de novo DNA methylation and gene silencing [J]. Curr Biol, 2002, 12(13): 1138-1144.
[21]	Khouider S, Borges F, LeBlanc C, et al. Male fertility in Arabidopsis requires active DNA demethylation of genes that control pollen tube function [J]. Nat Commun, 2021, 12: 410.
[22]	Wang Q, Qu YQ, Yu YH, et al. Genome-wide identification and comparative analysis of DNA methyltransferase and demethylase gene families in two ploidy Cyclocarya paliurus and their potential function in heterodichogamy [J]. BMC Genom, 2023, 24(1): 287.
[23]	Zhang YX, He XQ, Zhao HC, et al. Genome-wide identification of DNA methylases and demethylases in kiwifruit (Actinidia chinensis) [J]. Front Plant Sci, 2020, 11: 514993.
[24]	Bennett M, Cleaves K, Hewezi T. Expression patterns of DNA methylation and demethylation genes during plant development and in response to phytohormones [J]. Int J Mol Sci, 2021, 22(18): 9681.
[25]	袁超, 张少伟, 牛义, 等. 植物DNA甲基化作用机制的研究进展 [J]. 生物工程学报, 2020, 36(5): 838-848.
	Yuan C, Zhang SW, Niu Y, et al. Advances in research on the mechanism of DNA methylation in plants [J]. Chin J Biotechnol, 2020, 36(5): 838-848.
[26]	Rao XL, Yang SL, Lü SY, et al. DNA methylation dynamics in response to drought stress in crops [J]. Plants, 2024, 13(14): 1977.
[27]	Huang ML, Zhang Y, Wang Y, et al. Active DNA demethylation regulates MAMP-triggered immune priming in Arabidopsis [J]. J Genet Genom, 2022, 49(8): 796-809.
[28]	Zhang YD, Zhong J, Munawar A, et al. Knocking down a DNA demethylase gene affects potato plant defense against a specialist insect herbivore [J]. J Exp Bot, 2024, 75(1): 483-499.
[29]	Wang LF, Cao S, Wang PT, et al. DNA hypomethylation in tetraploid rice potentiates stress-responsive gene expression for salt tolerance [J]. Proc Natl Acad Sci U S A, 2021, 118(13): e2023981118.
[30]	Gouil Q, Baulcombe DC. Paramutation-like features of multiple natural epialleles in tomato [J]. BMC Genom, 2018, 19(1): 203.
[31]	Zhang H, Zhu JK. Epigenetic gene regulation in plants and its potential applications in crop improvement [J]. Nat Rev Mol Cell Biol, 2025, 26(1): 51-67.
[32]	Song XW, Tang SJ, Liu H, et al. Inheritance of acquired adaptive cold tolerance in rice through DNA methylation [J]. Cell, 2025, 188(16): 4213-4224.e12.
[33]	Chen YP, Li D, Lang ZB, et al. An emerging role beyond genetics: DNA methylation in horticultural quality shaping [J]. Innov Life, 2024, 2(1): 100050.
