Expression of Glycolate Oxidase in Rice Chloroplasts and Its Effects on Photosynthesis and Growth

doi:10.13560/j.cnki.biotech.bull.1985.2025-0550

Abstract

Abstract:

Objective Validate the hypothesis that plant chloroplasts possess the ability to metabolize glyoxylate into CO₂. Method In this study, the rice glycolate oxidase 1 (OsGLO1), glycolate oxidase 3 (OsGLO3) and catalase C (OsCATC) genes and the catalase (EcKAT) gene from Escherichia coli were cloned, and the chloroplast localization signal coding sequence RC2 was fused to their front ends; subsequently, GLO and CAT/KAT were combined in different combinations to construct different multi-gene expression vectors, which were directed its expression in rice chloroplasts, thereby catalyzing the production of glyoxylic acid from glycolic acid in chloroplasts. Result Results from transcript-level, protein-level, and enzyme activity analyses confirmed the high-efficiency expressions of target genes in rice and having normal catalytic function. However, all transgenic rice plants had phenotypes such as dwarfism, reduced tiller number, and decreased photosynthesis. Conclusion These findings indicate that only converting glycolate into glyoxylate in chloroplasts fails to enhance photosynthetic carbon fixation efficiency in rice, suggesting that rice chloroplasts may lack the capacity to catalyze glyoxylate into CO₂.

Key words: glycolate oxidase, catalase, glyoxylate, chloroplasts, photosynthesis, CO₂, rice, photorespiration

LI Bo-di, LI Zhi-chao, ZHU Guo-hui, PENG Xin-xiang, ZHANG Zhi-sheng. Expression of Glycolate Oxidase in Rice Chloroplasts and Its Effects on Photosynthesis and Growth[J]. Biotechnology Bulletin, 2025, 41(10): 87-97.

Figures/Tables 8

Table 1 Variation of column temperature during the determination of photorespiration-related metabolites by GCMS method

项目 Item

eating rate （℃/min）

升温速率 H

inal temperature （℃）

最终温度 F

保持时间 Holding time （min）

变化范围

Range of variation

Table 2 Retention times of photorespiration-related metabolites and their characteristic fragment ions

组分 Component	特征碎片离子大小 Characteristic fragment ion size	etention time （s）保留时间 R
乙醇酸 Glycollic acid	177	7.455
丙氨酸 Alanine	116	8.045
草酸 Oxalic acid	219	8.740
甘氨酸 Glycine	174	12.000
琥珀酸 Succinic acid	147	12.140
甘油酸 Glyceric acid	189	12.380
丝氨酸 Serine	204	12.870
苹果酸 Malic acid	117	14.743
α-酮戊二酸 α-ketoglutarate	198	15.910
核糖醇 Ribitol	73	17.760
柠檬酸 Citric acid	273	18.845

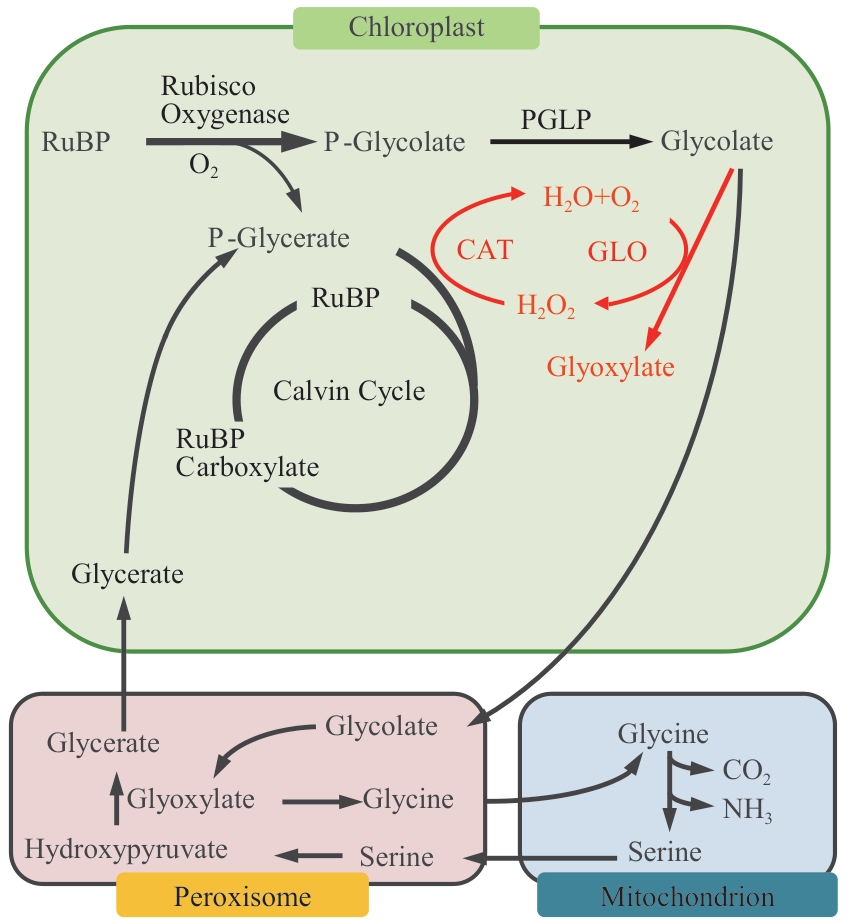

Fig. 1 Schematic diagram of GLO3-CAT pathway by the chloroplast photorespiratory metabolism in riceGLO: Glycolate oxidase 3. CAT: Catalase

Fig. 2 Acquirement and identification of transgenic rice plantsA: Transfomation procedure of rice (a1: screening of callus; a2: pre-differentiation; a3: differentiation; a4: rooting and strenghening). B: Western blot analysis of transgenic plants, GLO and CAT were detected by His monoclonal antibody in Western blot analysis. C-E: mRNA levels of transgenic plants (C: mRNA levels of OsGLO1; D: mRNA levels of OsGLO3; E: mRNA levels of CAT). F: GLO activity. G: CAT activity of G1K-OE and G3C-OE transgenic plants. H: DAB-staining of transgenic rice leaves. I: Relative expression of RbOH-b. G1-OE: Overexpressed line of chloroplast GLO1. G1K-OE: Over expressed line of chloroplast GLO1-KAT. G3-OE: Overexpressed line of chloroplast GLO3. G3C-OE: Overexpressed line of chloroplast GLO3-CAT. n=, *P＜0.05, **P＜0.01, ***P＜0.001, t-test. The same below

Fig. 3 Phenotypic observation of transgenic rice plantsA: Phenotypic observation of transgenic plants at seedling stage. B: Plant height. C: Maximum length of root. D: Transgenic rice plants of G1-OE and G1K-OE. E: Length of flag leaf. F: Width of flag leaf. G: Transgenic rice plants of G3-OE and G3C-OE. H: Plant height. I: Number of tillers. n=10

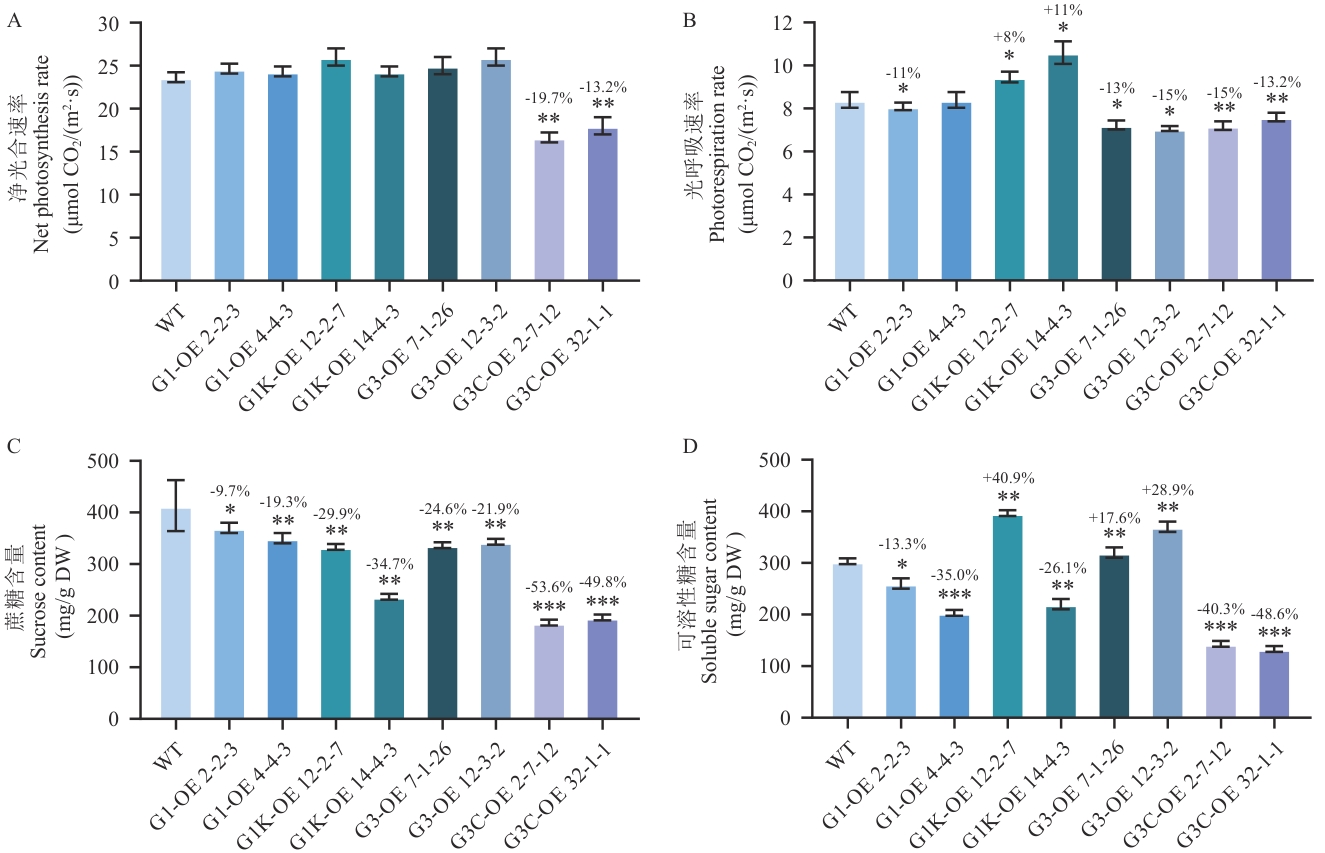

Fig. 4 Analysis of the photosynthetic-related parameters and carbohydrate content in the leaves of transigenic plants at tillering stage

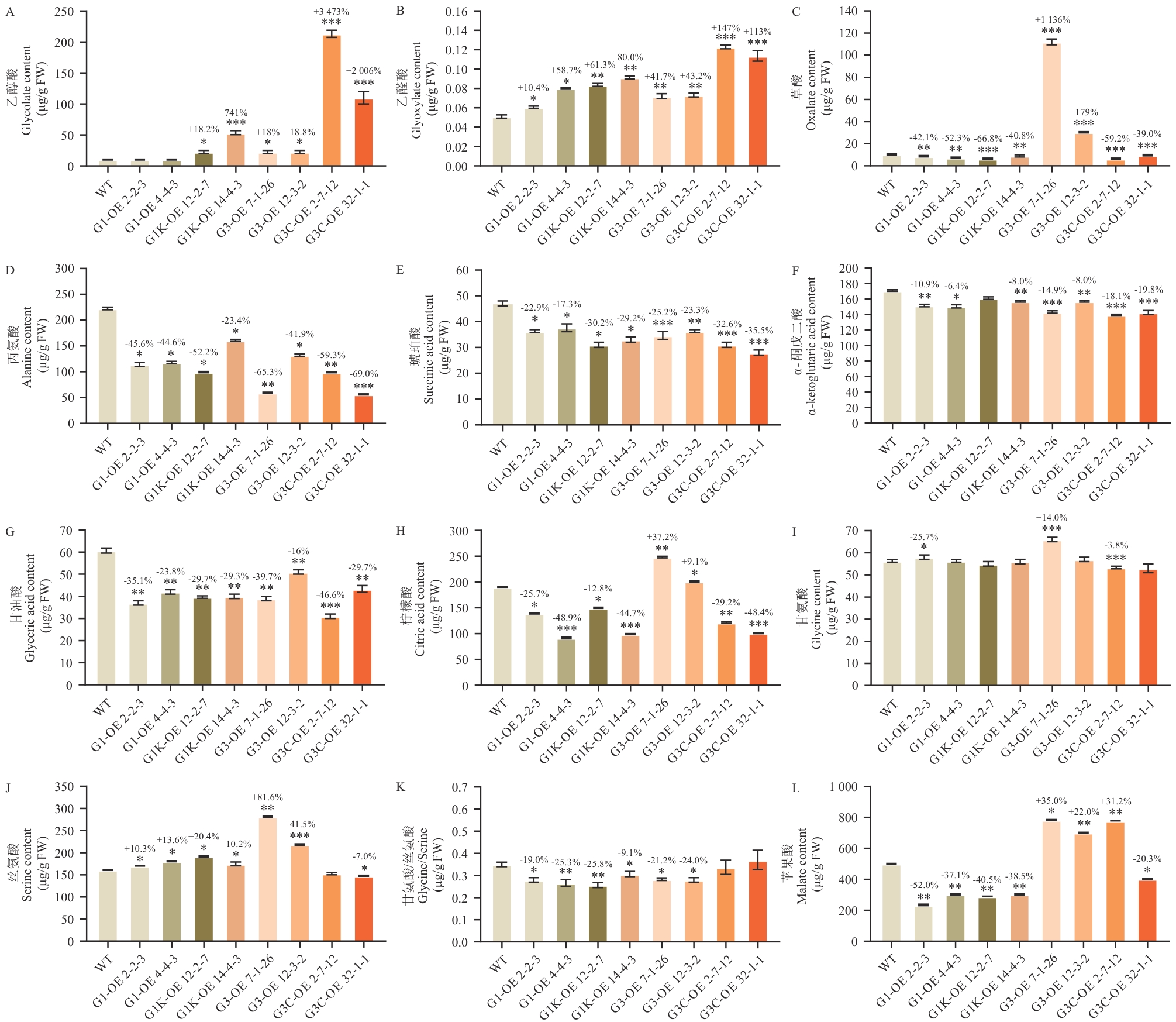

Fig. 5 Content determination of photorespiration metabolites of GCGT tansgenic plants leaves at seedling stageTake the second leaf after hydroponic with Kimura B nutrient solution under natural light until the fourth leaf fully spreads, and the sampling time is 13:00‒15:00, n=3

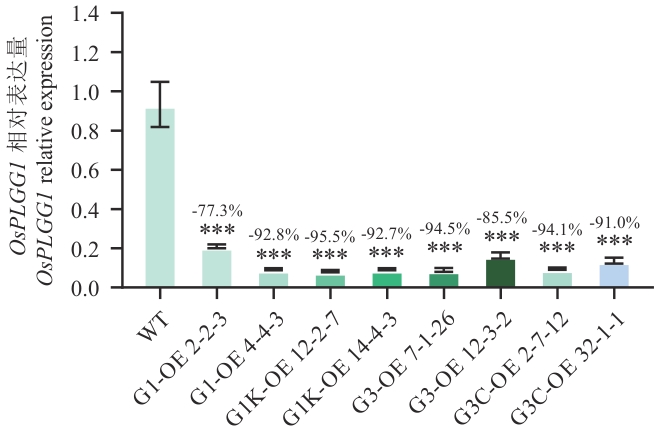

Fig. 6 Analysis of mRNA levels of PLGG1 in transgenic rice plants (n=3)

References 28

[1]	Falcon WP, Naylor RL, Shankar ND. Rethinking global food demand for 2050 [J]. Popul Dev Rev, 2022, 48(4): 921-957.
[2]	Tian ZX, Wang JW, Li JY, et al. Designing future crops: challenges and strategies for sustainable agriculture [J]. Plant J, 2021, 105(5): 1165-1178.
[3]	Croce R, Carmo-Silva E, Cho YB, et al. Perspectives on improving photosynthesis to increase crop yield [J]. Plant Cell, 2024, 36(10): 3944-3973.
[4]	Zhu XG, Long SP, Ort DR. Improving photosynthetic efficiency for greater yield [J]. Annu Rev Plant Biol, 2010, 61: 235-261.
[5]	Jin KN, Chen GX, Yang YR, et al. Strategies for manipulating rubisco and creating photorespiratory bypass to boost C₃ photosynthesis: prospects on modern crop improvement [J]. Plant Cell Environ, 2023, 46(2): 363-378.
[6]	张智胜, 朱国辉, 彭新湘. 优化碳同化实现作物高光效研究进展 [J]. 华南农业大学学报, 2022, 43(6): 69-77.
	Zhang ZS, Zhu GH, Peng XX. Advances in improvement of crop photosynthetic efficiency by optimizing the photosynthetic carbon assimilation [J]. J South China Agric Univ, 2022, 43(6): 69-77.
[7]	Zhang ZS, Zhu GH, Peng XX. Photorespiration in plant adaptation to environmental changes [J]. Crop Environ, 2024, 3(4): 203-212.
[8]	朱国辉, 张智胜, 彭新湘. 光呼吸演化、调控与遗传改良 [J]. 生命科学, 2024, 36(10): 1226-1239.
	Zhu GH, Zhang ZS, Peng XX. Photorespiration evolution, regulation, and genetic improvement [J]. Chin Bull Life Sci, 2024, 36(10): 1226-1239.
[9]	Ehlers I, Augusti A, Betson TR, et al. Detecting long-term metabolic shifts using isotopomers: CO₂-driven suppression of photorespiration in C₃ plants over the 20th century [J]. Proc Natl Acad Sci USA, 2015, 112(51): 15585-15590.
[10]	Chen GX, Li YN, Jin KN, et al. Synthetic photorespiratory bypass improves rice productivity by enhancing photosynthesis and nitrogen uptake [J]. Plant Cell, 2024, 37(1): koaf015.
[11]	Wang LM, Shen BR, Li BD, et al. A synthetic photorespiratory shortcut enhances photosynthesis to boost biomass and grain yield in rice [J]. Mol Plant, 2020, 13(12): 1802-1815.
[12]	Shen BR, Wang LM, Lin XL, et al. Engineering a new chloroplastic photorespiratory bypass to increase photosynthetic efficiency and productivity in rice [J]. Mol Plant, 2019, 12(2): 199-214.
[13]	South PF, Cavanagh AP, Liu HW, et al. Synthetic glycolate metabolism pathways stimulate crop growth and productivity in the field [J]. Science, 2019, 363(6422): eaat9077.
[14]	Kebeish R, Niessen M, Thiruveedhi K, et al. Chloroplastic photorespiratory bypass increases photosynthesis and biomass production in Arabidopsis thaliana [J]. Nat Biotechnol, 2007, 25(5): 593-599.
[15]	Nölke G, Houdelet M, Kreuzaler F, et al. The expression of a recombinant glycolate dehydrogenase polyprotein in potato (Solanum tuberosum) plastids strongly enhances photosynthesis and tuber yield [J]. Plant Biotechnol J, 2014, 12(6): 734-742.
[16]	Dalal J, Lopez H, Vasani NB, et al. A photorespiratory bypass increases plant growth and seed yield in biofuel crop Camelina sativa [J]. Biotechnol Biofuels, 2015, 8: 175.
[17]	Li BD, Huang AY, Wang LM, et al. Increased sugar content impairs pollen fertility and reduces seed-setting in high-photosynthetic-efficiency rice [J]. Crop J, 2024, 12(6): 1547-1558.
[18]	Shen BR, Zhu CH, Yao Z, et al. An optimized transit peptide for effective targeting of diverse foreign proteins into chloroplasts in rice [J]. Sci Rep, 2017, 7: 46231.
[19]	Xu Z, Guo WD, Mo BQ, et al. Mitogen-activated protein kinase 2 specifically regulates photorespiration in rice [J]. Plant Physiol, 2023, 193(2): 1381-1394.
[20]	Mo BQ, Chen XF, Yang JJ, et al. Engineering of photorespiration-dependent glycine betaine biosynthesis improves photosynthetic carbon fixation and panicle architecture in rice [J]. J Integr Plant Biol, 2025, 67(4): 979-992.
[21]	Oliver DJ, Zelitch I. Increasing photosynthesis by inhibiting photorespiration with glyoxylate [J]. Science, 1977, 196(4297): 1450-1451.
[22]	Li XY, Chen LR, Zeng XY, et al. Wounding induces a peroxisomal H₂O₂ decrease via glycolate oxidase-catalase switch dependent on glutamate receptor-like channel-supported Ca²⁺ signaling in plants [J]. Plant J, 2023, 116(5): 1325-1341.
[23]	Li XY, Liao MM, Huang JY, et al. Dynamic and fluctuating generation of hydrogen peroxide via photorespiratory metabolic channeling in plants [J]. Plant J, 2022, 112(6): 1429-1446.
[24]	Zhang ZS, Liang X, Lu L, et al. Two glyoxylate reductase isoforms are functionally redundant but required under high photorespiration conditions in rice [J]. BMC Plant Biol, 2020, 20(1): 357.
[25]	Lu YS, Li Y, Yang QS, et al. Suppression of glycolate oxidase causes glyoxylate accumulation that inhibits photosynthesis through deactivating rubisco in rice [J]. Physiol Plant, 2014, 150(3): 463-476.
[26]	Xu HW, Zhang JJ, Zeng JW, et al. Inducible antisense suppression of glycolate oxidase reveals its strong regulation over photosynthesis in rice [J]. J Exp Bot, 2009, 60(6): 1799-1809.
[27]	Mittler R, Zandalinas SI, Fichman Y, et al. Reactive oxygen species signalling in plant stress responses [J]. Nat Rev Mol Cell Biol, 2022, 23(10): 663-679.
[28]	Aroca A, García-Díaz I, García-Calderón M, et al. Photorespiration: regulation and new insights on the potential role of persulfidation [J]. J Exp Bot, 2023, 74(19): 6023-6039.
