Identification of Heat-responsive Co-expression Modules and Mining of Hub Genes in Maize Tassel Based on WGCNA

doi:10.13560/j.cnki.biotech.bull.1985.2025-1424

Abstract

Abstract:

Objective To identify hub genes closely associated with heat stress regulatory pathways and stress-resistance traits, and to provide new insights into the molecular mechanisms underlying heat tolerance in maize (Zea mays). Method A heat-tolerant inbred line, PHBA6, and a heat-sensitive inbred line, Ji63, were used as experimental materials. Plants were grown under both field and greenhouse conditions, and heat stress was imposed at the early flowering stage. Based on transcriptome sequencing, the molecular response characteristics of tassels from the two genotypes under heat stress were systematically compared. Result A total of 1 288 differentially expressed genes (DEGs) were identified in PHBA6, whereas 912 DEGs were detected in Ji63 under heat stress. Weighted gene co-expression network analysis (WGCNA) was further performed to construct gene co-expression networks associated with stress-resistance phenotypic traits, resulting in the identification of 15 gene modules significantly correlated with tassel heat tolerance. Among them, four modules showing the strongest correlations with target traits were selected, and a set of potential key genes was screened. These genes were mainly involved in biological processes such as transcriptional regulation, protein homeostasis maintenance, reactive oxygen species metabolism, and stress signal transduction. Conclusion This study systematically reveals the key regulatory network characteristics of maize tassels under heat stress and identifies a group of hub genes closely associated with heat tolerance and their potential regulatory pathways.

Key words: maize, heat stress, weighted gene co-expression network, transcriptome

QIN Tian-yuan, LYU Yu-ping, ABULAITI Abula, HAN Deng-Xu, DONG Yuan, ZHANG Xue, YANG Jie. Identification of Heat-responsive Co-expression Modules and Mining of Hub Genes in Maize Tassel Based on WGCNA[J]. Biotechnology Bulletin, doi: 10.13560/j.cnki.biotech.bull.1985.2025-1424.

Figures/Tables 11

Table 1 Experimental materials

自交系

Inbred line

母本

Maternal parent

父本

Paternal parent

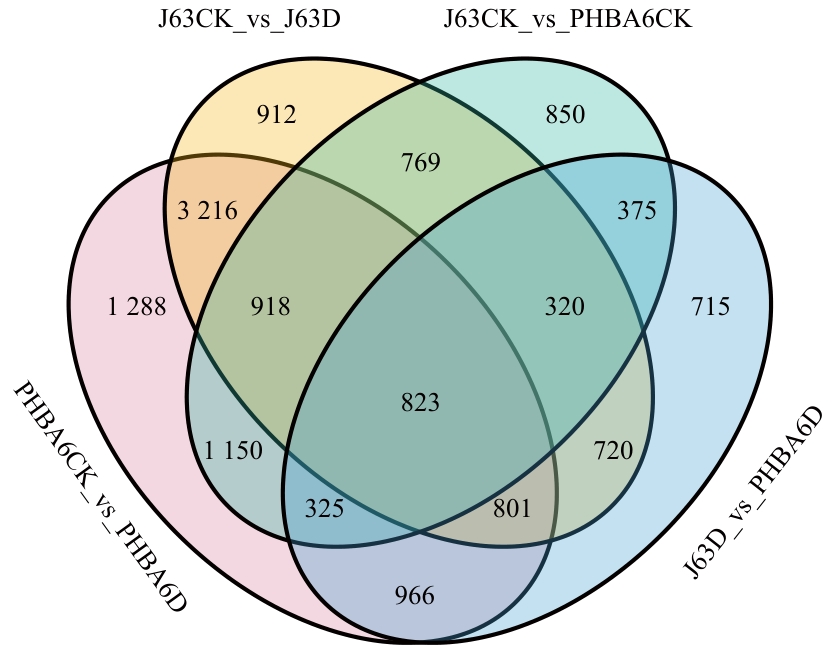

Fig. 1 Differentially expressed genes in tassels of PHBA6 and J63 under different treatmentCK: Control. D: Stress

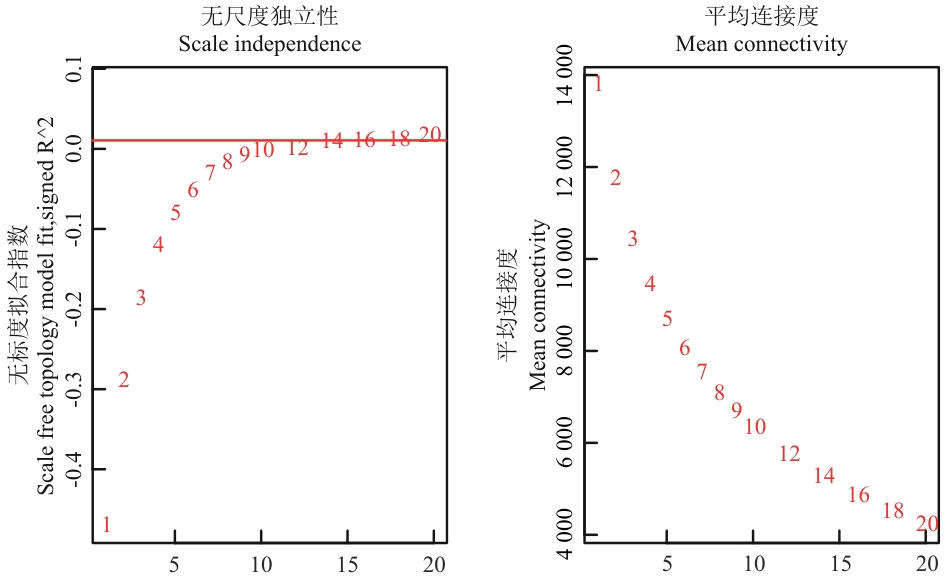

Fig. 2 Determination of soft thresholds for gene co-expression networks

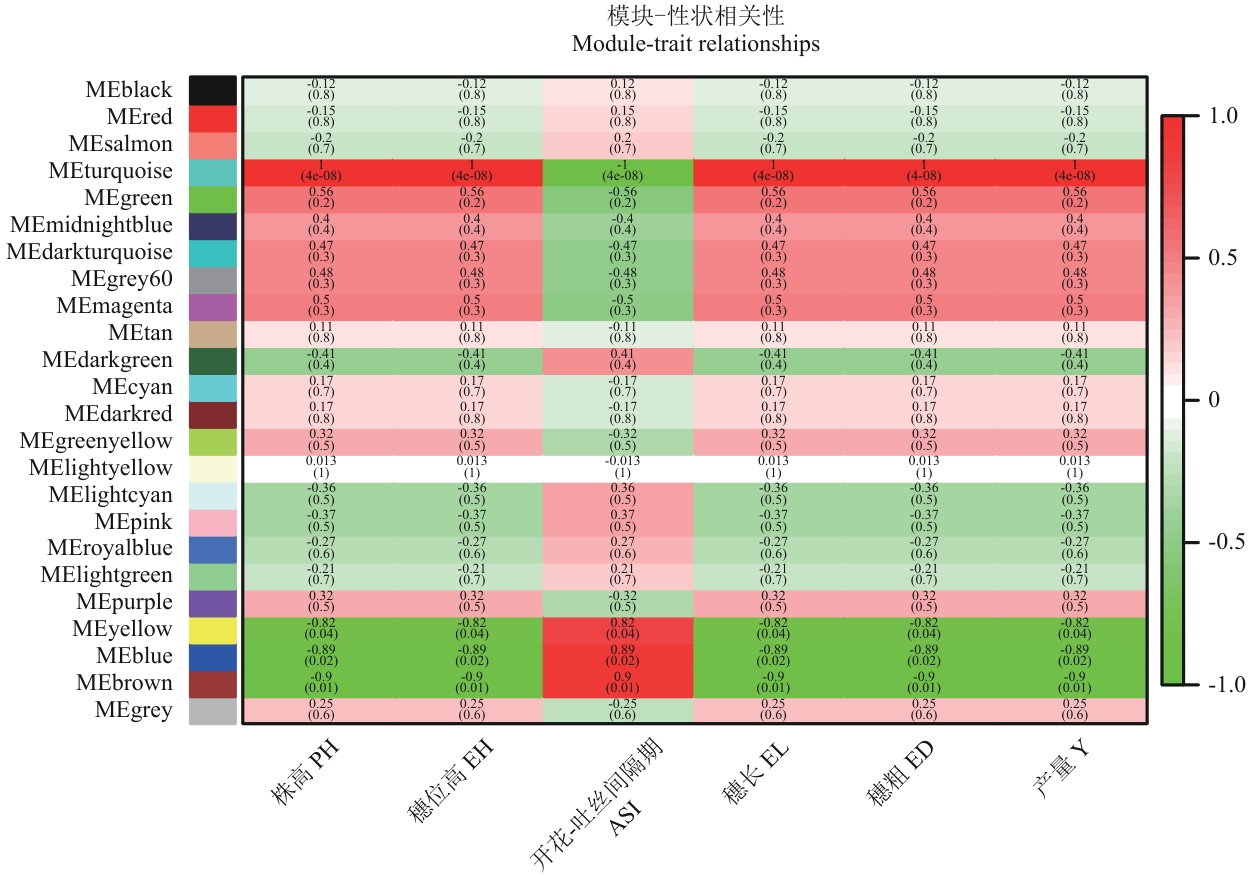

Fig. 3 Correlation heatmap of gene co-expression network modules and traitsThe horizontal axis indicates different traits, and the vertical axis indicates the eigenvector of each module. Red grids indicate a positive correlation between traits and modules, while green grids indicate a negative correlation between traits and modules. PH: Plant height. EH: Ear height. ASI: Anthesis-silking interval. EL: Ear length ED: Ear diameter. Y: Yield

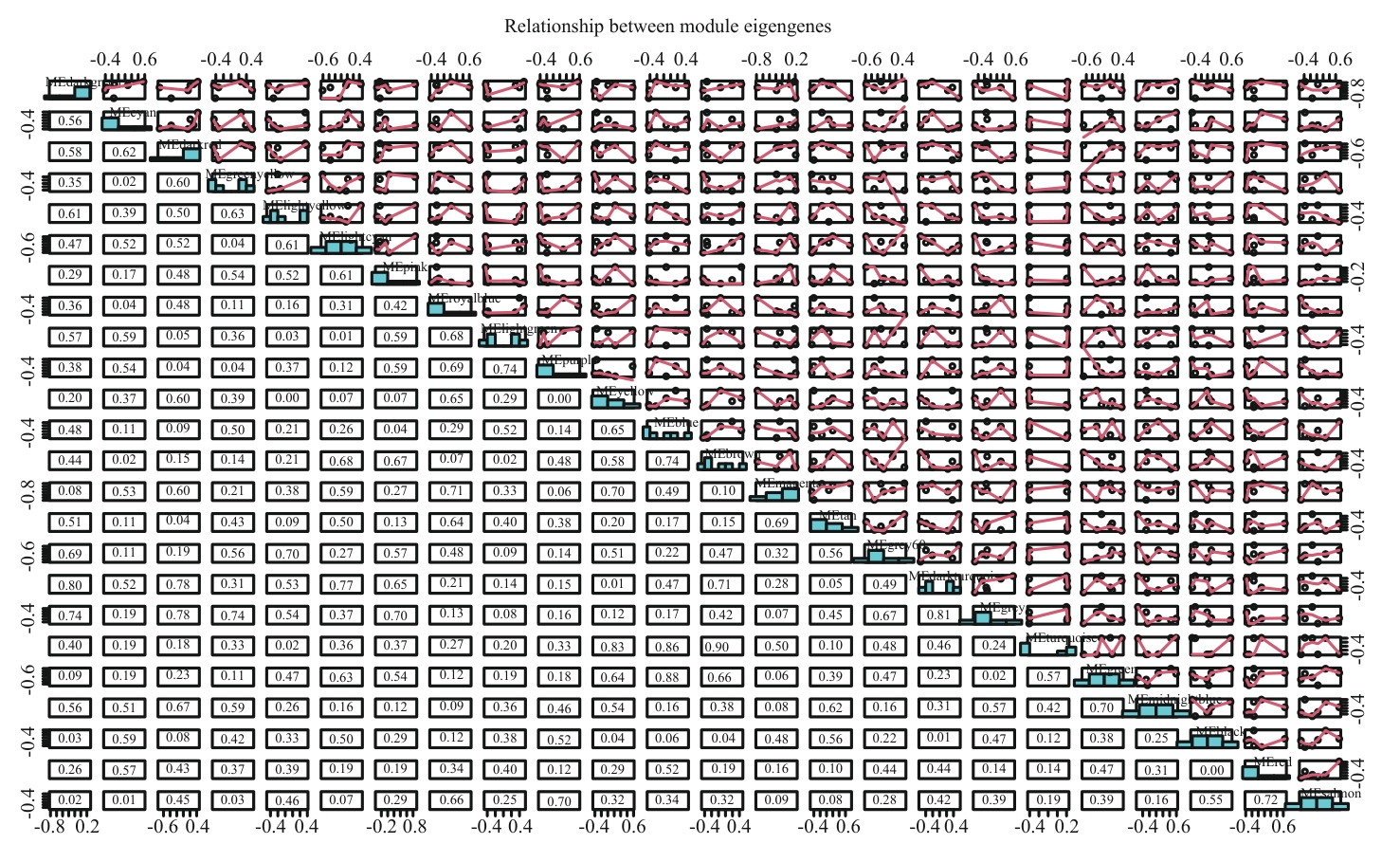

Fig. 4 Correlation of module eigengenes (ME) among different modules in the gene co-expression network

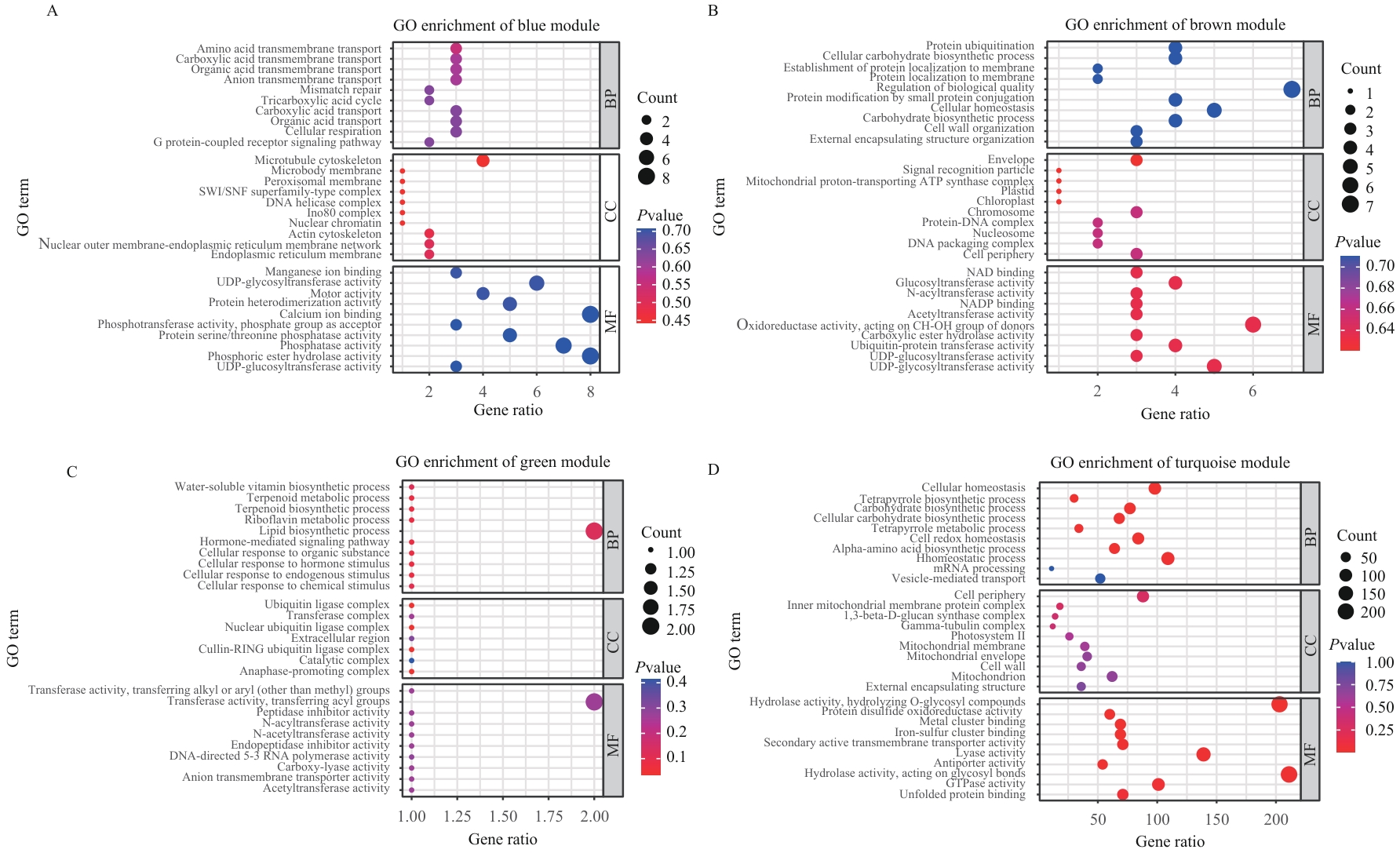

Fig. 5 GO enrichment of genes in candidate modulesA, B, C, and D refers to the GO enrichment analysis results of genes in the blue, brown, green, and turquoise modules, respectively. The color intensity indicates the significance level: the darker the red, the smaller the P-value (higher significance), while blue indicates a larger P-value (lower significance), the same below. The sizes of the dots indicate the number of enriched genes; the larger the dot, the greater the number of enriched genes

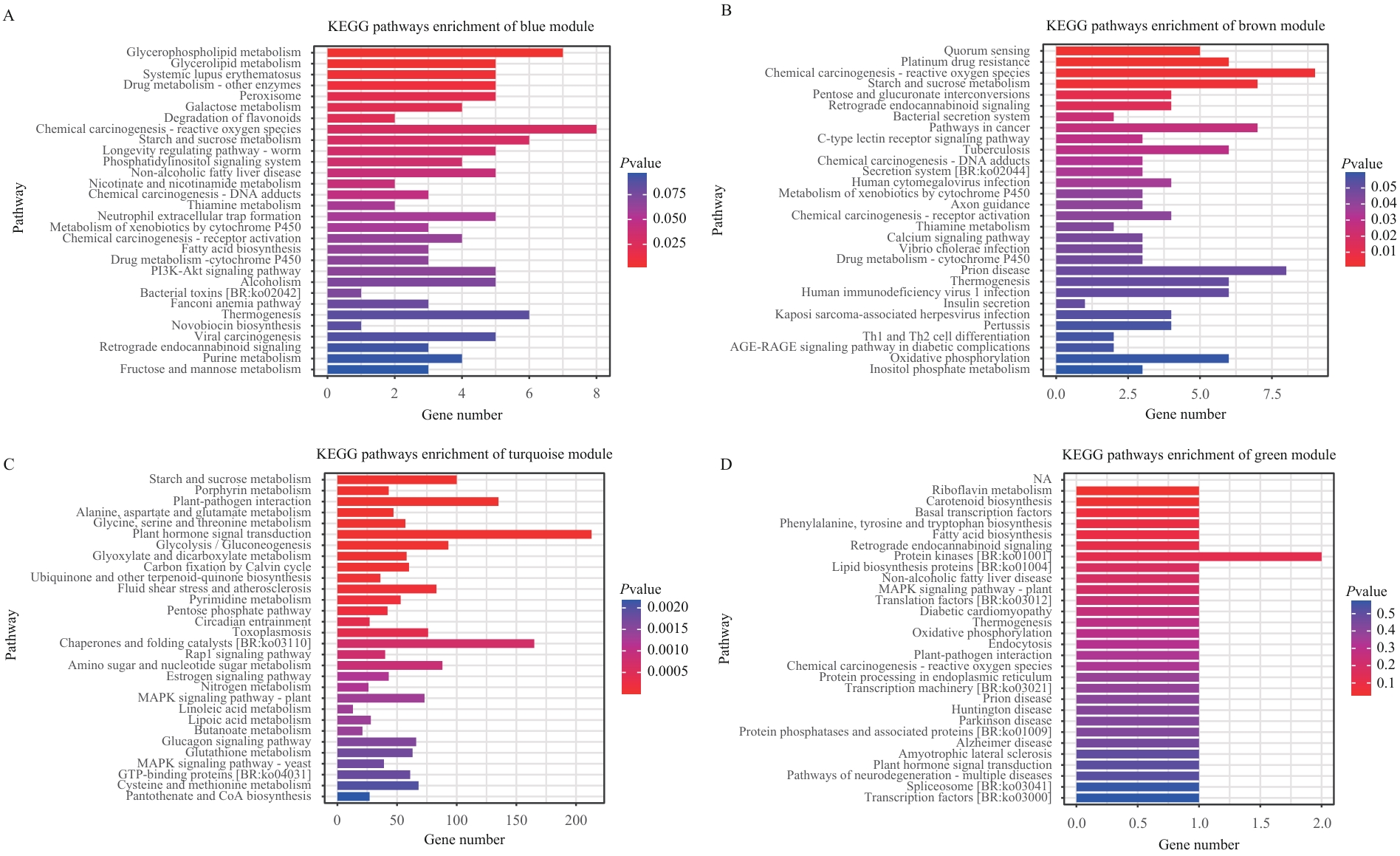

Fig. 6 KEGG enrichment of genes in candidate modulesA, B, C, and D refers to the KEGG enrichment analysis results of genes in the blue, brown, turquoise, and green modules, respectively

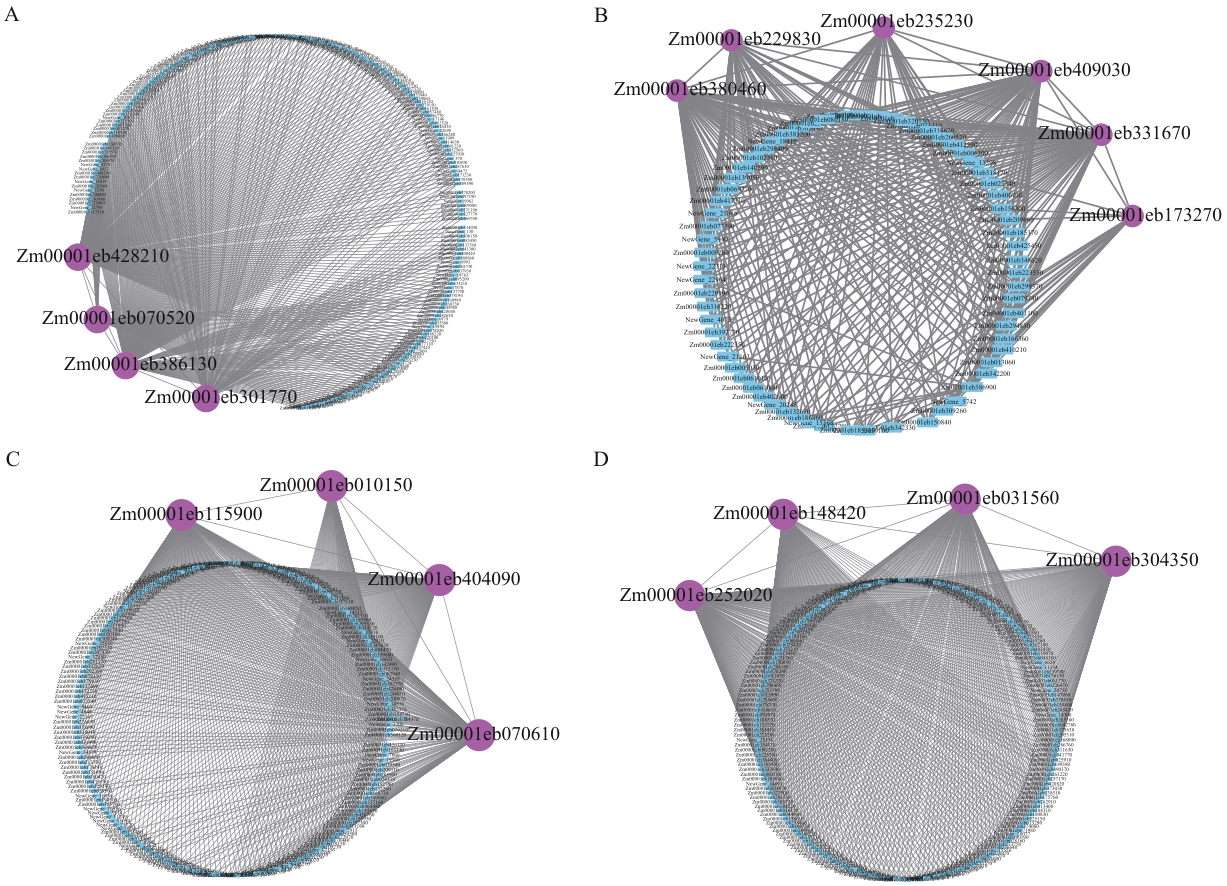

Fig. 7 Mining of gene co-expression networks and hub genes in candidate modulesA, B, C, and D indicate the brown, green, turquoise, and blue modules respectively; the "pink circles" indicate the core genes

Table 2 Functional annotation of hub genes in different modules

模块 Module	核心基因 Hub gene	拟南芥同源基因 Homologous gene in A. thaliana	基因功能 Gene function
blue	Zm00001eb428210	AT5G47060	假设蛋白（DUF581） Hypothetical protein （DUF581）
blue	Zm00001eb070520	AT4G28815	碱性螺旋‒环‒螺旋（bHLH）DNA结合超家族蛋白 Basic helix-loop-helix （bHLH） DNA-binding superfamily protein
blue	Zm00001eb386130	AT5G64790	O-糖基水解酶家族17蛋白 O-Glycosyl hydrolases family 17 protein
blue	Zm00001eb301770	X	未知功能 Unknown
brown	Zm00001eb115900	X	未知功能 Unknown
brown	Zm00001eb010150	AT1G14710	富含羟脯氨酸的糖蛋白家族蛋白 Hydroxyproline-rich glycoprotein family protein
brown	Zm00001eb404090	X	转导蛋白家族蛋白/WD-40重复序列家族蛋白 Transducin family protein/WD-40 repeat family protein
brown	Zm00001eb070610	X	未知功能 Unknown
green	Zm00001eb380460	AT3G02380	CONSTANS类似蛋白2 CONSTANS-like 2
green	Zm00001eb229830	AT3G61350	SKP1相互作用伙伴4 SKP1 interacting partner 4
green	Zm00001eb235230	AT4G03030	半乳糖氧化酶/kelch重复超家族蛋白 Galactose oxidase/kelch repeat superfamily protein
green	Zm00001eb409030	X	未知功能 Unknown
green	Zm00001eb331670	X	未知功能 Unknown
green	Zm00001eb173270	AT1G32730	（1 of 1） PTHR35696：SF1-F6N18.11
turquoise	Zm00001eb252020	AT1G75330	鸟氨酸氨甲酰转移酶 Ornithine carbamoyltransferase
turquoise	Zm00001eb148420	AT1G56410	热休克70 kDa蛋白 Heat shock 70 kDa protein-like
turquoise	Zm00001eb031560	AT2G43010	编码一个与活性PhyB蛋白相互作用的核定位bHLH蛋白 Encodes a nuclear localized bHLH protein that interacts with active PhyB protein
turquoise	Zm00001eb304350	X	未知功能 Unknown

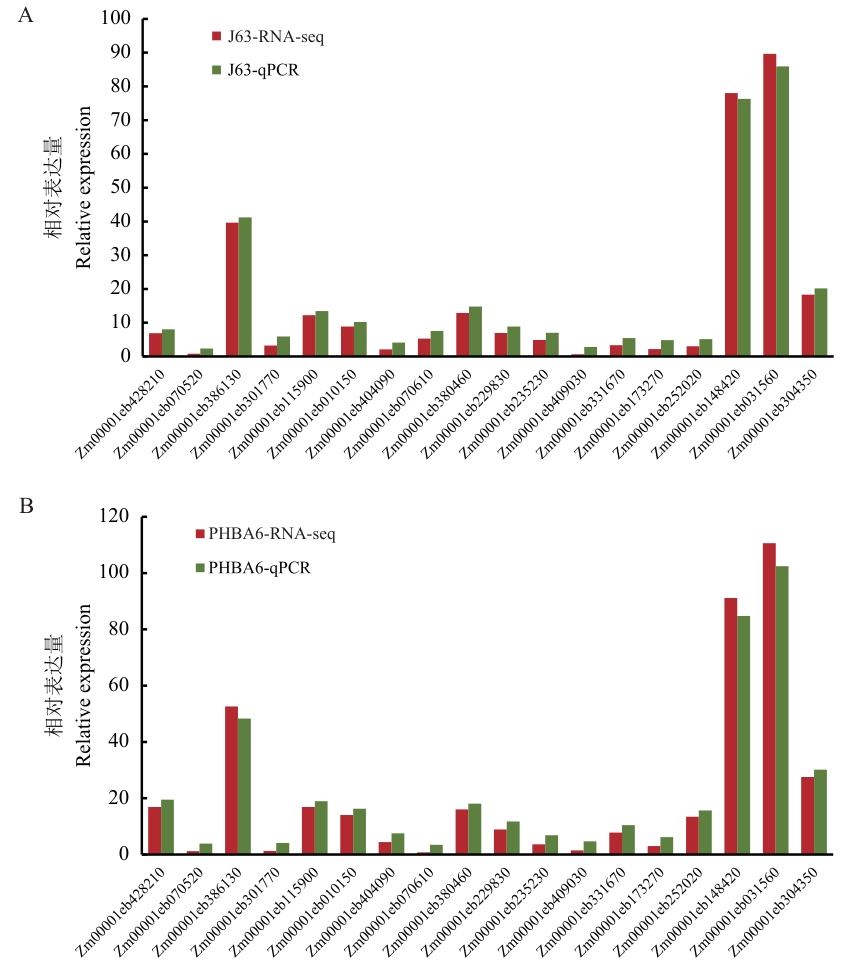

Fig. 8 Cross-validation of hub genes by RT-qPCR and RNA-seqA: Ji63; B: PHBA6

Fig. 9 Subcellular localization of the ZmPIF4 protein in Z. mays

References 32

[1]	Qu JZ, Xu ST, Gou XN, et al. Time-resolved multiomics analysis of the genetic regulation of maize kernel moisture [J]. Crop J, 2023, 11(1): 247-257.
[2]	Yan YY, Duan FY, Li X, et al. Photosynthetic capacity and assimilate transport of the lower canopy influence maize yield under high planting density [J]. Plant Physiol, 2024, 195(4): 2652-2667.
[3]	Ning Q, Jian YN, Du YF, et al. An ethylene biosynthesis enzyme controls quantitative variation in maize ear length and kernel yield [J]. Nat Commun, 2021, 12: 5832.
[4]	常晓春, 李建平, 郝晓燕, 等. 新疆玉米苗期耐旱性状全基因组关联分析 [J]. 现代农业科技, 2022(21): 24-27.
	Chang XC, Li JP, Hao XY, et al. Genome-wide association analysis of drought tolerance traits at maize seedling stage in Xinjiang [J]. Mod Agric Sci Technol, 2022(21): 24-27.
[5]	窦婉毓, 颜双双, 孙仁华, 等. 基于21世纪以来我国作物产量、人口与政策分析未来秸秆还田的必然性 [J]. 中国农业大学学报, 2025, 30(12): 291-305.
	Dou WY, Yan SS, Sun RH, et al. Inevitability of straw-returning to the field in the future: an analysis based on crop yield, population, and policy in China since the 21st century [J]. J China Agric Univ, 2025, 30(12): 291-305.
[6]	Dong ZB, Xu ZN, Xu L, et al. Necrotic upper tips1 mimics heat and drought stress and encodes a protoxylem-specific transcription factor in maize [J]. Proc Natl Acad Sci U S A, 2020, 117(34): 20908-20919.
[7]	Wang YY, Sheng DC, Zhang P, et al. High temperature sensitivity of kernel formation in different short periods around silking in maize [J]. Environ Exp Bot, 2021, 183: 104343.
[8]	Zhou P, Enders TA, Myers ZA, et al. Prediction of conserved and variable heat and cold stress response in maize using cis-regulatory information [J]. Plant Cell, 2022, 34(1): 514-534.
[9]	Li ZX, Howell SH. Heat stress responses and thermotolerance in maize [J]. Int J Mol Sci, 2021, 22(2): 948.
[10]	Liang ZK, Myers ZA, Petrella D, et al. Mapping responsive genomic elements to heat stress in a maize diversity panel [J]. Genome Biol, 2022, 23: 234.
[11]	Zhao XC, Wei JP, He L, et al. Identification of fatty acid desaturases in maize and their differential responses to low and high temperature [J]. Genes, 2019, 10(6): 445.
[12]	Wang J, Chen L, Long Y, et al. A novel heat shock transcription factor (ZmHsf08) negatively regulates salt and drought stress responses in maize [J]. Int J Mol Sci, 2021, 22(21): 11922.
[13]	Li Z, Li ZR, Ji YL, et al. The heat shock factor 20-HSF4-cellulose synthase A2 module regulates heat stress tolerance in maize [J]. Plant Cell, 2024, 36(7): 2652-2667.
[14]	Li ZX, Tang J, Srivastava R, et al. The transcription factor bZIP60 links the unfolded protein response to the heat stress response in maize [J]. Plant Cell, 2020, 32(11): 3559-3575.
[15]	武炳瑾. 热胁迫下调控小麦籽粒蛋白表达的因素 [D]. 杨凌: 西北农林科技大学, 2021.
	Wu BJ. Factors regulating protein expression in wheat grains under heat stress [D]. Yangling: Northwest A & F University, 2021.
[16]	Gu L, Jiang T, Zhang CX, et al. Maize HSFA2 and HSBP2 antagonistically modulate raffinose biosynthesis and heat tolerance in Arabidopsis [J]. Plant J, 2019, 100(1): 128-142.
[17]	Du Z, Zhou X, Ling Y, et al. agriGO: a GO analysis toolkit for the agricultural community [J]. Nucleic Acids Res, 2010, 38(): W64-W70.
[18]	Tian T, Liu Y, Yan HY, et al. agriGO v2.0: a GO analysis toolkit for the agricultural community, 2017 update [J]. Nucleic Acids Res, 2017, 45(W1): W122-W129.
[19]	Shannon P, Markiel A, Ozier O, et al. Cytoscape: a software environment for integrated models of biomolecular interaction networks [J]. Genome Res, 2003, 13(11): 2498-2504.
[20]	Erenstein O, Jaleta M, Sonder K, et al. Global maize production, consumption and trade: trends and R&D implications [J]. Food Sec, 2022, 14(5): 1295-1319.
[21]	Waqas MA, Wang XK, Zafar SA, et al. Thermal stresses in maize: effects and management strategies [J]. Plants, 2021, 10(2): 293.
[22]	闫恒宇, 李朝霞, 李玉斌. 高温对玉米生长的影响及中国耐高温玉米筛选研究进展 [J]. 植物学报, 2024, 59(6): 1007-1023.
	Yan HY, Li ZX, Li YB. Research progress on heat stress impact on maize growth and heat-tolerant maize screening in China [J]. Bull Bot, 2024, 59(6): 1007-1023.
[23]	霍治国, 张海燕, 李春晖, 等. 中国玉米高温热害研究进展 [J]. 应用气象学报, 2023, 34(1): 1-14.
	Huo ZG, Zhang HY, Li CH, et al. Review on high temperature heat damage of maize in China [J]. J Appl Meteor Sci, 2023, 34(1): 1-14.
[24]	闫振华, 刘东尧, 贾绪存, 等. 花期高温干旱对玉米雄穗发育、生理特性和产量影响 [J]. 中国农业科学, 2021, 54(17): 3592-3608.
	Yan ZH, Liu DY, Jia XC, et al. Maize tassel development, physiological traits and yield under heat and drought stress during flowering stage [J]. Sci Agric Sin, 2021, 54(17): 3592-3608.
[25]	Zhao W, Langfelder P, Fuller T, et al. Weighted gene coexpression network analysis: state of the art [J]. J Biopharm Stat, 2010, 20(2): 281-300.
[26]	秦天元, 孙超, 毕真真, 等. 基于WGCNA的马铃薯根系抗旱相关共表达模块鉴定和核心基因发掘 [J]. 作物学报, 2020, 46(7): 1033--1051.
	Qin TY, Sun C, Bi ZZ, et al. Identification of drought-related co-expression modules and hub genes in potato roots based on WGCNA [J]. Acta Agron Sin, 2020, 46(7): 1033-1051.
[27]	郑晨璐, 王倩颖, 陆丹迎, 等. 高温胁迫下景宁木兰淀粉与蔗糖代谢途径转录分析 [J]. 浙江农林大学学报, 2023, 40(1): 55-63.
	Zheng CL, Wang QY, Lu DY, et al. Transcriptional analysis of starch and sucrose metabolism pathways in Magnolia sinostellata under heat stress [J]. J Zhejiang A&F Univ, 2023, 40(1): 55-63.
[28]	Magwanga RO, Lu P, Kirungu JN, et al. Knockdown of cytochrome P450 genes Gh_D07G1197 and Gh_A13G2057 on chromosomes D07 and A13 reveals their putative role in enhancing drought and salt stress tolerance in Gossypium hirsutum [J]. Genes, 2019, 10(3): 226.
[29]	Kan Y, Mu XR, Zhang H, et al. TT2 controls rice thermotolerance through SCT1-dependent alteration of wax biosynthesis [J]. Nat Plants, 2022, 8(1): 53-67.
[30]	Kim M, Schulz V, Brings L, et al. mTERF18 and ATAD3 are required for mitochondrial nucleoid structure and their disruption confers heat tolerance in Arabidopsis thaliana [J]. New Phytol, 2021, 232(5): 2026-2042.
[31]	Sharma N, Chaudhary C, Khurana P. Wheat Myo-inositol phosphate synthase influences plant growth and stress responses via ethylene mediated signaling [J]. Sci Rep, 2020, 10: 10766.
[32]	Kong GZ, Li H, Zheng JT, et al. PgMYB96 enhances Physalis grisea high temperature tolerance by activating trithorax-like factor WD REPEAT CONTAINING5b [J]. J Exp Bot, 2025, 76(12): 3527-3542.
