Analysis of Phenotypic Characteristics and Root Transcriptomics of Sugarcane with Different Genotypes

doi:10.13560/j.cnki.biotech.bull.1985.2025-0966

Abstract

Abstract:

Objective To clarify the phenotypic variation pattern of sugarcane germplasm resources and theregulatory mechanism of key genes, and provide molecular targets for the directional breeding of nitrogen-efficient varieties. Method Seventeen sugarcane genotype materials with clear genetic backgrounds were used as the research objects. Seven agronomic traits such as plant height, stem diameter, and single-stem weight were systematically measured to evaluate their genetic diversity. Phenotypic groups were divided by cluster analysis, and a total of six extreme materials from two groups were selected for root transcriptome sequencing. The DESeq2 software was used to screen differentially expressed genes (DEGs), and GO and KEGG functional enrichment analyses were performed. Weighted gene co-expression network analysis (WGCNA) was used to mine core genes related to group differentiation, and their expression patterns were verified by RT-qPCR. Furthermore, the differences in nitrogen absorption and utilization abilities of the two types of materials were verified through a ¹⁵N isotope absorption experiment. Result The phenotypic variation coefficients of 17 materials ranged from 0.10 to 0.84, and the genetic diversity indices were between 2.55 and 2.83. By cluster analysis they were divided into Group Ι (7 materials) and Group Ⅱ (10 materials). The two groups showed significant differences in traits such as stem diameter (1.12 cm vs. 1.39 cm), number of effective stems (28.0 vs 15.1), and brix (11.1 vs 14.9). Transcriptome analysis identified a total of 9 724 differentially expressed genes (DEGs), which were significantly enriched in pathways such as linoleic acid metabolism (ko00591), flavonoid biosynthesis (ko00941), α-linolenic acid metabolism (ko00592), glutathione metabolism (ko00480), glycolysis/gluconeogenesis (ko00010), glyoxylate and dicarboxylate metabolism (ko00630), starch and sucrose metabolism (ko00500), and ether lipid metabolism (ko00565). Via weighted gene co-expression network analysis (WGCNA) the 10 hub genes were identified significantly associated with phenotypes, including Sspon.02G0013210-1A (AP2 transcription factor), Sspon.02G0008140-1T (GTP-binding protein), etc. The ¹⁵N absorption experiment showed that the materials in Group II had a stronger nitrogen absorption capacity, while the materials in Group I presented higher nitrogen accumulation characteristics. Conclusion Wild species materials adapt to low-nitrogen environments by increasing the number of effective stems, while hybrid materials achieve biomass and sugar accumulation by enhancing nitrogen absorption and utilization efficiency. The coordinated regulation of carbon and nitrogen metabolism and redox balance by key genes is an important molecular basis for the formation of nitrogen efficiency in sugarcane.

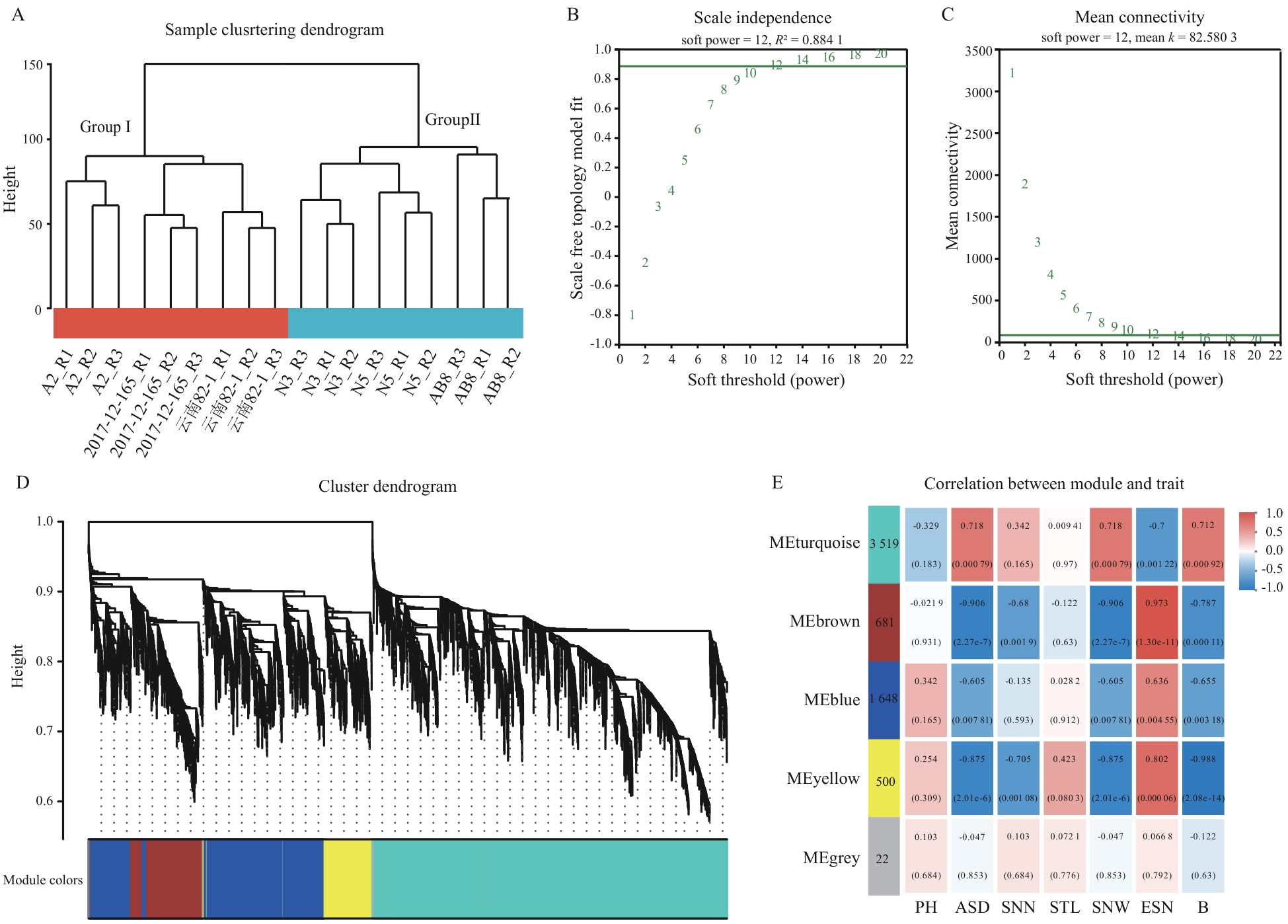

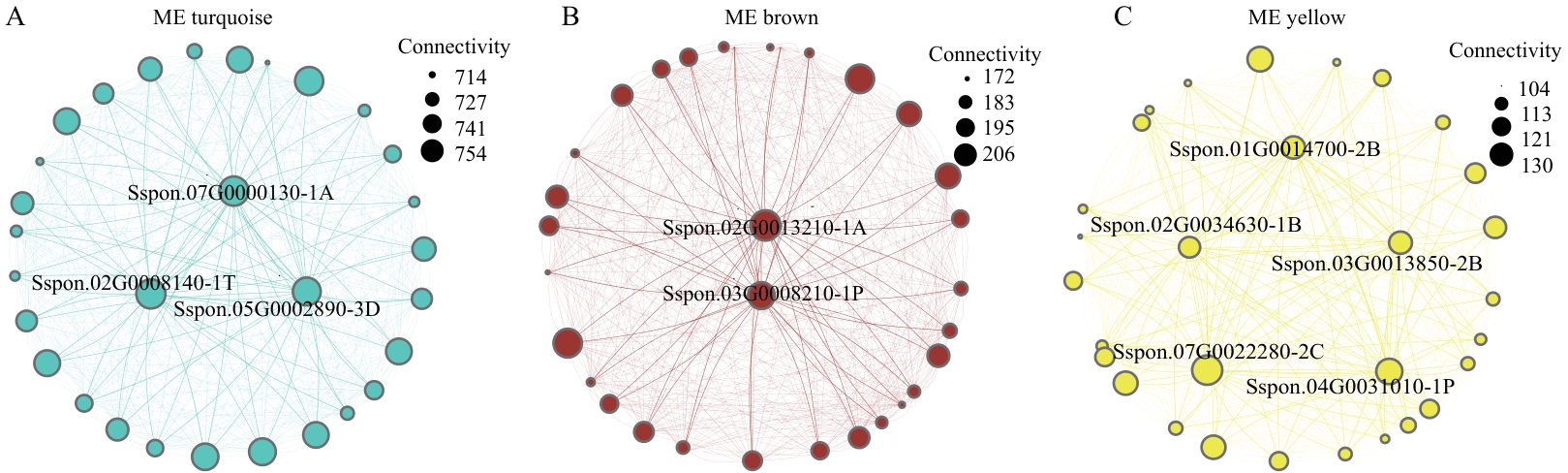

Key words: sugarcane (Saccharum spp.), phenotypic diversity, transcriptome, nitrogen metabolism, WGCNA, nitrogen absorption and utilization, DEGs, hub genes

YANG Ting, YANG Zong-tao, AI Jing, WANG Yu-tong, LI Yan-ye, DENG jun, LIU Jia-yong, ZHAO Yong, ZHANG Yue-bin. Analysis of Phenotypic Characteristics and Root Transcriptomics of Sugarcane with Different Genotypes[J]. Biotechnology Bulletin, 2026, 42(4): 190-201.

Figures/Tables 12

References 39

[1]	Islam MS, Yang XP, Sood S, et al. Molecular characterization of genetic basis of Sugarcane yellow leaf virus (SCYLV) resistance in Saccharum spp. hybrid [J]. Plant Breed, 2018, 137(4): 598-604.
[2]	Sharma A, Chandra A. Identification of new Leuconostoc species responsible for post-harvest sucrose losses in sugarcane [J]. Sugar Tech, 2018, 20(4): 492-496.
[3]	Goldemberg J. The Brazilian biofuels industry [J]. Biotechnol Biofuels, 2008, 1(1): 6.
[4]	Frink CR, Waggoner PE, Ausubel JH. Nitrogen fertilizer: retrospect and prospect [J]. Proc Natl Acad Sci USA, 1999, 96(4): 1175-1180.
[5]	Garnett T, Conn V, Kaiser BN. Root based approaches to improving nitrogen use efficiency in plants [J]. Plant Cell Environ, 2009, 32(9): 1272-1283.
[6]	翁梦静, 张慈凤, 林娜平, 等. 甘蔗ScmiR393在植物应答缺氮胁迫中的功能研究 [J]. 福建农业科技, 2025, 56(1): 24-30.
	Weng MJ, Zhang CF, Lin NP, et al. Functional study of sugarcane ScmiR393 in plant response to nitrogen deficiency stress [J]. Fujian Agric Sci Technol, 2025, 56(1): 24-30.
[7]	Robinson N, Brackin R, Vinall K, et al. Nitrate paradigm does not hold up for sugarcane [J]. PLoS One, 2011, 6(4): e19045.
[8]	李文宝. 甘蔗营养高效利用种质资源筛选研究 [D]. 南宁: 广西大学, 2011.
	Li WB. Screenning for higher nutrients use efficiency of sugarcane germplasm [D]. Nanning: Guangxi University, 2011.
[9]	杨荣仲, 周会, 桂意云, 等. 甘蔗低氮胁迫性状变化与蔗茎含氮量的研究 [J]. 安徽农业科学, 2013, 41(2): 481-484.
	Yang RZ, Zhou H, Gui YY, et al. Response to low nitrogen stress and stalk nitrogen content of sugarcane germplasm [J]. J Anhui Agric Sci, 2013, 41(2): 481-484.
[10]	Fan XR, Feng HM, Tan YW, et al. A putative 6-transmembrane nitrate transporter OsNRT1.1b plays a key role in rice under low nitrogen [J]. J Integr Plant Biol, 2016, 58(6): 590-599.
[11]	Ge M, Wang YC, Liu YH, et al. The NIN-like protein 5 (ZmNLP5) transcription factor is involved in modulating the nitrogen response in maize [J]. Plant J, 2020, 102(2): 353-368.
[12]	杨文亭, 李志贤, 赖健宁, 等. 甘蔗‒大豆间作和减量施氮对甘蔗产量和主要农艺性状的影响 [J]. 作物学报, 2014, 40(3): 556-562.
	Yang WT, Li ZX, Lai JN, et al. Effects of sugarcane-soybean intercropping and reduced nitrogen application on yield and major agronomic traits of sugarcane [J]. Acta Agron Sin, 2014, 40(3): 556-562.
[13]	de Castro SGQ, Magalhães PSG, de Castro SAQ, et al. Optimizing nitrogen fertilizer rates at distinct in-season application moments in sugarcane [J]. Int J Plant Prod, 2022, 16(1): 137-152.
[14]	张艳梅. 施氮水平对不同甘蔗品种产量、品质及生理生化特性的影响 [D]. 南宁: 广西大学, 2015.
	Zhang YM. Effects of nitrogen levels on cane yield and quality, and physiological and biochemical characteristics of different sugarcane varieties [D]. Nanning: Guangxi University, 2015.
[15]	Huang DL, Qin CX, Gui YY, et al. Role of the SPS gene families in the regulation of sucrose accumulation in sugarcane [J]. Sugar Tech, 2017, 19(2): 117-124.
[16]	Verma AK, Upadhyay SK, Verma PC, et al. Functional analysis of sucrose phosphate synthase (SPS) and sucrose synthase (SS) in sugarcane (Saccharum) cultivars [J]. Plant Biol, 2011, 13(2): 325-332.
[17]	陈俊华, 文吉富, 王国良, 等. Excel在计算群落生物多样性指数中的应用 [J]. 四川林业科技, 2009, 30(3): 88-90, 60.
	Chen JH, Wen JF, Wang GL, et al. On application of excel in calculating the biodiversity index of communities [J]. J Sichuan For Sci Technol, 2009, 30(3): 88-90, 60.
[18]	李旭娟, 李纯佳, 刘洪博, 等. 甘蔗腋芽形成发育过程的转录组分析 [J]. 生物技术通报, 2025, 41(3): 202-218.
	Li XJ, Li CJ, Liu HB, et al. Transcriptome analysis of axillary bud formation and development in sugarcane [J]. Biotechnol Bull, 2025, 41(3): 202-218.
[19]	阙友雄, 许莉萍, 徐景升, 等. 甘蔗基因表达定量PCR分析中内参基因的选择 [J]. 热带作物学报, 2009, 30(3): 274-278.
	Que YX, Xu LP, Xu JS, et al. Selection of control genes in real-time qPCR analysis of gene expression in sugarcane [J]. Chin J Trop Crops, 2009, 30(3): 274-278.
[20]	Livak KJ, Schmittgen TD. Analysis of relative gene expression data using real-time quantitative PCR and the 2^-ΔΔCT method [J]. Methods, 2001, 25(4): 402-408.
[21]	李俊杰, 杜蒲芳, 石婷瑞, 等. 不同基因型小麦苗期耐低氮性评价及筛选 [J]. 中国农业科技导报, 2021, 23(7): 21-32.
	Li JJ, Du PF, Shi TR, et al. Screening and evaluation of low nitrogen tolerance from different genotypes wheat at seedling stage [J]. J Agric Sci Technol, 2021, 23(7): 21-32.
[22]	Liu YQ, Wang HR, Jiang ZM, et al. Genomic basis of geographical adaptation to soil nitrogen in rice [J]. Nature, 2021, 590(7847): 600-605.
[23]	Zhan J, Zhou YF, Yang LS, et al. Low ammonium and high nitrate input improves nitrogen use efficiency and growth in sugarcane through coordinated reprogramming of nitrogen and carbon metabolism [J]. Plant Physiol Biochem, 2025, 229: 110354.
[24]	江厚龙, 李勇, 陈天才, 等. 综合转录组和代谢组分析揭示嫁接提高烟草钾利用效率的分子机制 [J]. 天津农业科学, 2025, 31(4): 1-12, 19.
	Jiang HL, Li Y, Chen TC, et al. Integrated transcriptomic and metabolomic analyses elucidate the mechanism underlying the impact of grafting on potassium utilization efficiency in tobacco [J]. Tianjin Agric Sci, 2025, 31(4): 1-12, 19.
[25]	李寒雪. 代谢组和转录组联合解析藜麦幼苗对氮素的响应机制 [D]. 昆明: 云南农业大学, 2024.
	Li HX. Transcriptome and metabolome analyses revealed the response mechanism of quinoa seedlings to nitrogen fertilizer [D]. Kunming: Yunnan Agricultural University, 2024.
[26]	南运有. BnaA5.AIB与BnaC 2.NAR2.1参与甘蓝型油菜对外源脱落酸的应答响应及氮吸收利用的调控 [D]. 杨凌: 西北农林科技大学, 2023.
	Nan YY. BnaA5.AIB and BnaC 2.NAR2.1 are involved in the response to exogenous abscisic acid and the regulation of nitrogen uptake and utilization in Brassica napus L. [D]. Yangling: Northwest A & F University, 2023.
[27]	葛礼姣. 氮高效利用菊花品种筛选及高效利用机理研究 [D]. 南京: 南京农业大学, 2022.
	Ge LJ. Study on nitrogen efficient variety screening and its mechanism on high nitrogen utilization efficiency in Chrysanthemum [D]. Nanjing: Nanjing Agricultural University, 2022.
[28]	任盼荣, 汪军成, 姚立蓉, 等. 大麦种质资源磷利用效率的评价及其转录组分析 [J]. 大麦与谷类科学, 2018, 35(4): 56-57.
	Ren PR, Wang JC, Yao LR, et al. Evaluation of phosphorus use efficiency and transcriptome analysis in barley germplasm (Hordeum vulgare L.) [J]. Barley Cereal Sci, 2018, 35(4): 56-57.
[29]	Liu H, Gao XH, Fan WS, et al. Optimizing carbon and nitrogen metabolism in plants: From fundamental principles to practical applications [J]. J Integr Plant Biol, 2025, 67(6): 1447-1466.
[30]	刘潇潇. 膜脂在小麦低氮胁迫响应中的作用及机制研究 [D]. 北京: 中国科学院大学(中国科学院教育部水土保持与生态环境研究中心), 2021.
	Liu XX. The mechanism of the involvement of leaf membrane lipids in response to nitrogen deficiency in wheat [D]. Beijing: Research Center for Eco-Environmental Sciences, Chinese Academy of Sciences, 2021.
[31]	梁桂红, 华营鹏, 周婷, 等. 甘蓝型油菜NRT1.5和NRT1.8家族基因的生物信息学分析及其对氮-镉胁迫的响应 [J]. 作物学报, 2019, 45(3): 365-380.
	Liang GH, Hua YP, Zhou T, et al. Bioinformatics analysis and response to nitrate-cadmium stress of NRT1.5 and NRT1.8 family genes in Brassica napus [J]. Acta Agron Sin, 2019, 45(3): 365-380.
[32]	钱甫, 张占琴, 陈树宾, 等. 基于GWAS和WGCNA分析挖掘玉米花期相关候选基因 [J]. 作物学报, 2023, 49(12): 3261-3276.
	Qian F, Zhang ZQ, Chen SB, et al. Mining maize flowering traits related candidate genes based on GWAS and WGCNA data [J]. Acta Agron Sin, 2023, 49(12): 3261-3276.
[33]	郝瑞杰, 邱晨, 耿晓云, 等. 梅花PmABCG9在苯甲醇挥发中的功能分析 [J]. 中国农业科学, 2023, 56(13): 2574-2585.
	Hao RJ, Qiu C, Geng XY, et al. The function of PmABCG9 transporter related to the volatilization of benzyl alcohol in Prunus mume [J]. Sci Agric Sin, 2023, 56(13): 2574-2585.
[34]	荐红举, 张梅花, 尚丽娜, 等. 利用WGCNA筛选马铃薯块茎发育候选基因 [J]. 作物学报, 2022, 48(7): 1658-1668.
	Jian HJ, Zhang MH, Shang LN, et al. Screening candidate genes involved in potato tuber development using WGCNA [J]. Acta Agron Sin, 2022, 48(7): 1658-1668.
[35]	张恒燕, 张木清. 基于WGCNA挖掘外源GA3调节甘蔗节间伸长相关基因 [J/OL]. 分子植物育种, 2022. .
	Zhang HY, Zhang MQ. Mining of genes related to exogenous GA3 regulation of sugarcane internode elongation based on WGCNA [J/OL]. Mol Plant Breed, 2022. .
[36]	Wang L, Ming LC, Liao KY, et al. Bract suppression regulated by the miR156/529-SPLs-NL1-PLA1 module is required for the transition from vegetative to reproductive branching in rice [J]. Mol Plant, 2021, 14(7): 1168-1184.
[37]	汪宽鸿, 祝彪, 朱祝军. GSH/GSSG在植物应对非生物胁迫中的作用综述 [J]. 园艺学报, 2021, 48(4): 647-660.
	Wang KH, Zhu B, Zhu ZJ. Review of the role of GSH/GSSG in plant abiotic stress response [J]. Acta Hortic Sin, 2021, 48(4): 647-660.
[38]	祁雪姣, 谢乾坤, 谢雨欣, 等. 籼稻品种Y两优886高氮素利用效率机制研究 [J]. 河南农业科学, 2021, 50(3): 25-32.
	Qi XJ, Xie QK, Xie YX, et al. Mechanism of high nitrogen utilization efficiency of indica rice yliangyou 886 [J]. J Henan Agric Sci, 2021, 50(3): 25-32.
[39]	吕江艳, 龙鹏宇, 罗维钢, 等. 甘蔗节水高产和蔗田氧化亚氮减排的滴灌施肥模式 [J]. 节水灌溉, 2023(12): 1-8.
	Lü JY, Long PY, Luo WG, et al. Drip irrigation fertilization model for water-saving and high-yield sugarcane and reduction of nitrous oxide emissions in sugarcane fields [J]. Water Sav Irrig, 2023(12): 1-8.

材料序号 Material number	材料编码 Material code	材料类型 Material type	亲本信息（母本×父本） Parental cross （female × male）
01	越南2号	野生种	-
02	云南82-1	野生种	-
03	2017-12-165	野生种	-
04	2017-22	野生种	-
05	云蔗0551	商品种	-
06	A1	杂交种	云南82-1×2017-22
07	A2	杂交种	云南82-1×2017-22
08	B1	杂交种	越南2号×2017-12-165
09	B2	杂交种	越南2号×2017-12-165
10	N1	杂交种	云蔗0551×2017-22
11	N2	杂交种	云蔗0551×越南2号
12	N3	杂交种	云蔗0551×A1
13	N4	杂交种	云蔗0551×B1
14	N5	杂交种	云蔗0551×AB6
15	N6	杂交种	云蔗0551×AB8
16	AB6	杂交种	A1×B1
17	AB8	杂交种	A1×B1

材料序号 Material number	材料编码 Material code	材料类型 Material type	亲本信息（母本×父本） Parental cross （female × male）
01	越南2号	野生种	-
02	云南82-1	野生种	-
03	2017-12-165	野生种	-
04	2017-22	野生种	-
05	云蔗0551	商品种	-
06	A1	杂交种	云南82-1×2017-22
07	A2	杂交种	云南82-1×2017-22
08	B1	杂交种	越南2号×2017-12-165
09	B2	杂交种	越南2号×2017-12-165
10	N1	杂交种	云蔗0551×2017-22
11	N2	杂交种	云蔗0551×越南2号
12	N3	杂交种	云蔗0551×A1
13	N4	杂交种	云蔗0551×B1
14	N5	杂交种	云蔗0551×AB6
15	N6	杂交种	云蔗0551×AB8
16	AB6	杂交种	A1×B1
17	AB8	杂交种	A1×B1

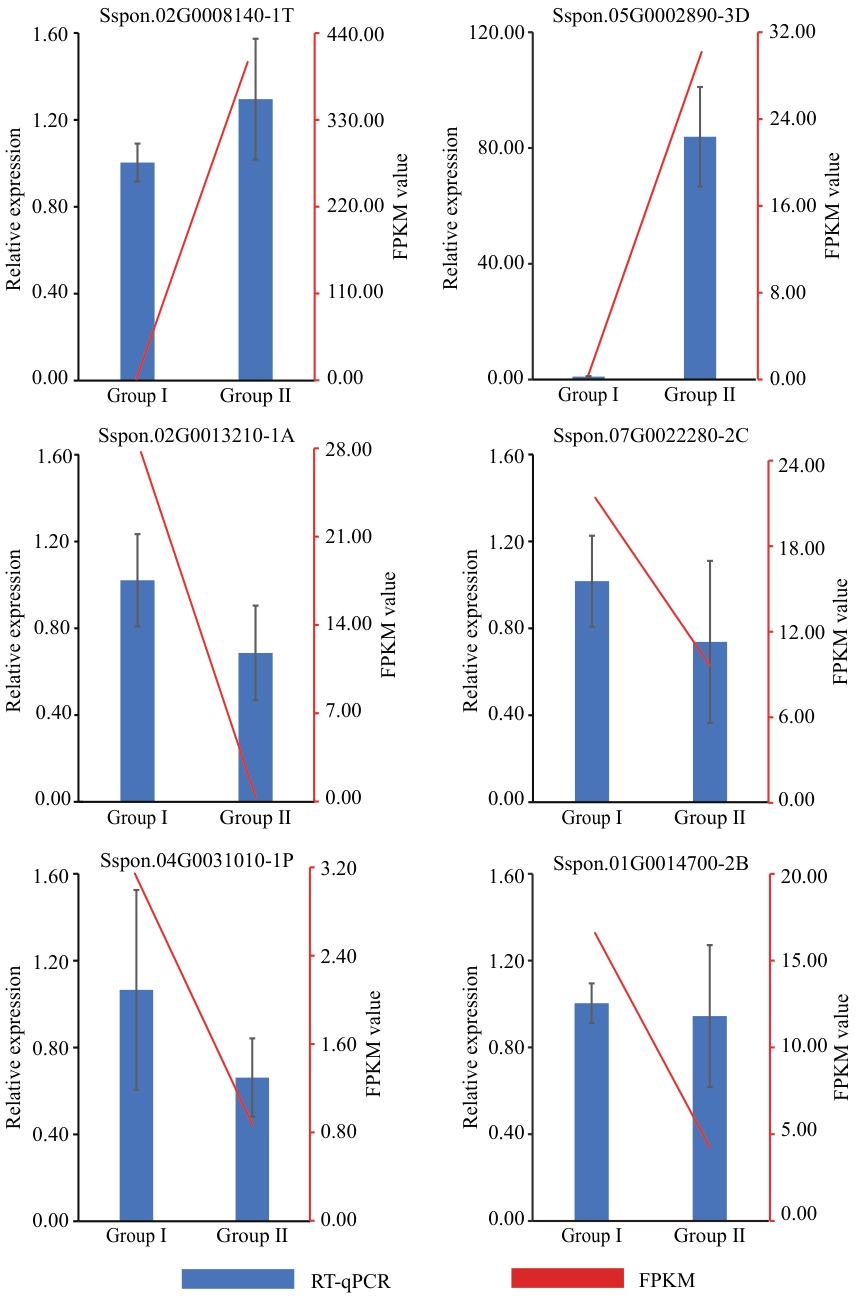

基因ID/内参名称 Gene ID/Internal reference name	正向引物 Forward primer （5′‒3′）	反向引物 Reverse primer （5′‒3′）
Sspon.02G0008140-1T	GCCCATGGTGGTGGAGAC	CAACAGCCACCGTTTGCC
Sspon.05G0002890-3D	TTACCAGTGGGCTTGCGG	GCAAGTGCAGCCACATCG
Sspon.02G0013210-1A	ACTCGTCACAGCCAACCG	CCCGTCGCGTCGAATACA
Sspon.07G0022280-2C	GCCAGCGACTCTGCATCT	TGCTGCTGTGCAAAAGGC
Sspon.04G0031010-1P	GAGTGCCCTGTGTCGCAT	GTCTGGCCGCTGAACCTT
Sspon.01G0014700-2B	GGCTCCGAGGTTGCAGTT	TCTGAGCTTCTGCCCCCA
25S rRNA1	CCTGAAGATCACCCTGTGCT	GCAGTCTCCAGCTCCTGTTC

基因ID/内参名称 Gene ID/Internal reference name	正向引物 Forward primer （5′‒3′）	反向引物 Reverse primer （5′‒3′）
Sspon.02G0008140-1T	GCCCATGGTGGTGGAGAC	CAACAGCCACCGTTTGCC
Sspon.05G0002890-3D	TTACCAGTGGGCTTGCGG	GCAAGTGCAGCCACATCG
Sspon.02G0013210-1A	ACTCGTCACAGCCAACCG	CCCGTCGCGTCGAATACA
Sspon.07G0022280-2C	GCCAGCGACTCTGCATCT	TGCTGCTGTGCAAAAGGC
Sspon.04G0031010-1P	GAGTGCCCTGTGTCGCAT	GTCTGGCCGCTGAACCTT
Sspon.01G0014700-2B	GGCTCCGAGGTTGCAGTT	TCTGAGCTTCTGCCCCCA
25S rRNA1	CCTGAAGATCACCCTGTGCT	GCAGTCTCCAGCTCCTGTTC

性状 Trait	最小值 Min	最大值 Max	平均值 Average	极差 Range	标准差 S	变异系数 CV	遗传多样性指数 H′
株高 PH （cm）	218.00	314.60	253.61	96.60	24.67	0.10	2.83
茎径 SD （cm）	0.74	2.51	1.28	1.77	0.48	0.37	2.77
茎节数 SNN （Nodes/m）	16.40	31.00	24.05	14.60	3.59	0.15	2.82
节间长度 STL （cm）	18.10	29.84	22.86	11.74	3.20	0.14	2.82
单茎重 SNW （kg）	0.09	1.26	0.36	1.17	0.31	0.84	2.55
有效茎数 ESN （Stem nodes/plant）	5.80	44.80	20.40	39.00	12.34	0.61	2.66
