Functional Analysis of Pg03852 Gene in Pyrenophora graminea

doi:10.13560/j.cnki.biotech.bull.1985.2025-0741

Abstract

Abstract:

Objective To explore the function of gene Pg03852 in Pyrenophora graminea, thereby establishing a crucial theoretical foundation for studying the molecular interactions between this pathogen and its host plant. Method Based on transcriptomic data, the highly expressed gene Pg03852 during the host infection process of P. graminea was identified. Preliminary functional characterization of this gene was conducted by utilizing a combination of bioinformatic analyses, signal peptide activity assays, induction/suppression of immune responses, and the generation of RNA interference (RNAi) mutants followed by pathogenicity assessment. Result Bioinformatics analysis indicated that the Pg03852 gene encoded 276 amino acids, with a secondary structure predominantly composed of disordered coils accounting for 73.19%.Pg03852 was an unstable hydrophilic protein lacking transmembrane regions and conserved domains, but possessing a signal peptide and localized to the extracellular space. Signal peptide activity assays demonstrated that the Pg03852 signal peptide transformant grew normally on CMD-W and YPRAA media. TTC staining further confirmed the secretory function of this protein’s signal peptide. Results from immune response induction and inhibition experiments showed that Pg03852 did not induce cell necrosis but suppressed BAX-induced necrosis in plant tissues. Two RNAi mutants, Pg03852-RNAi-1 and Pg03852-RNAi-2, were obtained via PEG-mediated protoplast transformation. RT-qPCR results showed that Pg03852-RNAi-1 and Pg03852-RNAi-2 had expression reductions of 58.76% and 48.24% compared to the wild-type strain QWC, respectively, with disease incidence rates of 34.67% and 38.00% lower than the wild-type strain QWC. Both mutants also demonstrated significantly slower colony growth rates than the wild-type strain QWC (P<0.05). Histological observations revealed that hyphae in the RNAi mutants were denser, more convoluted, and had a slender morphology. Trypan blue staining and DAB staining results indicated that both the extent of cell death induced by infection with the interference mutants and the levels of reactive oxygen species accumulation were weaker than those observed in wild-type strain QWC. Conclusion Pg03852 is involved in the growth and development of the P. graminea and plays a critical role in regulating its pathogenicity.

Key words: Pyrenophora graminea, signal peptide, immune response, RNA interference, pathogenicity

MA Ru-qing, FENG Xue-qi, YANG Qing-lan, WANG Jun-cheng, MENG Ya-xiong, MA Xiao-le, LI Bao-chun, YAO Li-rong, WANG Hua-jun, SI Er-jing. Functional Analysis of Pg03852 Gene in Pyrenophora graminea[J]. Biotechnology Bulletin, 2026, 42(1): 262-270.

Figures/Tables 6

Table 1 Primer list

引物 Primer	序列 Sequence（5'-3'）	用途 Purpose
Pg03852-pSuC2-F	AATTCATGAAGGTCTCACAGTTTCTCACCTGCCTCATTGCCGCGCAAGCAATCACCGCCC	构建酵母表达载体
Pg03852-pSuC2-R	TCGAGGGCGGTGATTGCTTGCGCGGCAATGAGGCAGGTGAGAAACTGTGAGACCTTCATG
Pg03852-Cal I-F	CCCATCGATATGAAGGTCTCACAGTTTCT	干扰片段克隆
Pg03852-Sma I-R	TCCCCCGGGCATGAACACACCAGCAAGAA
Pg03852-Kpn I-F	GGGGTACCTCCTCTCATCGGACAACACA
Pg03852-Bgl II-R	GAAGATCTGTTCTCGTCACAGCCACAGA
Pg03852-Xho I-F	CCGCTCGAGTCCTCTCATCGGACAACACA
Pg03852-Hind III-R	CCCAAGCTTGTTCTCGTCACAGCCACAGA
HygB-F	ATGAAAAAGCCTGAACTCAC	潮霉素鉴定
HygB-R	CTATTCCTTTGCCCTCGGA
Pg03852-qPCR-F	AGCAACACCATACAGAGCCG	实时荧光定量PCR
Pg03852-qPCR-R	GAAGCGGTAGGGGTTGTTGT	实时荧光定量PCR
PgActin-F	TGTTGACATGGCTGGTCGTGATC	内参基因
PgActin-R	TCGGCGGTGGTGGAGAAGG	内参基因

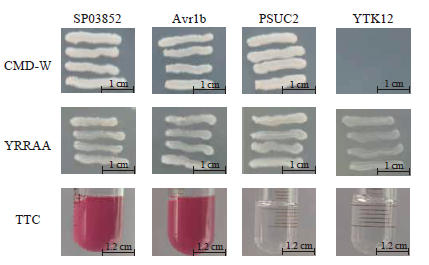

Fig. 1 Activity assay of Pg03852 signal peptide

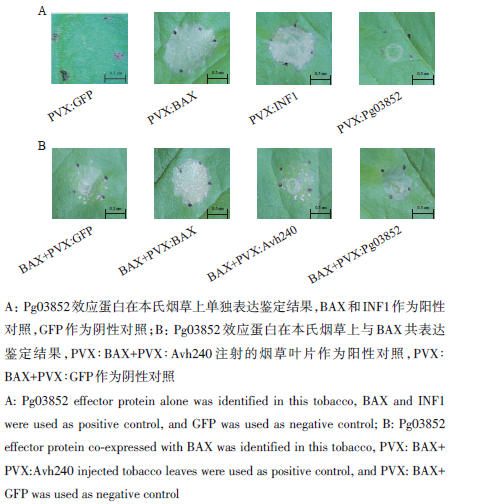

Fig. 2 Pg03852 induces/inhibits the death phenotypes of necrotic cells in Baccata nicotiana leaves

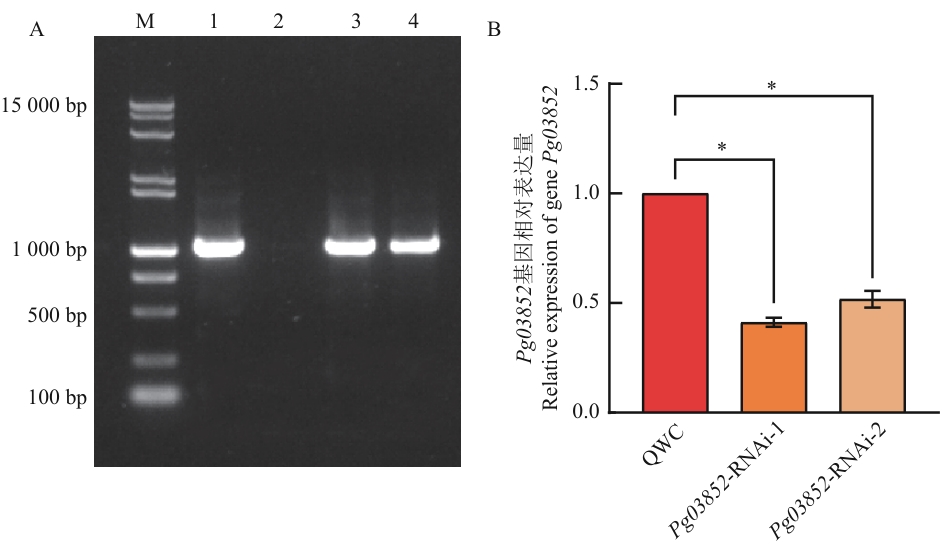

Fig. 3 Identification of thaumatin resistance in interfering strains (A) and detection of relative expression of the Pg03852 gene (B)A: DL 15000+2 000 DNA marker; lane 1 is the empty vector (pSilent-1); lane 2 is the wild strain QWC; lane 3-4 are the mutants Pg03852-RNAi-1 and Pg03852-RNAi-2. B. Relative expression of Pg03852. A t-test was used, and * indicates significant differences at the 0.05 levelA: Pg03852 effector protein alone was identified in this tobacco, BAX and INF1 were used as positive control, and GFP was used as negative control; B: Pg03852 effector protein co-expressed with BAX was identified in this tobacco, PVX: BAX+PVX:Avh240 injected tobacco leaves were used as positive control, and PVX: BAX+GFP was used as negative control

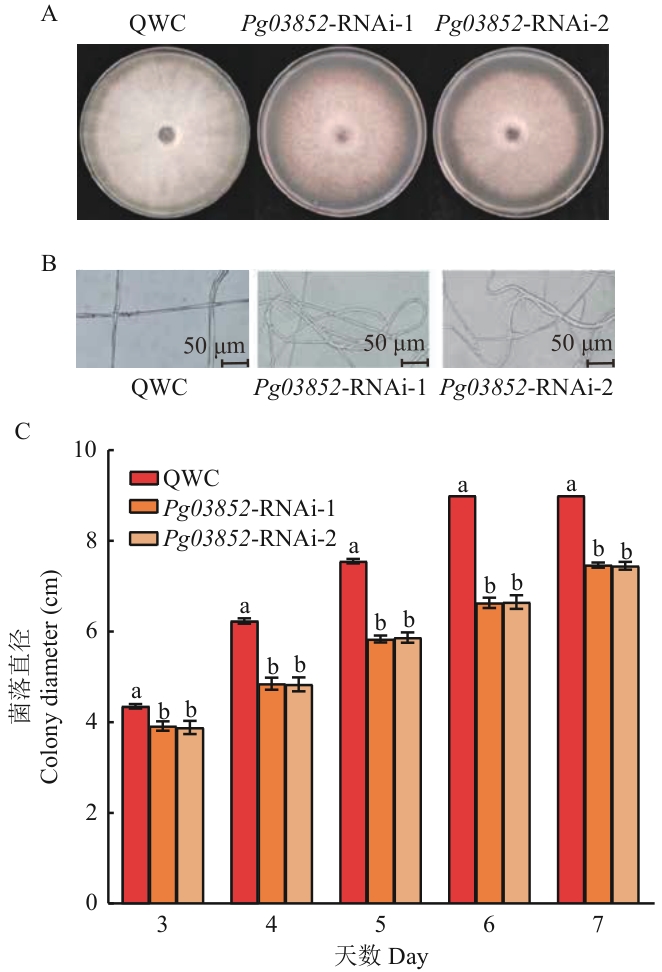

Fig. 4 Growth morphology, growth rate, and hyphal morphology observed after 7 d of inoculation on PDA mediumA: Growth morphology of wild-type QWC, interference mutant strains Pg03852-RNAi-1, and Pg03852-RNAi-2 after 7 d of inoculation on PDA medium. B: Observation of mycelium morphology. C: Strain growth rate

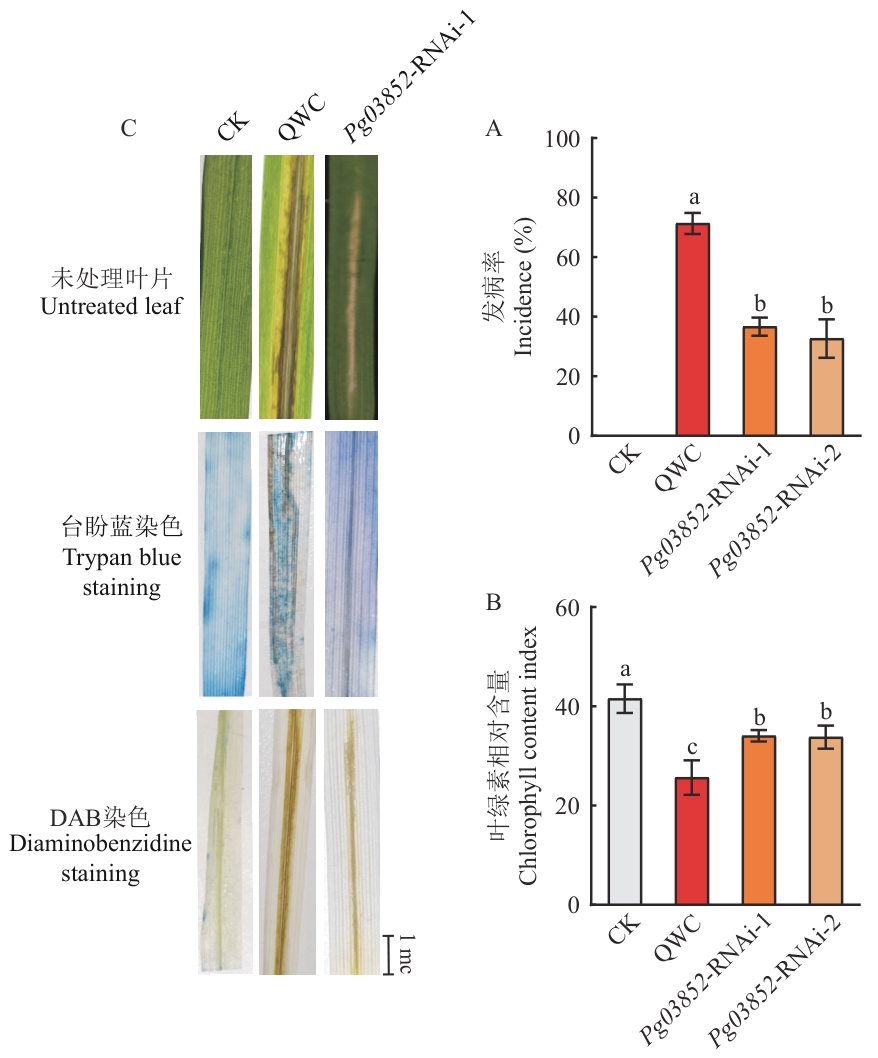

Fig. 5 Pathogenicity analysis and stainingA: Statistics of QWC and interference mutant incidence (P<0.05). B: Relative chlorophyll content of QWC and interference mutants (P<0.05). C: Staining results of QWC and interference mutants

References 38

[1]	祁天涛, 司二静, 郭铭, 等. 大麦条纹病菌基因Pgr03902致病功能研究 [J]. 植物保护, 2023, 49(6): 16-22, 54.
	Qi TT, Si EJ, Guo M, et al. Study on pathogenic function of gene Pgr03902 of barley stripe disease [J]. Plant Prot, 2023, 49(6): 16-22, 54.
[2]	朱靖环, 华为, 吴宽然, 等. 大麦条纹病菌致病性分析及抗性种质精细鉴定 [J]. 植物保护学报, 2020, 47(3): 553-561.
	Zhu JH, Hua W, Wu KR, et al. Analysis of the pathogenicity of Pyrenophora graminea isolates and precision identification of barley resistant germplasms [J]. J Plant Prot, 2020, 47(3): 553-561.
[3]	郭铭, 孙莉莎, 司二静, 等. 大麦条纹病病菌对大麦叶片防御酶活性的影响 [J]. 西北农业学报, 2021, 30(2): 295-303.
	Guo M, Sun LS, Si EJ, et al. Effect of Pyrenophora graminea stress to defensive enzymes activity in barley leaves [J]. Acta Agric Boreali Occidentalis Sin, 2021, 30(2): 295-303.
[4]	吴宽然, 杨建明, 朱靖环, 等. 大麦条纹病抗性及防治研究进展 [J]. 浙江农业学报, 2013, 25(4): 903-907.
	Wu KR, Yang JM, Zhu JH, et al. Advances of research on control of barley leaf stripe disease [J]. Acta Agric Zhejiangensis, 2013, 25(4): 903-907.
[5]	高芬, 褚建梅, 李静虹, 等. 植物病原真菌致病机理研究进展 [J]. 江苏农业学报, 2014, 30(5): 1174-1179.
	Gao F, Chu JM, Li JH, et al. Research progress in the pathogenesis of plant pathogenic fungi [J]. Jiangsu J Agric Sci, 2014, 30(5): 1174-1179.
[6]	Jia HG, Zhang YZ, Orbović V, et al. Genome editing of the disease susceptibility gene CsLOB1 in Citrus confers resistance to Citrus canker [J]. Plant Biotechnol J, 2017, 15(7): 817-823.
[7]	王晓东. 条锈菌三类效应蛋白通过不同策略调控寄主免疫的机理研究 [D]. 杨凌: 西北农林科技大学, 2021.
	Wang XD. Study on the mechanism of three kinds of effector proteins of stripe rust fungus regulating host immunity through different strategies [D]. Yangling: Northwest A & F University, 2021.
[8]	杨明王, 张红雪, 霍超, 等. 植物病原真菌及卵菌SNAREs基因功能研究进展 [J]. 江苏农业科学, 2024, 52(1): 1-10.
	Yang MW, Zhang HX, Huo C, et al. Research progress of SNAREs gene function in plant pathogenic fungi and oomycetes [J]. Jiangsu Agric Sci, 2024, 52(1): 1-10.
[9]	Deslandes L, Rivas S. Catch me if you can: bacterial effectors and plant targets [J]. Trends Plant Sci, 2012, 17(11): 644-655.
[10]	Choi S, Prokchorchik M, Lee H, et al. Direct acetylation of a conserved threonine of RIN4 by the bacterial effector HopZ5 or AvrBsT activates RPM1-dependent immunity in Arabidopsis [J]. Mol Plant, 2021, 14(11): 1951-1960.
[11]	刘鑫雨, 何礼娟, 殷金瑶, 等. 橡胶树白粉菌保守效应蛋白致病机制研究 [J]. 热带作物学报, 2024, 45(9): 1886-1894.
	Liu XY, He LJ, Yin JY, et al. Study on the pathogenic mechanism of a conservative effector protein in rubber tree powdery mildew [J]. Chin J Trop Crops, 2024, 45(9): 1886-1894.
[12]	El Kasmi F, Horvath D, Lahaye T. Microbial effectors and the role of water and sugar in the infection battle ground [J]. Curr Opin Plant Biol, 2018, 44: 98-107.
[13]	Qiu XF, Kong L, Chen H, et al. The Phytophthora sojae nuclear effector PsAvh110 targets a host transcriptional complex to modulate plant immunity [J]. Plant Cell, 2023, 35(1): 574-597.
[14]	Si E, Meng Y, Ma X, et al. Genome resource for barley leaf stripe pathogen Pyrenophora graminea [J]. Plant Disease, 2020, 104(2): 320-322.
[15]	孙媛, 李梅蓉, 卢建霖, 等. RNA干扰构建载体在防治植物病毒病中的研究 [J]. 农业与技术, 2025, 45(1): 35-39.
	Sun Y, Li MR, Lu JL, et al. Study on RNA interference construction vector in prevention and treatment of plant virus diseases [J]. Agric Technol, 2025, 45(1): 35-39.
[16]	Liang QQ, Li BC, Wang JC, et al. PGPBS, a mitogen-activated protein kinase kinase, is required for vegetative differentiation, cell wall integrity, and pathogenicity of the barley leaf stripe fungus Pyrenophora graminea [J]. Gene, 2019, 696: 95-104.
[17]	郭铭. 大麦条纹病菌基因Pgr07060的功能研究 [D]. 兰州: 甘肃农业大学, 2021.
	Guo M. Functional study of the Pgr07060 gene in Pyrenophora graminea [D]. Lanzhou: Gansu Agricultural University, 2021.
[18]	侯静静. 大麦条纹病菌致病性候选基因Pgmiox功能研究 [D]. 兰州: 甘肃农业大学, 2020.
	Hou JJ. Functional analysis of pathogenic candidate gene Pgmiox in Pyrenophora graminea [D]. Lanzhou: Gansu Agricultural University, 2020.
[19]	徐容, 邓智英, 邵陈禹, 等. 茶树DREB基因的生信分析及其调控CsPOD3的抗旱机制 [J]. 茶叶科学, 2025, 45(1): 29-42.
	Xu R, Deng ZY, Shao CY, et al. Bioinformatic analysis of DREB genes and regulation of CsPOD3 on drought tolerance mechanisms in Camellia sinensis [J]. J Tea Sci, 2025, 45(1): 29-42.
[20]	郜江菲, 郑婉怡, 刘建明, 等. 应用SPSS27.0软件计算药物半数效应浓度的实现方法 [J]. 世界临床药物, 2025, 46(4): 401-406.
	Gao JF, Zheng WY, Liu JM, et al. The implementation method of the calculation of 50% effective concentration by SPSS27.0 [J]. World Clin Drug, 2025, 46(4): 401-406.
[21]	Wang QQ, Han CZ, Ferreira AO, et al. Transcriptional programming and functional interactions within the Phytophthora sojae RXLR effector repertoire [J]. Plant Cell, 2011, 23(6): 2064-2086.
[22]	Fang AF, Han YQ, Zhang N, et al. Identification and characterization of plant cell death-inducing secreted proteins from Ustilaginoidea virens [J]. Mol Plant Microbe Interactions, 2016, 29(5): 405-416.
[23]	李重阳. 稻曲病菌候选效应蛋白的功能研究 [D]. 武汉: 华中农业大学, 2018.
	Li CY. Functional study of candidate effector proteins in Ustilaginoidea virens [D]. Wuhan: Huazhong Agricultural University, 2018.
[24]	高馨梅, 邵晨曦, 梁英梅, 等. 山田胶锈菌效应蛋白GyHGSRE1的功能初探 [J]. 南京林业大学学报: 自然科学版, 2025, 49(5): 209-216.
	Gao XM, Shao CX, Liang YM, et al. Preliminary study on the function of Gymnosporangium yamadae effector GyHGSRE1 [J]. J Nanjing For Univ Nat Sci Ed, 2025, 49(5): 209-216.
[25]	汤敬诚, 李睿, 刘文波, 等. Neopestalotiopsis thailandica全基因组分泌蛋白及其效应因子的预测分析 [J/OL]. 分子植物育种,2024:1-11.
	Tang JC, Li R, Liu WB, et al. Genome-wide prediction and analysis of secreted proteins and effectors in Neopestalotiopsis thailandica [J/OL]. Mol Plant Breed, 2024: 1-11.
[26]	吴佳椰露, 傅艺炜, 包崇来, 等. 茄腐镰孢菌分泌蛋白与效应子的预测分析 [J]. 植物病理学报, 2025, 55(1): 32-46.
	Wu J, Fu YW, Bao CL, et al. Genome-wide prediction and analysis of secreted proteins and effectors in Fusarium solani [J]. Acta Phytopathol Sin, 2025, 55(1): 32-46.
[27]	夏杨, 苏初连, 叶子, 等. 基于RNAi和蛋白质组学研究胶孢炭疽菌CgCDC2基因的功能 [J]. 果树学报, 2019, 36(11): 1483-1493.
	Xia Y, Su CL, Ye Z, et al. Research on the function of CgCDC2 gene in Colletotrichum gloeosporioides with RNAi and TMT-based proteomic analysis [J]. J Fruit Sci, 2019, 36(11): 1483-1493.
[28]	Si EJ, Guo M, Liu HY, et al. The essentials of PgPG1, a polygalacturonase-encoding gene for the invasion of Pyrenophora graminea to Hordeum vulgare [J]. Int J Mol Sci, 2025, 26(6): 2401.
[29]	Guo M, Si EJ, Hou JJ, et al. Pgmiox mediates stress response and plays a critical role for pathogenicity in Pyrenophora graminea, the agent of barley leaf stripe [J]. Plant Sci, 2025, 350: 112308.
[30]	Stergiopoulos I, de Wit PJGM. Fungal effector proteins [J]. Annu Rev Phytopathol, 2009, 47: 233-263.
[31]	Petre B, Kamoun S. How do filamentous pathogens deliver effector proteins into plant cells? [J]. PLoS Biol, 2014, 12(2): e1001801.
[32]	Win J, Chaparro-Garcia A, Belhaj K, et al. Effector biology of plant-associated organisms: concepts and perspectives [J]. Cold Spring Harb Symp Quant Biol, 2012, 77: 235-247.
[33]	Valent B, Hyun K. Recent advances in rice blast effector research [J]. Curr Opin Plant Biol, 2010, 13(4): 434-441.
[34]	Godfrey D, Böhlenius H, Pedersen C, et al. Powdery mildew fungal effector candidates share N-terminal Y/F/WxC-motif [J]. BMC Genom, 2010, 11(1): 317.
[35]	Xu WH, Meng Y, Wise RP. Mla- and Rom1-mediated control of microRNA398 and chloroplast copper/zinc superoxide dismutase regulates cell death in response to the barley powdery mildew fungus [J]. New Phytol, 2014, 201(4): 1396-1412.
[36]	Liu ZH, Gao YY, Kim YM, et al. SnTox1, a Parastagonospora nodorum necrotrophic effector, is a dual-function protein that facilitates infection while protecting from wheat-produced chitinases [J]. New Phytol, 2016, 211(3): 1052-1064.
[37]	Ye WZ, Hossain R, Pröbsting M, et al. Knock-out of BnHva22c reduces the susceptibility of Brassica napus to infection with the fungal pathogen Verticillium longisporum [J]. Crop J, 2024, 12(2): 503-514.
[38]	Liu SJ, Liu H, Guo MJ, et al. Knockout of GRAIN WIDTH2 has a dual effect on enhancing leaf rust resistance and increasing grain weight in wheat [J]. Plant Biotechnol J, 2024, 22(7): 2007-2009.
