Genome-wide Identification and Expression Pattern Analysis of ZmDIR Gene Family in Maize

doi:10.13560/j.cnki.biotech.bull.1985.2025-0959

Abstract

Abstract:

Objective Dirigent (DIR) genes play important roles in plant growth, development and environmental adaptation. The objectives of this study are to identify the ZmDIR gene family in maize (Zea mays) and to preliminarily reveal its potential role in stress defense, thereby providing a theoretical basis for further research. Method Bioinformatics were used to identify the members of the ZmDIR family and systematically analyzed their conserved motifs, conserved domains, chromosomal distribution, gene duplication events, cis-regulatory elements in promoter regions and phylogenetic relationships. Transcriptome data were further employed to elucidate the expression patterns of these genes across different tissues and under both abiotic and biotic stresses. Result A total of 41 ZmDIR genes were identified in the maize genome and distributed across all 10 chromosomes and contain zero to four introns, 78% of them shared the core conserved motif 1, motif 2 and motif 4. Phylogenetic analysis indicated that DIR proteins in maize can be classified into six subgroups. Gene duplication analysis revealed that segmental and tandem duplications were the main driving forces for the expansion of this family. Promoter analysis revealed that ZmDIR genes were enriched with cis-acting elements involved in plant growth and development, phytohormone response, environmental stress and light response. Tissue-specific expression profiles revealed that ZmDIRs were differentially expressed in the roots, stems, leaves, leaf tip, leaf base, embryo, endosperm, anther, tassel and ear. The expression pattern of these genes appeared to be diverse in the different developmental tissues. Transcriptome data confirmed the differential expression of ZmDIR under abiotic (heat, salt, UV, cold, drought and WS) and biotic stress (Colletotrichum graminicola). RT-qPCR analysis validated the specific dynamic changes in selected ZmDIR genes under salt (NaCl), cold (4 ℃), drought (PEG) and Colletotrichum graminicola stresses. Conclusion This study identified 41 ZmDIR genes in the maize genome. This gene family responds extensively to both biotic and abiotic stresses. Six key genes showed significant differential expression under adverse stresses. providing targets for elucidating the stress resistance mechanisms of key members and for molecular breeding.

Key words: Zea mays, DIR gene family, bioinformatics analysis, adversity stress, expression analysis

YAN Xiao-guang, DU Yan-wei, MA Zhi-yuan, WANG Bin, WANG Guo-liang, HU Dan-zhu. Genome-wide Identification and Expression Pattern Analysis of ZmDIR Gene Family in Maize[J]. Biotechnology Bulletin, 2026, 42(7): 126-137.

Figures/Tables 9

Table 1 Duplication gene pairs in ZmDIR gene family

基因对 Gene pair		模式 Mode	Ka	Ks	Ka/Ks	分化时间/百万年 Divergence time/Mya
ZmDIR39	ZmDIR11	片段复制	0.40	0.55	0.72	42.31
ZmDIR11	ZmDIR22	片段复制	0.51	0.43	1.19	33.08
ZmDIR34	ZmDIR36	片段复制	0.73	0.84	0.86	64.62
ZmDIR25	ZmDIR33	片段复制	0.20	0.49	0.41	37.69
ZmDIR38	ZmDIR22	片段复制	0.40	0.35	1.15	26.92
ZmDIR11	ZmDIR12	串联复制	0.43	0.69	0.63	53.08
ZmDIR28	ZmDIR27	串联复制	0.14	0.40	0.36	30.77

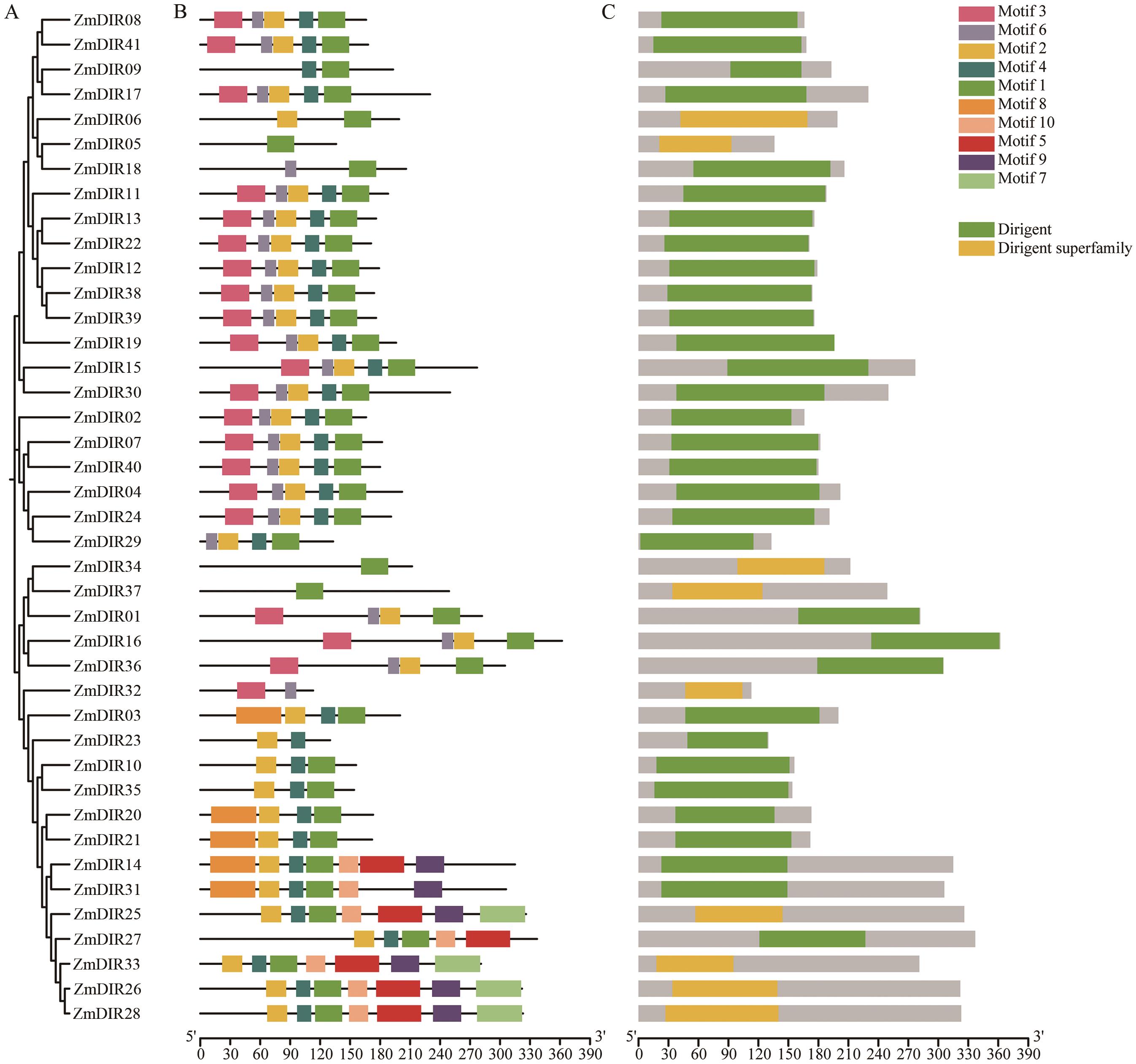

Fig. 1 Conserved motifs and conserved domain of DIR proteins in Zea mays L.

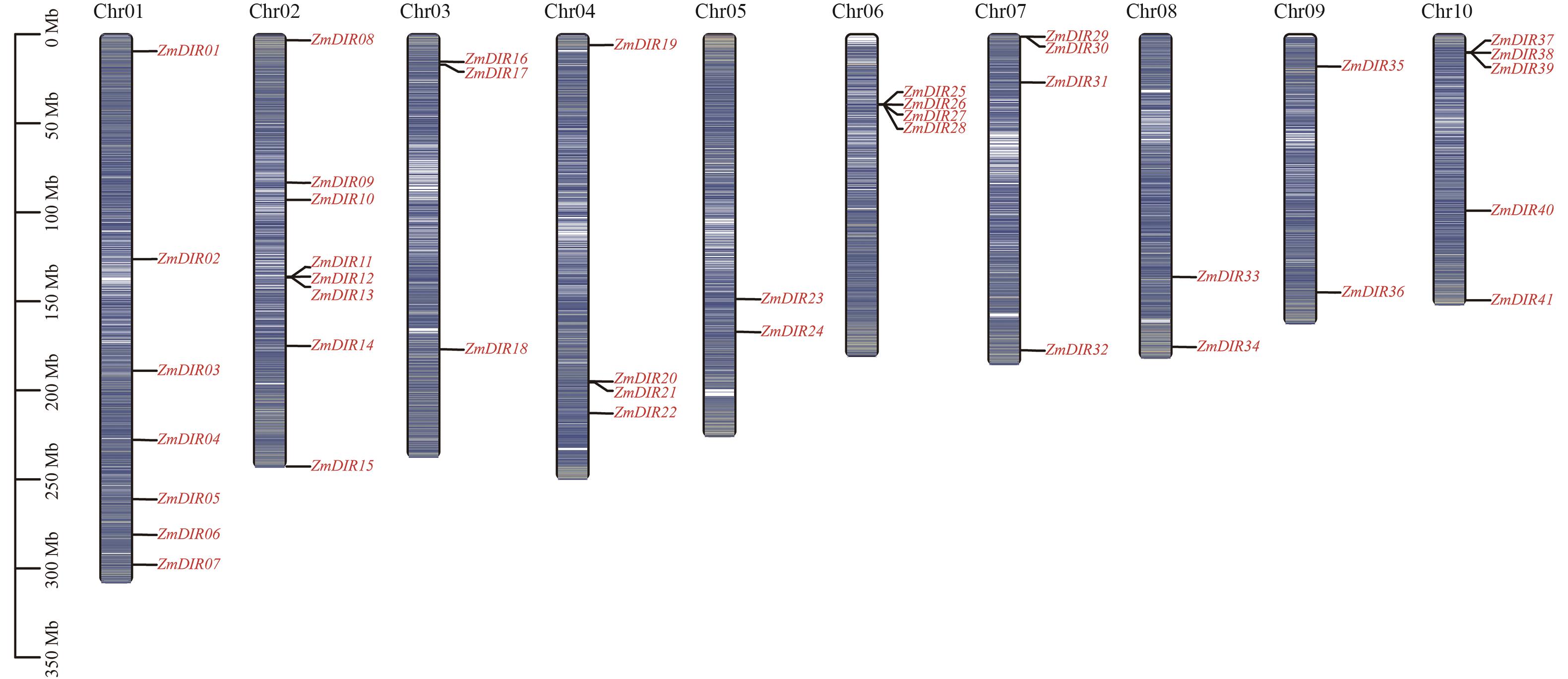

Fig. 2 Chromosomal distribution of the ZmDIR gene family in Zea mays L.

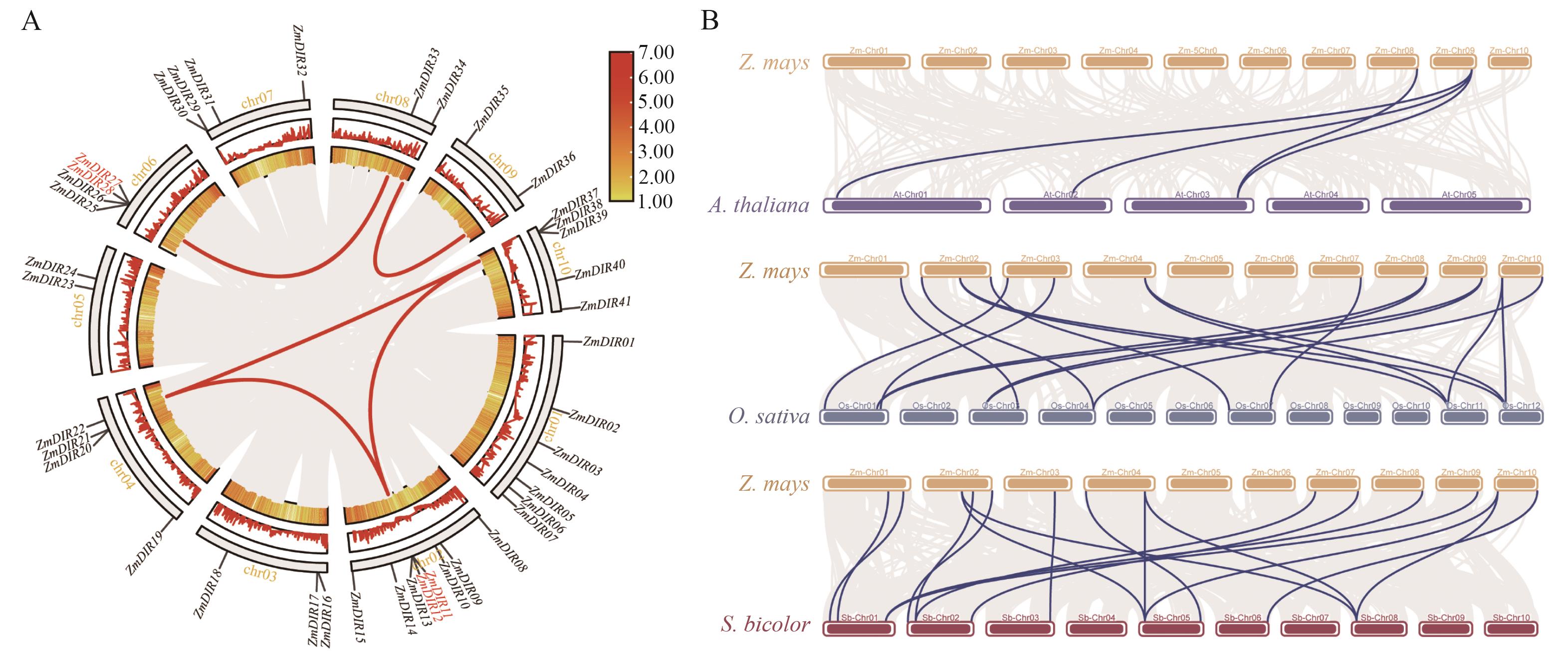

Fig. 3 Duplication events of ZmDIR genes in maizeA: Intraspecies segmental duplications are connected by red lines, tandemly duplicated genes are highlighted in red. B: Syntenic DIR genes between different species are linked by blue lines, while syntenic relationships between maize and other genes in the plant genome are displayed as gray lines in the background

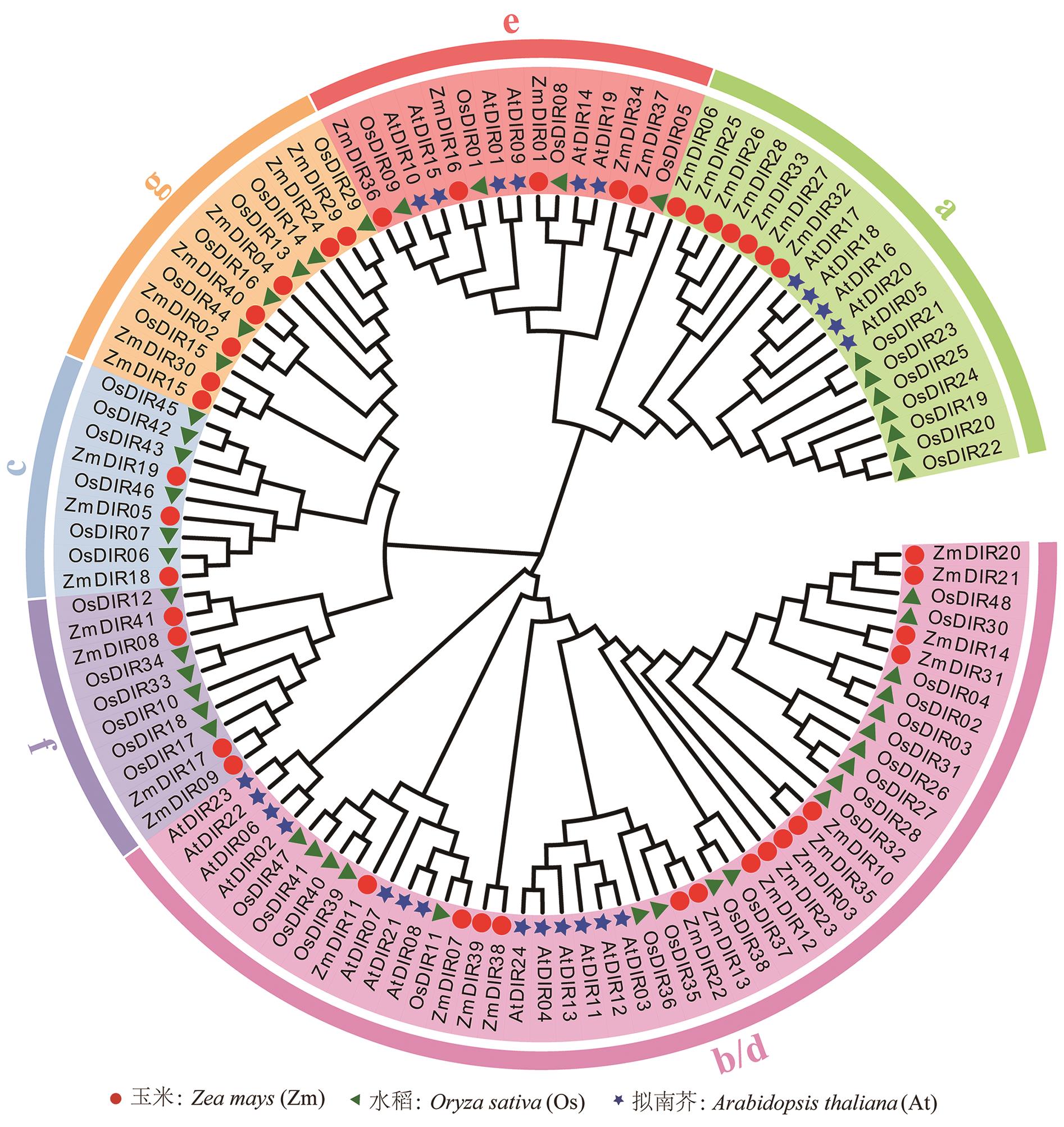

Fig. 4 Phylogenetic tree of DIR proteins in Arabidopsis, Oryza sativa and Zea mays

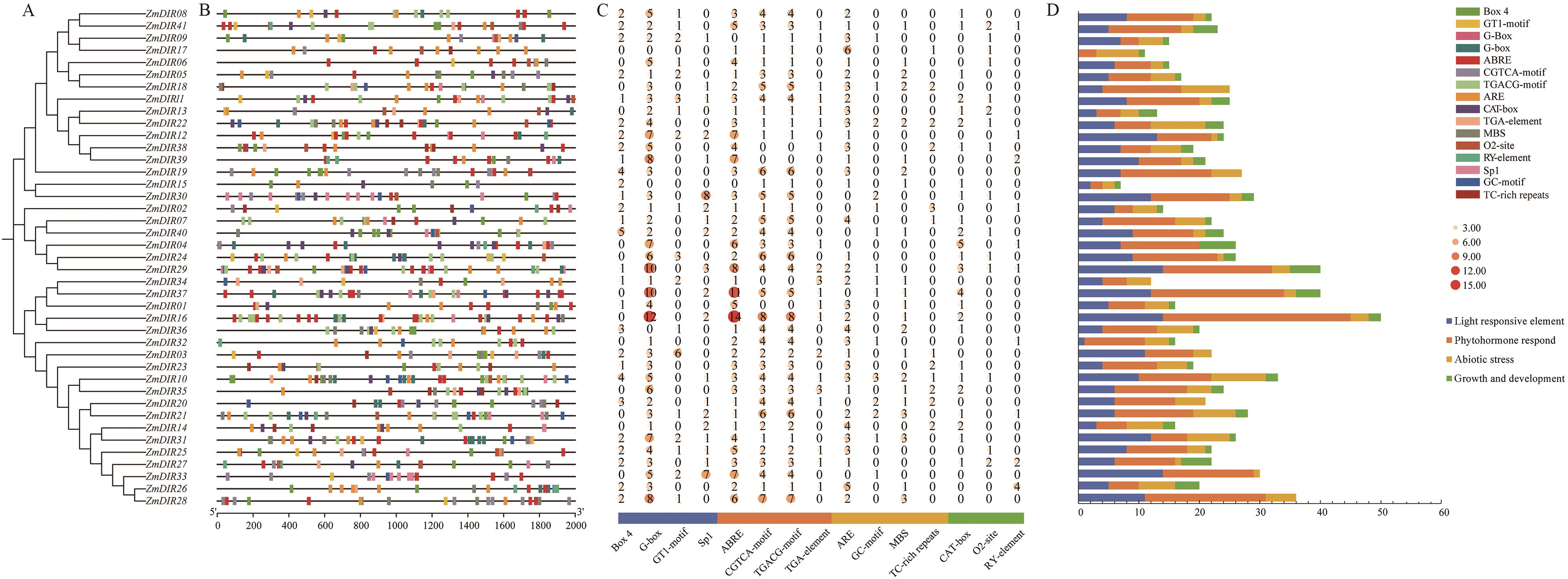

Fig. 5 Cis-acting element analysis in ZmDIR promoter regionsA: Phylogenetic tree of ZmDIR protein in Z. mays. B: The distribution of cis-regulatory elements on the ZmDIR genes promoter. C: Types of cis-acting elements in the promoter region of ZmDIR genes. D: Numbers of different types of cis-elements in the promoter regions of ZmDIR genes

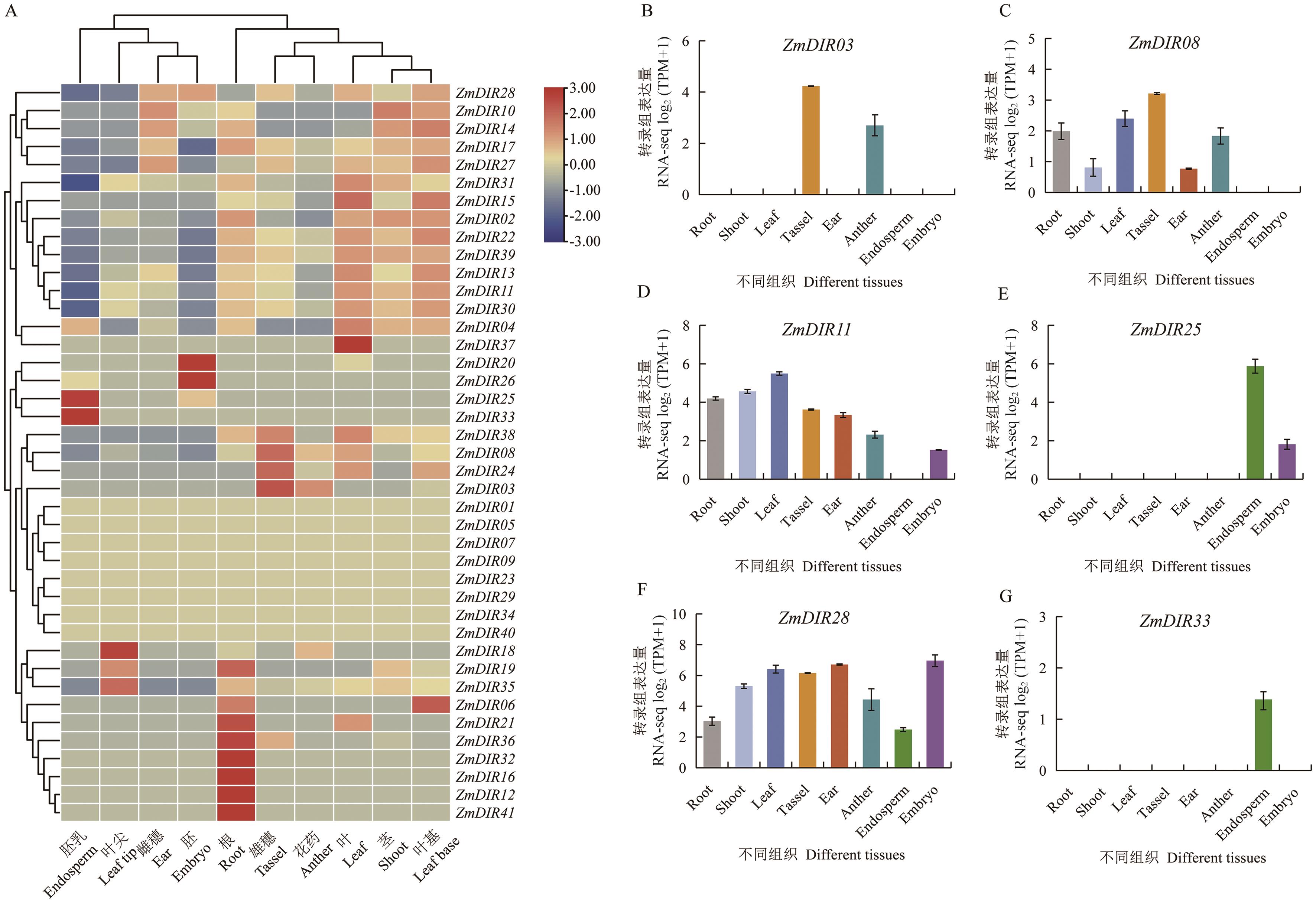

Fig. 6 Expression pattern of ZmDIR genes in different tissues of Z. maysA: Expressions of ZmDIR genes at different tissues. The tissue-specific expressions of the ZmDIR gene including the roots, stems, leaves, leaf tip, leaf base, embryo, endosperm, anther, tassel, and ear. B-G: Tissue-specific expressions of some ZmDIR genes

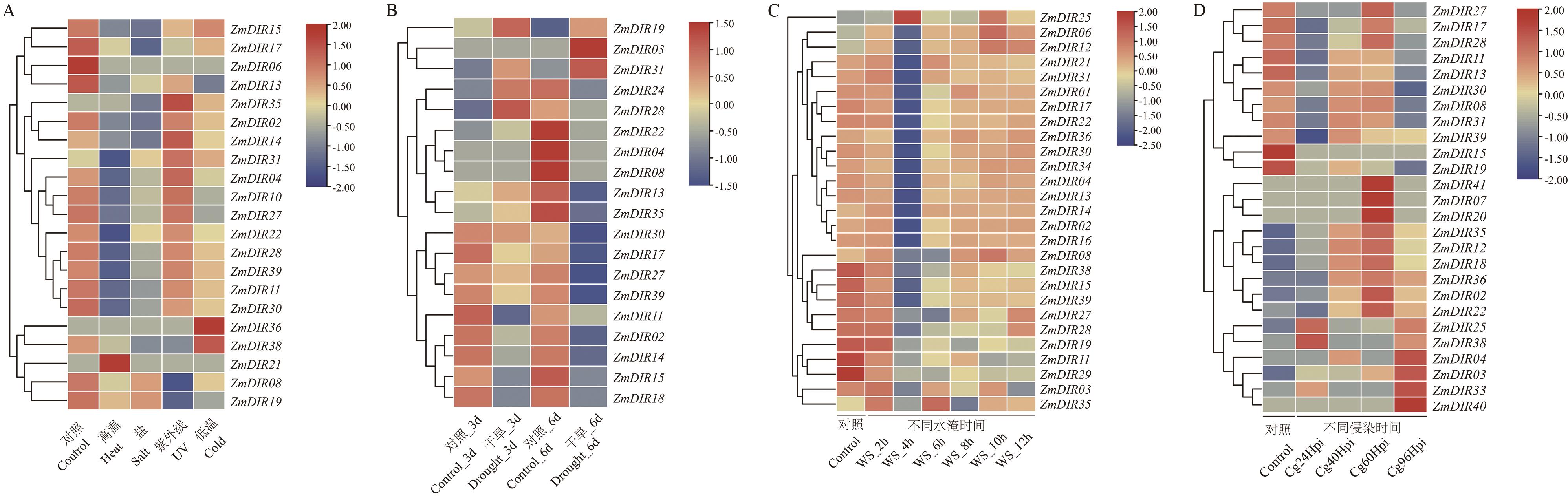

Fig. 7 Expression profiles of ZmDIR genes under adversity stress in Z. maysA: Expressions of ZmDIR genes under heat, salt, ultraviolet (UV) and cold stress. B: Expressions of ZmDIR genes under drought stress. C: Expressions of ZmDIR genes under waterlogging stress (WS). D: Expressions of ZmDIR genes in Z. mays leaves treated with Colletotrichum graminicola. Hpi: Hours post-inoculation

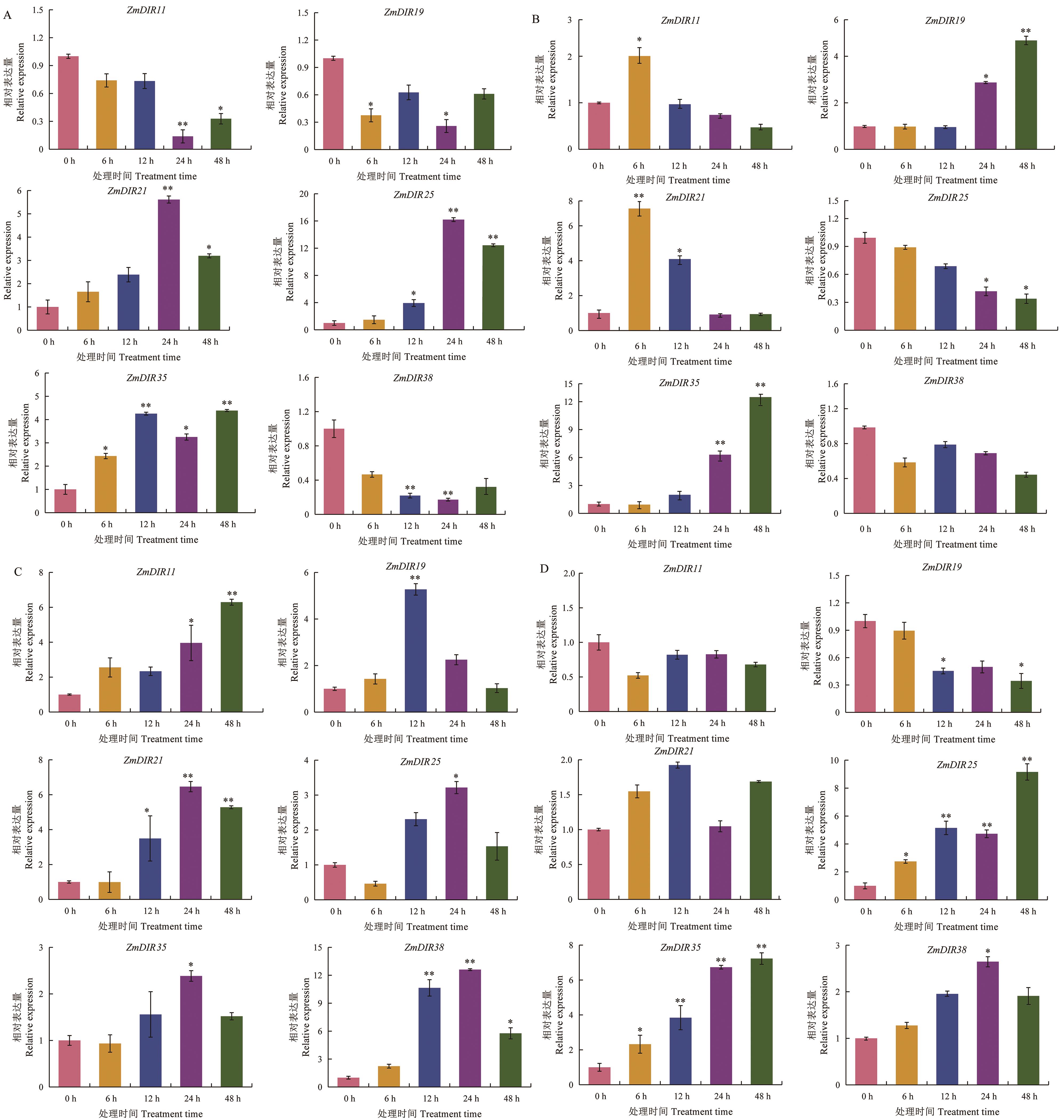

Fig. 8 Relative expressions of ZmDIR genes in the leaves under adversity stressA: 200 mmol/L NaCl treatment. B: 4 ℃ cold treatment. C: 20% PEG6000 treatment. D: Colletotrichum graminicola treatment. *P<0.05, **P<0.01

References 36

[1]	Meng Q, Kim SJ, Costa MA, et al. Dirigent protein subfamily function and structure in terrestrial plant phenol metabolism [M]//Biochemical Pathways and Environmental Responses in Plants: Part C. Amsterdam: Elsevier, 2023: 101-150.
[2]	Paniagua C, Bilkova A, Jackson P, et al. Dirigent proteins in plants: modulating cell wall metabolism during abiotic and biotic stress exposure [J]. J Exp Bot, 2017, 68(13): 3287-3301.
[3]	Halls SC, Davin LB, Kramer DM, et al. Kinetic study of coniferyl alcohol radical binding to the (+)-pinoresinol forming dirigent protein [J]. Biochemistry, 2004, 43(9): 2587-2595.
[4]	Pellegrini N, Valtueña S, Ardigò D, et al. Intake of the plant lignans matairesinol, secoisolariciresinol, pinoresinol, and lariciresinol in relation to vascular inflammation and endothelial dysfunction in middle age-elderly men and post-menopausal women living in Northern Italy [J]. Nutr Metab Cardiovasc Dis, 2010, 20(1): 64-71.
[5]	Ascacio-valdés JA, Buenrostro-figueroa JJ, Aguilera-carbo A, et al. Ellagitannins: biosynthesis, biodegradation and biological properties [J]. J Med Plants Res, 2011, 5(19): 4696-4703.
[6]	张开京, 何帅帅, 贾利, 等. 黄瓜DIR家族基因的全基因组鉴定及其表达分析 [J]. 中国农业科学, 2023, 56(4): 711-728.
	Zhang KJ, He SS, Jia L, et al. Genome-wide identification and expression analysis of DIR gene family in cucumber [J]. Sci Agric Sin, 2023, 56(4): 711-728.
[7]	Rivière C, Pawlus AD, Mérillon JM. Natural stilbenoids: distribution in the plant Kingdom and chemotaxonomic interest in Vitaceae [J]. Nat Prod Rep, 2012, 29(11): 1317-1333.
[8]	Davin LB, Lewis NG. An historical perspective on lignan biosynthesis: Monolignol, allylphenol and hydroxycinnamic acid coupling and downstream metabolism [J]. Phytochem Rev, 2003, 2(3): 257-288.
[9]	Ralph SG, Jancsik S, Bohlmann J. Dirigent proteins in conifer defense II Extended gene discovery, phylogeny, and constitutive and stress-induced gene expression in spruce (Picea spp.) [J]. Phytochemistry, 2007, 68(14): 1975-1991.
[10]	Berim A, Ebel R, Schneider B, et al. UDP-glucose: (6-methoxy) podophyllotoxin 7-O-glucosyltransferase from suspension cultures of Linum nodiflorum [J]. Phytochemistry, 2008, 69(2): 374-381.
[11]	Borges AF, Ferreira RB, Monteiro S. Transcriptomic changes following the compatible interaction Vitis vinifera-Erysiphe necator. Paving the way towards an enantioselective role in plant defence modulation [J]. Plant Physiol Biochem, 2013, 68: 71-80.
[12]	Li NH, Zhao M, Liu TF, et al. A novel soybean dirigent gene GmDIR22 contributes to promotion of lignan biosynthesis and enhances resistance to Phytophthora sojae [J]. Front Plant Sci, 2017, 8: 1185.
[13]	Liu ZW, Wang XF, Sun ZW, et al. Evolution, expression and functional analysis of cultivated allotetraploid cotton DIR genes [J]. BMC Plant Biol, 2021, 21(1): 89.
[14]	Guo JL, Xu LP, Fang JP, et al. A novel dirigent protein gene with highly stem-specific expression from sugarcane, response to drought, salt and oxidative stresses [J]. Plant Cell Rep, 2012, 31(10): 1801-1812.
[15]	Khan A, Li RJ, Sun JT, et al. Genome-wide analysis of dirigent gene family in pepper (Capsicum annuum L.) and characterization of CaDIR7 in biotic and abiotic stresses [J]. Sci Rep, 2018, 8: 5500.
[16]	Xu WY, Liu T, Zhang HY, et al. Mungbean DIRIGENT gene subfamilies and their expression profiles under salt and drought stresses [J]. Front Genet, 2021, 12: 658148.
[17]	Liao YR, Liu SB, Jiang YY, et al. Genome-wide analysis and environmental response profiling of dirigent family genes in rice (Oryza sativa) [J]. Genes Genom, 2017, 39(1): 47-62.
[18]	Thamil Arasan SK, Park JI, Ahmed NU, et al. Characterization and expression analysis of dirigent family genes related to stresses in Brassica [J]. Plant Physiol Biochem, 2013, 67: 144-153.
[19]	Ma XF, Xu WY, Liu T, et al. Functional characterization of soybean (Glycine max) DIRIGENT genes reveals an important role of GmDIR27 in the regulation of pod dehiscence [J]. Genomics, 2021, 113(1): 979-990.
[20]	Corbin C, Drouet S, Markulin L, et al. A genome-wide analysis of the flax (Linum usitatissimum L.) dirigent protein family: from gene identification and evolution to differential regulation [J]. Plant Mol Biol, 2018, 97(1): 73-101.
[21]	Ahmadi B. In vitro - and in vivo-based approaches for doubled haploid production in Zea mays L.: challenges and opportunities [J]. Theor Appl Genet, 2025, 138(4): 87.
[22]	Duan W, Xue BP, He YQ, et al. Genome-wide identification and expression pattern analysis of dirigent members in the Genus Oryza [J]. Int J Mol Sci, 2023, 24(8): 7189.
[23]	Gong LP, Li BB, Zhu T, et al. Genome-wide identification and expression profiling analysis of DIR gene family in Setaria italica [J]. Front Plant Sci, 2023, 14: 1243806.
[24]	Chen CJ, Wu Y, Li JW, et al. TBtools-Ⅱ: a “one for all, all for one” bioinformatics platform for biological big-data mining [J]. Mol Plant, 2023, 16(11): 1733-1742.
[25]	Blanc G, Wolfe KH. Widespread paleopolyploidy in model plant species inferred from age distributions of duplicate genes [J]. Plant Cell, 2004, 16(7): 1667-1678.
[26]	William Roy S, Gilbert W. The evolution of spliceosomal introns: patterns, puzzles and progress [J]. Nat Rev Genet, 2006, 7(3): 211-221.
[27]	赵玉雪, 任学军, 李云, 等. 谷子Dirigent家族基因鉴定与分析 [J]. 核农学报, 2024, 38(9): 1647-1660.
	Zhao YX, Ren XJ, Li Y, et al. Genome-wide identification of dirigent gene family and analysis in Setaria italica [J]. J Nucl Agric Sci, 2024, 38(9): 1647-1660.
[28]	Xu GX, Guo CC, Shan HY, et al. Divergence of duplicate genes in exon-intron structure [J]. Proc Natl Acad Sci U S A, 2012, 109(4): 1187-1192.
[29]	Moore RC, Purugganan MD. The early stages of duplicate gene evolution [J]. Proc Natl Acad Sci U S A, 2003, 100(26): 15682-15687.
[30]	Pfeil BE, Schlueter JA, Shoemaker RC, et al. Placing paleopolyploidy in relation to taxon divergence: a phylogenetic analysis in legumes using 39 gene families [J]. Syst Biol, 2005, 54(3): 441-454.
[31]	Burlat V, Kwon M, Davin LB, et al. Dirigent proteins and dirigent sites in lignifying tissues [J]. Phytochemistry, 2001, 57(6): 883-897.
[32]	Shi HY, Liu ZH, Zhu L, et al. Overexpression of cotton (Gossypium hirsutum) dirigent1 gene enhances lignification that blocks the spread of Verticillium dahliae [J]. Acta Biochim Biophys Sin: Shanghai, 2012, 44(7): 555-564.
[33]	Song M, Peng XY. Genome-wide identification and characterization of DIR genes in Medicago truncatula [J]. Biochem Genet, 2019, 57(4): 487-506.
[34]	Zhong RQ, Lee C, Zhou JL, et al. A battery of transcription factors involved in the regulation of secondary cell wall biosynthesis in Arabidopsis [J]. Plant Cell, 2008, 20(10): 2763-2782.
[35]	Böttcher C, von Roepenack-Lahaye E, Schmidt J, et al. Metabolome analysis of biosynthetic mutants reveals a diversity of metabolic changes and allows identification of a large number of new compounds in Arabidopsis [J]. Plant Physiol, 2008, 147(4): 2107-2120.
[36]	Xu L, Zhu LF, Tu LL, et al. Lignin metabolism has a central role in the resistance of cotton to the wilt fungus Verticillium dahliae as revealed by RNA-Seq-dependent transcriptional analysis and histochemistry [J]. J Exp Bot, 2011, 62(15): 5607-5621.
