Pathogen Identification and Its Compound Formulations’ Control Efficacy against Solidago canadensis

doi:10.13560/j.cnki.biotech.bull.1985.2025-1218

Abstract

Abstract:

Objective This study aimed to isolate pathogenic fungi with high efficacy against Canadian goldenrod (Solidago canadensis L.), develop a combined formulation integrating the fungal agent with a chemical herbicide, and evaluate its control efficacy in pot experiments. Methods Pathogenic fungi from diseased S. canadensis leaves and roots were isolated, screened, and identified via morphological and molecular methods. Furthermore, chemical herbicides compatible with the fungi were screened, and a compound wettable powder was developed. The control efficacy of this formulation was then tested in pot experiments. Results The isolated pathogen was identified as Diaporthe sojae strain SC02. The compound wettable powder formulation consisted of the following components: 3% Tween 80, 1% sodium lignosulfonate, 0.9% fulvic acid, 0.5 μL/mL 20% fluroxypyr, 7% kaolin, and 40% SC02 strain spores (1×10⁹ CFU/mL). Pot experiment results showed that at concentrations ranging from 0.83 to 1.25 g/L, the compound formulation achieved a plant control efficacy of 70%–90% and a fresh weight control efficacy of 63%–73% against S. canadensis, with no adverse effects observed on surrounding plants. Conclusion The wettable powder formulated with SC02 meets national quality standards, exhibits nearly 90% control efficacy against S. canadensis plants, and has a low recurrence rate, demonstrating satisfactory weed control performance.

Key words: Solidago canadensis, Diaporthe sojae, combined wettable powder, biological control

JIN Wen-tao, LI Ying-xin, YANG Shao-hong, LIU Ying-gao, ZHAI Sen, JIANG Ping, SONG Lei, LI Shu-jiang. Pathogen Identification and Its Compound Formulations’ Control Efficacy against Solidago canadensis[J]. Biotechnology Bulletin, doi: 10.13560/j.cnki.biotech.bull.1985.2025-1218.

Figures/Tables 13

Table 1 Primers for RT-qPCR

基因名称 Gene name	引物名称 Primer name	序列 Sequence （5′-3′）
ITS	ITS1	TCCCTAGCTGAACCTCCCC
ITS	ITS4	TCCTCCGCTTATTGATATCC
CAL	CAL-F	GAGTTCAAGGAGGCCTTCTCCC
CAL	CAL-R	CATCTTCTGGCCATCATGG
EF-1α	B.d-F	CATCGAGAAGTTCGAGAAGG
EF-1α	B.d-R	TACTTGAAGGAACCCTTACC
HIS	H3F	AGGTCCACTGGTGGCAAG
HIS	H3R	GCGGGCGAGCTGGATGTCCTT

Table 2 Screening of the optimal ratio of three adjuvants

序号 Serial number	实验因素 Experimental factor
序号 Serial number	润湿剂 Wetting agent （%）	分散剂 Dispersant （%）	紫外保护剂 UV protectant （%）
1	1	1	0.5
2	5	3	0.5
3	3	5	0.5
4	5	1	0.7
5	3	3	0.7
6	1	5	0.9
7	3	1	0.9
8	1	3	0.9
9	5	5	0.9

Table 3 Isolation results of pathogenic fungi

编号 No.	叶片分离株数 Number of leaf isolates	叶片分离率 Leaf separation rate （%）	根部分离株数 Number of root isolates	根部分离率 Root separation rate （%）
SC01	7	7	0	0
SC02	43	43	69	69
SC03	4	4	0	0
SC04	5	5	12	12
SC05	10	10	0	0
SC06	17	17	0	0
SC07	14	14	19	19

Table 4 Pathogenicity of screened strains against S. canadensis and its non-host plants

编号 No.	叶部病级 Leaf disease grade			根部病级 Root disease grade
编号 No.	加拿大一枝黄花 S. canadensis	香樟 C. camphora	楠木 P. zhennan	加拿大一枝黄花 S. canadensis	香樟 C. camphora	楠木 P. zhennan
SC01	1	2	1	0	0	0
SC02	5	1	0	5	0	0
SC03	1	0	1	0	0	0
SC04	2	2	2	0	0	1
SC05	2	3	3	0	0	0
SC06	1	4	5	0	0	0
SC07	4	5	4	1	0	0

Fig. 1 Leaf and root inoculation diagramA-C: Leaf sterile agar block control (C. camphora, P. zhennan, S. canadensis, the same below); D-F: leaf inoculation with SC02; G-I: leaf inoculation with SC06; J-L: leaf inoculation with SC07; M-O: root inoculation with SC02

Fig. 2 Identification results of SC02 strainA: Front view of the colony; B: back view of the colony; C: sporulation medium; D: ascus shell; E: ascus; F: α-conidia; G: β-conidia; H: phylogenetic tree of strains

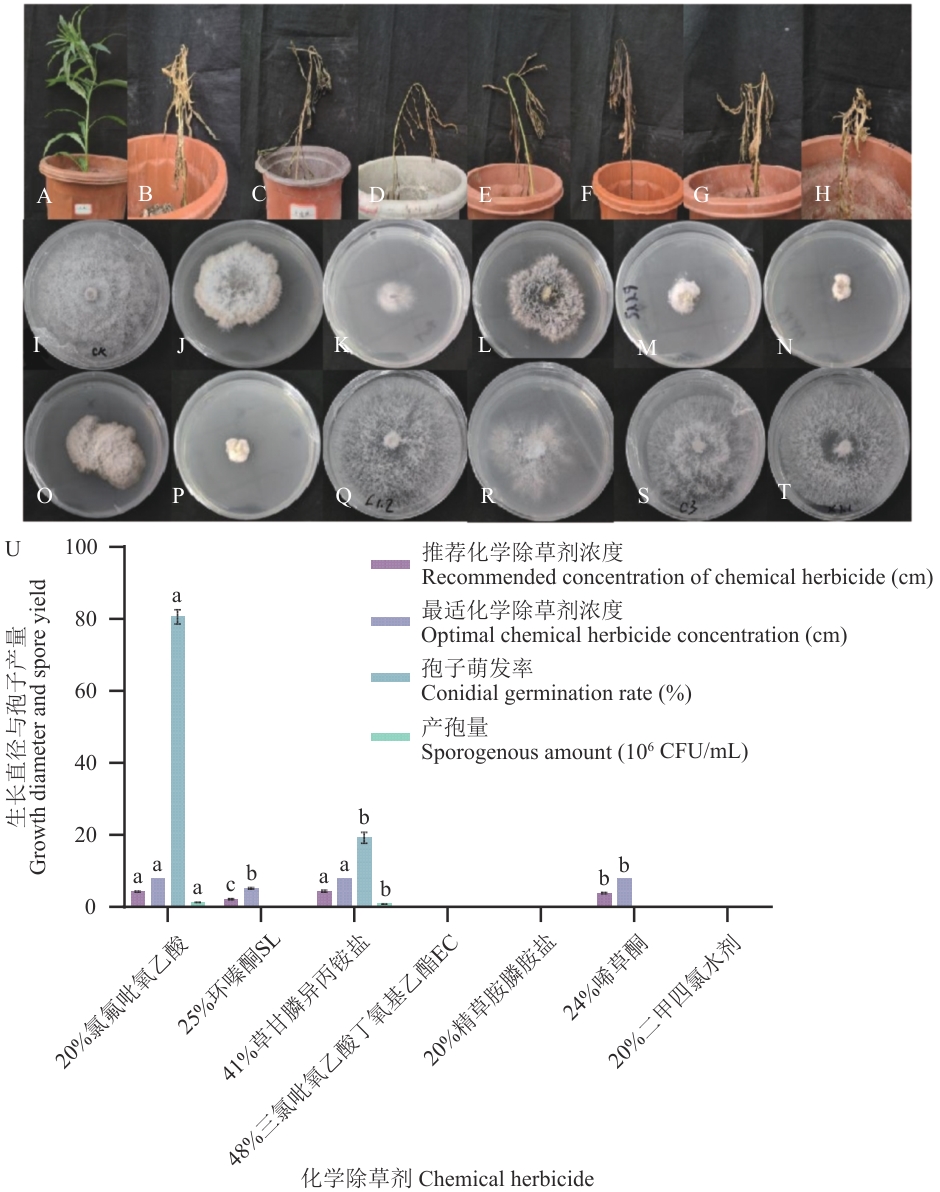

Fig. 3 Screening results of compound herbicidesA-H: Single-dose test. CK, 20% clopyralid, 25% carfentrazone, 41% glyphosate isopropylamine salt, 48% triclopyr butoxyethyl ester, 10% quizalofop-p-ethyl, 20% flumioxazin, 20% dimethachlor aqueous solution group, respectively. I-P: Screening plate for recommended concentrations of chemical herbicides. CK, 20% clopyralid, 25% carfentrazone SL, 41% glyphosate isopropylamine salt, 48% triclopyr butoxyethyl ester EC, 10% quizalofop-p-ethyl, 24% flumioxazin, 20% dimethachlor aqueous solution group, respectively. Q-T: Screening plate for optimal concentrations of chemical herbicides. 20% clopyralid, 25% carfentrazone SL, 41% glyphosate isopropylamine salt, 24% flumioxazin group, respectively. U: Bar chart of screening results for compound herbicides against S. canadensis. The recommended concentration refers to the dilution concentration officially recommended for the purchased herbicide. The optimal concentration indicates the dilution of the recommended concentration that supports the optimal growth of the pathogen. Different lowercase letters indicate significant differences among different treatments at the same time (P0.001), the same below

Table 5 Screening results of individual chemical herbicide

化学除草剂 Chemical herbicides	推荐浓度 Recommended concentration	死亡率 Mortality rate （%）	死亡时间 Time of death （d）	死亡症状 Symptoms of death
20%氯氟吡氧乙酸	1 μL/mL	100	4	全株死亡，茎秆叶片全部萎蔫枯死
25%环嗪酮SL	0.02 g/mL	100	8	全株死亡，但有少量叶片茎秆泛绿，短时间未完全失活
41%草甘膦异丙铵盐	0.02 g/mL	100	6	全株死亡，但部分茎秆短时间未失活
48%三氯吡氧乙酸丁氧基乙酯EC	10 μL/mL	90	9	大部分植株枯死，但有少量植株茎秆存活
10%精草胺膦胺盐	10 μL/mL	100	8	全株死亡，茎秆叶片全部萎蔫枯死
24%唏草酮	1 μL/mL	100	5	全株死亡，茎秆叶片全部萎蔫枯死
20%二甲四氯水剂	5 μg/mL	100	4	全株死亡，茎秆叶片全部萎蔫枯死

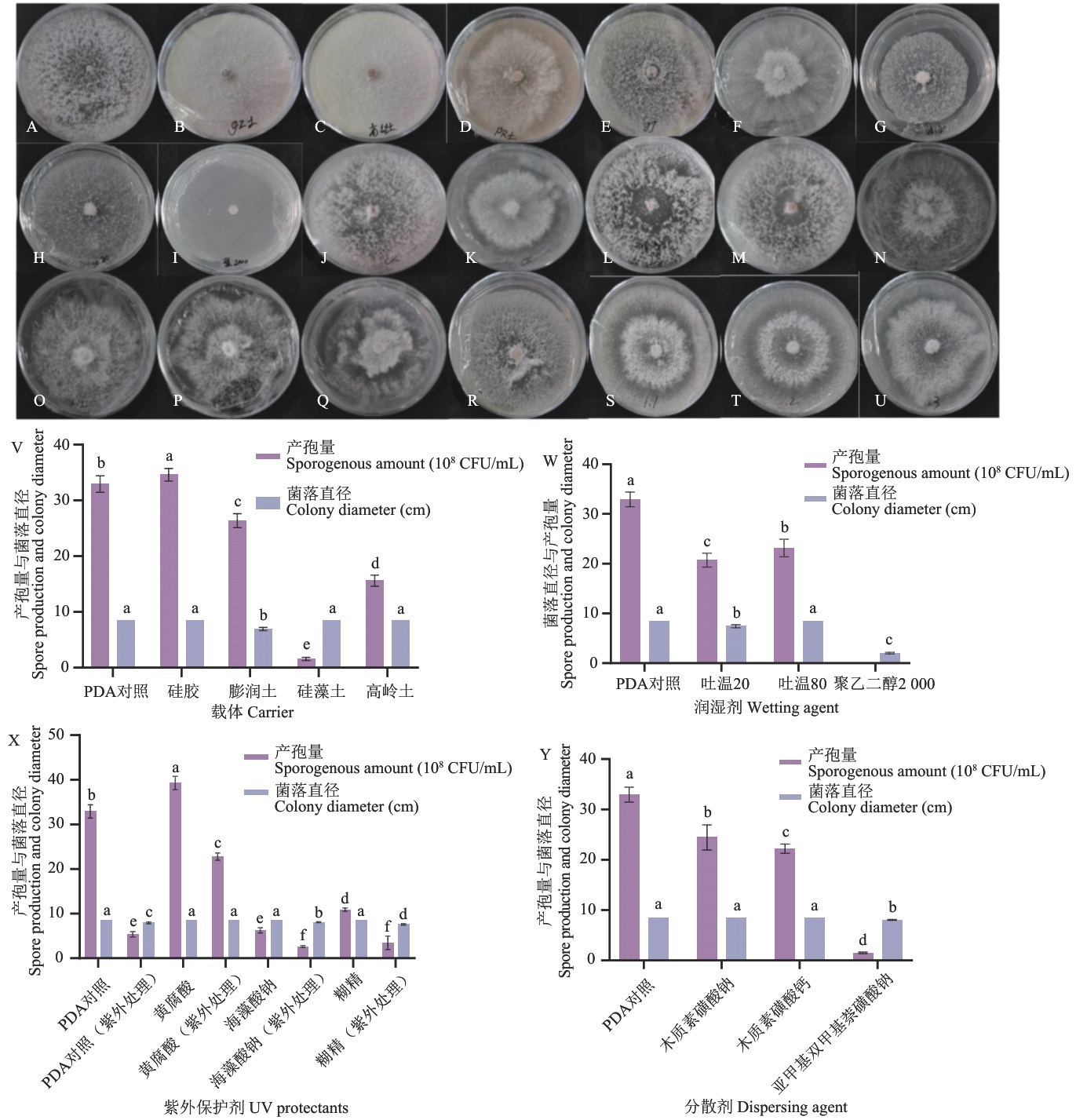

Fig. 4 Screening results for carriers and three adjuvantsA-E: Carrier (CK, diatomaceous earth, kaolin, bentonite, silica gel) screening results. F-I: Wetting agent (CK, Tween 20, Tween 80, PEG 2000) screening results. J-Q: Ultraviolet protection agent (CK, UV-treated CK, humic acid, UV-treated humic acid, sodium alginate, UV-treated sodium alginate, dextrin, UV-treated dextrin) screening results. R-U: Dispersant (CK, sodium lignosulfonate, calcium lignosulfonate, methylene bis-naphthalenesulfonate) screening results. V-Y: Screening results for carrier, wetting agent, ultraviolet protection agent, and dispersant

Table 6 Determination of wetting time of different wetting agents

润湿剂 Wetting agents	（润湿时间 Wetting time （±SE）（s））
润湿剂 Wetting agents	1%	3%	5%
吐温20 Tween 20	32±0.58b	20±0.52b	11±1.88b
吐温80 Tween 80	24±0.68c	14±1.28c	10±0.75b
PEG2000	54±0.78a	45±1.05a	36±0.62a

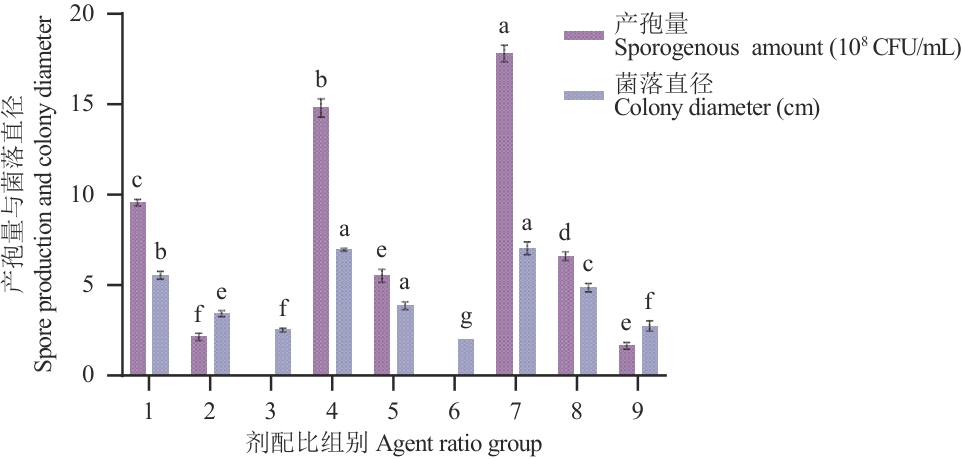

Fig. 5 Screening results of the optimal ratio of three additives

Table 7 Quality test results of wettable powder mixture of D. sojae SC02

指标 Index	国家标准值 National standards	测量值 Measured value
润湿时间 Wetting time （s）	≤180	36±1
悬浮率 Suspensibility （%）	≥70	74
含孢量 Spore content （CFU/g）	-	1.65×10⁹
pH	5.0-8.0	6.5
细度 Fineness （%）	≥90	92
起泡性 Frothiness （mL）	≤10 mL	7 mL
干燥减量 Drying reduction （%）	≤6	5.65
贮存稳定性 Storage stability （%）	≥80	≥81.5

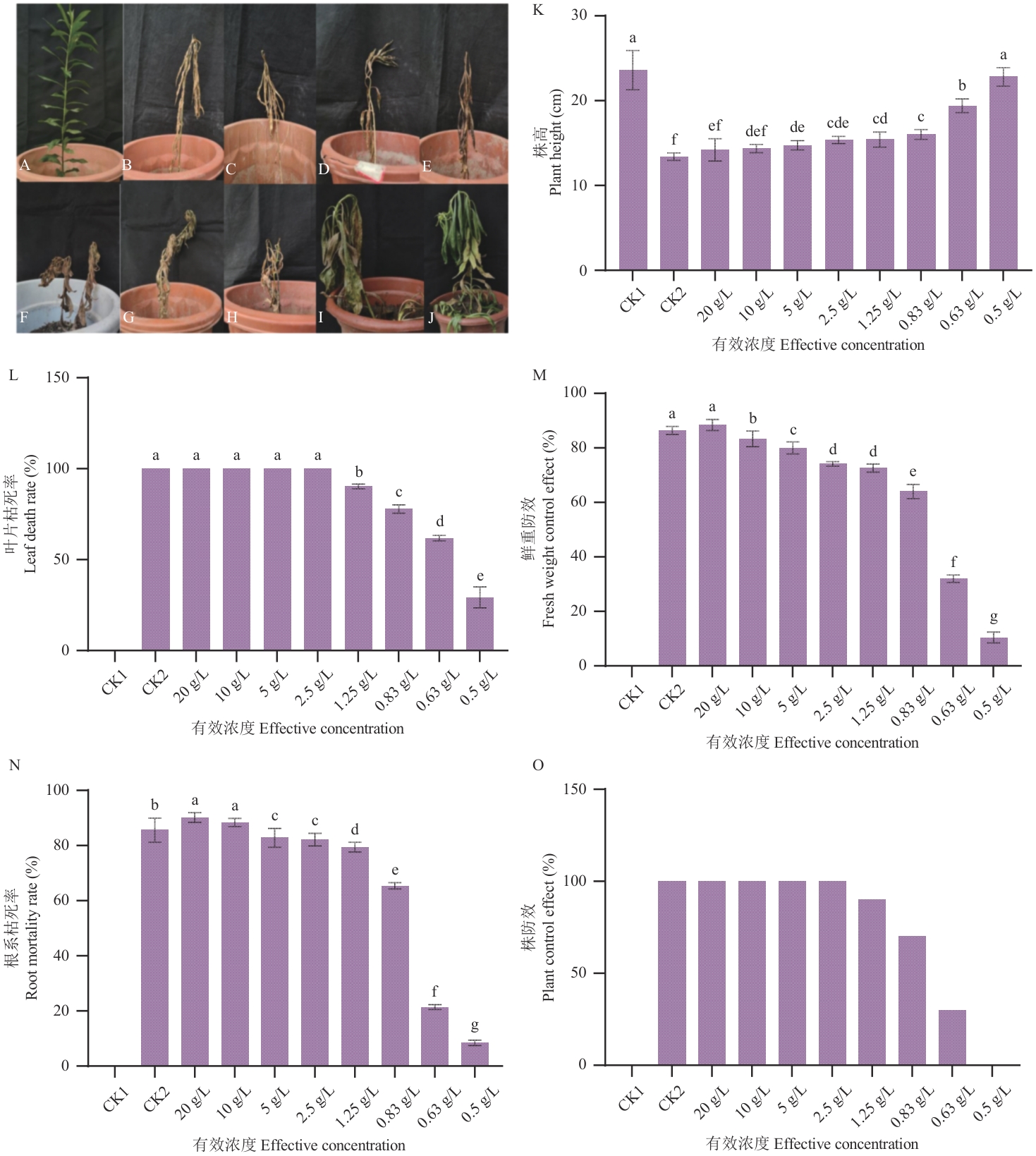

Fig. 6 Results of the pot experimentsA-J: CK1 distilled water, CK2 clopyralid, 20, 10, 5, 2.5, 1.25, 0.83, 0.63, 0.5 g/L dilution concentration treatment effect. K-O: Plant height, leaf necrosis rate, fresh weight control effect, root necrosis rate, and plant control effect results in potted control trials
