Cloning and Expression Analysis of ChChlH Gene in Cymbidium hybrid

doi:10.13560/j.cnki.biotech.bull.1985.2025-1359

Abstract

Abstract:

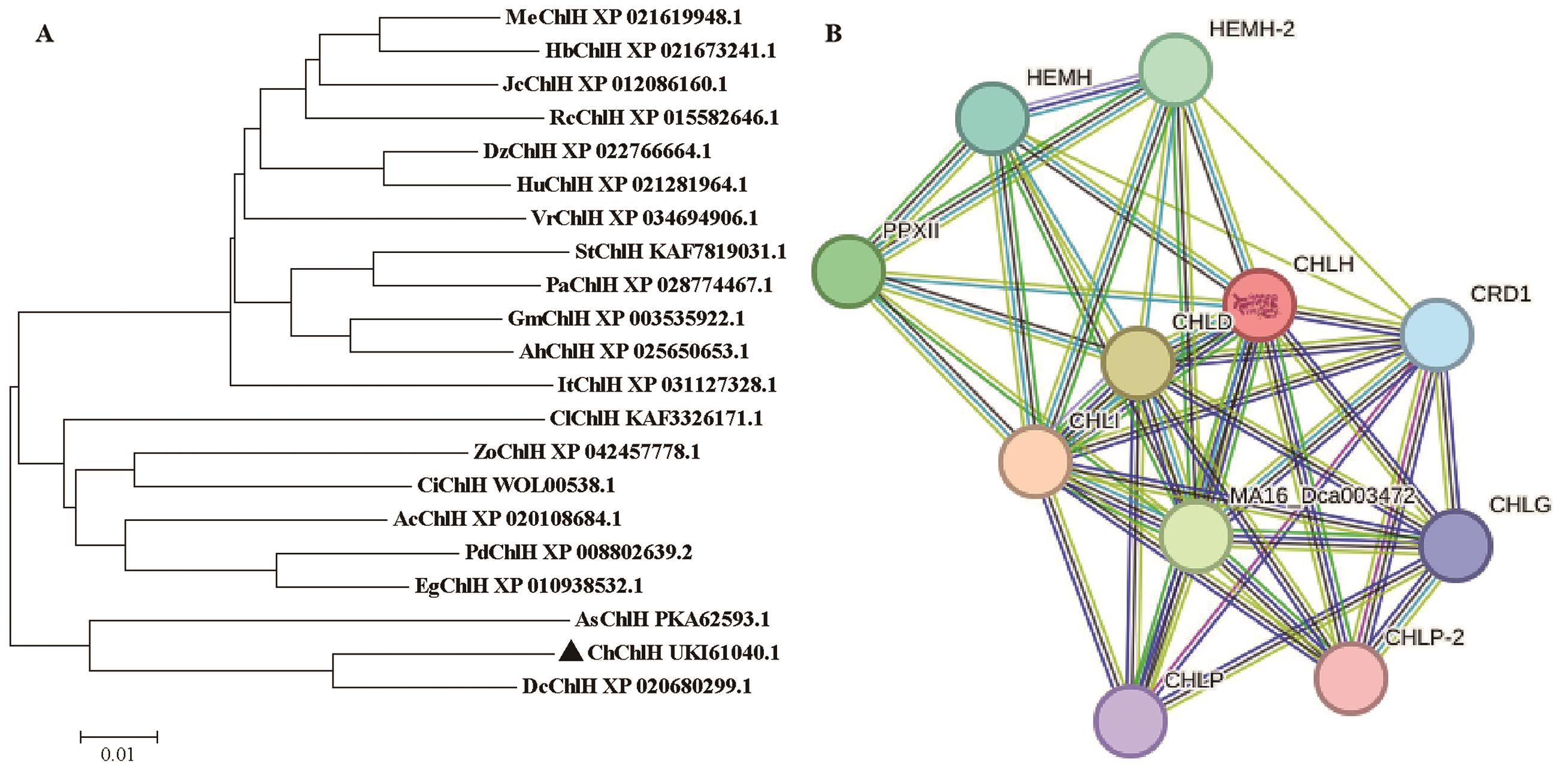

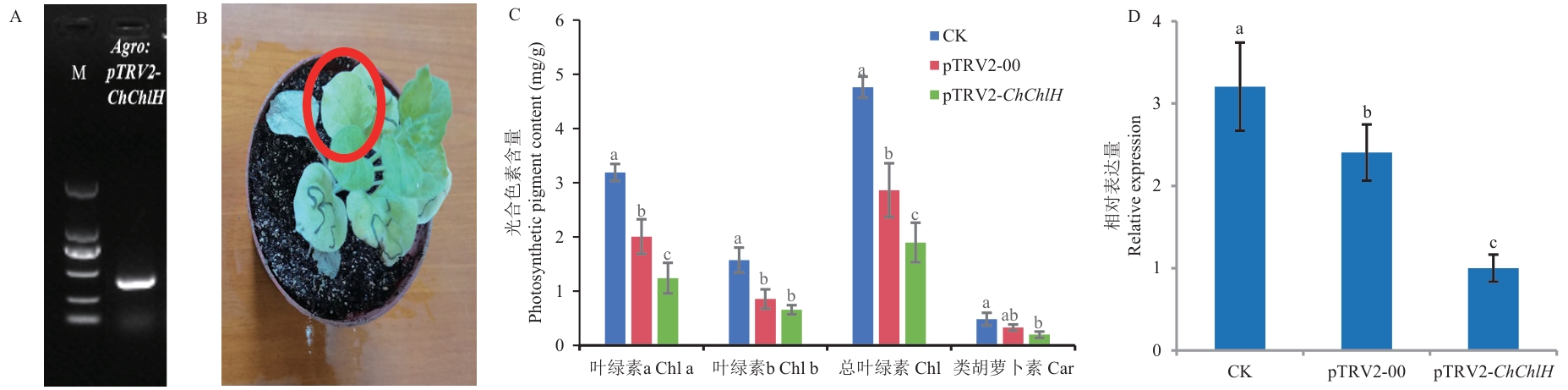

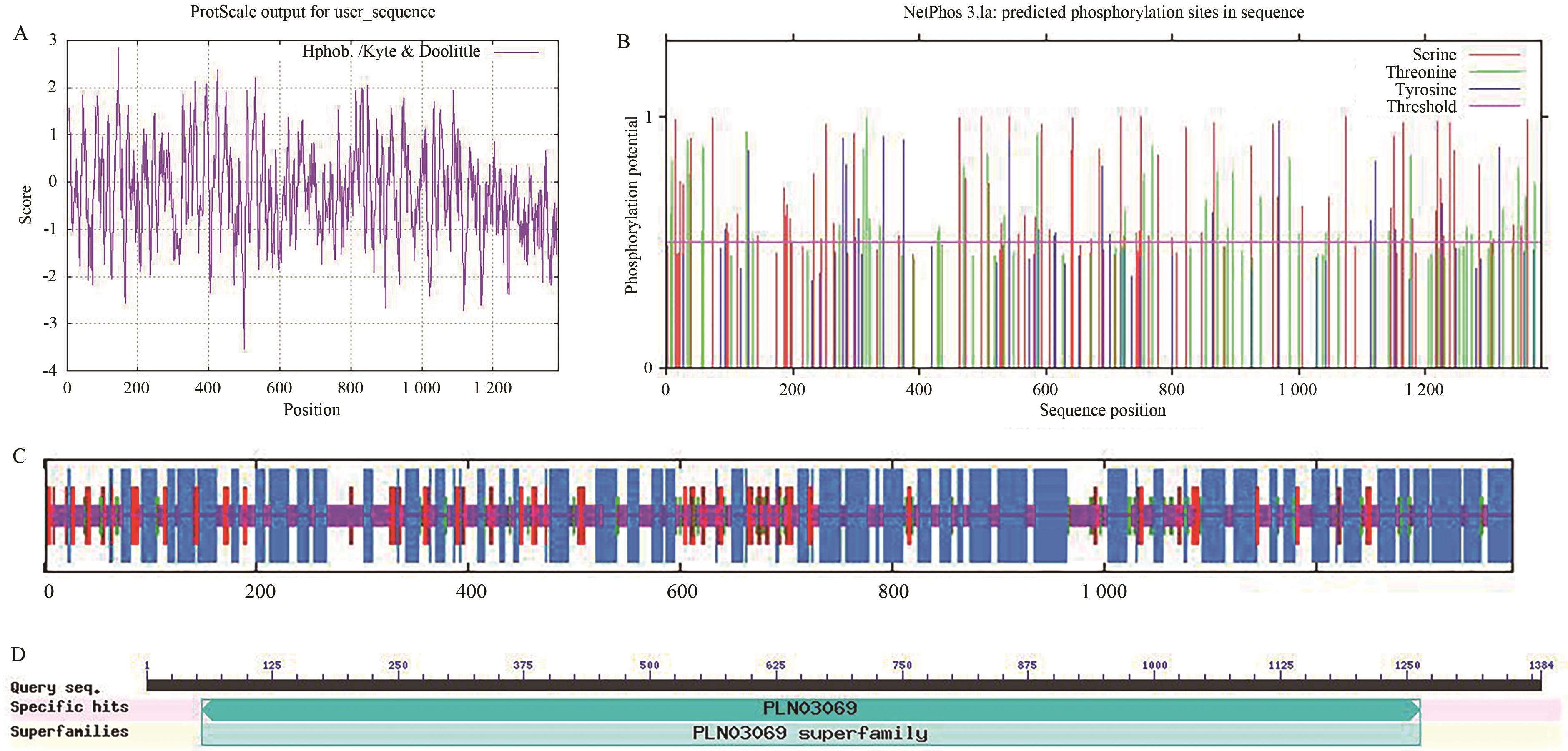

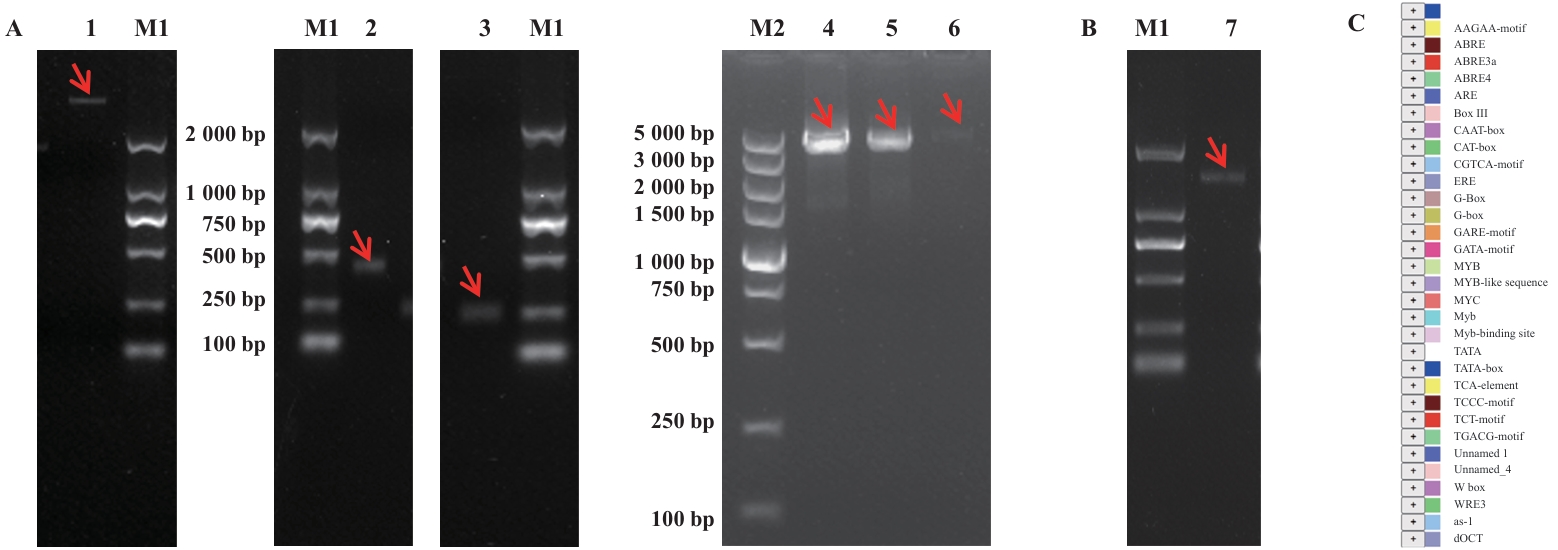

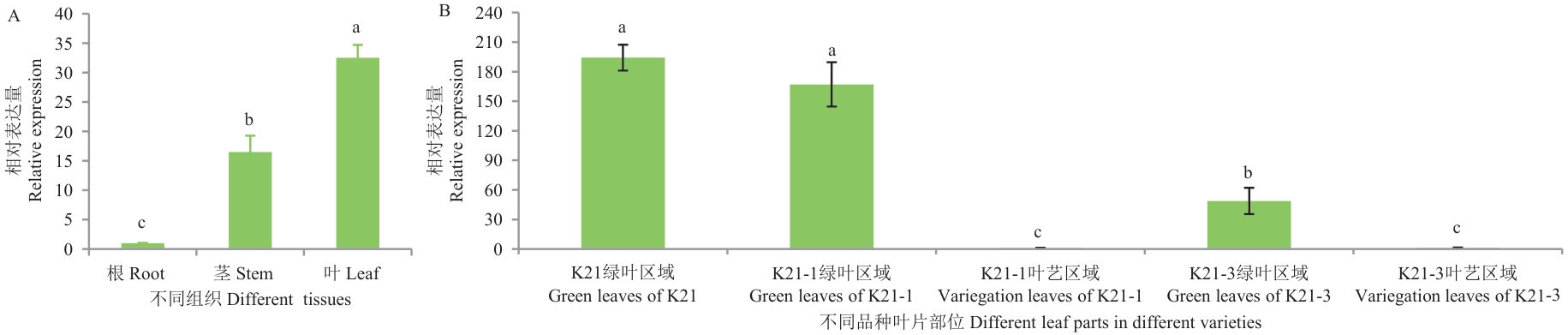

Objective The magnesium chelatase H subunit gene (ChlH) was cloned from Cymbidium hybrid, and its expression patterns and function were analyzed, thereby providing important insights into the regulatory role of the ChlH gene in leaf color variation in Cymbidium hybrid. Method The ChChlH gene sequence was cloned by RT-PCR and RACE, followed by bioinformatics analysis. The promoter sequence of the ChChlH gene was obtained via genome walking, and its cis-acting elements were analyzed. The expression patterns of ChChlH in different tissues and different cultivars were examined using RT-qPCR. Furthermore, the effect of ChChlH silencing on leaf color variation in Nicotiana tabacum was verified using a virus-induced gene silencing (VIGS) system. Result The full-length sequence of ChChlH is 4 321 bp, with a coding region of 4 155 bp encoding 1 384 amino acids, and its GenBank accession number is OL741687.1. Bioinformatics analysis indicates that the ChChlH protein might be a hydrophilic and unstable protein, lacking a signal peptide and transmembrane domains, and belongs to the PLN03069 superfamily. ChChlH showed high affinity with the ChlH protein from Dendrobium catenatum, which is known to interact with ChlI and ChlD. Promoter analysis revealed that the ChChlH promoter contains light-responsive elements, as well as cis-acting elements involved in responses to abscisic acid, ethylene, gibberellin, salicylic acid, and methyl jasmonate, along with MYB and WRKY transcription factor binding sites. Expression analysis showed that ChChlH was highly expressed in leaves, with significantly higher transcript levels in green leaf areas than in variegated regions. Silencing of ChChlH in N. tabacum led to a significant reduction in photosynthetic pigment content and ChlH expression in older leaves. Conclusion The study clarified the sequence and expression pattern of the ChChlH gene, which may play an important role in chlorophyll synthesis and the variation of leaf color.

Key words: Cymbidium hybrid, magnesium chelatase H subunit gene, gene cloning, bioinformatics analysis, expression analysis

LIN Rong-yan, KONG Lan, WU Jian-she, LIN Bing, ZHONG Huai-qin. Cloning and Expression Analysis of ChChlH Gene in Cymbidium hybrid[J]. Biotechnology Bulletin, 2026, 42(10): 229-237.

Figures/Tables 6

References 31

[1]	Yang GS, Yao HX, He FM, et al. Unveiling CcR2R3-MYB: a key regulator of leaf pigmentation in Cymbidium Orchids [J]. Horticulturae, 2025, 11(2): 190.
[2]	Xu DW, Lin L, Liu XR, et al. Characterization of a tomato chlh mis-sense mutant reveals a new function of ChlH in fruit ripening [J]. Plant Biotechnol J, 2025, 23(3): 911-926.
[3]	Tran LH, Kim JG, Jung S. Expression of the Arabidopsis Mg-chelatase H subunit alleviates iron deficiency-induced stress in transgenic rice [J]. Front Plant Sci, 2023, 14: 1098808.
[4]	Sun MM, Shen YY. Integrating the multiple functions of CHLH into chloroplast-derived signaling fundamental to plant development and adaptation as well as fruit ripening [J]. Plant Sci, 2024, 338: 111892.
[5]	Zhang CY, Liu HR, Wang JY, et al. A key mutation in magnesium chelatase I subunit leads to a chlorophyll-deficient mutant of tea (Camellia sinensis) [J]. J Exp Bot, 2024, 75(3): 935-946.
[6]	Wang SL, Chen M, Zhou QH, et al. Transcriptome-metabolome integration reveals mechanisms of leaf color variation in leafy vegetable sweet potato [J]. Horticulturae, 2025, 11(11): 1317.
[7]	Ma YY, Shi JC, Wang DJ, et al. A point mutation in the gene encoding magnesium chelatase I subunit influences strawberry leaf color and metabolism [J]. Plant Physiol, 2023, 192(4): 2737-2755.
[8]	Shi C, Gu MF, Huang YJ, et al. Integrated genomic and transcriptomic analysis reveals the mechanisms underlying leaf variegation in ‘Gonggan’ mandarin [J]. BMC Plant Biol, 2025, 25: 472.
[9]	Fan LQ, Hou Y, Zheng L, et al. Characterization and fine mapping of a yellow leaf gene regulating chlorophyll biosynthesis and chloroplast development in cotton (Gossypium arboreum) [J]. Gene, 2023, 885: 147712.
[10]	Chong XR, Wang Y, Xu XY, et al. Efficient virus-induced gene silencing in Ilex dabieshanensis using tobacco rattle virus [J]. Forests, 2023, 14(3): 488.
[11]	Dong XY, Huang LB, Chen QS, et al. Physiological and anatomical differences and differentially expressed genes reveal yellow leaf coloration in shumard oak [J]. Plants, 2020, 9(2): 169.
[12]	唐琴, 段丽丽, 皮凯, 等. 烟草NtChlH基因的克隆及表达模式分析 [J]. 西南农业学报, 2024, 37(12): 2592-2601.
	Tang Q, Duan LL, Pi K, et al. Cloning and expression pattern analysis of NtChlH gene from Nicotiana tabacum [J]. Southwest China J Agric Sci, 2024, 37(12): 2592-2601.
[13]	Zhang M, Shen JS, Wu YT, et al. Comparative transcriptome analysis identified ChlH and POLGAMMA2 in regulating yellow-leaf coloration in Forsythia [J]. Front Plant Sci, 2022, 13: 1009575.
[14]	钟淮钦, 林榕燕, 吴建设, 等. 杂交兰‘紫妍氏’叶艺性状的生理生化与细胞结构分析 [J]. 西北植物学报, 2021, 41(7): 1165-1174.
	Zhong HQ, Lin RY, Wu JS, et al. Physiological, biochemical and cell structure analysis of leaf mutant traits in Cymbidium hybrid ‘purple element’ [J]. Acta Bot Boreali Occidentalia Sin, 2021, 41(7): 1165-1174.
[15]	吴雨桐. POLGAMMA2和CHlH基因在连翘金色叶形成中的作用 [D]. 北京: 北京林业大学, 2021.
	Wu YT. The function of POLGAMMA2 and ChlH gene in the formation of yellow leaves of Forsythia [D]. Beijing: Beijing Forestry University, 2021.
[16]	赵传纪. 甘蓝型油菜叶色、花色和株高突变体的遗传分析与定位克隆 [D]. 武汉: 华中农业大学, 2020.
	Zhao CJ. Genetic analysis and positional cloning of leaf color, flower color and plant height mutants in Brassica napus L. [D]. Wuhan: Huazhong Agricultural University, 2020.
[17]	Liu YL, Lyu RQ, Singleton JJ, et al. A Cotyledon-based virus-induced gene silencing (Cotyledon-VIGS) approach to study specialized metabolism in medicinal plants [J]. Plant Meth, 2024, 20: 26.
[18]	Tian YY, Wang HY, Zhang ZQ, et al. An RNA-seq analysis reveals differential transcriptional responses to different light qualities in leaf color of Camellia sinensis cv. huangjinya [J]. J Plant Growth Regul, 2022, 41(2): 612-627.
[19]	Ren J, Sun L, Wang CL, et al. Expression analysis of the cDNA for magnesium chelatase H subunit (CHLH) during sweet cherry fruit ripening and under stress conditions [J]. Plant Growth Regul, 2011, 63(3): 301-307.
[20]	Li YS, Wang XY, Zhang QH, et al. A mutation in SlCHLH encoding a magnesium chelatase H subunit is involved in the formation of yellow stigma in tomato (Solanum lycopersicum L.) [J]. Plant Sci, 2022, 325: 111466.
[21]	刘子琦, 汪佳. 镁螯合酶的结构与功能 [J]. 中国生物化学与分子生物学报, 2018, 34(1): 18-24.
	Liu ZQ, Wang J. Structure and function of the magnesium chelatase [J]. Chin J Biochem Mol Biol, 2018, 34(1): 18-24.
[22]	Zhao ZF, Li J, Zhao XL, et al. Mutation of a magnesium chelatase BrCHLD affects the chlorophyll content and magnesium chelatase activity in Chinese cabbage [J]. Plant Physiol Biochem, 2025, 228: 110319.
[23]	Qi F, Xing PY, Sun YC, et al. Deletion of the gene encoding the magnesium chelatase I subunit resulted in a novel wheat leaf colour mutant [J]. Plant Biotechnol J, 2025, 23(10): 4290-4301.
[24]	Gao F, Guo JX, Shen YY. Advances from chlorophyll biosynthesis to photosynthetic adaptation, evolution and signaling [J]. Plant Stress, 2024, 12: 100470.
[25]	Ibata H, Nagatani A, Mochizuki N. CHLH/GUN5 function in tetrapyrrole metabolism is correlated with plastid signaling but not ABA responses in guard cells [J]. Front Plant Sci, 2016, 7: 1650.
[26]	Sato S, Hirose M, Tamiaki H, et al. Chelatase activity of magnesium dechelatase associated with chlorophyll degradation [J]. FEBS Lett, 2025, 599(15): 2210-2219.
[27]	Zhang M, Zhao Y, Du JJ, et al. Integration of multi-omics data and phenotyping provides insights into purple leaf sheaths color in millet seedling stage [J]. BMC Plant Biol, 2025, 25: 1645.
[28]	Zou YP, Zhuo T, Duan Y, et al. Transcriptomic and structural insights into leaf variegation development in Ilex × ‘solar flare’ [J]. Int J Mol Sci, 2025, 26(9): 3999.
[29]	Schlicke H, Hartwig AS, Firtzlaff V, et al. Induced deactivation of genes encoding chlorophyll biosynthesis enzymes disentangles tetrapyrrole-mediated retrograde signaling [J]. Mol Plant, 2014, 7(7): 1211-1227.
[30]	王珧, 赵路宽, 高兵倩, 等. 甘薯镁螯合酶IbCHLH基因克隆及表达分析 [J]. 江苏师范大学学报: 自然科学版, 2024, 42(4): 14-20.
	Wang Y, Zhao LK, Gao BQ, et al. Gene cloning and expression analysis of IbCHLH in sweetpotato [J]. J Jiangsu Norm Univ Nat Sci Ed, 2024, 42(4): 14-20.
[31]	叶玙璠, 王誉洁, 傅前媛, 等. 茶树镁离子螯合酶H亚基基因CsChlH的克隆及其表达分析 [J]. 园艺学报, 2024, 51(1): 91-102.
	Ye YF, Wang YJ, Fu QY, et al. Cloning and expression analysis of Mg-chelatase H subunit gene CsChlH in tea plant (Camellia sinensis) [J]. Acta Hortic Sin, 2024, 51(1): 91-102.

引物名称 Primer Name	引物序列 Primer sequence	作用 Function
AP	5′-GGCCACGCGTCGACTAGTAC（T）₁₇-3′	逆转录引物 Reverse transcription primer
AAP	5′-GGCCACGCGTCGACTAGTAC（G）₈-3′	锚定引物 Anchored primers
AUAP	5′-GGCCACGCGTCGACTAGTAC-3′	锚定引物 Anchored primers
ChlH-F	5′-CAATGGCTTCTCTGGTTTTCACTC-3′	保守区扩增引物 Conserved fragment amplification primers
ChlH-R	5′-TTAGCGCTCAATACCCTCGATCT-3′	保守区扩增引物 Conserved fragment amplification primers
ChlH-3′-1	5′-GAATCTCGTACAGTCACTTAGGCGCGA-3′	3′ RACE 引物 3′ RACE primers
ChlH-3′-2	5′-TATGAGGGGATGATGAGGAGC-3′	3′ RACE 引物 3′ RACE primers
ChlH-5′-1	5′-AGAAGGTGCGGTAAGTGGTCTCGTC-3′	5′ RACE 引物 5′ RACE primers
ChlH-5′-2	5′-CGTTGCAGAAGAAGACCCTTGAT-3′	5′ RACE 引物 5′ RACE primers
ChlH-ORF-F	5′-ACTGCCCGCGATCACTTCCTCAGC-3′	ORF扩增引物 ORF amplification primers
ChlH-ORF-R	5′-CAAAAATACAAACAGTCCAACTCCTG-3′	ORF扩增引物 ORF amplification primers
ChlH-SP1	5′-CGAAGATGAGCGAGCCGATGAATACG-3′	启动子序列引物 Promoter sequence primers
ChlH-SP2	5′-GACTGCGGCGGATAGGGAGGATTGGTACTG-3′
ChlH-SP3	5′-TTGATGTGGGTTGTTGGGTGAGGCGGGGAAGG-3′
ChACT -F	5′-GGGTGCTTATGTTGGTGATG-3′	内参基因引物 For the internal control
ChACT -R	5′-TTCAGAGGGGCTTCAGTAAGG-3′	内参基因引物 For the internal control
ChlH-RT-F	5′-TTCAGCAGCCCTAACCTCAACGTCGCT-3′	RT-qPCR引物（杂交兰） RT-qPCR（Cymbidium hybrid）
ChlH-RT-R	5′-GAAGGAGTAGTAGGCGGCAAAGCCATGGTG-3′	RT-qPCR引物（杂交兰） RT-qPCR（Cymbidium hybrid）
ChChlH-VIGS-F	5′-CGACGACAAGACCGTCACCCCCGGTGAACAACAAGCCTTTCGT-3′	VIGS引物 VIGS primers
ChChlH-VIGS-R	5′-GAGGAGAAGAGCCGTCGGCCCATCTTATAGCTCTTGTACATAG-3′	VIGS引物 VIGS primers
ChChlH-RT-F	5′-CCCGGTGAACAACAAGCCTTTCGT-3′	RT-qPCR引物（烟草） RT-qPCR（N. tabacum）
ChChlH-RT-R	5′-GCATCCCTGCCGGAAAACACTATCGG-3′	RT-qPCR引物（烟草） RT-qPCR（N. tabacum）

引物名称 Primer Name	引物序列 Primer sequence	作用 Function
AP	5′-GGCCACGCGTCGACTAGTAC（T）₁₇-3′	逆转录引物 Reverse transcription primer
AAP	5′-GGCCACGCGTCGACTAGTAC（G）₈-3′	锚定引物 Anchored primers
AUAP	5′-GGCCACGCGTCGACTAGTAC-3′	锚定引物 Anchored primers
ChlH-F	5′-CAATGGCTTCTCTGGTTTTCACTC-3′	保守区扩增引物 Conserved fragment amplification primers
ChlH-R	5′-TTAGCGCTCAATACCCTCGATCT-3′	保守区扩增引物 Conserved fragment amplification primers
ChlH-3′-1	5′-GAATCTCGTACAGTCACTTAGGCGCGA-3′	3′ RACE 引物 3′ RACE primers
ChlH-3′-2	5′-TATGAGGGGATGATGAGGAGC-3′	3′ RACE 引物 3′ RACE primers
ChlH-5′-1	5′-AGAAGGTGCGGTAAGTGGTCTCGTC-3′	5′ RACE 引物 5′ RACE primers
ChlH-5′-2	5′-CGTTGCAGAAGAAGACCCTTGAT-3′	5′ RACE 引物 5′ RACE primers
ChlH-ORF-F	5′-ACTGCCCGCGATCACTTCCTCAGC-3′	ORF扩增引物 ORF amplification primers
ChlH-ORF-R	5′-CAAAAATACAAACAGTCCAACTCCTG-3′	ORF扩增引物 ORF amplification primers
ChlH-SP1	5′-CGAAGATGAGCGAGCCGATGAATACG-3′	启动子序列引物 Promoter sequence primers
ChlH-SP2	5′-GACTGCGGCGGATAGGGAGGATTGGTACTG-3′
ChlH-SP3	5′-TTGATGTGGGTTGTTGGGTGAGGCGGGGAAGG-3′
ChACT -F	5′-GGGTGCTTATGTTGGTGATG-3′	内参基因引物 For the internal control
ChACT -R	5′-TTCAGAGGGGCTTCAGTAAGG-3′	内参基因引物 For the internal control
ChlH-RT-F	5′-TTCAGCAGCCCTAACCTCAACGTCGCT-3′	RT-qPCR引物（杂交兰） RT-qPCR（Cymbidium hybrid）
ChlH-RT-R	5′-GAAGGAGTAGTAGGCGGCAAAGCCATGGTG-3′	RT-qPCR引物（杂交兰） RT-qPCR（Cymbidium hybrid）
ChChlH-VIGS-F	5′-CGACGACAAGACCGTCACCCCCGGTGAACAACAAGCCTTTCGT-3′	VIGS引物 VIGS primers
ChChlH-VIGS-R	5′-GAGGAGAAGAGCCGTCGGCCCATCTTATAGCTCTTGTACATAG-3′	VIGS引物 VIGS primers
ChChlH-RT-F	5′-CCCGGTGAACAACAAGCCTTTCGT-3′	RT-qPCR引物（烟草） RT-qPCR（N. tabacum）
ChChlH-RT-R	5′-GCATCCCTGCCGGAAAACACTATCGG-3′	RT-qPCR引物（烟草） RT-qPCR（N. tabacum）
