Functional Study of CmCRC Gene Influencing Sex Differentiation in Melon

doi:10.13560/j.cnki.biotech.bull.1985.2026-0068

Abstract

Abstract:

Objective This study is aimed to investigate the function of the CmCRC gene in melon (Cucumis melo L.) during floral organ development, especially sex differentiation, so as to provide a theoretical basis for elucidating the sex-determining mechanism and creating all-male melon lines. Method Using the melon cultivar ‘IVF05’ as material, the CmCRC gene was targeted and knocked out via the CRISPR/Cas9 genome-editing system. Mutant lines were obtained and subjected to phenotypic observation throughout the whole growth period.T₁seeds derived from self-pollinated non-edited plants were used for gene-editing identification and phenotypic analysis. The expression of CmCRC in floral organs of T₁ plants was detected by quantitative real-time PCR (RT-qPCR). Result Compared with the wild-type control, CmCRC mutants exhibited normal vegetative growth but showed an all-male phenotype during reproductive growth, failing to produce female flowers and set fruits normally. When T₀ non-edited plants (CR-CmCRC-23 and CR-CmCRC-48) produced edited T₁ progeny, the T₁mutants displayed a phenotype consistent with that of T₀ mutants: they completely lost the ability to form bisexual flowers and only produced male flowers. RT-qPCR analysis showed that CmCRC expression was significantly downregulated in the anthers of male flowers from T₁ mutants, indicating that loss of function and reduced expression of CmCRC directly caused the alteration of sexual phenotype. Conclusion These results demonstrate that the CmCRC gene regulates the formation of bisexual flowers in melon and plays a critical role in the sex-determining mechanism.

Key words: melon, CmCRC, genetic transformation, genome editing, positive identification, sex determination, all-male line

YUAN Meng-bo, ZHAO Guang-wei, HE Yu-hua, HUANG Xiang, XU Yong-yang, ZHANG Jian, KONG Wei-hu, TIAN Xiao-qin, HU Ke-yun, TANG Ling-li. Functional Study of CmCRC Gene Influencing Sex Differentiation in Melon[J]. Biotechnology Bulletin, 2026, 42(3): 294-301.

Figures/Tables 7

Table 1 Primers for gene expression analysis

基因 Gene	引物序列 Primer sequence（5′‒3′）
Bar-F	AACCACTACATCGAGACAAGC
Bar-R	CTGAAGTCCAGCTGCCAGA
CR-CmCRC-F	CCCTCTCCATATTTCCTAATTT
CR-CmCRC-R	TAGAGGATGATCAATGCATT
RT-CmCRC-F	GAGGAAATTCAACGTATCAAAG
RT-CmCRC-R	ACCCAGCAGCTGAATTAGGA
RT-ACTIN-F	CAGGTGTTATGGTCGGAATG
RT-ACTIN-R	GAGCGACACGAAGTTCAT

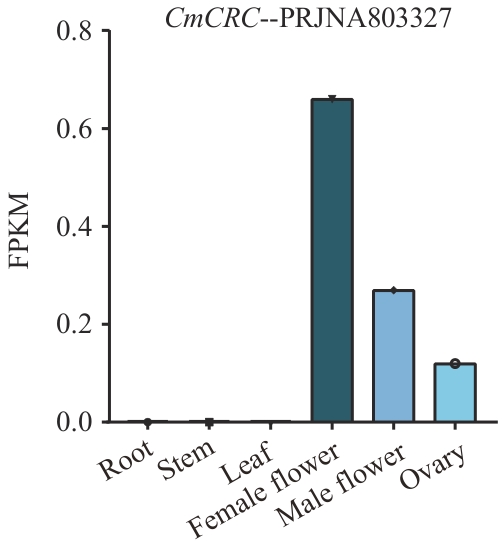

Fig. 1 Tissue-specific transcription levels of CmCRC based on the transcriptome project PRJNA803327

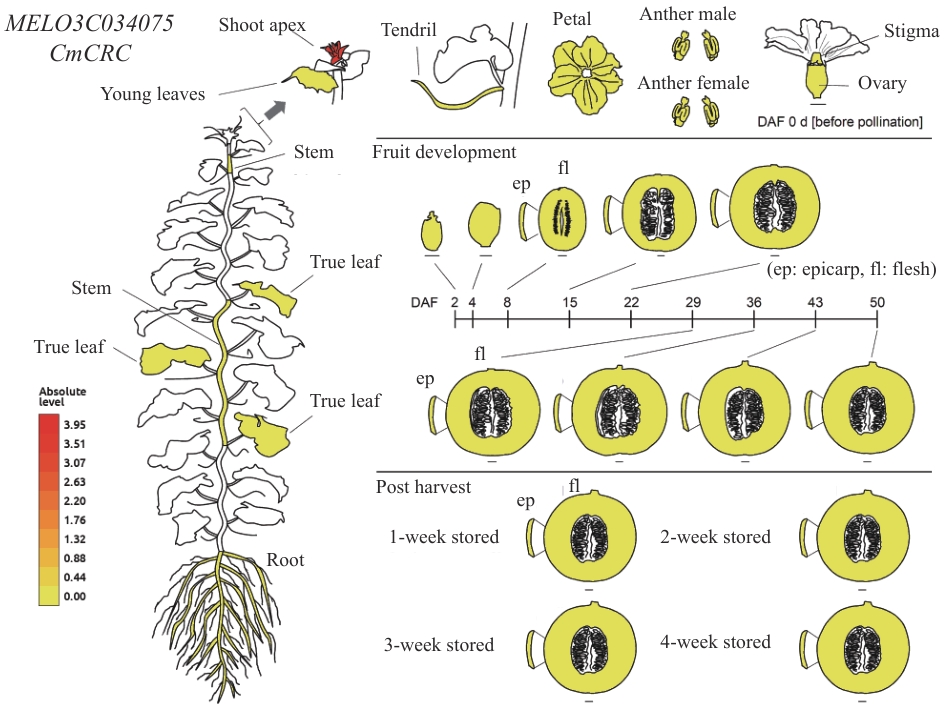

Fig. 2 Tissue-specific expression pattern of CmCRC in melon from the expression profile databaseEpicarp (ep) and flesh (fl)

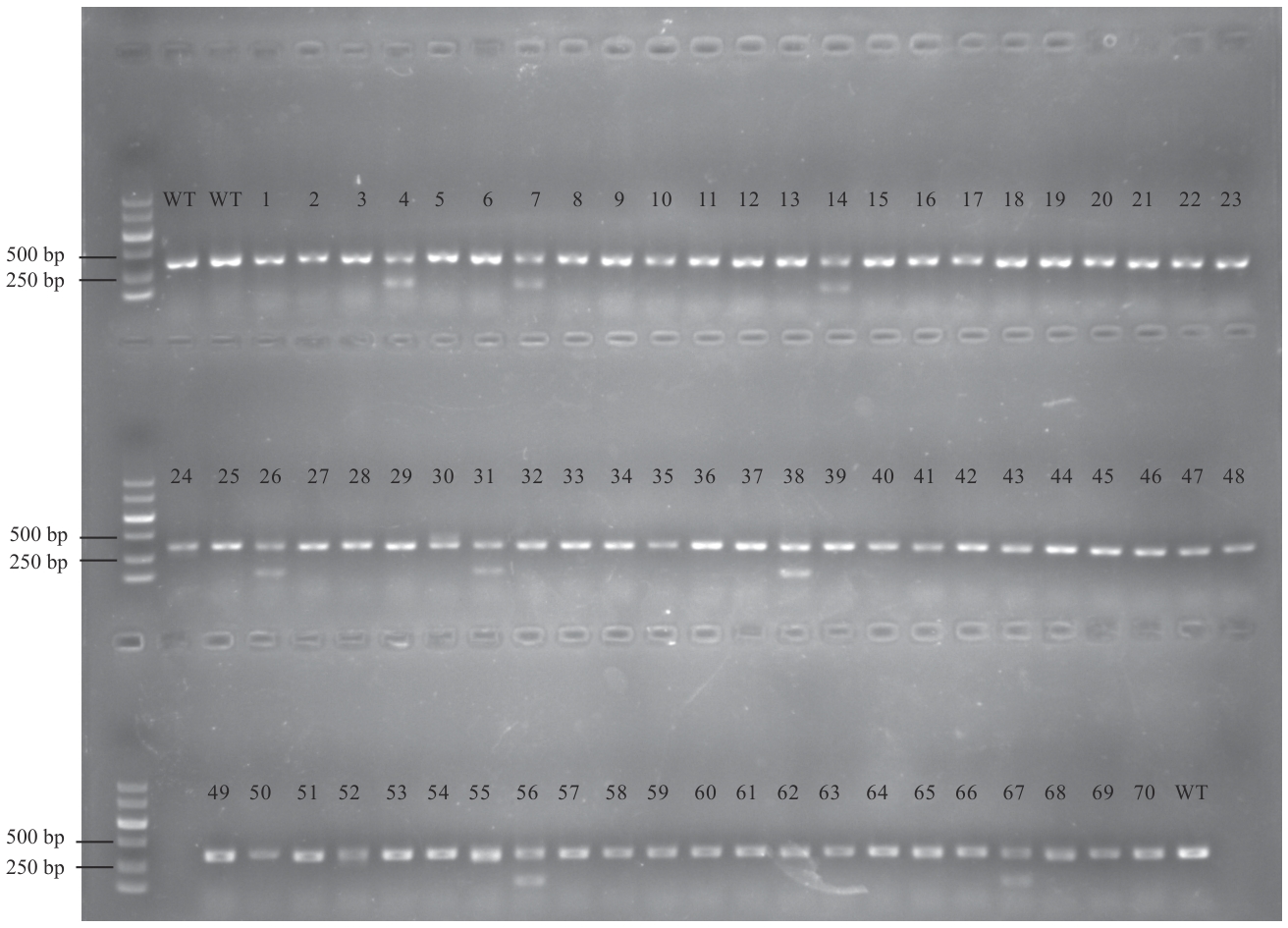

Fig. 3 PCR amplification of the target region in CmCRC-edited T0 melon seedlingsWT: Wild type. 1‒70: 70 positive T0 transgenic lines

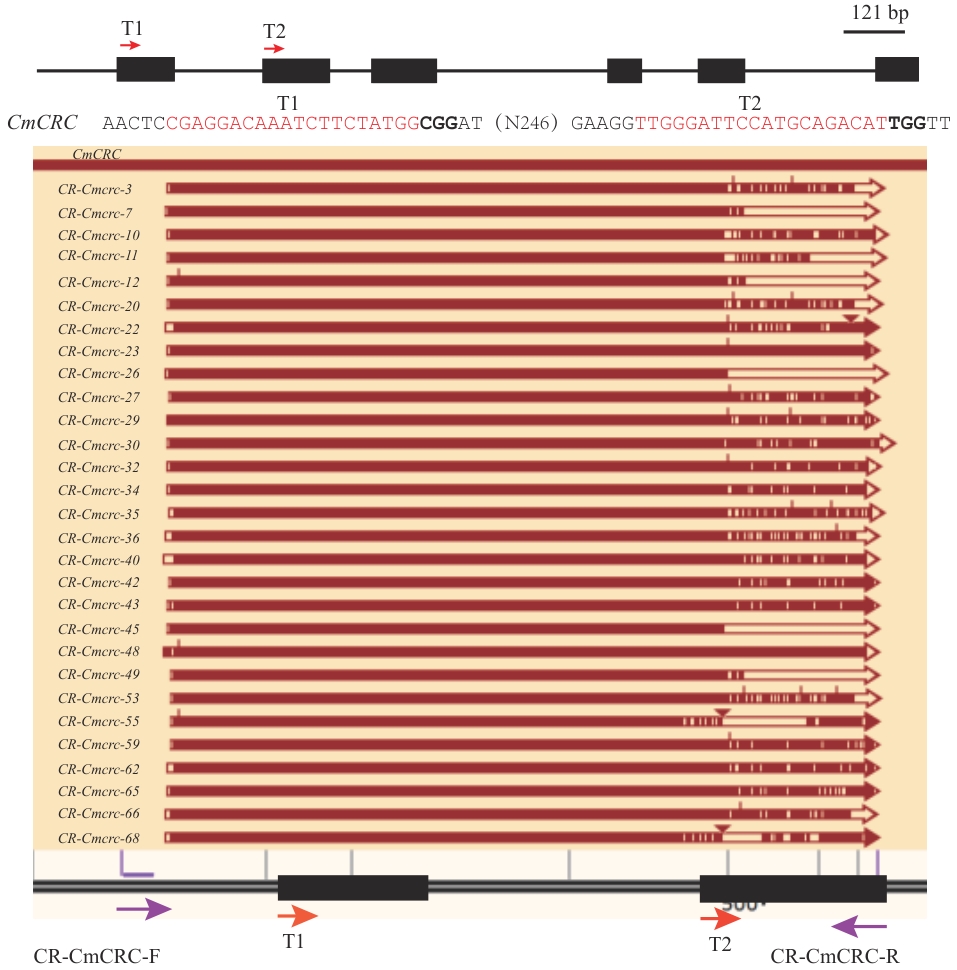

Fig. 4 Identification of editing events in CmCRC-edited T0 melon seedlings

Fig. 5 Sex differentiation analysis of T0 transgenic seedlings in melon-: Male flower. +: Bisexual flower. Numbered as mutant plant ID

Fig. 6 Phenotypes of T0 melon plants

References 34

[1]	Masuda K, Akagi T. Evolution of sex in crops: recurrent scrap and rebuild [J]. Breed Sci, 2023, 73(2): 95-107.
[2]	寿森炎, 汪俏梅. 高等植物性别分化研究进展 [J]. 植物学通报, 2000, 17(6): 528-535.
	Shou SY, Wang QM. Progress of study on sex differentiation in higher plants [J]. Chin Bulietin Bot, 2000, 17(6): 528-535.
[3]	Coen ES, Meyerowitz EM. The war of the whorls: genetic interactions controlling flower development [J]. Nature, 1991, 353(6339): 31-37.
[4]	Bowman JL, Smyth DR, Meyerowitz EM. Genes directing flower development in Arabidopsis [J]. Plant Cell, 1989, 1(1): 37.
[5]	Ding YN, Gao F, Li XR, et al. Genetics and molecular regulation of gynoecium patterning and fruit development in Arabidopsis [J]. Seed Biology, 2024, 3: e018.
[6]	Tran LT, Nguyen AT, Nguyen MH, et al. Developing new parthenocarpic tomato breeding lines carrying iaa9-3 mutation [J]. Euphytica, 2021, 217(7): 139.
[7]	Li H, Qi MF, Sun MH, et al. Tomato transcription factor SlWUS plays an important role in tomato flower and locule development [J]. Front Plant Sci, 2017, 8: 457.
[8]	Pan J, Wen HF, Chen GQ, et al. A positive feedback loop mediated by CsERF31 initiates female cucumber flower development [J]. Plant Physiol, 2021, 186(2): 1088-1100.
[9]	Li DD, Sheng YY, Niu HH, et al. Gene interactions regulating sex determination in cucurbits [J]. Front Plant Sci, 2019, 10: 1231.
[10]	Romanova MA, Maksimova AI, Pawlowski K, et al. YABBY genes in the development and evolution of land plants [J]. Int J Mol Sci, 2021, 22(8): 4139.
[11]	Xia JC, Wang D, Peng YZ, et al. Genome-wide analysis of the YABBY transcription factor family in rapeseed (Brassica napus L.) [J]. Genes, 2021, 12(7): 981.
[12]	Bowman JL, Smyth DR. CRABS CLAW, a gene that regulates carpel and nectary development in Arabidopsis, encodes a novel protein with zinc finger and helix-loop-helix domains [J]. Development, 1999, 126(11): 2387-2396.
[13]	Baral R, Vainer A, Melzer S, et al. “Bud to bloom”—hormonal coordination in floral initiation [J]. Plant Biol J, 2025, 27(7): 1271-1284.
[14]	Yang TW, He Y, Niu SB, et al. A YABBY gene CRABS CLAW a (CRCa) negatively regulates flower and fruit sizes in tomato [J]. Plant Sci, 2022, 320: 111285.
[15]	Yamaguchi T, Nagasawa N, Kawasaki S, et al. The YABBY gene DROOPING LEAF regulates carpel specification and midrib development in Oryza sativa [J]. Plant Cell, 2004, 16(2): 500-509.
[16]	Han KY, Lai M, Zhao TY, et al. Plant YABBY transcription factors: a review of gene expression, biological functions, and prospects [J]. Crit Rev Biotechnol, 2025, 45(1): 214-235.
[17]	Che G, Song WY, Zhang XL. Gene network associates with CsCRC regulating fruit elongation in cucumber [J]. Veg Res, 2023, 3(1): 1-4.
[18]	Food and Agriculture Organization of the United Nations. The State of Food Security and Nutrition in the World 2025[R]. Rome: Food and Agriculture Organization of the United Nations, 2025. https://www.fao.org/3/cb6008en/cb6008en.pdf.
[19]	Che G, Zhang XL. Molecular basis of cucumber fruit domestication [J]. Curr Opin Plant Biol, 2019, 47: 38-46.
[20]	Boualem A, Fergany M, Fernandez R, et al. A conserved mutation in an ethylene biosynthesis enzyme leads to andromonoecy in melons [J]. Science, 2008, 321(5890): 836-838.
[21]	Martin A, Troadec C, Boualem A, et al. A transposon-induced epigenetic change leads to sex determination in melon [J]. Nature, 2009, 461(7267): 1135-1138.
[22]	Szymczyk P, Nowak J, Majewska M. The role of CRABS CLAW transcription factor in floral organ development in plants [J]. Int J Mol Sci, 2025, 26(19): 9377.
[23]	Zhang SQ, Tan FQ, Chung CH, et al. The control of carpel determinacy pathway leads to sex determinationin cucurbits [J]. Science, 2022, 378(6619): 543-549.
[24]	Schilling S, McCabe PF, Melzer R. Love is in the air: ethylene and sex determination in Cucurbita pepo [J]. J Exp Bot, 2020, 71(1): 4-6.
[25]	Bird JE, Marles-Wright J, Giachino A. A user’s guide to golden gate cloning methods and standards [J]. ACS Synth Biol, 2022, 11(11): 3551-3563.
[26]	贺玉花, 徐龙兰, 唐伶俐, 等. 甜瓜高效不定芽再生体系的建立 [J]. 中国瓜菜, 2023, 36(11): 10-15.
	He YH, Xu LL, Tang LL, et al. Establishment of an efficient regeneration and genetic transformation system in melon [J]. China Cucurbits Veg, 2023, 36(11): 10-15.
[27]	唐伶俐, 徐龙兰, 徐永阳, 等. 农杆菌介导的厚皮甜瓜遗传转化体系的建立 [J]. 果树学报, 2024, 41(3): 533-542.
	Tang LL, Xu LL, Xu YY, et al. Establishment of genetic transformation system mediated by Agrobacterium in muskmelon [J]. J Fruit Sci, 2024, 41(3): 533-542.
[28]	李武霖, 马佳鑫, 贺玉花, 等. 甜瓜叶片三种DNA提取方法对KASP标记检测体系适用性的研究 [J]. 中国瓜菜, 2025, 38(12): 30-35, 44.
	Li WL, Ma JX, He YH, et al. Comparative study on the applicability of three DNA extraction methods from melon leaves for KASP marker detection system [J]. China Cucurbits Veg, 2025, 38(12): 30-35, 44.
[29]	Bustin SA, Benes V, Garson JA, et al. The MIQE guidelines: minimum information for publication of quantitative real-time PCR experiments [J]. Clin Chem, 2009, 55(4): 611-622.
[30]	Livak KJ, Schmittgen TD. Analysis of relative gene expression data using real-time quantitative PCR and the 2^-ΔΔCT method [J]. Methods, 2001, 25(4): 402-408.
[31]	Gross T, Becker A. Transcription factor action orchestrates the complex expression pattern of CRABS CLAW in Arabidopsis [J]. Genes, 2021, 12(11): 1663.
[32]	Fourquin C, Primo A, Martínez-Fernández I, et al. The CRC orthologue from Pisum sativum shows conserved functions in carpel morphogenesis and vascular development [J]. Ann Bot, 2014, 114(7): 1535-1544.
[33]	Han N, Zhu HQ, Li FJ, et al. Genome-wide identification of YABBY genes and functional characterization of CRABS CLAW (AktCRC) in flower development of Akebia trifoliata [J]. Int J Biol Macromol, 2025, 311: 143892.
[34]	Han LJ, Li M, Li C, et al. ARF3-mediated auxin signaling is essential for sex determination in cucumber [J]. Science, 2026, 391(6780): 59-63.
