烟草靶斑病拮抗菌的鉴定及其防治特性

doi:10.13560/j.cnki.biotech.bull.1985.2025-0678

摘要/Abstract

摘要：

目的分离筛选对烟草靶斑病（tobacco target spot disease）有拮抗作用的生防菌。方法从杜鹃（Rhododendron simsii Planch.）根际利用平板涂布法和平板对峙法分离筛选拮抗菌，经生理生化与16S rDNA基因序列分析鉴定，构建系统发育树，同时测定发酵液和乙酸乙酯粗提物的抗菌活性；采用盆栽法测定拮抗菌对烟草靶斑病的防效，以及对丙二醛（MDA）、抗氧化酶活性及病程相关蛋白基因表达的影响。结果获得1株对立枯丝核菌（Rhizoctonia solani）有拮抗作用的唐菖蒲伯克霍尔德氏菌（Burkholderia gladioli）QLDJ-1；平板拮抗96 h，QLDJ-1对烟草靶斑病菌（Rhizoctonia solani）的相对抑菌率为（72.107±2.788）%；与对照组相比，经QLDJ-1处理的烟株靶斑病病情指数降低32.02%；超氧化物歧化酶（SOD）、过氧化氢酶（CAT）和过氧化物酶（POD）活性分别提高33.72%、51.45%和17.49%；丙二醛（MDA）含量下降62.44%；病程相关蛋白基因PR1b、NmIMSP、P450-1、GST及hrs203J表达量与对照有显著差异。结论 QLDJ-1对烟草靶斑病菌有较好的抑制效果，具有开发为生防制剂的潜在应用价值。

关键词: 根际细菌, 伯克霍尔德氏菌, 立枯丝核菌, 烟草靶斑病, 生物防治

Abstract:

Objective To isolate and screen biocontrol bacteria against tobacco target spot disease. Method The antagonists were isolated and screened by plate coating method and plate confrontation method from Rhododendron simsii Planch. rhizosphere. After identification by physiological and biochemical analysis and 16S rDNA gene sequence analysis, the phylogenetic tree was constructed, and the antibacterial activities of the fermented broth and the crude extract of ethyl acetate were determined concurrently. Pot culture method was used to determine the control effect of antagonists on tobacco target spot disease, as well as the effects on the activities of malondialdehyde (MDA), antioxidant enzymes and the regulation and expression of pathogenesis related protein genes. Result A strain of Burkholderia gladioli QLDJ-1 with antagonistic effect against Rhizoctonia solani was obtained. The relative inhibition rate of QLDJ-1 against R. solani was (72.107 ± 2.788) %. Compared with the control group, the disease index of target spot of tobacco plants treated with QLDJ-1 decreased by 32.02%. The activities of superoxide dismutase (SOD), catalase (CAT) and peroxidase (POD) increased by 33.72%, 51.45% and 17.49% respectively. The content of malondialdehyde (MDA) decreased by 62.44%. The expressions of pathogenesis-related genes such as PR1b, NmIMSP, P450-1, GST and hrs203J in the tobacco plants treated with QLDJ-1 were different from those of the control. Conclusion QLDJ-1 can effectively control tobacco target spot disease and has the potential to be developed as a biocontrol agent.

Key words: rhizosphere bacteria, Burkholderia, Rhizoctonia solani, tobacco target spot disease, biological control

朱志炎, 宋芷薇, 何珊, 张德清, 何勇, 田志宏. 烟草靶斑病拮抗菌的鉴定及其防治特性[J]. 生物技术通报, doi: 10.13560/j.cnki.biotech.bull.1985.2025-0678.

ZHU Zhi-yan, SONG Zhi-wei, HE Shan, ZHANG De-qing, HE Yong, TIAN Zhi-hong. Identification and Control Characteristics of Antagonistic Bacteria against Tobacco Target Spot Disease[J]. Biotechnology Bulletin, doi: 10.13560/j.cnki.biotech.bull.1985.2025-0678.

图/表 11

图1 QLDJ-1和QLDJ-2发酵液对立枯丝核菌的平板对峙

Fig. 1 Plate confrontation of bacterial strain QLDJ-1 and QLDJ-2 in fermentation broth against Rhizoctonia solani

表1 QLDJ-1的生理生化特征

Table 1 Physiological and biochemical characteristics of strain QLDJ-1

项目 Item	阳性/阴性 Positive （+）/ negative （-）
生化反应 Biochemical test	+
淀粉水解 Starch hydrolysis	+
接触酶 Catalase production	+
尿素酶 Urease production	+
蔗糖利用 Sucrose utilization	-
生化反应 Biochemical test	+
脂酶 Esterase production	-
硝酸盐还原 Nitrate reduction	-
甲基红试验 Methyl red test	-
VP反应 VP test	-
柠檬酸盐利用 Citrate utilization	+

表2 QLDJ-1对抗生素的敏感性

Table 2 Antibiotic sensitivity analysis of strain QLDJ-1

抗生素 Antibiotics	浓度 Concentration （μg/mL）	敏感性 Sensibility
抗生素 Antibiotics	浓度 Concentration （μg/mL）	24 h	72 h
氨苄青霉素 Ampicillin	5	+	+
	50	+	+
	100	+	+
卡那霉素 Kanamycin	5	-	+
	50	-	-
	100	-	-
潮霉素 Hygromycin	5	+	+
	50	+	+
	100	+	+
链霉素 Streptomycin	5	+	+
	50	+	+
	100	-	+

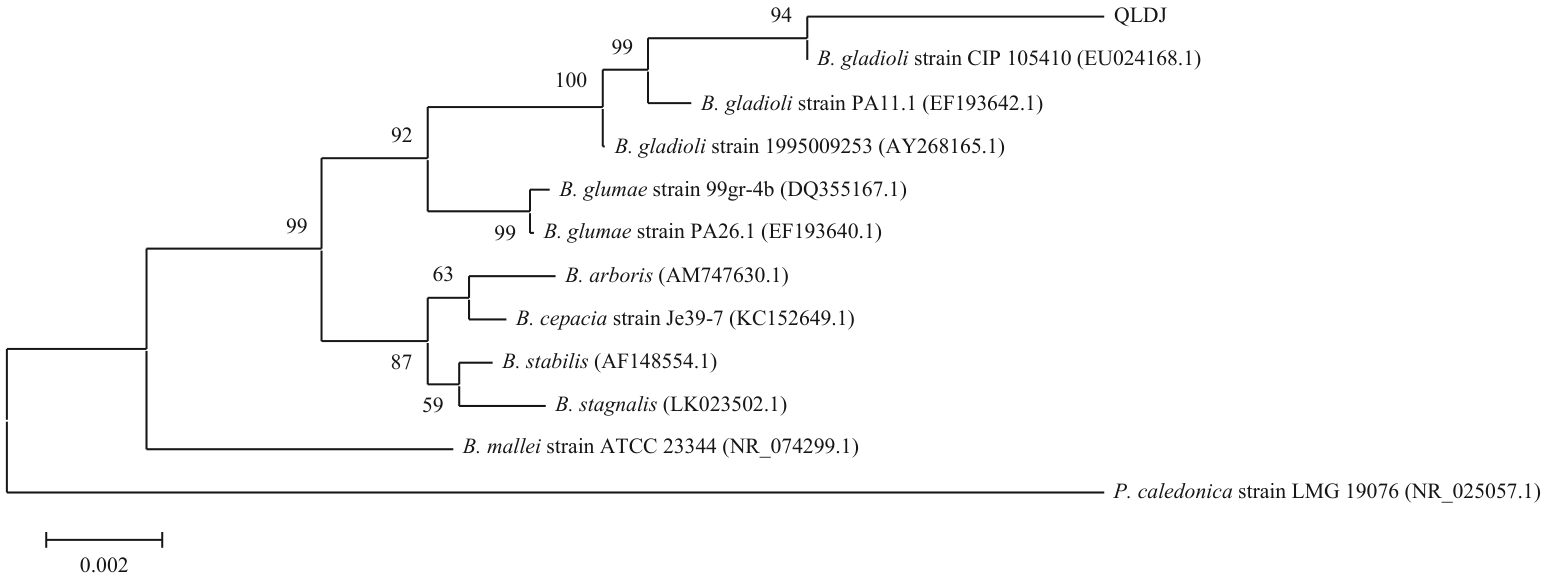

图2 基于16S rDNA基因序列相似性构建QLDJ-1的基因进化树

Fig. 2 QLDJ-1 gene evolutionary tree based on 16S rDNA gene sequence similarity

图3 QLDJ-1对9种不同植物病原菌的拮抗效果测定

Fig. 3 Antagonistic effects of biocontrol strain QLDJ-1 against 9 different plant pathogens

表3 QLDJ-1的抗菌能力测定

Table 3 Determination of the broad-spectrum antimicrobial activity of strain QLDJ-1

病原菌 Pathogenic bacteria	病害名称 Disease	最长培养时间 Maximum culture time （h）	最终抑菌圈直径 Final inhibition zone diameter （mm）	最终相对抑菌率 Final inhibition rate （%）
立枯丝核菌 Rhizoctonia solani	烟草靶斑病 Target spot disease	96	63.667±2.268aA	72.107±2.788bcB
交链格孢菌 Alternaria alternata	烟草赤星病 Brown spot	120	36.083±2.504bB	81.490±1.614abAB
茄科雷尔氏菌 Ralstonia solanacearum	烟草青枯病 Bacterial wilt	72	3.333±1.258eD	32.273±9.796eD
寄生疫霉菌 Phytophthora parasitica var. Nicotianae	烟草黑胫病 Black shank	168	31.500±1.000bcBC	79.740±0.515abcAB
立枯丝核菌 Rhizoctonia solani	水稻纹枯病 Sheath blight	72	64.438±3.710aA	71.598±4.123bcB
黄单胞菌 Xanthomonas oryzae pv	水稻白叶枯病 Bacterial leaf blight	96	5.167±1.041eD	70.637±6.870cB
炭疽病菌 Colletotrichum gloeosporioides	芒果炭疽病 Anthracnose	120	36.813±8.017bB	74.527±9.500bcAB
葡萄座腔菌 Botryosphaeria dothidea	芒果果腐病 Fruit rot	84	67.000±1.146aA	88.370±1.026aA
大斑突脐孢菌 Exserohilum turcicum	玉米大斑病 Northern leaf blight	120	29.038±1.338cdBC	78.380±0.759abcAB

图4 QLDJ-1乙酸乙酯粗提物及气体挥发物拮抗效果A：烟草靶斑病24 h化合物拮抗，B：烟草靶斑病72 h化合物拮抗，C：芒果炭疽病96 h化合物拮抗，D：芒果炭疽病120 h化合物拮抗，E：立枯丝核菌12 h化合物拮抗，F：立枯丝核菌48 h化合物拮抗，G、H：48 h后立枯丝核菌气体化合物拮抗

Fig. 4 Antagonistic effects of ethyl acetate compounds and volatile substances from QLDJ-1A: Compounds antagonizing tobacco target spot disease for 24 h. B: Compounds antagonizing tobacco target spot disease for 72 h. C: Compounds antagonizing mango anthracnose for 96 h. D: Compounds antagonizing mango anthracnose for 120 h. E: Compounds antagonizing Rhizoctonia solani for12 h. F: Compounds antagonizing Rhizoctonia solani for 48 h. G, H: Compounds antagonizing Rhizoctonia solani for 48 h

图5 温室盆栽条件下QLDJ-1防治烟草靶斑病效果（72 h）

Fig. 5 Effects of QLDJ-1 on controlling tobacco target spot disease under potted cultivation in greenhouse (72 h)

表4 QLDJ-1对烟草靶斑病病情指数的影响

Table 4 Effects of strain QLDJ-1 on tobacco target spot disease indexes

处理

Treatment

最低病级

The lowest grade disease

最高病级

The highest grade disease

病情指数

Disease index

相对防效

Control effect （%）

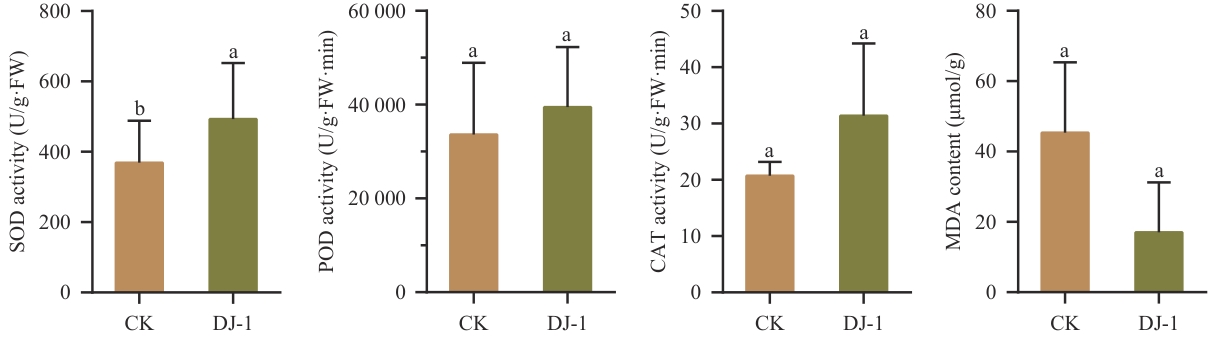

图6 QLDJ-1对烟草叶片接种靶斑病原菌后SOD、POD、CAT及MDA含量的影响不同小写字母表示同列差异显著（P<0.05），下同

Fig. 6 Effects of QLDJ-1 on SOD, POD, CAT and MDA contents in tobacco leaves after inoculation with target spot disease pathogensDifferent lowercase letters indicate significant differences in the same column (P<0.05). The same below

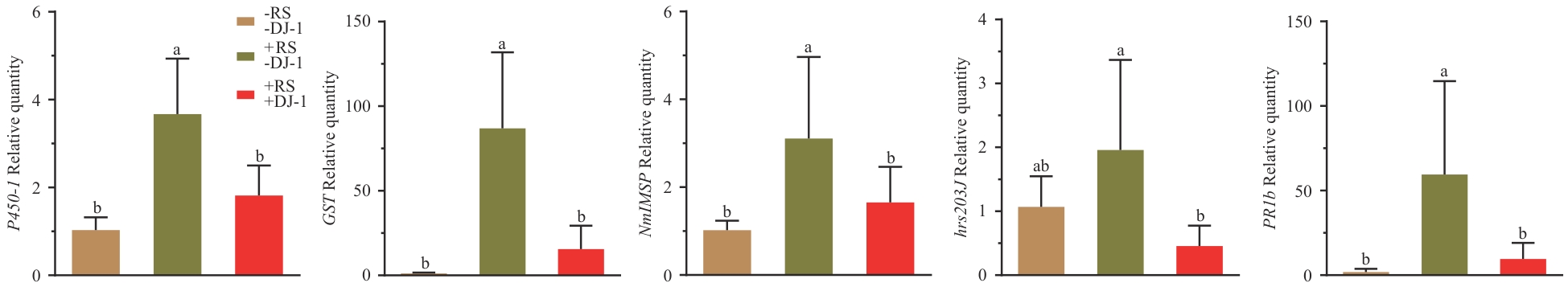

图7 病害胁迫下QLDJ-1处理的烟草中相关基因表达水平RS：立枯丝核菌，DJ-1：QLDJ-1，+RS -DJ-1：CK

Fig. 7 Expressions of related genes in tobacco leaves treated with QLDJ-1 under disease stressRS: Rhizoctonia solani. DJ-1: QLDJ-1, +RS -DJ-1: CK

参考文献 40

[1]	吴元华, 王左斌, 刘志恒, 等. 我国烟草新病害—靶斑病 [J]. 中国烟草学报, 2006, 12(6): 22, 51.
	Wu YH, Wang ZB, Liu ZH, et al. Target spot disease, a new tobacco disease in China [J]. Acta Tabacaria Sin, 2006, 12(6): 22, 51.
[2]	刘欣茹, 张杰, 王学坚, 等. 烟草靶斑病有性孢子形成环境条件及致病性的田间观测 [J]. 云南农业大学学报: 自然科学, 2020, 35(2): 221-226.
	Liu XR, Zhang J, Wang XJ, et al. Study on the environmental factors and virulence of basidiospore of tobacco target spot in tobacco field [J]. J Yunnan Agric Univ Nat Sci, 2020, 35(2): 221-226.
[3]	苏燕妮, 董雪, 赵艳琴, 等. 东北地区烟草靶斑病菌(Rhizoctonia solani)融合群、致病力分化及品种抗病性研究 [J]. 植物保护, 2016, 42(1): 170-174.
	Su YN, Dong X, Zhao YQ, et al. Anastomosis groups, pathogenicity differentiation of Rhizoctonia solani from tobacco target spot in the Northeast China and the disease resistance of tobacco varieties [J]. Plant Prot, 2016, 42(1): 170-174.
[4]	Wu YH, Zhao YQ, Fu Y, et al. First report of target spot of flue-cured tobacco caused by Rhizoctonia solani AG-3 in China [J]. Plant Dis, 2012, 96(12): 1824.
[5]	邓浏平, 陈怡璇, 傅雪平, 等. 烟草靶斑病致病机理及防治技术研究进展 [J]. 湖南农业科学, 2021(3): 114-118.
	Deng LP, Chen YX, Fu XP, et al. Research progress on pathogenic mechanism and control technology of tobacco target spot [J]. Hunan Agric Sci, 2021(3): 114-118.
[6]	伏颖, 吴元华, 穆凌霄, 等. 烟草靶斑病室内药剂筛选 [J]. 江苏农业科学, 2011, 39(3): 153-155.
	Fu Y, Wu YH, Mu LX, et al. Screening of indoor agents for tobacco target spot disease [J]. Jiangsu Agric Sci, 2011, 39(3): 153-155.
[7]	刘斯泓, 纪明山. 防治烟草靶斑病的复配药剂配方筛选及田间药效试验 [J]. 江苏农业科学, 2014, 42(6): 140-143.
	Liu SH, Ji MS. Screening and field efficacy test of compound medicament for controlling tobacco target spot disease [J]. Jiangsu Agric Sci, 2014, 42(6): 140-143.
[8]	周建全, 张忠光, 董雪, 等. 不同药剂对烟草靶斑病的抑菌作用及田间药效研究 [J]. 安徽农业科学, 2015, 43(25): 96-97, 99.
	Zhou JQ, Zhang ZG, Dong X, et al. Inhibition effect and field control effect of different fungicides on tobacco target spot [J]. J Anhui Agric Sci, 2015, 43(25): 96-97, 99.
[9]	王潮钟, 黄翯, 董雪, 等. 防治烟草靶斑病药剂的筛选 [J]. 河南农业科学, 2016, 45(1): 92-95.
	Wang CZ, Huang H, Dong X, et al. Screening of fungicides for control of tobacco target spot [J]. J Henan Agric Sci, 2016, 45(1): 92-95.
[10]	王左斌, 吴元华, 赵秀香, 等. "嘧肽菌净" 对烟草靶斑病的抑菌作用及田间药效试验 [J]. 烟草科技, 2007, 40(9): 61-64.
	Wang ZB, Wu YH, Zhao XX, et al. Inhibition effect and field control effect of 6% mitaijunjing on tobacco target spot [J]. Tob Sci Technol, 2007, 40(9): 61-64.
[11]	司洪阳, 杜红, 郝学政, 等. 1.8%嘧肽·多抗水剂对烟草靶斑病病菌(Rhizoctonia solani)的作用机制研究 [J]. 江苏农业科学, 2018, 46(2): 67-69.
	Si HY, Du H, Hao XZ, et al. Study on the mechanism of action of 1.8% Azoxypeptide · Multi water repellent on tobacco target spot pathogen (Rhizoctonia solani) [J]. Jiangsu Agric Sci, 2018, 46(2): 67-69.
[12]	马欣, 寇宝石, 李继博, 等. 新农药8%井冈霉素可溶液剂对烟草靶斑病的防治效果 [J]. 安徽农业科学, 2022, 50(11): 133-134.
	Ma X, Kou BS, Li JB, et al. The control effect of the new pesticide 8% Jinggangmycin SL on tobacco target spot disease [J]. J Anhui Agric Sci, 2022, 50(11): 133-134.
[13]	尹秀娟, 肖艳松, 李思军, 等. 防治烟草靶斑病复配增效配方筛选及田间防效 [J]. 农药, 2022, 61(6): 453-457.
	Yin XJ, Xiao YS, Li SJ, et al. Selection on synergetic ratio of combine pesticides to tobacco target spot and field control effect [J]. Agrochemicals, 2022, 61(6): 453-457.
[14]	Ownley BH, RLJr Ashby, Reddick BB, et al. Effect of biological and chemical controls, cultivar, host age, and planting method on severity of target spot, caused by Thanatephorus cucumeris, on float-grown tobacco seedlings [J]. Tobacco Science, 1996, 40(4): 137-146.
[15]	Tarantino P, Caiazzo R, Carella A, et al. Control of Rhizoctonia solani in a tobacco-float system using low rates of iprodione- and iprodione-resistant strains of Gliocladium roseum [J]. Crop Prot, 2007, 26(8): 1298-1302.
[16]	徐传涛, 张崇, 张明金, 等. 四川省烟草靶斑病病原鉴定及生物防治研究 [J]. 湖北农业科学, 2021, 60(8): 87-90.
	Xu CT, Zhang C, Zhang MJ, et al. Identification and biological control of tobacco target spot disease (Rhizoctonia solani Kühn) in Sichuan tobacco planting areas [J]. Hubei Agric Sci, 2021, 60(8): 87-90.
[17]	谭志远, 彭桂香, 徐培智, 等. 普通野生稻(Oryza rufipogon)内生固氮菌多样性及高固氮酶活性 [J]. 科学通报, 2009, 54(13): 1885-1893.
	Tan ZY, Peng GX, Xu PZ, et al. Diversity and high nitrogenase activity of endophytic diazotrophs isolated from Oryza rufipogon Griff [J]. Chin Sci Bull, 2009, 54(13): 1885-1893.
[18]	刘丽辉, 彭桂香, 黄淑芬, 等. 落地生根内生固氮菌多样性和促生特性 [J]. 微生物学通报, 2019, 46(10): 2538-2547.
	Liu LH, Peng GX, Huang SF, et al. Diversity and growth promotion of endophytic diazotrophic bacteria isolated from Bryophyllum pinnatum [J]. Microbiol China, 2019, 46(10): 2538-2547.
[19]	赵斌, 何绍江. 微生物学实验教程 [M]. 北京: 高等教育出版社, 2013.
	Zhao B, He SJ. Microbiology experiment course [M]. Beijing: Higher Education Press, 2013.
[20]	东秀珠, 蔡妙英. 常见细菌系统鉴定手册 [M]. 北京: 科学出版社, 2001.
	Dong XZ, Cai MY. Handbook of systematic identification of common bacteria [M]. Beijing: Science Press, 2001.
[21]	Baker GC, Smith JJ, Cowan DA. Review and re-analysis of domain-specific 16S primers [J]. J Microbiol Meth, 2003, 55(3): 541-555.
[22]	Liu YX, Shi JX, Feng YG, et al. Tobacco bacterial wilt can be biologically controlled by the application of antagonistic strains in combination with organic fertilizer [J]. Biol Fertil Soils, 2013, 49(4): 447-464.
[23]	陈泽斌, 夏振远, 雷丽萍, 等. 防治烟草黑胫病有益内生细菌的筛选及其抑菌作用 [J]. 中国烟草学报, 2013, 19(5): 112-117.
	Chen ZB, Xia ZY, Lei LP, et al. Screening of endophytic beneficial bacteria to tobacco black shank control and its bacteriostasis [J]. Acta Tabacaria Sin, 2013, 19(5): 112-117.
[24]	邓振山, 马亚茹, 何园, 等. 苹果树内生菌筛选及其对苹果腐烂病防治效果 [J]. 微生物学杂志, 2016, 36(4): 16-21.
	Deng ZS, Ma YR, He Y, et al. Screening endophytic bacteria strains of anti-apple tree decay (Valsa ceratosperma) from apple trees and their control effect [J]. J Microbiol, 2016, 36(4): 16-21.
[25]	惠非琼, 马杰, 刘剑, 等. 印度梨形孢诱导烟草的抗病性分析 [J]. 烟草科技, 2014, 47(11): 74-79.
	Hui FQ, Ma J, Liu J, et al. Disease resistance analysis of Nicotiana tabacum induced by Piriformospora indica [J]. Tob Sci Technol, 2014, 47(11): 74-79.
[26]	李合生. 植物生理生化实验原理和技术 [M]. 北京: 高等教育出版社, 2000.
	Li HS. Principles and techniques of plant physiological biochemical experiment [M]. Beijing: Higher Education Press, 2000.
[27]	陈建勋, 王晓峰. 植物生理学实验指导 [M]. 广州: 华南理工大学出版社, 2002.
	Chen JX, Wang XF. Experimental guidance in plant physiology [M]. Guangzhou: South China University of Technology Press, 2002.
[28]	彭兵, 刘剑, 惠非琼, 等. 印度梨形孢诱导烟草对黑胫病的抗性及其机理的初步研究 [J]. 农业生物技术学报, 2015, 23(4): 432-440.
	Peng B, Liu J, Hui FQ, et al. Piriformospora indica inducing tobacco resistance to black shank and its preliminary mechanism [J]. J Agric Biotechnol, 2015, 23(4): 432-440.
[29]	Čechová L, Holub D, Kurka M, et al. Quantitative LIBS imaging of cadmium in plant tissues with matrix-based calibration supported by micro-X-ray fluorescence spectroscopy [J]. Spectrochim Acta Part B At Spectrosc, 2026, 235: 107389.
[30]	Tian Q, Gong Y, Liu S, et al. Endophytic bacterial communities in wild rice (Oryza officinalis) and their plant growth-promoting effects on perennial rice [J]. Front Plant Sci, 2023, 14: 1184489.
[31]	刘春菊, 杜传印, 梁子敬, 等. 烟草根际溶磷细菌的筛选鉴定及抑菌促生效果研究 [J]. 中国烟草科学, 2020, 41(1): 9-15, 29.
	Liu CJ, Du CY, Liang ZJ, et al. Screening and identification of phosphorus-solubilizing bacteria in tobacco rhizosphere and their antibacterial and growth-promoting effects [J]. Chin Tob Sci, 2020, 41(1): 9-15, 29.
[32]	Sun Y, Cheng Z, Glick BR. The presence of a 1-aminocyclopropane-1-carboxylate (ACC) deaminase deletion mutation alters the physiology of the endophytic plant growth-promoting bacterium Burkholderia phytofirmans PsJN [J]. FEMS Microbiol Lett, 2009, 296(1): 131-136.
[33]	闵莉静, 郭璐, 叶建仁. 基于嗜铁素介导的吡咯伯克霍尔德氏菌JK-SH007促生作用机制研究 [J]. 南京林业大学学报: 自然科学版, 2019, 43(6): 165-172.
	Min LJ, Guo L, Ye JR. Mechanism of Burkholderia pyrrocinia JK-SH007 growth-promoting to plant via siderophore-mediation [J]. J Nanjing For Univ Nat Sci Ed, 2019, 43(6): 165-172.
[34]	Mendes R, Pizzirani-Kleiner AA, Araujo WL, et al. Diversity of cultivated endophytic bacteria from sugarcane: genetic and biochemical characterization of Burkholderia cepacian Complex isolates [J]. Appl Environ Microbiol, 2007, 73(22): 7259-7267.
[35]	唐滢, 雷平, 张翠央, 等. 抑真菌伯克霍尔德氏菌Z1的分离鉴定及其抑菌物质分析 [J]. 生命科学研究, 2020, 24(6): 484-493, 498.
	Tang Y, Lei P, Zhang CY, et al. Isolation and identification of Burkholderia sp. Z1 and analysis of its antifungal components [J]. Life Sci Res, 2020, 24(6): 484-493, 498.
[36]	Rynjah D, Browne RB, Gogoi M, et al. Ethyl acetate fraction of Rhododendron arboreum as potential therapeutic against drug-resistant bacterial isolates through experimental and in silico approach [J]. Proc Indian Natl Sci Acad, 2024, 90(3): 786-798.
[37]	于晓庆, 郗丽君, 刘永光, 等. 洋葱伯克霍尔德氏菌株Lyc2的鉴定及对棉苗的防病促生作用 [J]. 植物病理学报, 2007, 37(4): 426-432.
	Yu XQ, Xi LJ, Liu YG, et al. Physio-biochemical characterization and molecular identification of Burkholderia cepacia isolate Lyc2 as a PGPR to cotton seedlings [J]. Acta Phytopathol Sin, 2007, 37(4): 426-432.
[38]	陈凯, 李纪顺, 杨合同, 等. 越南伯克霍尔德氏工程菌株B418-37的温室防病增产效果 [J]. 山东农业科学, 2008, 40(7): 58-60.
	Chen K, Li JS, Yang HT, et al. Biocontrol and yield-increasing effects of Burkholderia vietnamiensis recombinant strain B418-37 in greenhouse [J]. Shandong Agric Sci, 2008, 40(7): 58-60.
[39]	Zhang GY, Dong JH, Han C, et al. Physiological and biochemical measurements reveal how Styrax Japonica seedlings response to flooding stress [J]. Forests, 2025, 16(4): 634.
[40]	牟志美, 路国兵, 冀宪领, 等. 桑树内生拮抗细菌Burkholderia cepacia Lu10-1的分离鉴定及其内生定殖 [J]. 微生物学报, 2008, 48(5): 623-630.
	Mu ZM, Lu GB, Ji XL, et al. Identification and colonization of an antagonistic endophytic Burkholderia cepacia Lu10-1 isolated from mulberry [J]. Acta Microbiol Sin, 2008, 48(5): 623-630.
