Effect of Photorespiration on Astaxanthin Accumulation in Haematococcus pluvialis Induced by Carbon Sources

doi:10.13560/j.cnki.biotech.bull.1985.2025-0776

Abstract

Abstract:

Objective Haematococcus pluvialis is the most promising natural source of the potent antioxidant astaxanthin. Carbon source supplementation is an effective strategy to enhance astaxanthin yield. Investigating the effect of endogenous photorespiration on astaxanthin accumulation induced by carbon sources would provide novel insights for optimizing production of H. pluvialis. Method Three different culture media were designed: Group CK: Normal control group, basic BG-11 medium. Group A: Supplemented with sodium acetate. Group H: Supplemented with sodium bicarbonate. The effects of photorespiration pathway on carbon source induced accumulation of astaxanthin in H. pluvialis were investigated by analyzing pigment accumulation, biomass, total photosynthetic rate, OJIP fluorescence induction curve, and chlorophyll fluorescence parameters, in the absence or presence of CM (photorespiration inhibitor) during the incubation, respectively. Result Supplementing with carbon sources such as sodium acetate or sodium bicarbonate enhanced algal dry weight and astaxanthin/chlorophyll ratio, with sodium acetate significantly increased astaxanthin accumulation. However, CM-mediated photorespiration inhibition markedly reduced the dry weight, astaxanthin content, and astaxanthin/chlorophyll ratio. Moreover, carbon supplementation (Group A and H) reduced total photosynthetic rate, further exacerbated by photorespiration inhibition induced by CM. Both carbon sources supplementation and CM altered OJIP curve profiles and fluorescence intensity. Under CK/A conditions, photorespiration inhibition unaffected maximum photochemical efficiency (Φ_P0) or electron transport efficiency (Φ_E0), but significantly decreased the amount of active PSII reaction centers (RC/CS₀), specific energy fluxes for absorption (ABS/RC), trapping flux of excitation energy (TR₀/RC), and electron transport flux (ET₀/RC) of per active reaction center. Compared with group A, Group A+CM presented notably higher relative variable fluorescence at J-step (V_J). Conclusion Under high-light stress, the addition of sodium acetate followed by inhibition of photorespiration first reduced the number of PSII active reaction centers, which then damaged the PSII receptor side, leading to obstruction of photosynthetic light energy absorption and utilization, and further damaging algal cells of H. pluvialis, resulting in reduced dry weight, astaxanthin content, and astaxanthin/chlorophyll ratio. This confirms that photorespiration plays an important role in the accumulation of astaxanthin in H. pluvialis induced by organic carbon source sodium acetate.

Key words: Haematococcus pluvialis, astaxanthin, photorespiration, sodium acetate, chlorophyll fluorescence

ZHANG Chun-hui, JI Jing-fang, CAO Jia-min, MA Xi-xi, LIU Wen-zhong, JI Chun-li, ZHANG Li-tao, LI Run-zhi. Effect of Photorespiration on Astaxanthin Accumulation in Haematococcus pluvialis Induced by Carbon Sources[J]. Biotechnology Bulletin, 2025, 41(10): 110-120.

Figures/Tables 9

Table 1 Medium formula for each treatment group

处理组 Treatment	基础培养基 Basal medium	外接碳源 Carbon source supplementation（1 g/L）	是否补充光呼吸抑制剂CM Absence or presence of photorespiration inhibitor CM（0.1 mmol/L）
CK	BG-11	无	否
CM	BG-11	无	是
A	BG-11	醋酸钠	否
A+CM	BG-11	醋酸钠	是
H	BG-11	碳酸氢钠	否
H+CM	BG-11	碳酸氢钠	是

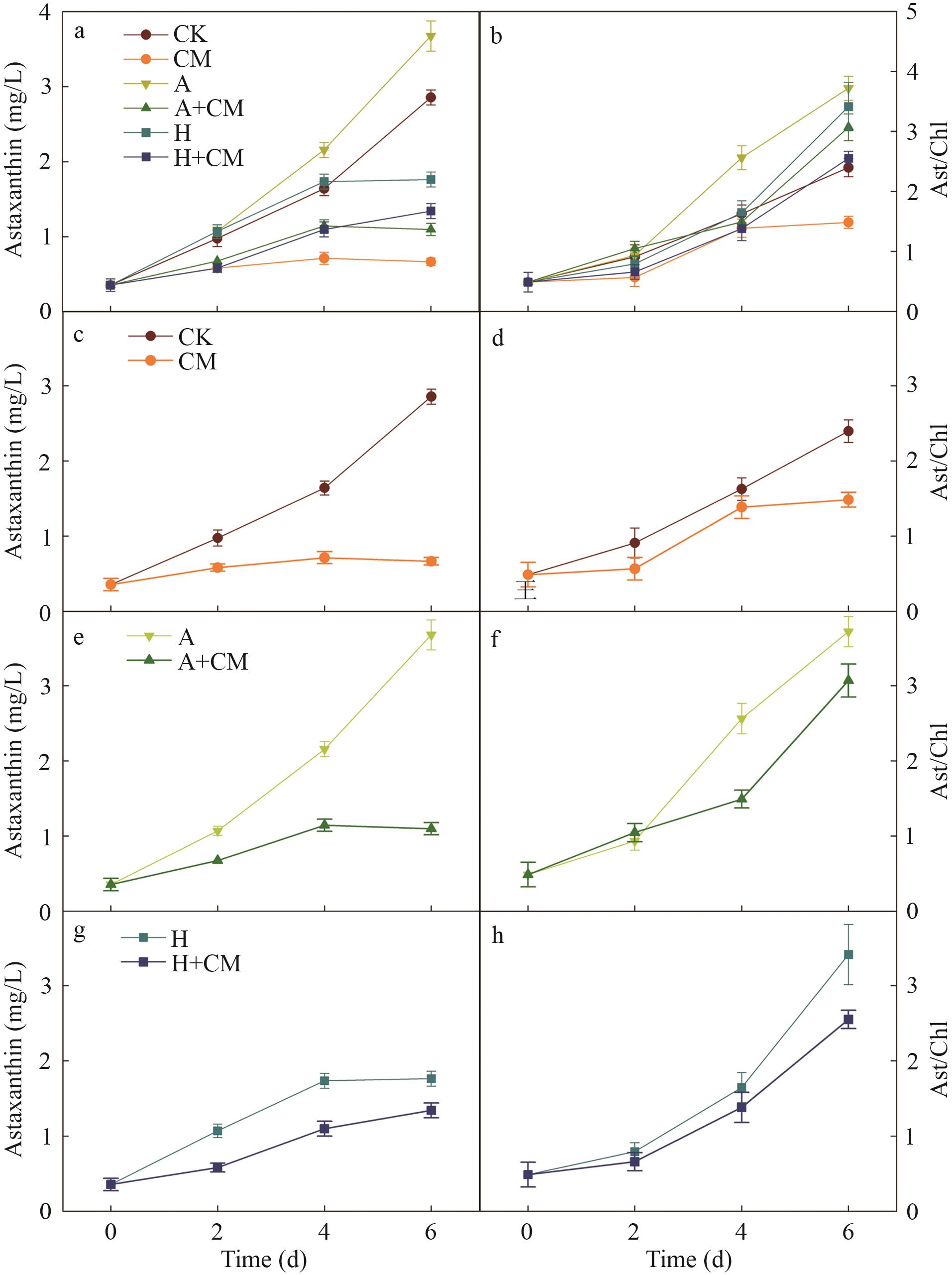

Fig. 1 Effects of photorespiration inhibitor CM on the astaxanthin content and astaxanthin/chlorophyll ratio in H. pluvialis cultured with different carbon sourcesa, c, e, g: Astaxanthin content; b, d, f, h: Astaxanthin/chlorophyll ratio

Fig. 2 Effects of photorespiration inhibitor CM on dry weights (a) and total photosynthetic rates (b) in H. pluvialis cultured with different carbon sources

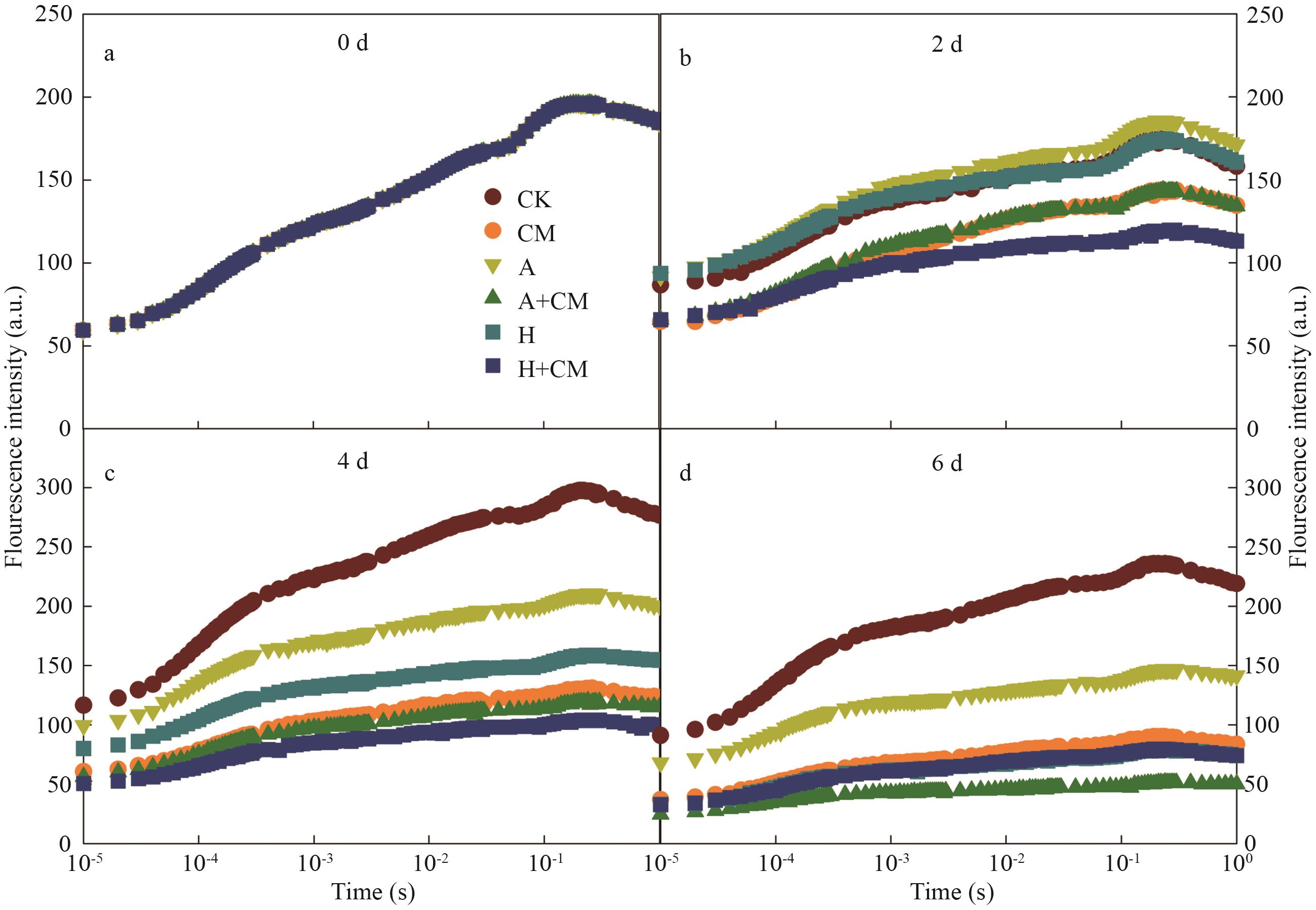

Fig. 3 Effects of photorespiration inhibitor CM on the chlorophyll a fluorescence (OJIP) transients in H. pluvialis cultured with different carbon sources

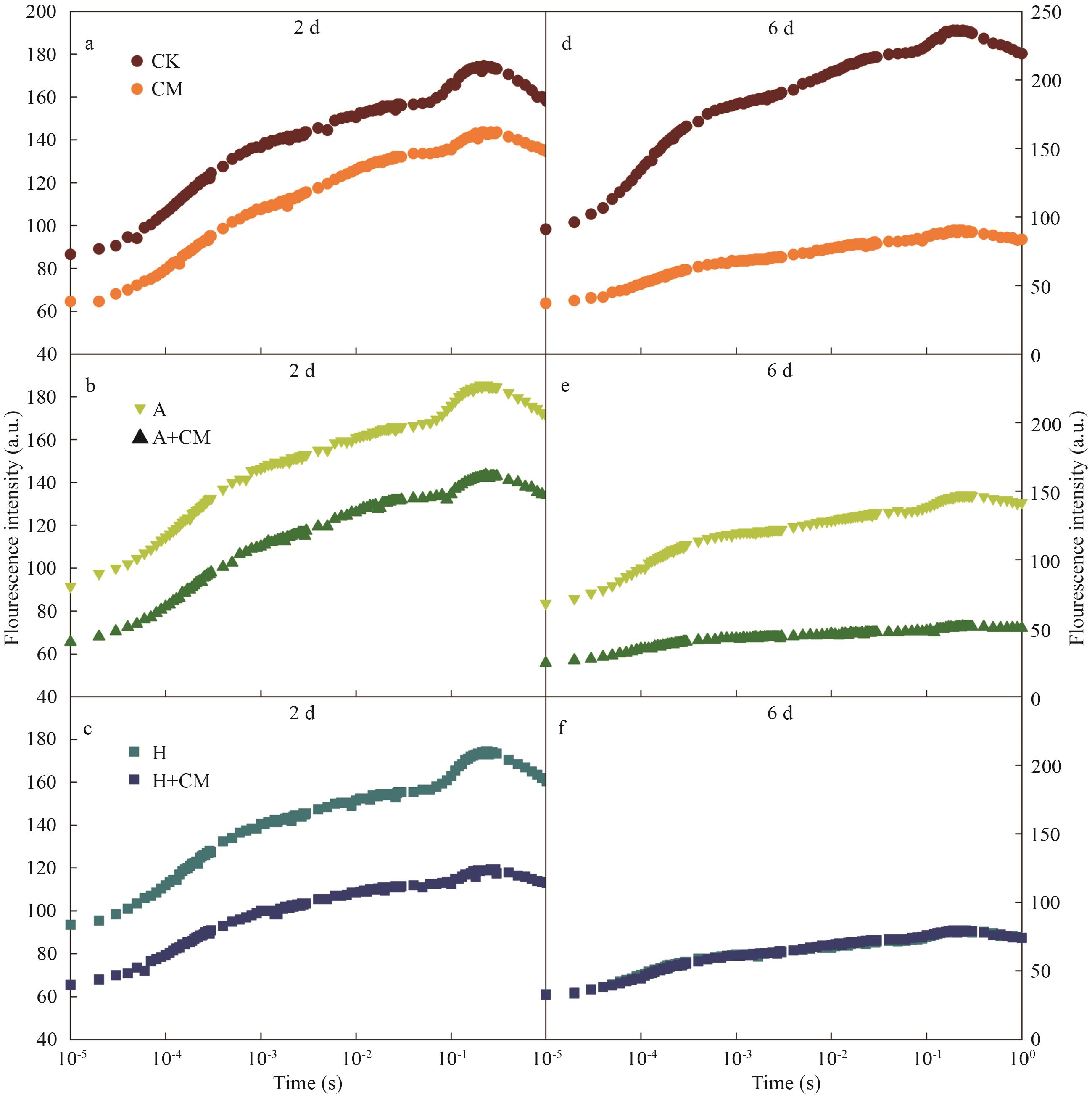

Fig. 4 Effects of photorespiration inhibitor CM on the chlorophyll a fluorescence (OJIP) transients at 2 d and 6 d in H. pluvialis cultured with different carbon sources

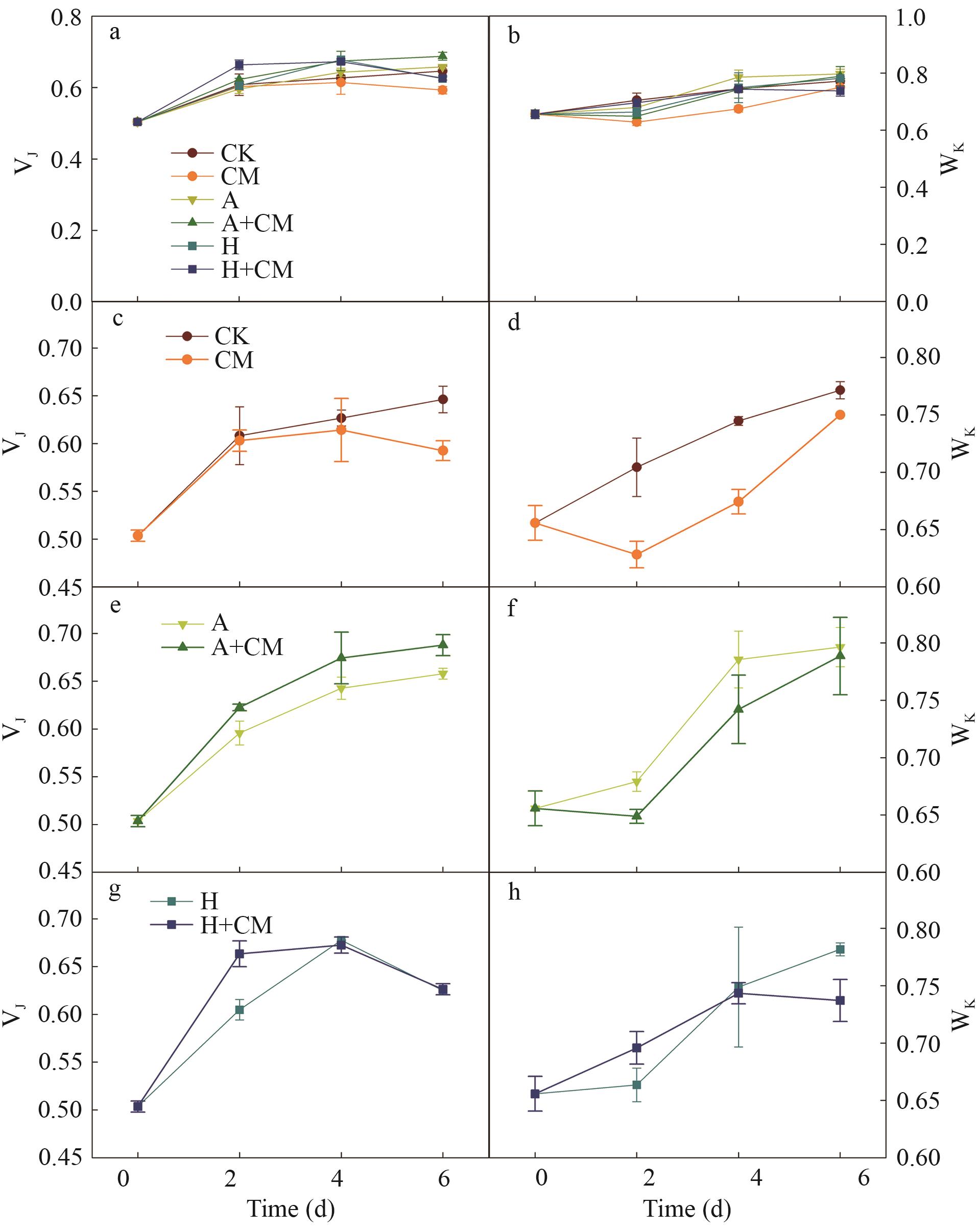

Fig. 5 Effects of photorespiration inhibitor CM on relative variable fluorescence at J-step (VJ) and at K-step (WK) in H. pluvialis cultured with different carbon sourcesa, c, e, g: Relative variable fluorescence at J-step (VJ); b, d, f, h: Relative variable fluorescence at K-step (WK)

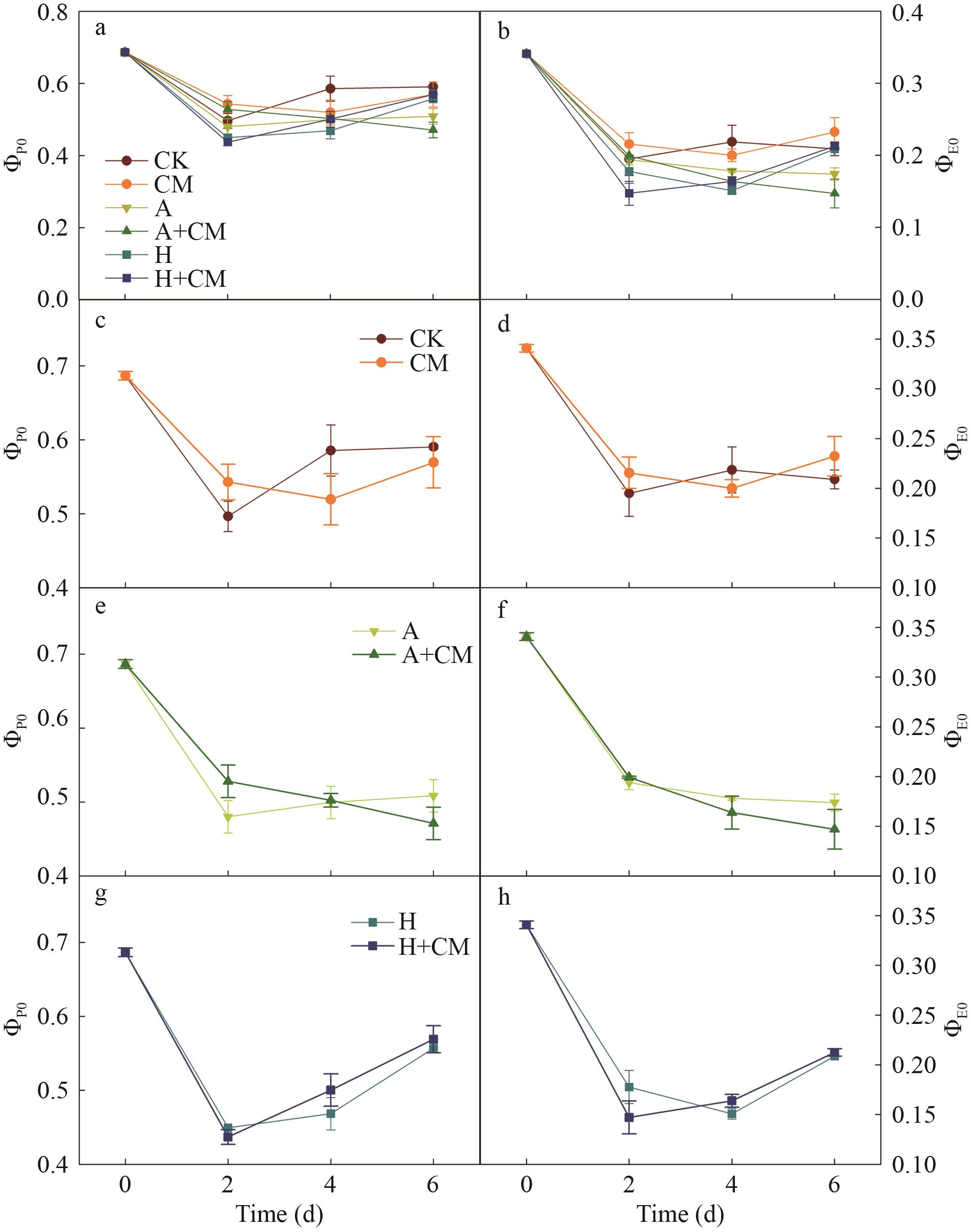

Fig. 6 Effects of photorespiration inhibitor CM on the maximum photochemical efficiency (ΦP0) and the quantum yield of electron transport (ΦE0) in H. pluvialis cultured with different carbon sourcesa, c, e, g: The maximum photochemical efficiency (ΦP0); b, d, f, h: The quantum yield of electron transport (ΦE0)

Fig. 7 Effects of photorespiration inhibitor CM on the amount of active PSII reaction centers (RCs) per excited cross section (RC/CS0), and the specific energy fluxes (per RC) for absorption (ABS/RC) in H. pluvialis cultured with different carbon sourcesa, c, e, g: The amount of active PSII reaction centers (RCs) per excited cross section (RC/CS0); b, d, f, h: The specific energy fluxes (per RC) for absorption (ABS/RC)

Fig. 8 Effects of photorespiration inhibitor CM on the trapping flux of excitation energy per active reaction center (TR0/RC), and the electron transport flux per active reaction center (ET0/RC) in H. pluvialis cultured with different carbon sourcesa, c, e, g: The trapping flux of excitation energy per active reaction center (TR0/RC); b, d, f, h: The electron transport flux per active reaction center (ET0/RC)

References 38

[1]	Liu JG, van der Meer J, Zhang LT, et al. Cultivation of Haematococcus pluvialis for astaxanthin production [M]//Microalgal Production for Biomass and High-Value Products. Boca Raton: CRC Press, 2016: 267-293.
[2]	Zhang LT, Zhang CH, Xu R, Liu JG. Astaxanthin Biosynthesis in Haematococcus pluvialis: Metabolic Process, Function, and Biotechnological Applications. [M]// Paul A. Melborne (editor) An Essential Guide to Astaxanthin: Dietary Sources, Properties and Health Benefits. Nova Science Publishers, Inc: New York, 2019, 37-75.
[3]	van LIS R, Atteia A. Control of mitochondrial function via photosynthetic redox signals [J]. Photosynth Res, 2004, 79(2): 133-148.
[4]	Bauwe H, Hagemann M, Fernie AR. Photorespiration: players, partners and origin [J]. Trends Plant Sci, 2010, 15(6): 330-336.
[5]	Bauwe H, Hagemann M, Kern R, et al. Photorespiration has a dual origin and manifold links to central metabolism [J]. Curr Opin Plant Biol, 2012, 15(3): 269-275.
[6]	South PF, Cavanagh AP, Liu HW, et al. Synthetic glycolate metabolism pathways stimulate crop growth and productivity in the field [J]. Science, 2019, 363(6422): eaat9077.
[7]	Eisenhut M, Roell MS, Weber APM. Mechanistic understanding of photorespiration paves the way to a new green revolution [J]. New Phytol, 2019, 223(4): 1762-1769.
[8]	Zhang CH, Zhang LT, Liu JG. The role of photorespiration during astaxanthin accumulation in Haematococcus pluvialis (Chlorophyceae) [J]. Plant Physiol Biochem, 2016, 107: 75-81.
[9]	Zhang CH, Zhang LT, Liu JG. The interrelation between photorespiration and astaxanthin accumulation in Haematococcus pluvialis using metabolomic analysis [J]. Algal Res, 2019, 41: 101520.
[10]	时晓晴. 光照和培养条件对雨生红球藻生长和虾青素积累影响的研究 [D]. 大连: 大连理工大学, 2023.
	Shi XQ. Effects of light and culture conditions on the growth of Haematococcus pluvialis and astaxanthin accumulation [D]. Dalian: Dalian University of Technology, 2023.
[11]	张豪杰, 李旺宁, 梁梦静, 等. α-酮戊二酸及其钠盐对雨生红球藻生长和虾青素积累的促进作用 [J]. 海洋与湖沼, 2023, 54(1): 139-148.
	Zhang HJ, Li WN, Liang MJ, et al. Promoting effects of α-ketoglutarate and its sodium salt on growth and astaxanthin accumulation in Haematococcus Pluvialis [J]. Oceanol Limnol Sin, 2023, 54(1): 139-148.
[12]	Yu WJ, Zhang LT, Zhao J, et al. Enhancement of astaxanthin accumulation in Haematococcus pluvialis by exogenous oxaloacetate combined with nitrogen deficiency [J]. Bioresour Technol, 2022, 345: 126484.
[13]	Yu WJ, Zhang LT, Zhao J, et al. Exogenous sodium fumarate enhances astaxanthin accumulation in Haematococcus pluvialis by enhancing the respiratory metabolic pathway [J]. Bioresour Technol, 2021, 341: 125788.
[14]	Zhang LT, Zhang CH, Liu JG, et al. A strategy for stimulating astaxanthin and lipid production in Haematococcus pluvialis by exogenous glycerol application under low light [J]. Algal Res, 2020, 46: 101779.
[15]	Zhang CH, Zhang LT, Liu JG. Exogenous sodium acetate enhances astaxanthin accumulation and photoprotection in Haematococcus pluvialis at the non-motile stage [J]. J Appl Phycol, 2019, 31(2): 1001-1008.
[16]	Zhang ZS, Zhu GH, Peng XX. Photorespiration in plant adaptation to environmental changes [J]. Crop Environ, 2024, 3(4): 203-212.
[17]	张豪杰. 外源α-酮戊二酸对植物氮素响应的生物学效应与作用机理研究 [D]. 太谷: 山西农业大学, 2023.
	Zhang HJ. Biological effect and mechanism of exogenous α-ketoglutaric acid in plant response to nitrogen [D]. Taigu: Shanxi Agricultural University, 2023.
[18]	李鹏民, 高辉远, Strasser R. 快速叶绿素荧光诱导动力学分析在光合作用研究中的应用 [J]. 植物生理与分子生物学学报, 2005, 31(6): 559-566.
	Li PM, Gao HY, Strasser R. Application of the fast chlorophyll fluorescence induction dynamics analysis in photosynthesis study [J]. Acta Photophysiol Sin, 2005, 31(6): 559-566.
[19]	Zhang LT, Su F, Zhang CH, et al. Changes of photosynthetic behaviors and photoprotection during cell transformation and astaxanthin accumulation in Haematococcus pluvialis grown outdoors in tubular photobioreactors [J]. Int J Mol Sci, 2017, 18(1): 33.
[20]	Wingler A, Lea PJ, Quick WP, et al. Photorespiration: metabolic pathways and their role in stress protection [J]. Phil Trans R Soc Lond B, 2000, 355(1402): 1517-1529.
[21]	Chen Z, Chen J, Liu JH, et al. Transcriptomic and metabolic analysis of an astaxanthin-hyperproducing Haematococcus pluvialis mutant obtained by low-temperature plasma (LTP) mutagenesis under high light irradiation [J]. Algal Res, 2020, 45: 101746.
[22]	Obata T, Florian A, Timm S, et al. On the metabolic interactions of (photo) respiration [J]. J Exp Bot, 2016, 67(10): 3003-3014.
[23]	Hoefnagel MHN, Atkin OK, Wiskich JT. Interdependence between chloroplasts and mitochondria in the light and the dark [J]. Biochim Biophys Acta Bioenerg, 1998, 1366(3): 235-255.
[24]	Walker B, Schmiege SC, Sharkey TD. Re-evaluating the energy balance of the many routes of carbon flow through and from photorespiration [J]. Plant Cell Environ, 2024, 47(9): 3365-3374.
[25]	Zhang LT, Xu R, Liu JG. Strasser-Efficacy of botanical pesticide for rotifer extermination during the cultivation of Nannochloropsis oculata probed by chlorophyll a fluorescence transient [J]. Photosynthetica, 2020, 58: 341-347.
[26]	von Bismarck T, Wendering P, Perez de Souza L, et al. Growth in fluctuating light buffers plants against photorespiratory perturbations [J]. Nat Commun, 2023, 14: 7052.
[27]	Zhang LT, Zhang ZS, Gao HY, et al. Mitochondrial alternative oxidase pathway protects plants against photoinhibition by alleviating inhibition of the repair of photodamaged PSII through preventing formation of reactive oxygen species in Rumex K-1 leaves [J]. Physiol Plant, 2011, 143(4): 396-407.
[28]	Zhang LT, Liu JG. Effects of heat stress on photosynthetic electron transport in a marine Cyanobacterium arthrospira sp [J]. J Appl Phycol, 2016, 28(2): 757-763.
[29]	Yusuf MA, Kumar D, Rajwanshi R, et al. Overexpression of γ-tocopherol methyl transferase gene in transgenic Brassica juncea plants alleviates abiotic stress: Physiological and chlorophyll a fluorescence measurements [J]. Biochim Biophys Acta Bioenerg, 2010, 1797(8): 1428-1438.
[30]	Strasser RJ, Tsimilli-Michael M, Srivastava A. Analysis of the chlorophyll a fluorescence transient [M]//Chlorophyll a Fluorescence. Dordrecht: Springer Netherlands, 2004: 321-362.
[31]	Dao O, Bertrand M, Alseekh S, et al. The green algae CO₂ concentrating mechanism and photorespiration jointly operate during acclimation to low CO₂ [J]. Nat Commun, 2025, 16: 5296.
[32]	Xie XJ, Huang AY, Gu WH, et al. Photorespiration participates in the assimilation of acetate in Chlorella sorokiniana under high light [J]. New Phytol, 2016, 209(3): 987-998.
[33]	Huang AY, Liu LX, Yang C, et al. Phaeodactylum tricornutum photorespiration takes part in glycerol metabolism and is important for nitrogen-limited response [J]. Biotechnol Biofuels, 2015, 8(1): 73.
[34]	Sarojini G, Oliver DJ. Inhibition of glycine oxidation by carboxymethoxylamine, methoxylamine, and acethydrazide [J]. Plant Physiol, 1985, 77(3): 786-789.
[35]	Douce R, Bourguignon J, Neuburger M, et al. The glycine decarboxylase system: a fascinating complex [J]. Trends Plant Sci, 2001, 6(4): 167-176.
[36]	Zhang LT, Li L, He ML, et al. The role of photorespiration during H₂ photoproduction in Chlorella protothecoides under nitrogen limitation [J]. Plant Cell Rep, 2016, 35(1): 1-4.
[37]	Li L, Shastik E, Zhang LT, et al. Photorespiration plays an important role in H₂ production by marine Chlorella pyrenoidosa [J]. Algal Res, 2023, 71: 103072.
[38]	González-Moro B, Lacuesta M, Becerril JM, et al. Glycolate accumulation causes a decrease of photosynthesis by inhibiting RUBISCO activity in maize [J]. J Plant Physiol, 1997, 150(4): 388-394.
