Biocontrol Characteristics of Strain JB7 against Fusarium graminearum

doi:10.13560/j.cnki.biotech.bull.1985.2024-1187

Abstract

Abstract:

Objective Bacillus methylotrophicus JB7 may inhibit Fusarium graminearum (Fg) growth and control Fusarium head blight in wheat; however, the mechanisms underlying its antifungal activity and disease management remain unclear. In this study, the antifungal and disease control mechanisms of B. methylotrophicus were explored, which may provide a theoretical basis for its further application. Method The effects of cell-free supernatants (CFS) from strain JB7 on the number of Fg spores, mycelium growth and antioxidant enzyme activity of Fg were studied through assessment of spore germination, antifungal activity and antioxidant enzyme activity. Transcriptomic sequencing was employed to analyze differentially expressed genes (DEGs), while amplicon sequencing was used to evaluate the effects of JB7 spraying on wheat ears mycotoxin content and microbial community structure. Result The CFS from strain JB7 showed a strong inhibitory effect on mycelial growth and germination of Fg. Additionally, the CFS led to an increase in the activity of superoxide dismutase (SOD) and catalase (CAT) in Fg mycelium, while causing a reduction in peroxidase (POD) and glutathione reductase (GR) activities. Transcriptome analysis indicates that the CFS from strain JB7 affected the expression of genes related to oxidative stress and toxin production. The application of JB7 resulted in an alteration of microbial community structure in wheat ears, leading to a decrease in Fg density and mycotoxin content. Conclusion The CFS from strain JB7 shows antifungal effects on Fg by triggering oxidative stress and reducing mycotoxin levels, and strain JB7 may change the microbial community structure in wheat ears and reduce the density and mycotoxin content of Fg.

Key words: Fusarium head blight, Fusarium graminearum, Bacillus methylotrophicus, transcriptome, amplicon sequencing

ZHANG Yue, BI Yu, MU Xue-nan, ZHENG Zi-wei, WANG Zhi-gang, XU Wei-hui. Biocontrol Characteristics of Strain JB7 against Fusarium graminearum[J]. Biotechnology Bulletin, 2025, 41(7): 261-271.

Figures/Tables 6

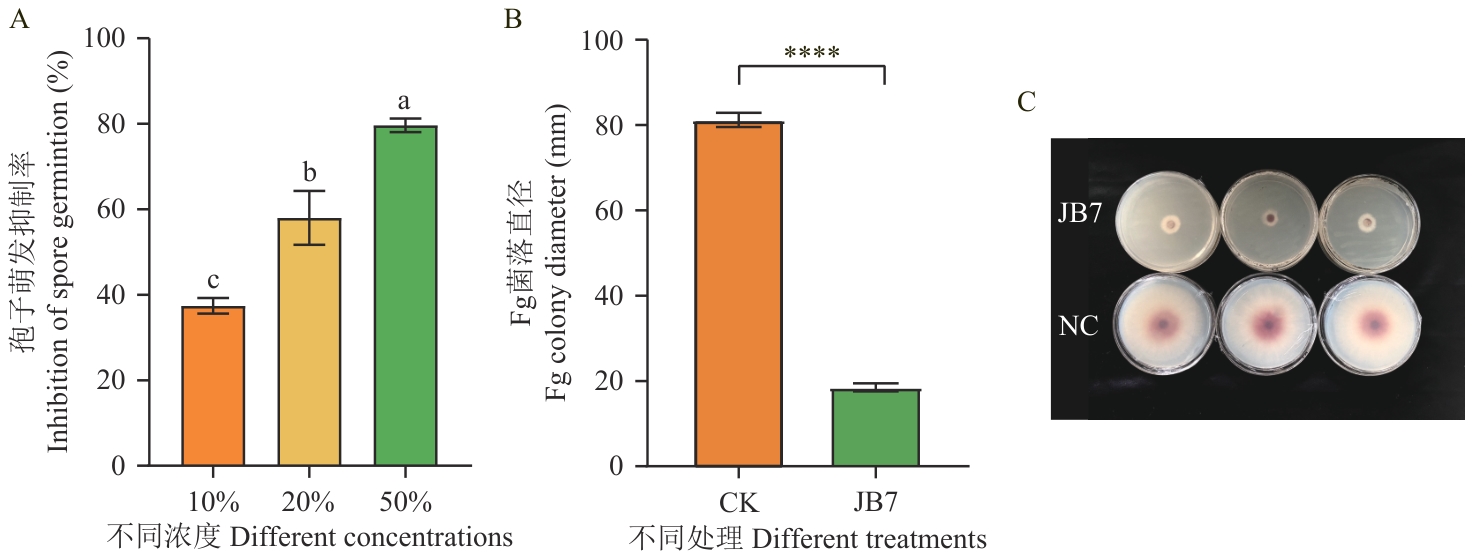

Fig. 1 Inhibitory effect of strain JB7 on Fusarium graminearum (Fg)A: The effect of different concentrations of CFS from strain JB7 on spore germination. B: The inhibitory effect of volatile compounds from strain JB7 on Fg. C: Plate of the inhibitory effect of volatile compounds from strain JB7 on Fg. The different lowercase letters indicate significant differences among treatments (P<0.05). **** indicates significant differences at P<0.000 1 . The same below

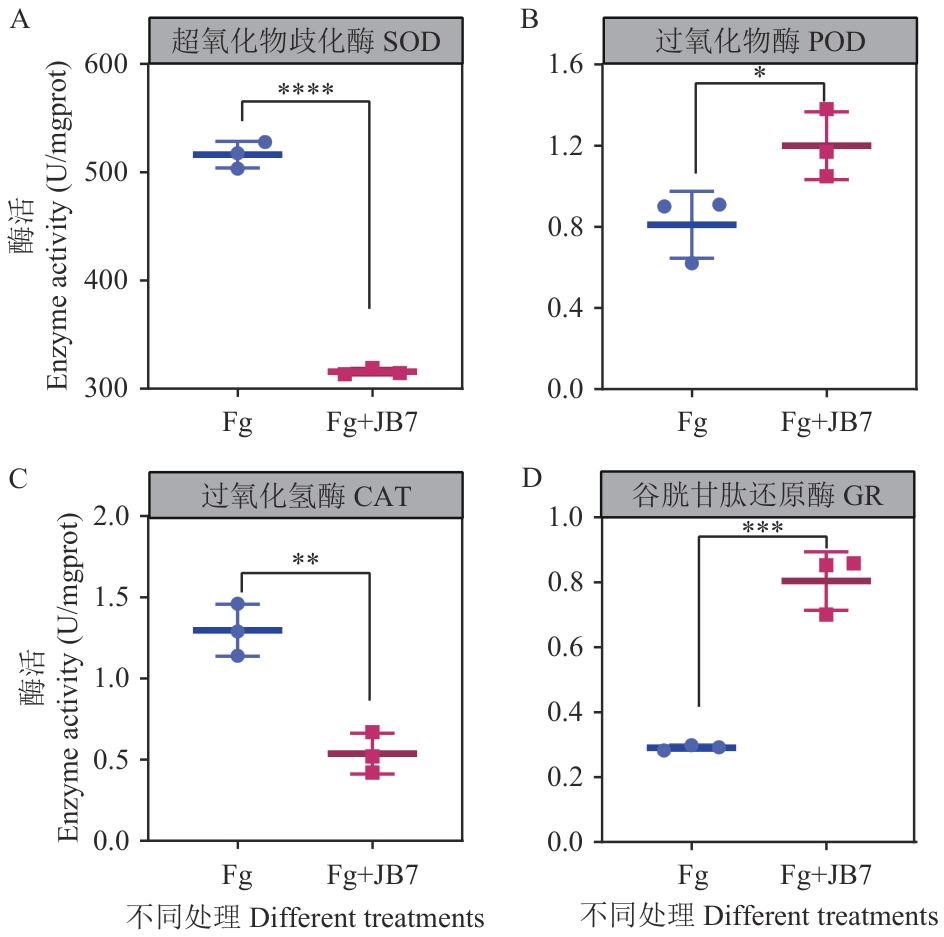

Fig. 2 Effects of CFS from strain JB7 on the antioxidant enzyme activities of Fg mycelia*, **, and *** indicate significant differences at P<0.05, P<0.01, and P<0.001, respectively. The same below

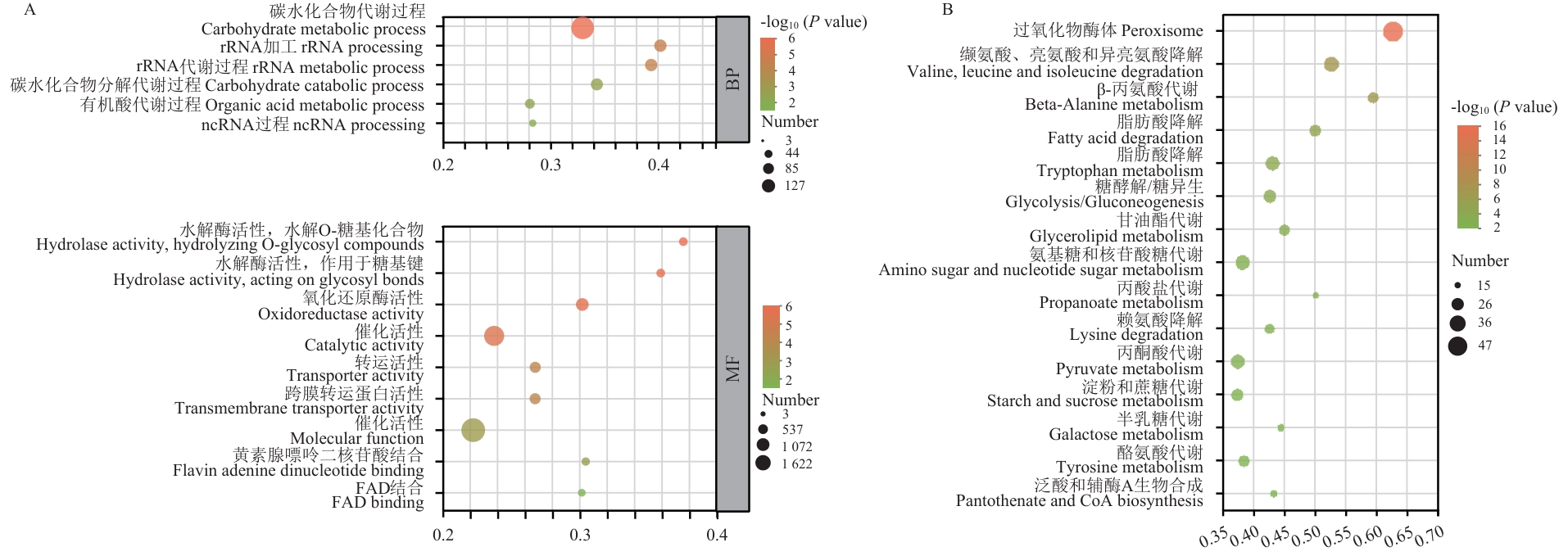

Fig. 3 Enrichment analysis of DEGs in FgA: GO enrichment analysis of DEGs; B: KEGG enrichment analysis of DEGs

Fig. 4 Expression analysis of genes related to oxidative stress and mycotoxin in FgA: Clustering heatmap of genes related to reactive oxygen species. B: Clustering heatmap of genes related to mycotoxin. C: Biosynthesis of deoxynivalenol. D: Gene expression of genes related to oxidative stress and mycotoxin using RT-qPCR

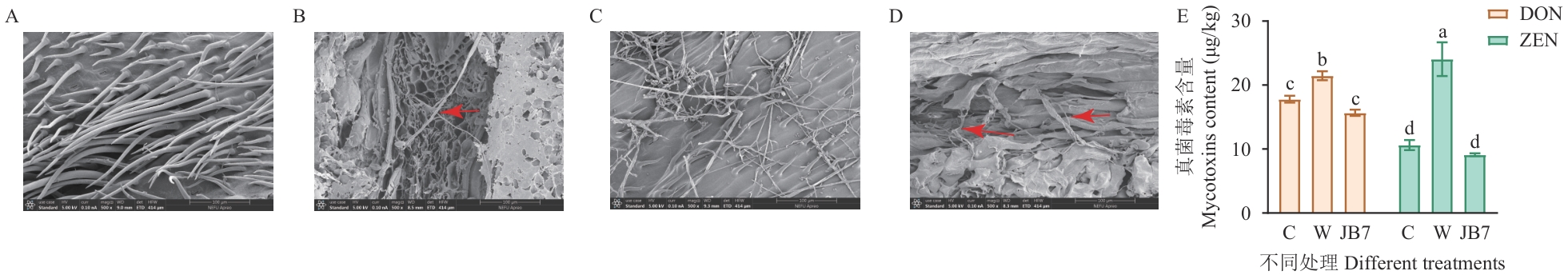

Fig. 5 Colonization of Fg in wheat ears and its mycotoxin secretionA: Profile map of glumes wheat ears in JB7 treatment. B: Profile map of inside tissues in JB7 treatment. C: Profile map of glumes wheat ears in water treatment. D: Profile map of inside tissues in water treatment. E: Mycotoxin content in wheat ears. The arrows indicate the distribution of the Fg mycelium

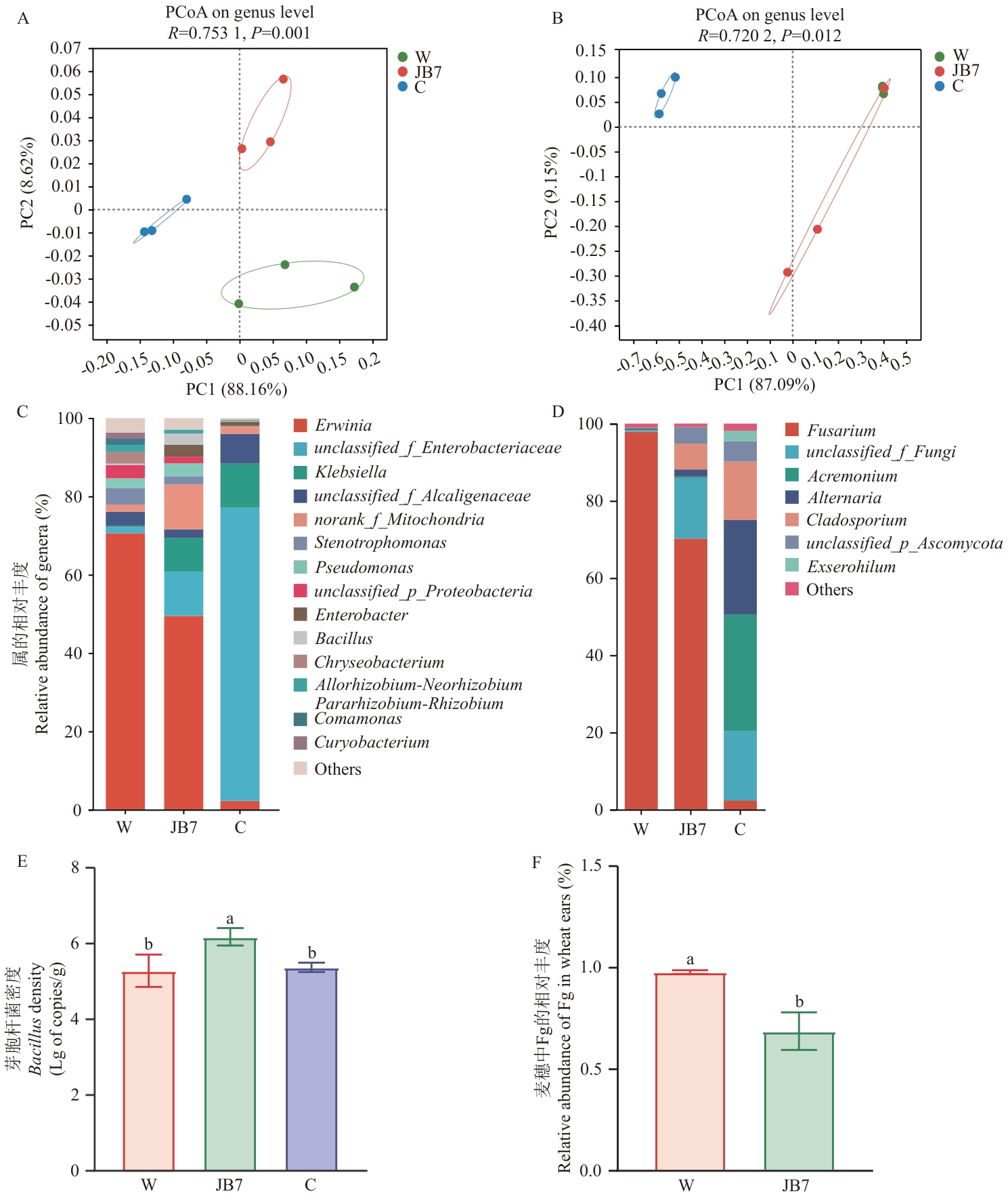

Fig. 6 Effects of strain JB7 on microbial community structure in wheat earsA: Principal coordinate analysis of bacterial community based on Bray-Curtis distance. B: Principal coordinate analysis of fungal community based on Bray-Curtis distance. C: Relative abundance of bacterial genera in different treatments. D: Relative abundance of fungal genera in different treatments. E: Absolute abundance of Bacillus in wheat ears. F: Relative abundance of Fg in wheat ears

References 42

[1]	Ma ZQ, Xie Q, Li GQ, et al. Germplasms, genetics and genomics for better control of disastrous wheat Fusarium head blight [J]. Theor Appl Genet, 2020, 133(5): 1541-1568.
[2]	吴迪, 朱素芹, 张语卉, 等. HGGT基因与小麦赤霉病籽粒毒素积累的关系解析 [J]. 江苏农业科学, 2020, 48(11): 96-100.
	Wu D, Zhu SQ, Zhang YH, et al. Analysis of relationships among HGGT gene, Fusarium head blight and deoxynivalenol accumulation in wheat grains [J]. Jiangsu Agric Sci, 2020, 48(11): 96-100.
[3]	王文肖, 刘美玲, 阙亚伟, 等. 贝莱斯芽孢杆菌EA19与多菌灵复配防治小麦赤霉病研究 [J]. 河南农业科学, 2024, 53(10): 117-126.
	Wang WX, Liu ML, Que YW, et al. Combination of Bacillus velezensis EA19 and carbendazim to control Fusarium head blight on wheat [J]. J Henan Agric Sci, 2024, 53(10): 117-126.
[4]	王旭, 黄德玉, 吴庆华, 等. 真菌毒素引起的氧化应激及其毒理学意义 [J]. 生态毒理学报, 2015, 10(6): 62-70.
	Wang X, Huang DY, Wu QH, et al. Oxidative stress induced by mycotoxins and its toxicological significance [J]. Asian J Ecotoxicol, 2015, 10(6): 62-70.
[5]	余红凤, 张琳, 毕钰, 等. 一株西瓜枯萎病生防菌Bacillus methylotrophicus的筛选、鉴定及抑菌物质分析 [J]. 微生物学通报, 2024, 51(2): 534-553.
	Yu HF, Zhang L, Bi Y, et al. Screening, identification and antimicrobial substances analysis of a biocontrol bacterium Bacillus methylotrophicus against watermelon Fusarium wilt [J]. Microbiol China, 2024, 51(2): 534-553.
[6]	Boenisch MJ, Schäfer W. Fusarium graminearum forms mycotoxin producing infection structures on wheat [J]. BMC Plant Biol, 2011, 11: 110.
[7]	张震, 邱海萍, 柴荣耀, 等. 一株小麦赤霉病生防菌的鉴定及其生防机制初探 [J]. 中国生物防治学报, 2022, 38(3): 673-680.
	Zhang Z, Qiu HP, Chai RY, et al. Identification of a biocontrol bacterium strain against Fusarium graminearum and its preliminary study on biocontrol mechanism [J]. Chin J Biol Contr, 2022, 38(3): 673-680.
[8]	Wegulo SN, Baenziger PS, Hernandez Nopsa J, et al. Management of Fusarium head blight of wheat and barley [J]. Crop Prot, 2015, 73: 100-107.
[9]	Zhang K, Wang LM, Si HL, et al. Maize stalk rot caused by Fusarium graminearum alters soil microbial composition and is directly inhibited by Bacillus siamensis isolated from rhizosphere soil [J]. Front Microbiol, 2022, 13: 986401.
[10]	Ge BB, Liu BH, Nwet TT, et al. Bacillus methylotrophicus strain NKG-1, isolated from Changbai Mountain, China, has potential applications as a biofertilizer or biocontrol agent [J]. PLoS One, 2016, 11(11): e0166079.
[11]	Shan HY, Zhao MM, Chen DX, et al. Biocontrol of rice blast by the phenaminomethylacetic acid producer of Bacillus methylotrophicus strain BC79 [J]. Crop Prot, 2013, 44: 29-37.
[12]	Cheng XK, Ji XX, Ge YZ, et al. Characterization of antagonistic Bacillus methylotrophicus isolated from rhizosphere and its biocontrol effects on maize stalk rot [J]. Phytopathology, 2019, 109(4): 571-581.
[13]	宗英, 赵月菊, 刘阳, 等. 一株贝莱斯芽孢杆菌抑制禾谷镰刀菌的研究 [J]. 核农学报, 2018, 32(2): 310-317.
	Zong Y, Zhao YJ, Liu Y, et al. Study on the inhibitory effect of Bacillus velezensis on Fusarium graminearum [J]. J Nucl Agric Sci, 2018, 32(2): 310-317.
[14]	Xu Y, Wang LL, Liang WX, et al. Biocontrol potential of endophytic Bacillus velezensis strain QSE-21 against postharvest grey mould of fruit [J]. Biol Contr, 2021, 161: 104711.
[15]	Li Q, Hou ZQ, Zhou DQ, et al. Antifungal activity and possible mechanism of Bacillus amyloliquefaciens FX2 against the postharvest apple ring rot pathogen [J]. Phytopathology, 2022, 112(12): 2486-2494.
[16]	Han Q, Wu FL, Wang XN, et al. The bacterial lipopeptide iturins induce Verticillium dahliae cell death by affecting fungal signalling pathways and mediate plant defence responses involved in pathogen-associated molecular pattern-triggered immunity [J]. Environ Microbiol, 2015, 17(4): 1166-1188.
[17]	Zhang LL, Sun CM. Fengycins, cyclic lipopeptides from marine Bacillus subtilis strains, kill the plant-pathogenic fungus Magnaporthe grisea by inducing reactive oxygen species production and chromatin condensation [J]. Appl Environ Microbiol, 2018, 84(18): e00445-18.
[18]	毕钰, 张琳, 余红凤, 等. 小麦赤霉病拮抗菌JB7的拮抗活性及鉴定 [J]. 微生物学报, 2024, 64(5): 1580-1592.
	Bi Y, Zhang L, Yu HF, et al. Antagonistic activity and identification of antagonistic bacteria JB7 against Fusarium head blight [J]. Acta Microbiol Sin, 2024, 64(5): 1580-1592.
[19]	徐伟慧, 王恒煦, 赵井明, 等. 西瓜枯萎病拮抗菌筛选及其拮抗性能研究 [J]. 农业生物技术学报, 2019, 27(12): 2238-2247.
	Xu WH, Wang HX, Zhao JM, et al. Screening of antagonistic bacteria against Fusarium wilt of watermelon (Citrullus lanatus) and its antagonistic properties [J]. J Agric Biotechnol, 2019, 27(12): 2238-2247.
[20]	Jackowiak H, Packa D, Wiwart M, et al. Scanning electron microscopy of Fusarium damaged kernels of spring wheat [J]. Int J Food Microbiol, 2005, 98(2): 113-123.
[21]	刘明艳, 马嘉晗, 李瑜, 等. 16S rRNA基因高变区V4和V3-V4及测序深度对油藏细菌菌群分析的影响 [J]. 微生物学通报, 2020, 47(2): 440-449.
	Liu MY, Ma JH, Li Y, et al. Influence of 16S rRNA gene V4 and V3-V4 sequencing and sequencing depth on unraveling bacterial communities inhabiting oil reservoirs [J]. Microbiol China, 2020, 47(2): 440-449.
[22]	Mori K, Iriye R, Hirata M, et al. Quantification of Bacillus species in a wastewater treatment system by the molecular analyses [J]. Biotechnol Bioprocess Eng, 2004, 9(6): 482-489.
[23]	Jin PF, Wang HN, Tan Z, et al. Antifungal mechanism of bacillomycin D from Bacillus velezensis HN-2 against Colletotrichum gloeosporioides Penz [J]. Pestic Biochem Physiol, 2020, 163: 102-107.
[24]	Kulkarni OS, Mazumder M, Kini S, et al. Volatile methyl jasmonate from roots triggers host-beneficial soil microbiome biofilms [J]. Nat Chem Biol, 2024, 20(4): 473-483.
[25]	Zhang YJ, Cao XY, Chen YJ, et al. Potential utility of endophytic Bacillus altitudinis strain P32-3 as a biocontrol agent for the postharvest prevention of sweet potato black rot [J]. Biol Contr, 2023, 186: 105350.
[26]	Li LR, Shi YH, Cheng XR, et al. A cell-penetrating peptide analogue, P7, exerts antimicrobial activity against Escherichia coli ATCC25922 via penetrating cell membrane and targeting intracellular DNA [J]. Food Chem, 2015, 166: 231-239.
[27]	Li X, Li MT, Liu XK, et al. RNA-Seq provides insights into the mechanisms underlying Ilyonectria robusta responding to secondary metabolites of Bacillus methylotrophicus NJ13 [J]. J Fungi, 2022, 8(8): 779.
[28]	Wu RY, Li SY, Hudlikar R, et al. Redox signaling, mitochondrial metabolism, epigenetics and redox active phytochemicals [J]. Free Radic Biol Med, 2022, 179: 328-336.
[29]	燕霞飞, 郑长英, 李凯月, 等. 球孢白僵菌在重金属Cd(Ⅱ)作用下抗氧化酶系变化 [J]. 环境昆虫学报, 2017, 39(5): 992-999.
	Yan XF, Zheng CY, Li KY, et al. The effect of Cd(Ⅱ) on antioxidant enzymes cctivity of Beauveria bassiana [J]. J Environ Entomol, 2017, 39(5): 992-999.
[30]	Alscher RG, Erturk N, Heath LS. Role of superoxide dismutases (SODs) in controlling oxidative stress in plants [J]. J Exp Bot, 2002, 53(372): 1331-1341.
[31]	何林鑫, 黄荣, 田望军, 等. 欧文氏菌DE2对三种豆科牧草幼苗生长的影响 [J]. 草地学报, 2023, 31(9): 2642-2652.
	He LX, Huang R, Tian WJ, et al. Effects of Erwinia sp. DE2 on the growth of three leguminous forage seedlings [J]. Acta Agrestia Sin, 2023, 31(9): 2642-2652.
[32]	Ströher E, Harvey Millar A. The biological roles of glutaredoxins [J]. Biochem J, 2012, 446(3): 333-348.
[33]	Yin DC, Qi JY. The physiological response of Ectomycorrhizal fungus Lepista sordidato Cd and Cu stress [J]. PeerJ, 2021, 9: e11115.
[34]	Kheiri A, Ali Moosawi Jorf S, Malihipour A. Infection process and wheat response to Fusarium head blight caused by Fusarium graminearum [J]. Eur J Plant Pathol, 2019, 153(2): 489-502.
[35]	Kim K, Lee Y, Ha A, et al. Chemosensitization of Fusarium graminearum to chemical fungicides using cyclic lipopeptides produced by Bacillus amyloliquefaciens strain JCK-12 [J]. Front Plant Sci, 2017, 8: 2010.
[36]	Wang KX, Wang ZG, Xu WH. Induced oxidative equilibrium damage and reduced toxin synthesis in Fusarium oxysporum f. sp. niveum by secondary metabolites from Bacillus velezensis WB [J]. FEMS Microbiol Ecol, 2022, 98(8): fiac080.
[37]	Zhao HH, Tao X, Song W, et al. Mechanism of Fusarium graminearum resistance to ergosterol biosynthesis inhibitors: G443S substitution of the drug target FgCYP51A [J]. J Agric Food Chem, 2022, 70(6): 1788-1798.
[38]	Gao T, Zhou H, Zhou W, et al. The fungicidal activity of thymol against Fusarium graminearum via inducing lipid peroxidation and disrupting ergosterol biosynthesis [J]. Molecules, 2016, 21(6): 770.
[39]	Ruma YN, Keniya MV, Tyndall JDA, et al. Characterisation of Candida parapsilosis CYP51 as a drug target using Saccharomyces cerevisiae as host [J]. J Fungi, 2022, 8(1): 69.
[40]	Ji C, Chen ZZ, Kong XH, et al. Biocontrol and plant growth promotion by combined Bacillus spp. inoculation affecting pathogen and AMF communities in the wheat rhizosphere at low salt stress conditions [J]. Front Plant Sci, 2022, 13: 1043171.
[41]	Wang CQ, Zhao DY, Qi GZ, et al. Effects of Bacillus velezensis FKM10 for promoting the growth of Malus hupehensis rehd. and inhibiting Fusarium verticillioides [J]. Front Microbiol, 2020, 10: 2889.
[42]	石晶盈, 陈维信, 刘爱媛. 植物内生菌及其防治植物病害的研究进展 [J]. 生态学报, 2006, 26(7): 2395-2401.
	Shi JY, Chen WX, Liu AY. Advances in the study of endophytes and their effects on control of plant diseases [J]. Acta Ecol Sin, 2006, 26(7): 2395-2401.
