Developing Highly Efficient Grafting Rootstocks Based on Eucommia ulmoides BGL Gene

doi:10.13560/j.cnki.biotech.bull.1985.2025-1002

Abstract

Abstract:

Objective β-1,4-Glucanase (BGL) is an enzyme that hydrolyzes cellulose in the cell wall and effectively improves graft survival by promoting the healing between rootstock and scion. Elucidating the function of the BGL gene in Eucommiaulmoides is important for establishing an efficient grafting system and further investigating related gene functions. Method Plant expression vectors for the BGL gene, driven by the trauma-inducible promoter FAR6 and the auxin-inducible promoter GH3, were constructed, and transgenic plants were obtained through genetic transformation of E. ulmoides. Micrografting techniques were employed to compare survival rates among different scion-rootstock combinations; RT-qPCR was used to analyze the expression of wound-healing-related genes; and anatomical observations were conducted to evaluate callus formation and healing at the graft union. Result RT-qPCR results indicated that BGL expression was induced by wounding in transgenic FAR6::BGL plants and by auxin in GH3::BGL plants. Micrografting showed that the survival rate of FAR6::BGL scions (63.33%) was significantly higher than that of GH3::BGL (53.33%) and wild-type (WT) scions (33.33%). When FAR6::BGL plants were used as rootstocks grafted with WT scions, the survival rate reached 80%, significantly higher than that with WT rootstocks (30%). Furthermore, FAR6::BGL rootstocks promoted the expression of wound-healing-related genes (EuERF115-like, EuNAC1, and EuWOX13-2). Anatomical observations revealed more rapid callus formation and shorter wound-healing time at the graft junction. Conclusion Transgenic E. ulmoides rootstocks expressing FAR6::BGL significantly enhance micrografting survival rates, promote the expressions of wound-healing-related genes, and accelerate the graft union healing process, thereby providing a novel strategy to overcome challenges such as difficult rooting and low transplant survival in transgenic plants.

Key words: Eucommia ulmoides, β-1,4-glucanase gene, rootstock, micrografting, survival rate, scion, promoter

ZHANG Shan, SUN Zhi-peng, ZHAO De-gang, ZHAO Yi-chen. Developing Highly Efficient Grafting Rootstocks Based on Eucommia ulmoides BGL Gene[J]. Biotechnology Bulletin, 2026, 42(5): 292-301.

Figures/Tables 8

Table 1 Primer sequences

引物名称 Primer name	引物序列 Primer sequence （5′-3′）
GUS-F	GGTGATTGATGAAACTGCTG
GUS-R	GAACATTACATTGACGCAGG
β-1,4--F	ATGGGTTCTCCACTTACACAGTC
β-1,4--R	TTAAGGTGCTAAATGGATATTCTTG
EuActin-F	GTGTTATGGTTGGGATGGG
EuActin-R	TGCTGACTATGCCGTGTTC
β-1,4-qRT-F	GGTTTGGAGACCACTACCCG
β-1,4-qRT-R	GTGTGTTTGGGTTGGGTTCG
EuERF115-like-qRT-F	CATCGTCATCGTCATCATC
EuERF115-like-qRT-R	ACTAAGGTGGTCCATTGAG
EuNAC1-qRT-F	AAGGATCAGTTGGAGCTGCC
EuNAC1-qRT-R	AGACATTCCTGGAAGCTGCC
EuWOX13-2-qRT-F	GGTCTGAGGGCATGTGTTTT
EuWOX13-2-qRT-R	TTGGAGATATGGGTGGTGGT

Fig. 1 Acquisition and identification of transgenic E. ulmoides resistant budsA: E. ulmoides genetic transformation flow chart (a: Suspension culture. b: Co-culture. c: Screening culture. d: Induced callus. e: Resistant bud). B: GUS detection of transgenic E. ulmoides (WT: Wild type E. ulmoides. a: FAR6::BGLE. ulmoides. b: GH3::BGLE. ulmoides). C: PCR amplification of transgenic E. ulmoides (GUS gene:304 bp). M: DNA DL2 000 marker. 1-12: Transfer FAR6::BGL plants. 13-24: Transfer GH3::BGL plants

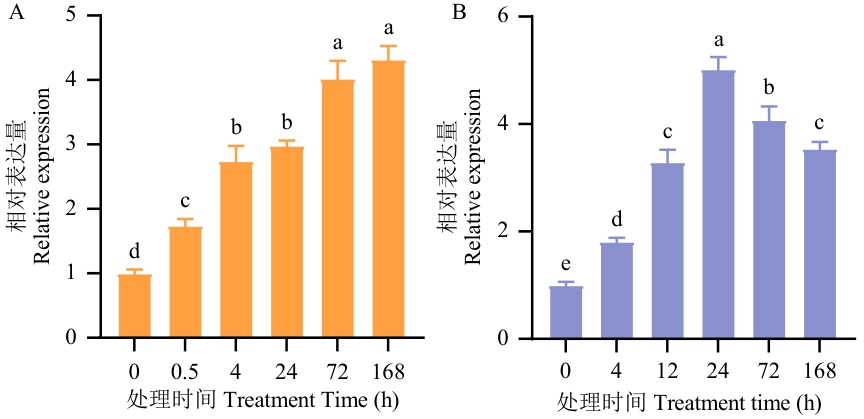

Fig. 2 Analysis of the relative expression of BGL gene in E. ulmoidesA: Injury treatment; B:10 μmol/L IAA treatment. Different lower letters indicate significant differences at P<0.05 level. The same below

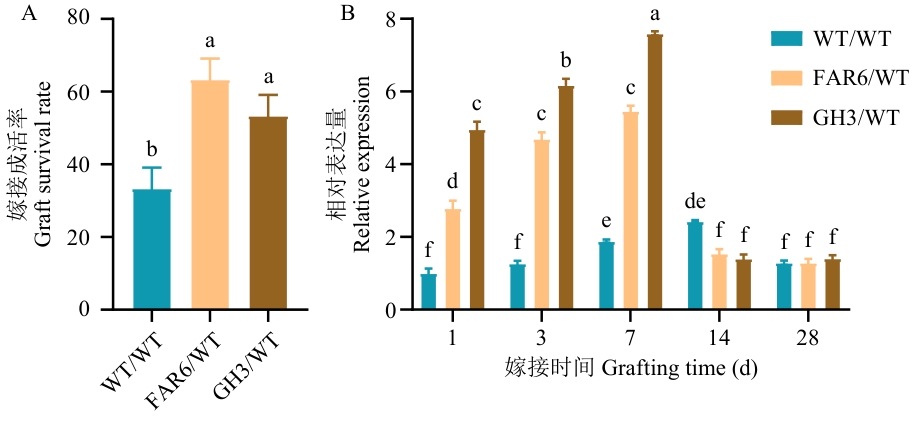

Fig. 3 Statistics of graft survival rate (A) and analysis of BGL gene expression (B)WT: Wild type E. ulmoides; FAR6: FAR6::BGLE. ulmoides; GH3: GH3::BGLE. ulmoides. The same below

Fig. 4 Acquisition and identification of transgenic E. ulmoides rootstocksA: Flow chart of genetic transformation of E. ulmoides by Agrobacterium injection (a: E. ulmoides seedlings. b: Remove the germ of E. ulmoides seedlings. c: Inject bacteria solution into E. ulmoides seedlings. d: E. ulmoides seedlings after 15 d of transformation. e: Converted E. ulmoides seedlings for two months). B: GUS detection of transgenic E. ulmoides (WT: Wild type E. ulmoides. TP: FAR6::BGLE. ulmoides). C: PCR amplification of transgenic E. ulmoides (GUS gene:304 bp) M: DNA DL 2 000 marker. 1-10: Transferring FAR6::BGL plant

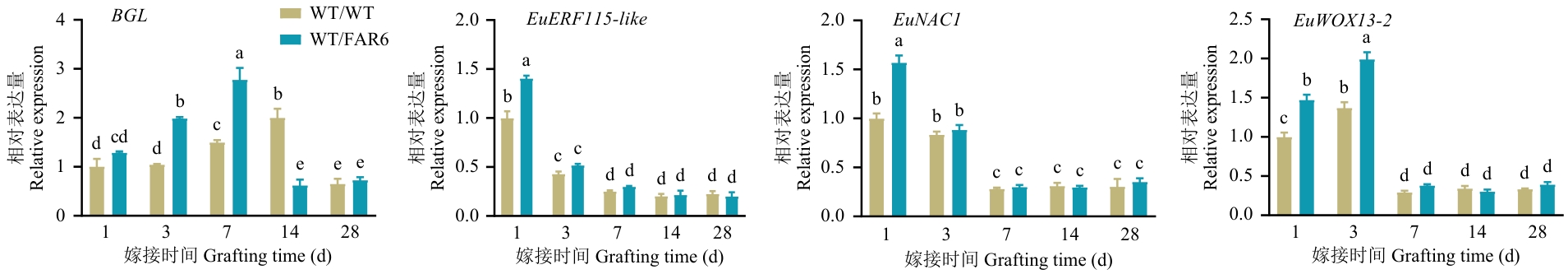

Fig. 5 Expression analysis of wound healing related genes in the scions of transgenic E. ulmoides rootstock

Fig. 6 Observation of the anatomy (A) and appearance and morphology (B) of the grafting and healing process of transgenic E. ulmoides rootstockSt: Rootstock. Sc: Scion. IL: Isolation layer. Ci: Callus. Ca: Cambium. V: Vascular

Table 2 Survival rate of E. ulmoides micrografting of different rootstocks

砧木类别

Rootstock type

嫁接株数

Number of grafis （plants）

存活株数

Number of survivors （plants）

成活率

Survival rate （%）

野生型杜仲

WT E. ulmoides

转FAR6::BGL杜仲

FAR6::BGL E. ulmoides

References 34

[1]	Qian CJ, Zhang RR, Li J, et al. The characteristics of habitat, functional traits and medicinal components of Eucommia ulmoides from Guizhou [J]. Environ Sci Pollut Res Int, 2022, 29(9): 12629-12647.
[2]	Qing J, Meng YD, He F, et al. Whole genome re-sequencing reveals the genetic diversity and evolutionary patterns of Eucommia ulmoides [J]. Mol Genet Genomics, 2022, 297(2): 485-494.
[3]	Du QX, Wu ZX, Liu PF, et al. The chromosome-level genome of Eucommia ulmoides provides insights into sex differentiation and α-linolenic acid biosynthesis [J]. Front Plant Sci, 2023, 14: 1118363.
[4]	赵丹, 赵德刚, 李岩. EuFPS基因表达载体构建及对杜仲遗传转化的研究 [J]. 基因组学与应用生物学, 2009, 28(1): 27-33.
	Zhao D, Zhao DG, Li Y. Studies on construction of EuFPS gene plant expression vector and Agrobacterium-mediated genetic transformation of Eucommia ulmoides oliv [J]. Genom Appl Biol, 2009, 28(1): 27-33.
[5]	王磊. 杜仲组培苗微嫁接技术研究 [D]. 贵阳: 贵州大学, 2023.
	Wang L. Study on micrografting technology of Eucommia ulmoides oliver tissue culture plantlets [D]. Guiyang: Guizhou University, 2023.
[6]	陈晶晶, 李栋梁, 杨倩, 等. 植物嫁接再生机理研究进展 [J]. 植物生理学报, 2020, 56(8): 1690-1702.
	Chen JJ, Li DL, Yang Q, et al. Research advances in the mechanism of plant graft regeneration [J]. Plant Physiol J, 2020, 56(8): 1690-1702.
[7]	范玉龙, 李兴群, 宋金修, 等. 蔬菜嫁接愈合过程及其光环境调控机制研究进展 [J]. 蔬菜, 2022(8): 42-48.
	Fan YL, Li XQ, Song JX, et al. Research progress on grafting healing process and light environment regulation mechanism of vegetables [J]. Vegetables, 2022(8): 42-48.
[8]	Nanda AK, Melnyk CW. The role of plant hormones during grafting [J]. J Plant Res, 2018, 131(1): 49-58.
[9]	Melnyk CW, Meyerowitz EM. Plant grafting [J]. Curr Biol, 2015, 25(5): R183-R188.
[10]	田敏娇, 李乐, 李建设, 等. 土壤改良剂和嫁接栽培对日光温室土壤性状与番茄品质产量的影响 [J]. 西南农业学报, 2020, 33(11): 2577-2583.
	Tian MJ, Li L, Li JS, et al. Effects of soil amendment and graft cultivation on soil and tomato yield and quality in solar greenhouse [J]. Southwest China J Agric Sci, 2020, 33(11): 2577-2583.
[11]	周洲. 不同中间砧长度对桃树营养生长和开花的影响 [J]. 中国果业信息, 2021, 38(6): 51.
	Zhou Z. Effects of different interstock lengths on vegetative growth and flowering of peach trees [J]. China Fruit News, 2021, 38(6): 51.
[12]	付深造, 任君, 王鑫, 等. 南瓜砧木嫁接对黄瓜品种DUS测试基本性状和果实品质指标的影响 [J]. 园艺学报, 2023, 50(12): 2665-2679.
	Fu SZ, Ren J, Wang X, et al. Effects of pumpkin rootstock grafting on the expressions of basic DUS characteristics and fruit quality indicators in cucumber [J]. Acta Hortic Sin, 2023, 50(12): 2665-2679.
[13]	朱瑜, 周信雁, 魏宇飞, 等. 嫁接对番茄植株根际微生物群落组成的影响 [J]. 西南农业学报, 2024, 37(1): 199-209.
	Zhu Y, Zhou XY, Wei YF, et al. Effects of grafting on soil microbial community compositions in rhizospheres of tomatoes [J]. Southwest China J Agric Sci, 2024, 37(1): 199-209.
[14]	刘益勇, 周亚东, 申磊, 等. 嫁接对茄子耐冷性的影响 [J]. 安徽农业科学, 2022, 50(13): 52-55, 58.
	Liu YY, Zhou YD, Shen L, et al. Effect of grafting on cold tolerance of eggplant [J]. J Anhui Agric Sci, 2022, 50(13): 52-55, 58.
[15]	Chai SM, Zhang XL, Gao YJ, et al. Identification and characterization of a novel endo-β-1, 4-glucanase from a soil metagenomic library [J]. Carbohydr Res, 2021, 510: 108460.
[16]	Goodridge HS, Wolf AJ, Underhill DM. β-glucan recognition by the innate immune system [J]. Immunol Rev, 2009, 230(1): 38-50.
[17]	Kurotani KI, Wakatake T, Ichihashi Y, et al. Host-parasite tissue adhesion by a secreted type of β-1, 4-glucanase in the parasitic plant Phtheirospermum japonicum [J]. Commun Biol, 2020, 3(1): 407.
[18]	Kurotani KI, Huang CK, Okayasu K, et al. Interfamily grafting capacity of Petunia [J]. Hortic Res, 2022, 9: uhab056.
[19]	王润英. 杜仲β-1,4葡聚糖酶基因克隆及酵母工程菌的制备 [D]. 贵阳: 贵州大学, 2022.
	Wang RY. Cloning of Eucommia ulmoides oliver β-1,4 glucanase gene and preparation of yeast engineering bacteria [D]. Guiyang: Guizhou University, 2022.
[20]	周舒婷, 董旋, 赵懿琛, 等. 农杆菌介导EuABP2基因遗传转化杜仲下胚轴研究 [J]. 山地农业生物学报, 2018, 37(3): 33-39.
	Zhou ST, Dong X, Zhao YC, et al. Genetic transformation of EuABP2 gene into the hypocotyl of Eucommia ulmoides oliv. [garryales: Eucommiaceae] via Agrobacterium-mediated method [J]. J Mt Agric Biol, 2018, 37(3): 33-39.
[21]	王玲, 董旋, 谭艾娟, 等. 转基因杜仲再生体系的优化 [J]. 种子, 2019, 38(5): 18-22, 27.
	Wang L, Dong X, Tan AJ, et al. Optimization of regeneration system of transgenic Eucommia ulmoides oliver [J]. Seed, 2019, 38(5): 18-22, 27.
[22]	王超. 杜仲直接转化法研究 [D]. 贵阳: 贵州大学, 2021.
	Wang C. Study on the direct transformation of Eucommia ulmoides oliver [D]. Guiyang, Guizhou University, 2021.
[23]	Pedersen GB, Blaschek L, Frandsen KEH, et al. Cellulose synthesis in land plants [J]. Mol Plant, 2023, 16(1): 206-231.
[24]	Yang L, Chen Y, Liu XJ, et al. Genome-wide identification and expression analysis of xyloglucan endotransglucosylase/hydrolase genes family in Salicaceae during grafting [J]. BMC Genomics, 2023, 24(1): 676.
[25]	胡瑞学. 玉米干旱诱导型基因启动子的克隆及功能分析 [D]. 长春: 吉林大学, 2011.
	Hu RX. Cloning and function analysis of the promoters of drought-induced genes from maize [D]. Changchun: Jilin University, 2011.
[26]	Jeong HJ, Jung KH. Rice tissue-specific promoters and condition-dependent promoters for effective translational application [J]. J Integr Plant Biol, 2015, 57(11): 913-924.
[27]	Nakashima K, Tran LP, Van Nguyen D, et al. Functional analysis of a NAC-type transcription factor OsNAC6 involved in abiotic and biotic stress-responsive gene expression in rice [J]. Plant J, 2007, 51(4): 617-630.
[28]	Wang L, Wang RY, Li Y, et al. Overexpression of β-1,4-glucanase gene EuEG1 improves micrografting of Eucommia ulmoides [J]. Phyton Int J Exp Bot, 2023, 92(11): 3063-3075.
[29]	Xu DB, Yang Y, Tao SC, et al. Identification and expression analysis of auxin-responsive GH3 family genes in Chinese hickory (Carya cathayensis) during grafting [J]. Mol Biol Rep, 2020, 47(6): 4495-4506.
[30]	Feng M, Zhang A, Nguyen V, et al. A conserved graft formation process in Norway spruce and Arabidopsis identifies the PAT gene family as central regulators of wound healing [J]. Nat Plants, 2024, 10(1): 53-65.
[31]	Zhang A, Matsuoka K, Kareem A, et al. Cell-wall damage activates DOF transcription factors to promote wound healing and tissue regeneration in Arabidopsis thaliana [J]. Curr Biol, 2022, 32(9): 1883-1894.e7.
[32]	陈铭秋, 刘果, 林彦, 等. 木本植物组织培养及器官从头再生的研究进展 [J]. 桉树科技, 2023, 40(4): 85-96.
	Chen MQ, Liu G, Lin Y, et al. Research progress in tissue culture and de novo organ regeneration of woody plants [J]. Eucalypt Sci Technol, 2023, 40(4): 85-96.
[33]	蔡方阳. 杜仲EuDIR4基因克隆及其对植物抗逆性影响研究 [D]. 贵阳: 贵州大学, 2021.
	Cai FY. Cloning of EuDIR4 gene from Eucommia ulmoides and its effect on plant stress resistance [D]. Guiyang: Guizhou University, 2021.
[34]	李兰君. 杜仲几丁质酶基因EuCHIT30.7克隆及功能分析 [D]. 贵阳: 贵州大学, 2023.
	Li LJ. Cloning and functional analysis of chitinase gene EuCHIT30.7 in Eucommia ulmoides [D]. Guiyang: Guizhou University, 2023.
